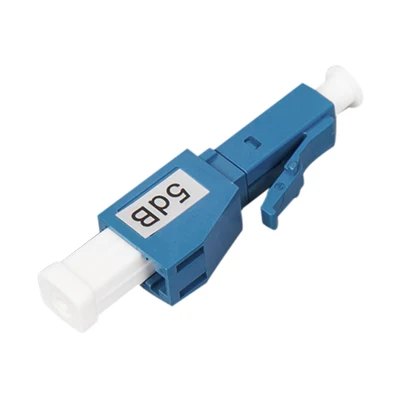

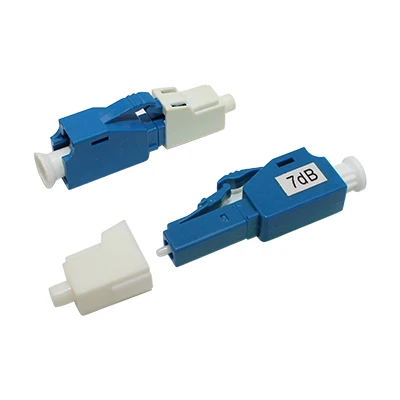

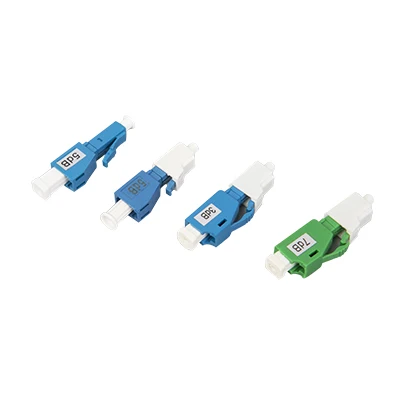

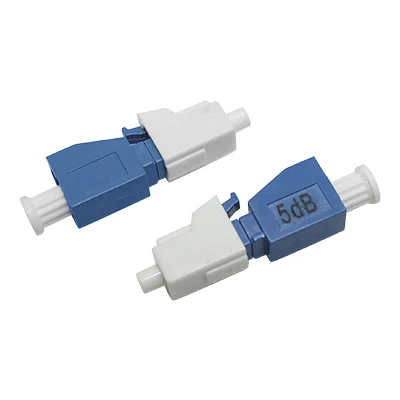

1dB 3dB 5dB 6dB 7dB 10dB 15dB 20dB 25dB LC UPC Волоконно-оптический
- Категория: >>>
- Поставщик: Shenzhen,Chuanglixun,Optoelectronic,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 2.25 $* | 2.13 $* |
| Aug-18-2025 | 2.42 $* | 2.52 $* |
| Jul-18-2025 | 2.84 $* | 2.39 $* |
| Jun-18-2025 | 2.32 $* | 2.62 $* |
| May-18-2025 | 2.19 $* | 2.52 $* |
| Apr-18-2025 | 2.80 $* | 2.39 $* |
| Mar-18-2025 | 2.90 $* | 2.59 $* |
| Feb-18-2025 | 2.15 $* | 2.33 $* |
| Jan-18-2025 | 2.2 $* | 2.31 $* |
Характеристики
Product Description
Feature
Low insertion loss and high return loss
High reliability, and save maintenance cost
Pre-embedded fiber is polished in high quality
Can be reusable with easy disassembly and assembly
Can work stably in harsh environment, like severe coldness and dust, high temperature, high humidity, etc
Few special installation tools required, installation is simple and fast, with less than 20 seconds averagely; low technical requirements for the operators
High reliability, and save maintenance cost
Pre-embedded fiber is polished in high quality
Can be reusable with easy disassembly and assembly
Can work stably in harsh environment, like severe coldness and dust, high temperature, high humidity, etc
Few special installation tools required, installation is simple and fast, with less than 20 seconds averagely; low technical requirements for the operators
Applications
Telecommunication networks
FTTX, FTTH (Fiber to the Home)
Fiber testing and testing equipment
FTTH Drop Cable, 86 socket outlet, and ONU
FTTX, FTTH (Fiber to the Home)
Fiber testing and testing equipment
FTTH Drop Cable, 86 socket outlet, and ONU
Description
Fiber Optic Attenuator is one kind of optical passive device which is used to debug the performance of the optical power in the optical communication system,debugging fiber optic instrument calibration correction, optical signal attenuation.And used for the attenuation of the input optical power, avoid optical receiver distortion due to input optical power powerful. The fixed fiber optic attenuator can achieve the dual function of adapter and attenuators.
Product Paramenters
Product type | Coupler Attenuator Male to Female |
Operation wavelength | SM: 1200 to 1600nm or 1310/1550nm |
MM: 850nm, 1300nm | |
Return Loss | ≥ 50 db (PC) |
≥ 55 db (UPC) | |
≥ 65 db (APC) | |
Attenuation Accuracy | +/-0.5 db for 1 to 5db attenuation |
+/-10% for 6 to 30db attenuation | |
Polarization Dependent loss | ≤ 0.2db |
Mechanical endurance | >1000 |
Maximum optical Input power | 200MW |
Operating Temp Range | -40 to + 80degree |
Ordering Options
AT- | A | B | C | D | E | F | G |
Attenuator | LP=LC/UPC | M= Male F= Female | LP=LC/UPC | M= Male F= Female | SM=Single Mode MM=Multi mode | 1dB ...... 9dB 10dB 15dB 20dB 25dB 30dB | 31= 1310nm 55= 1550nm 85= 850nm 30= 1300nm |
LA=LC/APC | LA=LC/APC | ||||||
FP=FC/UPC | FP=FC/UPC | ||||||
FA=FC/APC | FA=FC/APC | ||||||
SP=SC/UPC | SP=SC/UPC | ||||||
SA=SC/APC | SA=SC/APC | ||||||
ST=ST/UPC | ST=ST/UPC | ||||||
MU-MU/UPC | MU-MU/UPC |
For Example about full attenuator description : SC/UPC Single mode Female to male 3dB 1310/1550nm Build Out Fiber Optical Attenuator.
Recommend Products
Delivery&Packing
Company Profile
FAQ
1.Are you a factory or a trader？
-we are factory.
2.What is your MOQ?
-MOQ 1 piece.
3.Do you provide sample services？
-Yes, we will provide samples(Samples at prices announced by chuanglixun).
4.How will you ship to me?
- We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5.How do we pay
-Book in advance or multiple payment methods such as T / T and T / L.
6.How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7.Do you provide customized services？
-Yes, we provide customized services, According to customer requirements and description.
-we are factory.
2.What is your MOQ?
-MOQ 1 piece.
3.Do you provide sample services？
-Yes, we will provide samples(Samples at prices announced by chuanglixun).
4.How will you ship to me?
- We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5.How do we pay
-Book in advance or multiple payment methods such as T / T and T / L.
6.How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7.Do you provide customized services？
-Yes, we provide customized services, According to customer requirements and description.
