Китайская фабрика высокоэффективные ветряные турбины на 1 кВт для

Китайская фабрика высокоэффективные ветряные турбины на 1 кВт для

Категория: Альтернативные генераторы электроэнергии >>>
Поставщик: Wuxi,Longmax,Technology,Co.,Ltd.

Цена:450,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	536.8 $*	563.15 $*
Aug-20-2025	531.29 $*	558.62 $*
Jul-20-2025	446.58 $*	468.99 $*
Jun-20-2025	522.77 $*	548.93 $*
May-20-2025	455.41 $*	478.29 $*
Apr-20-2025	513.89 $*	539.68 $*
Mar-20-2025	509.28 $*	534.30 $*
Feb-20-2025	504.86 $*	529.78 $*
Jan-20-2025	500.86 $*	525.85 $*

Характеристики

Product Description

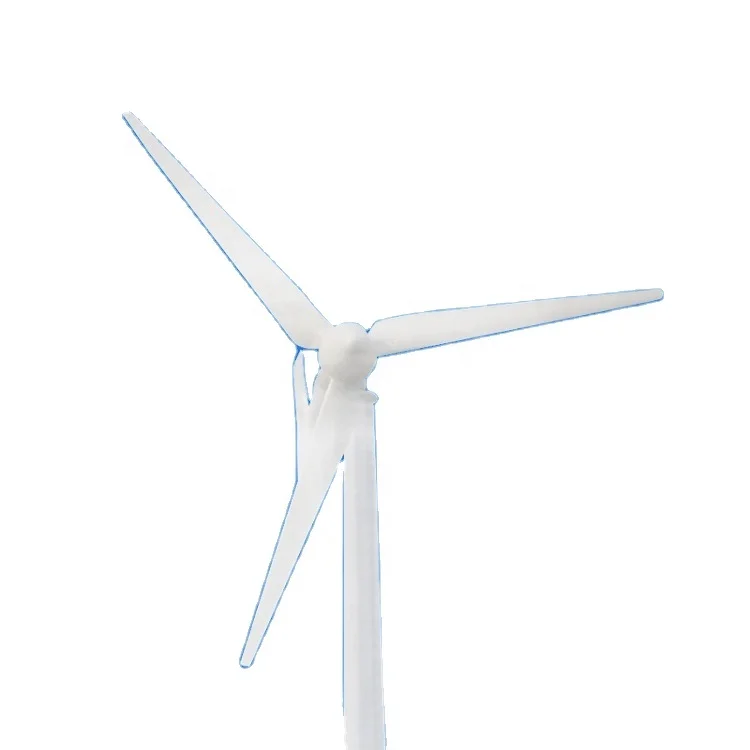

Reinforced Blades Wind Generator Wind Turbine 1kw 3000w Wind Turbine 48V 96V

1. Safety: the main stress point of the blade is concentrated on the hub, so the problems of blade falling off, fracture and blade flying out are solved;

2. Wind resistance: horizontal rotation makes it less wind pressure, and can resist the super typhoon of 40 meters per second;

3. Radius of gyration: due to the difference of design structure and operation principle, it has smaller turning radius than other forms of wind power generation, which saves space and improves efficiency at the same time;

4. Characteristics of power generation curve: the starting wind speed is lower than that of other types of wind turbines, and the rising range of generating power is relatively gentle. Therefore, in the wind speed range of 5-8m, its power generation capacity is 10% - 30% higher than that of other types of wind turbines;

Application

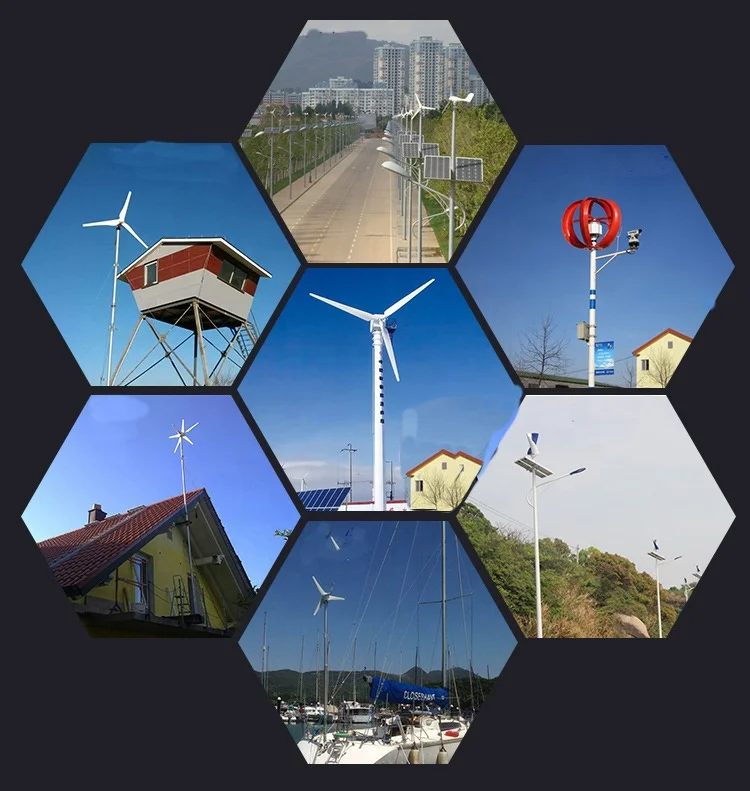

This 1kw-3kw small wind generator with CE certificate for hybrid system could be used for homes,farms,schools,small industrial mills,landscape facilities,hotels,vocational villages,bases and remote communication.

Model	XTL-1000L	XTL-1500L	XTL-2000L	XTL-2500L	XTL-3000L
Rated power	1000W	1500W	2000W	2500W	3000W
Max power	1200W	1700W	2300W	2800W	3300W
Nominal voltage	48V	48V	48V/96V	48V/96V	96V
Start-up wind speed	2.5m/s	2.5m/s	2.5m/s	2.5m/s	2.5m/s
Rated wind speed	11m/s	11m/s	11m/s	11m/s	11m/s
Survival wind speed	45m/s	45m/s	45m/s	45m/s	45m/s
Wind wheel diameter	2.7m	3.2m	3.7m	4m	4.3m
Number of blades	3	3	3	3	3
Net weight	45kg	50kg	55kg	60kg	65kg
Blades material	Nylon fiber or FRP
Generator	Three phase ac permanent magnet generator
Controller system	Electromagnetict/wind wheel yaw
Speed regulation	The wind Angle automatically
Working Temperature	-40℃～80℃

High temperature resistant Teflon copper wire
When the generator starts, the torque is low and the conversion rate is high
High temperature resistant Teflon wire is adopted, which is not easy to burn out when the generator is overloaded and heated

Oxidation treatment of hub surface

The surface of the wheel hub is sprayed with plastic oxidation treatment, which can enhance the corrosion resistance, and is beautiful and durable

Double groove ball bearing is thicker, using double groove ball bearing, when the machine is running, it is not easy to shake

Convenient flange design
Use humanized flange design, convenient installation and maintenance
