От производителя высокое качество лучшие продажи дешевой цене малых грохот
- Категория: Минеральный сепаратор >>>
- Поставщик: Jiangxi,Walker,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 3570.92 $* | 3749.31 $* |
| Aug-15-2025 | 3540.62 $* | 3717.74 $* |
| Jul-15-2025 | 2970.15 $* | 3119.61 $* |
| Jun-15-2025 | 3480.44 $* | 3654.79 $* |
| May-15-2025 | 3030.76 $* | 3182.81 $* |
| Apr-15-2025 | 3420.62 $* | 3591.26 $* |
| Mar-15-2025 | 3390.22 $* | 3560.32 $* |
| Feb-15-2025 | 3360.28 $* | 3528.51 $* |
| Jan-15-2025 | 3330.11 $* | 3497.53 $* |
Характеристики
Product Description

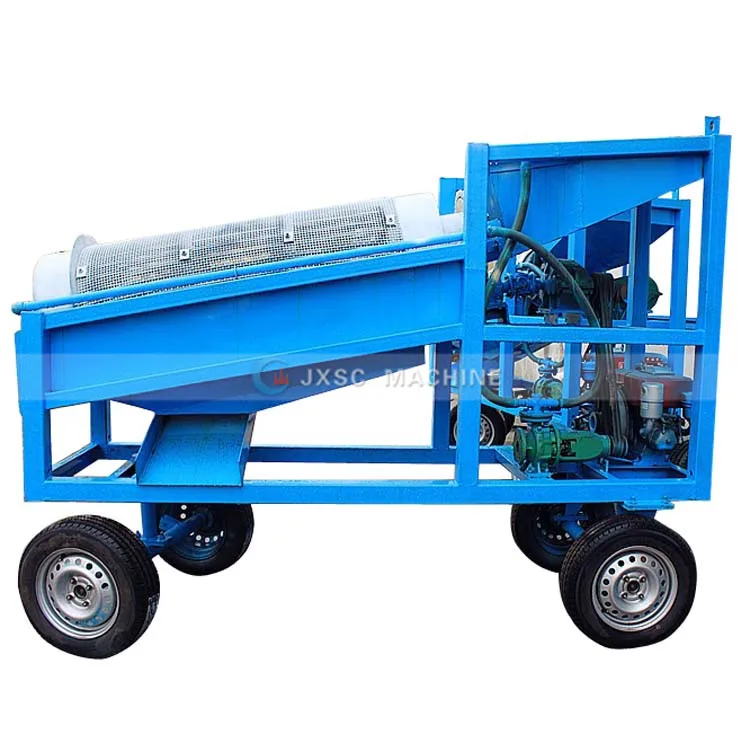

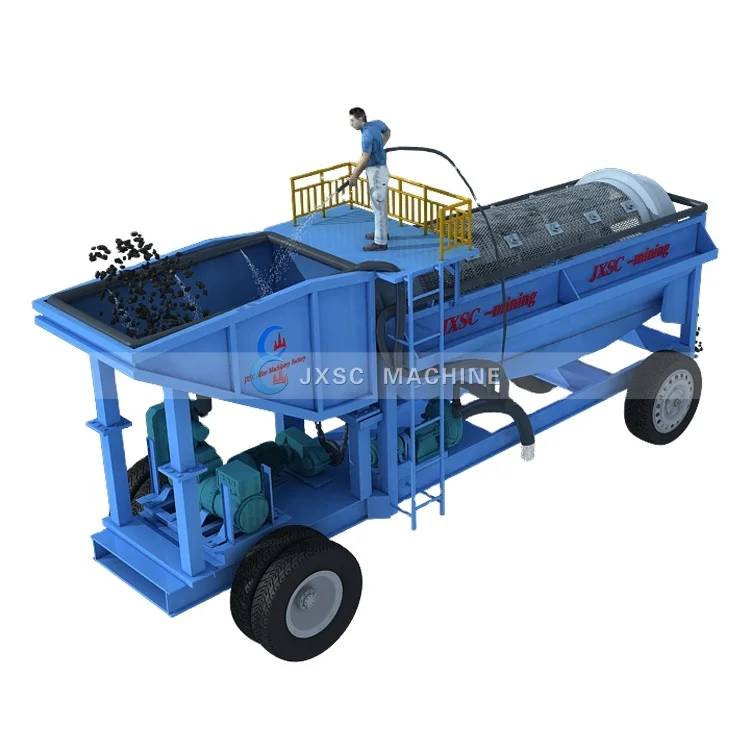

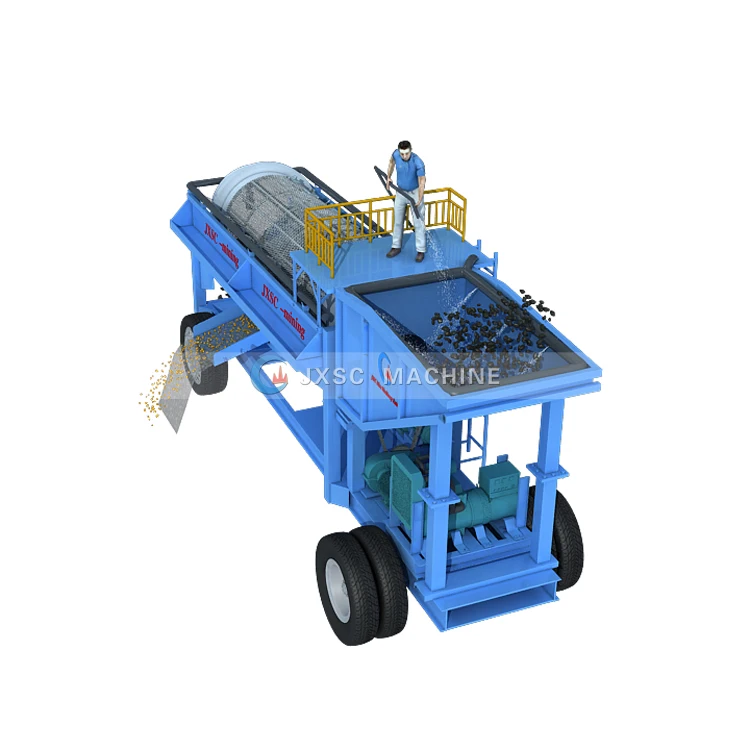

◆ Mobile Trommel Screen Introduction

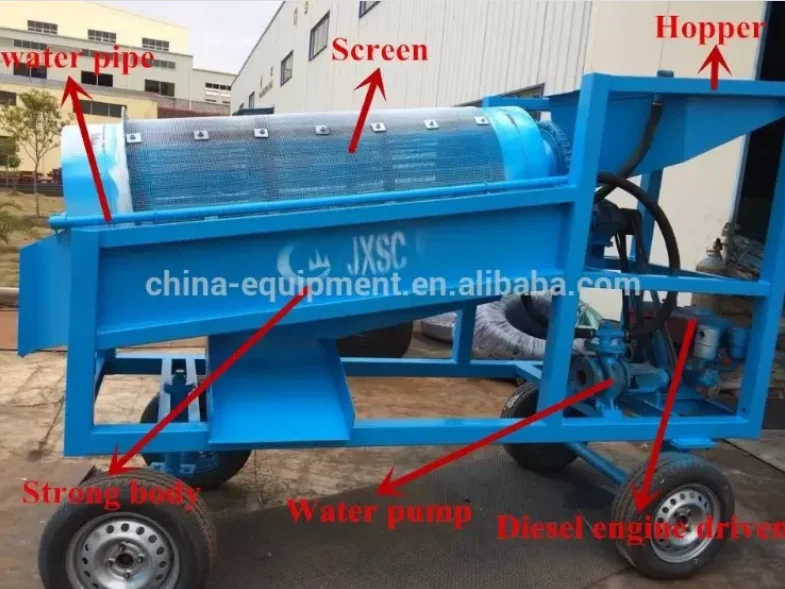

Mobile trommel screen is designed for alluvial/placer gold ore processing, it's consist of a half covered trommel screen, one diesel engine/ electric motor, water pump& water pipes, and other facilities such as the feeding hoper and the mobile system. This mobile trommel machine normally works together with sluice box , gold centrifugal concentrator and shaking table to form a complete ore concentration plant.
● It has been widely used for alluvial gold, placer gold, tantalite, niobite, and tin ore concentration.
● It is very popular in Africa, Asia, South America due to its easy to move and easy operation, low cost.
● It has been widely used for alluvial gold, placer gold, tantalite, niobite, and tin ore concentration.
● It is very popular in Africa, Asia, South America due to its easy to move and easy operation, low cost.
The movable gold trommel offers the portability of smaller alluvial gold washing plant, or as trial processing before large scope
investment. it's very easy to operate and maintain, only takes 10 minutes to install and can be accomplished by a single person.
it is a very small investment, and pay back very soon.
investment. it's very easy to operate and maintain, only takes 10 minutes to install and can be accomplished by a single person.
it is a very small investment, and pay back very soon.

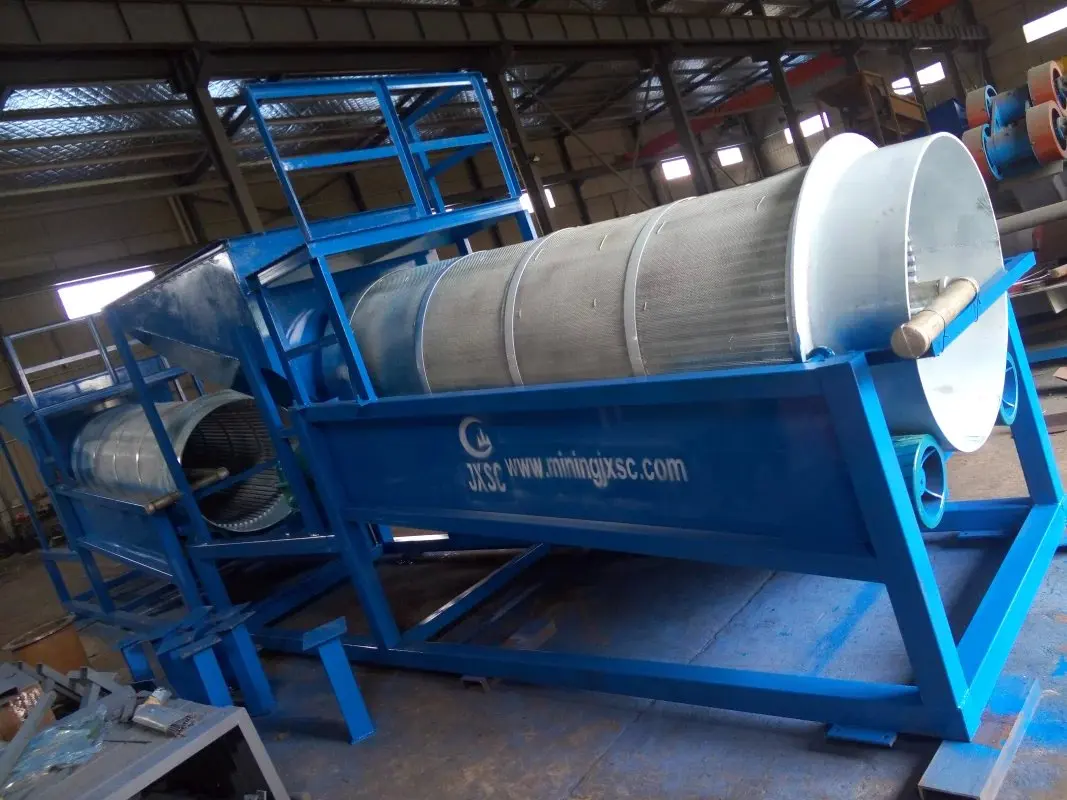

◆ Production photos of all kinds of designs in JXSC factory workshop.

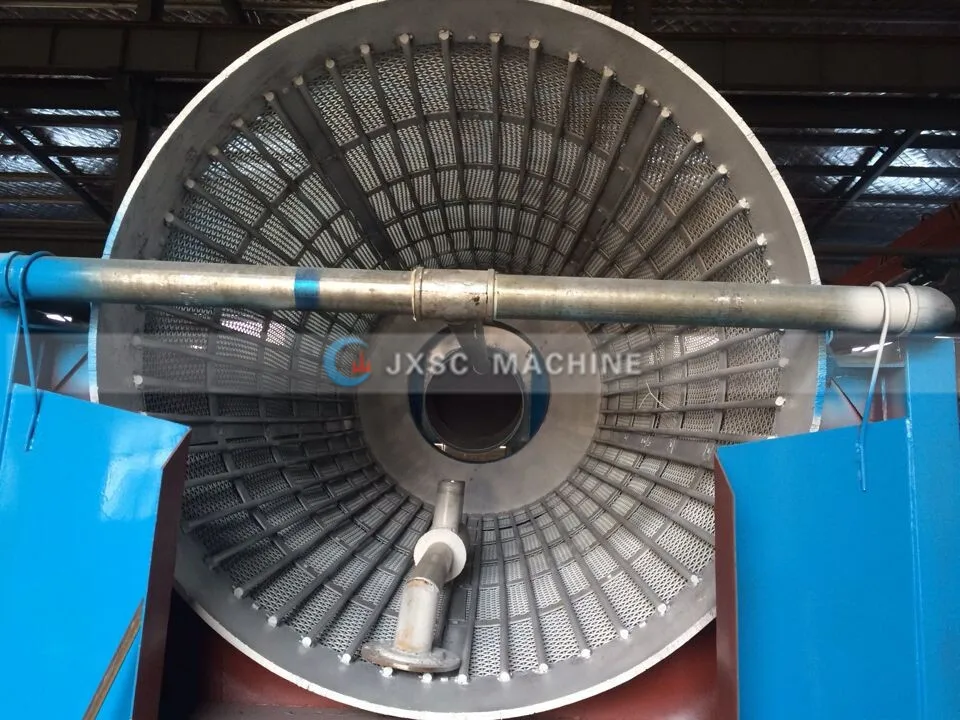

1.The material of screen has 4 kinds,they are: raw steel, high manganese steel, stainless steel, PU.
2.The quantity of screen layer can be made 1 layer or 2 layers,it depends on the number of particle size customer need.
3.The screen mesh size can be set between 3- 10mm,it depends on the size customer want to get.
2.The quantity of screen layer can be made 1 layer or 2 layers,it depends on the number of particle size customer need.
3.The screen mesh size can be set between 3- 10mm,it depends on the size customer want to get.
Technical parameters
model | capacity | power | sieve tube diameter | sieve tube length | under the screen size | envelop dimendions | weight |
GT1015 | 50 | 4 | 1000 | 1500 | ≤3-10 | 3000*1400*2145 | 2200 |
GT1020 | 100 | 5.5 | 1000 | 2000 | 3460*1400*2145 | 2800 | |
GT1225 | 160 | 7.5 | 1200 | 2500 | 4146*1600*2680 | 4200 | |
GT1530 | 250 | 11 | 1500 | 3000 | 4460*1900*2820 | 5100 | |
GT1545 | 350 | 15 | 1500 | 4500 | 5960*1900*3080 | 6000 | |
GT1848 | 450 | 22 | 1800 | 4800 | 6500*2300*4000 | 7500 | |
GT2055 | 600 | 30 | 2000 | 5500 | 7500*2500*4000 | 8600 |
Successful cases
◆ 20t/h alluvial gold plant in Sudan
Order date: November,2018Ore process: Alluvial gold ore
Capacity: 20t/h
Site plant: In Sudan
Raw ore info:
Order date: November,2018Ore process: Alluvial gold ore
Capacity: 20t/h
Site plant: In Sudan
Raw ore info:
(1) Raw ore without sticky clay;
(2)Max feeding size is 50mm;
(3) Particle size of gold concentrate is 0-2mm;
(4)There is no gold between 5-50mm.
JXSC designed solution and provided full sets of equipment for the whole plant.
machines:trommel screen,sluice box, belt conveyor,shaking table ,centrifugal,pumps,etc
(4)There is no gold between 5-50mm.
JXSC designed solution and provided full sets of equipment for the whole plant.
machines:trommel screen,sluice box, belt conveyor,shaking table ,centrifugal,pumps,etc
We have provided the gold washing trommel,for many customers in Sudan,Mali, Mozambique, Nigeria, Suriname, Ghana, South Africa,Uganda, Zambia, Tanzania, Angola, Canada, Austrialia, Chile, Peru,ect. For Alluvail gold washing plant, coltan ore mining plant,diamond washing plant, Iron ore washing plant,ect.
Packing & Delivery
◆ Ways of packing
1.Small parts packed in the wooden cases2.Big parts packed by plastic membrane.
3.The whole big machine is loaded in the container.
3.The whole big machine is loaded in the container.
◆ Shiping by sea/air freight
or any way the customer requires.
Company Profile
◆ Jiangxi walker Machinery Co.,Ltd
Jiangxi walker Machinery Co.,Ltd, are a professional manufacturer of complete set mining equipments, a sub-company of JXSC mine machinery factory in Jiangxi province.professional at providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, ect. As well as complete set small lab mining machines.
Jiangxi walker Machinery Co.,Ltd, are a professional manufacturer of complete set mining equipments, a sub-company of JXSC mine machinery factory in Jiangxi province.professional at providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, ect. As well as complete set small lab mining machines.
1.Inquiry and consulting support.
2.Ore sample testing support.
3.View our Factory.
4.Design Flowchart.
2.Ore sample testing support.
3.View our Factory.
4.Design Flowchart.
1.Training how to instal the machine, training how to use the machine.
2. 1 year warranty .
3.Engineers available to service machinery overseas.
2. 1 year warranty .
3.Engineers available to service machinery overseas.
FAQ
1.How is the quality of your products?(mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we made before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice; Finished product pictures will be provided to customers before delivery.
If you are interested in our products, please don't hesitate to contact us. Could you tell me the following questions, so that I can give you a complete solution, including best Exw-works Price Quotation!
1. Which machine do you need? like gold washing machine, spiral chute, vibrating screen, Jig separator, Shaking table, etc.
2. What is your raw ore that you plan to process? like gold ore, diamond ore, tantalite or silica sand, etc.
3. What is the capacity you need? Like 10 tones per hour.
4. What is the feeding size to the machine? and what is the discharging-material size that you require?
Sincerely welcome to send your inquiry,you can get best quotation and professional service.
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we made before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice; Finished product pictures will be provided to customers before delivery.
If you are interested in our products, please don't hesitate to contact us. Could you tell me the following questions, so that I can give you a complete solution, including best Exw-works Price Quotation!
1. Which machine do you need? like gold washing machine, spiral chute, vibrating screen, Jig separator, Shaking table, etc.
2. What is your raw ore that you plan to process? like gold ore, diamond ore, tantalite or silica sand, etc.
3. What is the capacity you need? Like 10 tones per hour.
4. What is the feeding size to the machine? and what is the discharging-material size that you require?
Sincerely welcome to send your inquiry,you can get best quotation and professional service.
