Полностью автоматический поставщик бумажных соломинок Филиппинская бумага 60 г/м2

Описание и отзывы

Трекер стоимости

Характеристики

Automatic Paper Straw Making Machine for drinking Paper pipe

Please find our machine specification and payment term as below:



Payment	TT/LC
Delivery	60-120 days

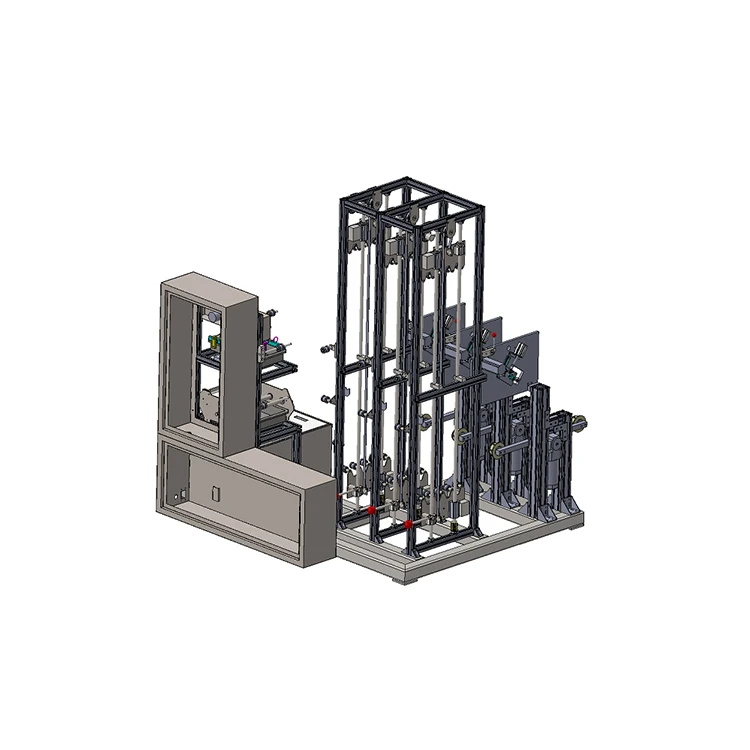

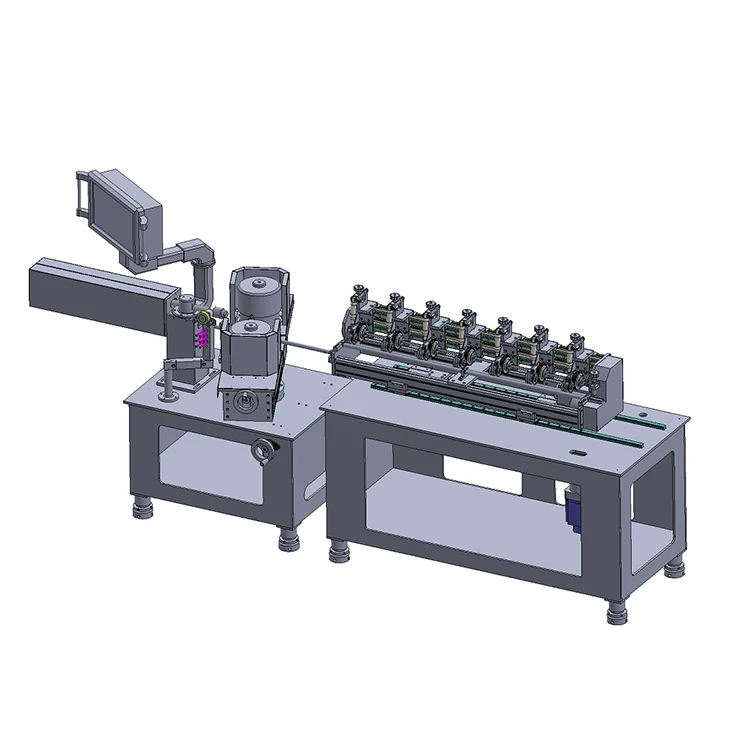

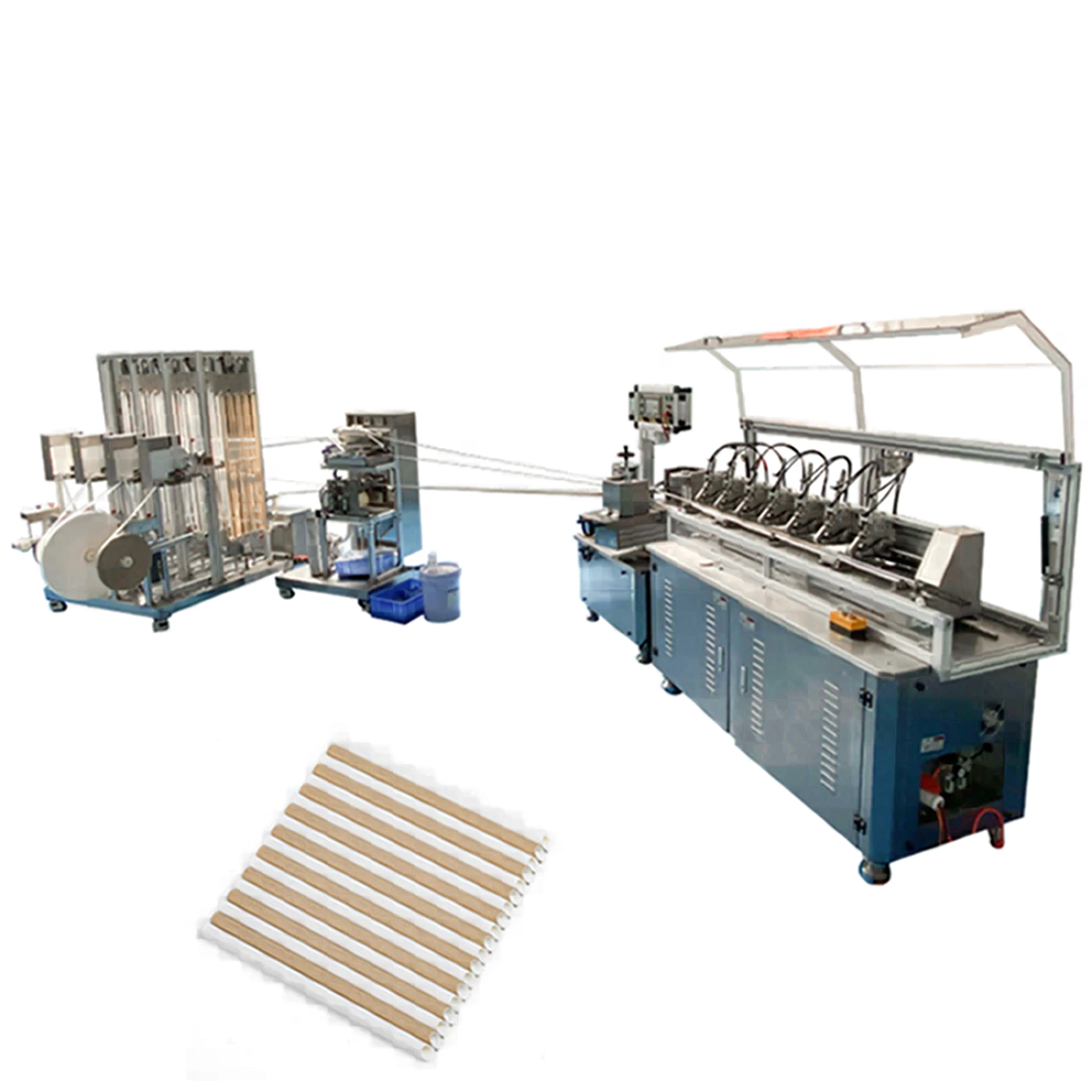

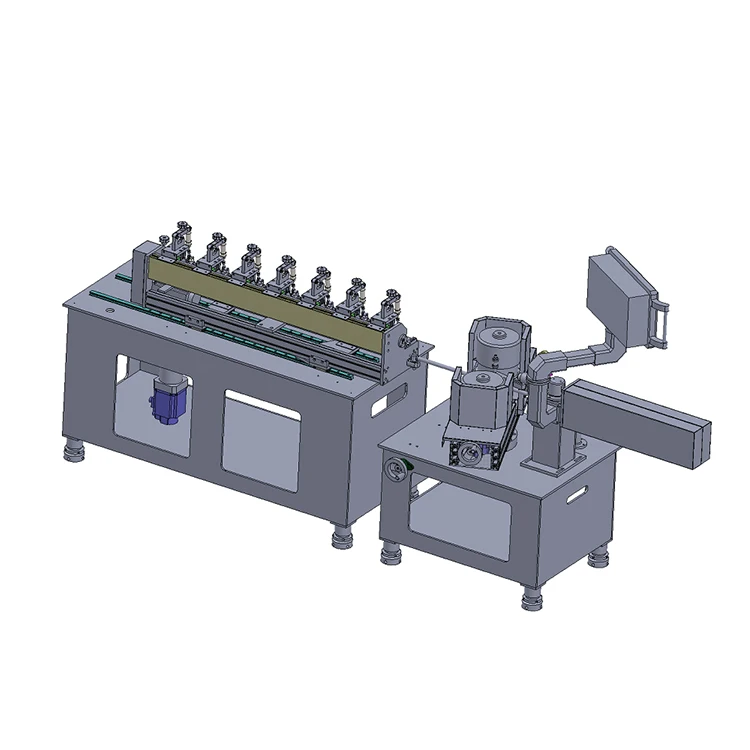

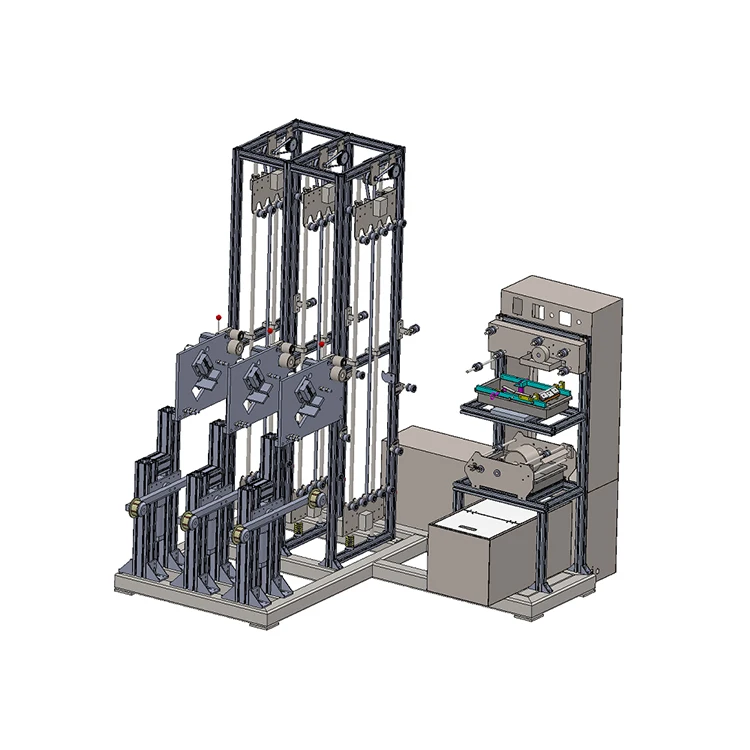

The high-speed paper straw machine integrates paper feeding, gluing, winding and cutting into a whole, and is equipped with a CNC multi-knife cutting system. The finished paper pipe can be cut online. 6 mm; 8 mm; 10 mm, etc. 1. The machine is controlled by PLC, and the main machine is equipped with frequency conversion and speed adjustment. 2. The cutting part adopts the servo multi-cutter cutting system, which can synchronously follow the cutting of motor, with higher accuracy and time-saving efficiency. 3. The body and main accessories are made of stainless steel to ensure the product's health and environmental protection



Cut the pipe length	120-850 MM
Production speed	10-50M/MIN
Pipe cutting way	58X38X1.5
The gluing way	Use two sets of independent electric rubber basin glue
Main motor	1.5KW
Servo motor	2KW
Size of the host	3250*1100*1450
Covers an area of	7200*4800*1500
