Домик для кошек из Филимону инструмент TDS-100H батарея портативный ультразвуковой расходомер с зажимом на


Поделиться:


Цена:280,00 $ - 300,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-20-2025 333.89 $* 350.45 $*
Aug-20-2025 330.90 $* 347.24 $*
Jul-20-2025 277.39 $* 291.4 $*
Jun-20-2025 325.30 $* 341.38 $*
May-20-2025 283.51 $* 297.32 $*
Apr-20-2025 319.25 $* 335.3 $*
Mar-20-2025 316.81 $* 332.50 $*
Feb-20-2025 314.45 $* 330.24 $*
Jan-20-2025 311.72 $* 327.93 $*

Характеристики

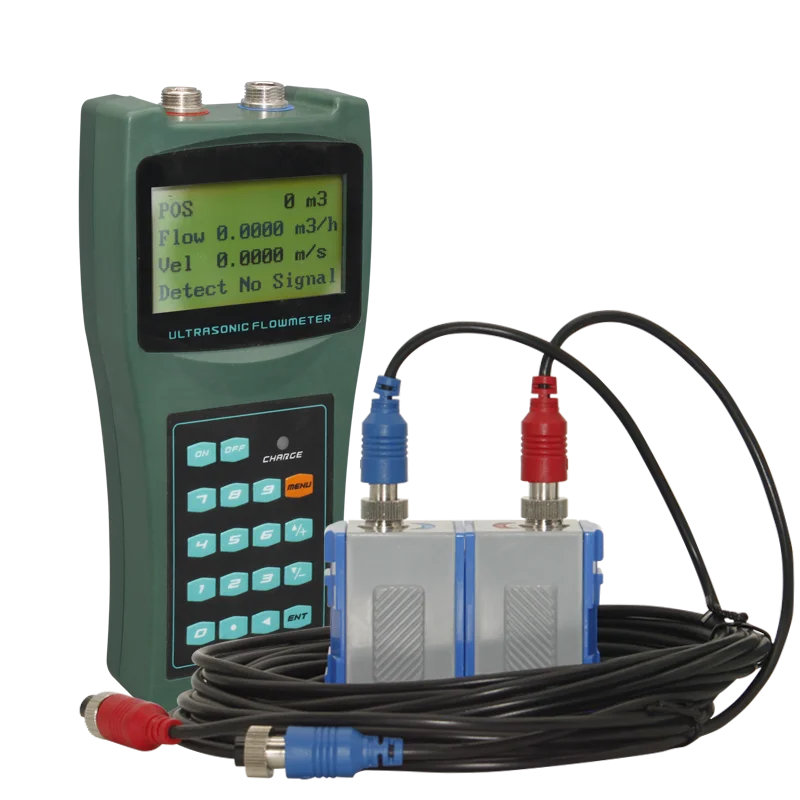

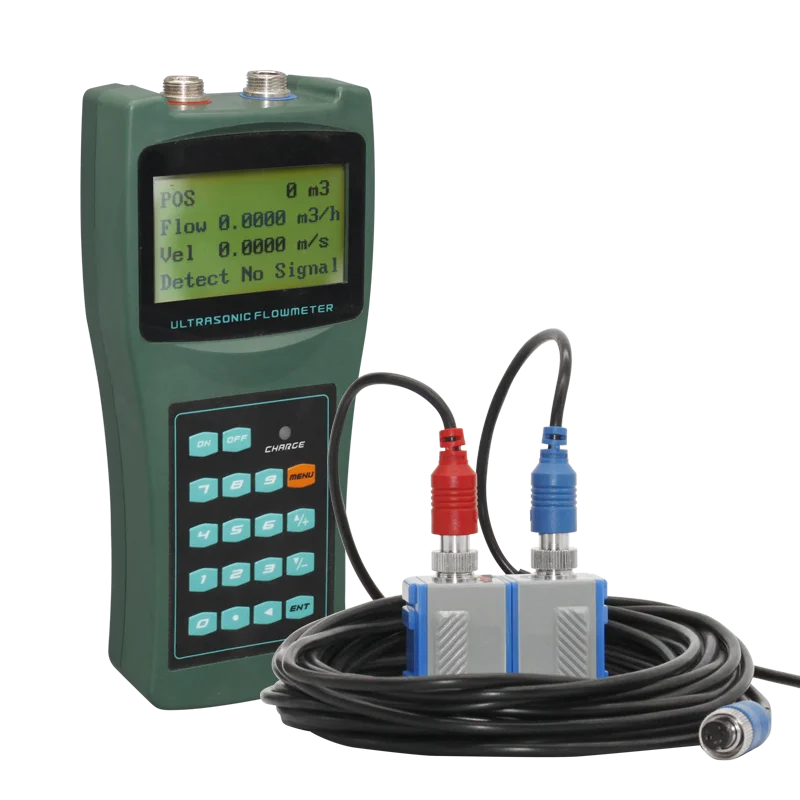

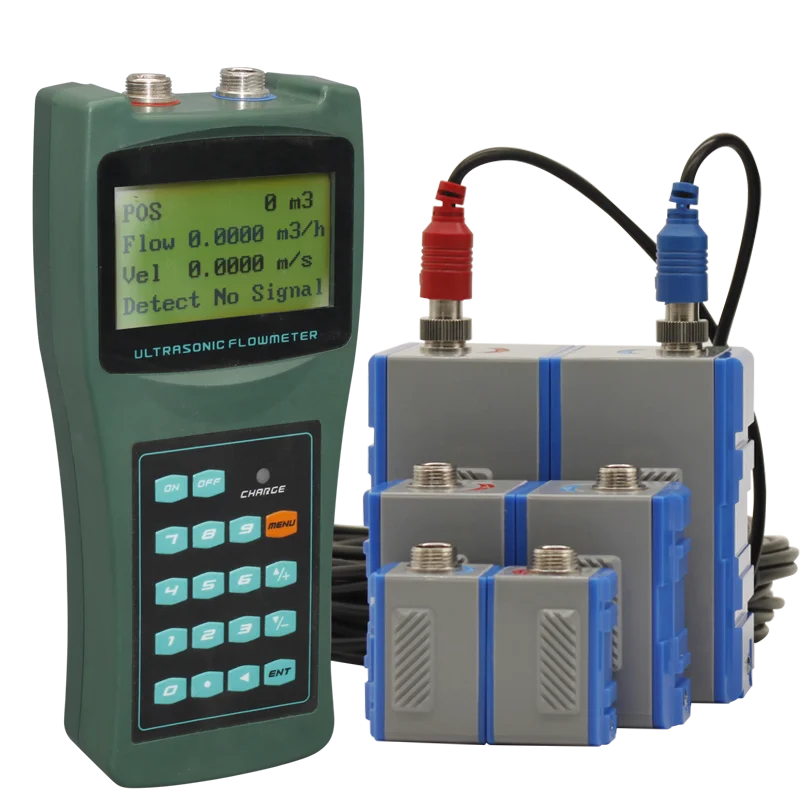

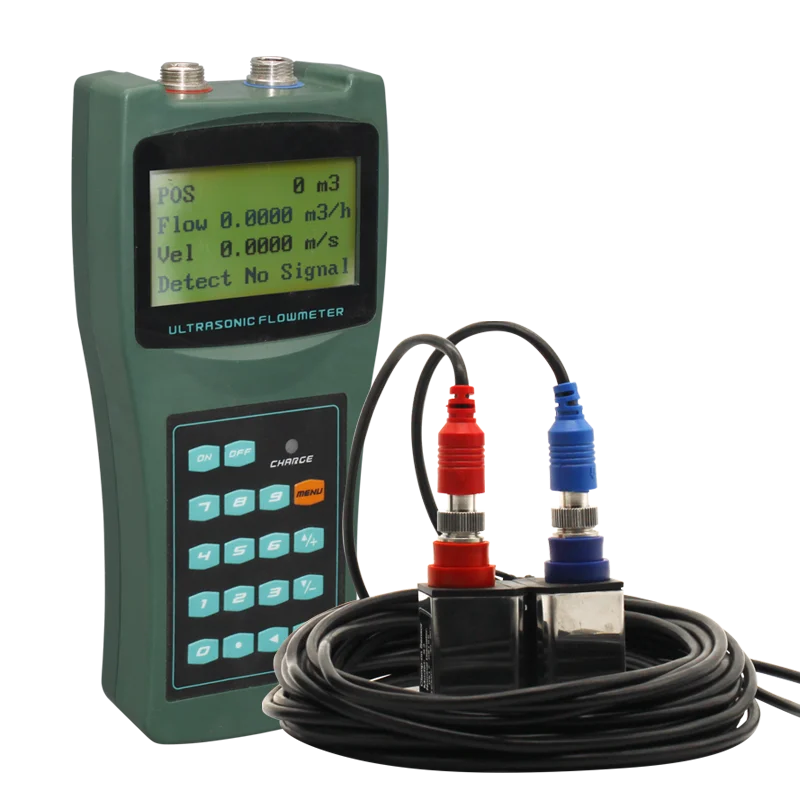

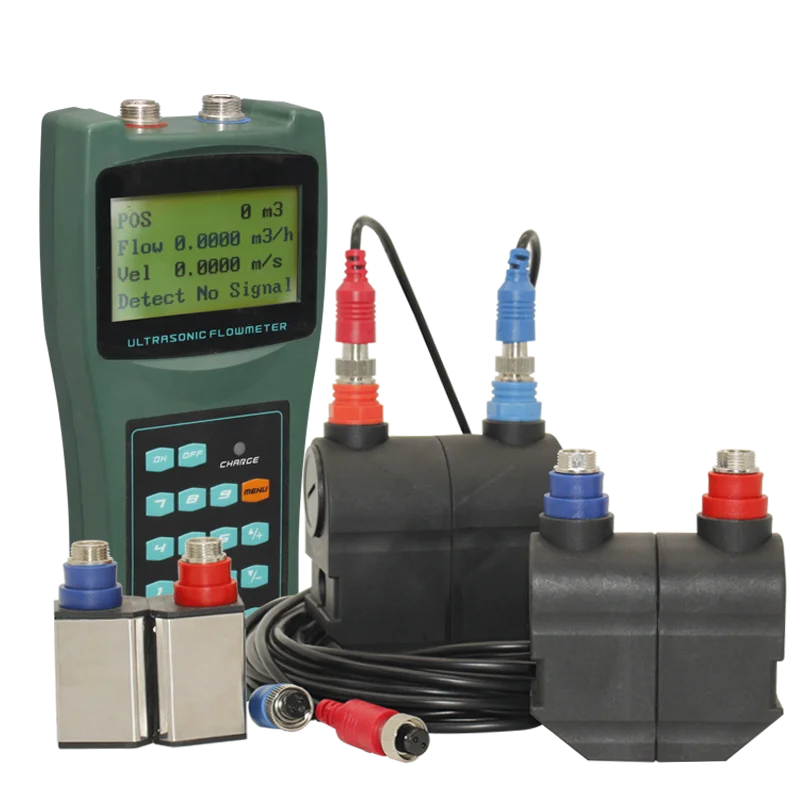

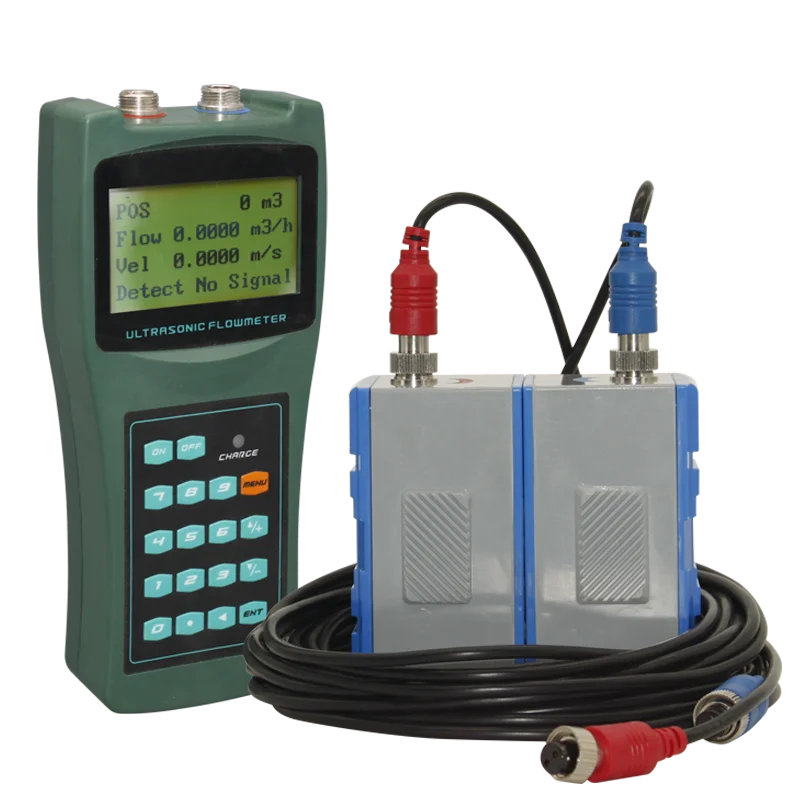

Kaifeng Philemon Instrument TDS-100H Battery Handheld Ultrasonic Flow Meter Clamp On Sensor

Ultrasonic flowmeter (1)

Ultrasonic flowmeter (2)

Ultrasonic flowmeter (3)

Ultrasonic flowmeter (4)

Ultrasonic flowmeter (5)


SPECIFICATIONS





















































































Linearity0.5%
Repeatability0.2%
Accuracy±1% of reading at rates>0.2 mps
Response Time0-999 seconds, user-configurable
Velocity±32 m/s
Pipe SizeDN15mm-6000mm
Rate UnitsMeter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallons. Users configurable
Totalizer7-digit totals for net, positive and negative flow respectively
Liquid TypesVirtually all liquids
SecuritySetup values Modification Lockout. Access code needs unlocking
Display4x8 Chinese characters or 4x16 English letters
Communication InterfaceRS-232C, baud-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made on enquiry.
TransducersModel M1 for standard, other 3 models for optional
Transducer Cord LengthStandard 2x5 meters, optional 2x 10 meters
Power Supply3 AAA Ni-H built-in batteries. When fully recharged it will last over 10 hours of operation.100V-240VAC for the charger
Data LoggerBuilt-in data logger can store over 2000 lines of data
Manual Totalizer7-digit press-key-to-go totalizer for calibration
Housing MaterialABS
Case Size100x66x20mm
Handset Weight514g (1.2 lbs) with batteries




Ultrasonic flowmeter (6)

Ultrasonic flowmeter (7)


Carbon steel,stainless steel,cast-iron,copper,aluminum,FRP and other


uniform pipeline,liner is allowable.



Ultrasonic flowmeter (8)


Adopt high-precision calibration equipment, professional EMC test equipment, regularly sent to the national quality institute for inspection, strict control production process.






Ultrasonic flowmeter (9)

Ultrasonic flowmeter (10)



1. V-method Installation

V-method installation is the moswidely used mode for daily measurement with pipe inner diameters ranging from 15 millimeter to 200 millimeter. It is also called reflective mode or method.

Ultrasonic flowmeter (11)

2. Z-method Installation

Z-method is commonly used when the pipe diameter is between 300 millimeters and 500 millimeters.

Ultrasonic flowmeter (12)

3. W-method Installation

W-method is usually used on plastic pipes with a diameter from 15 millimeters to 100 millimeters.

Ultrasonic flowmeter (13)
