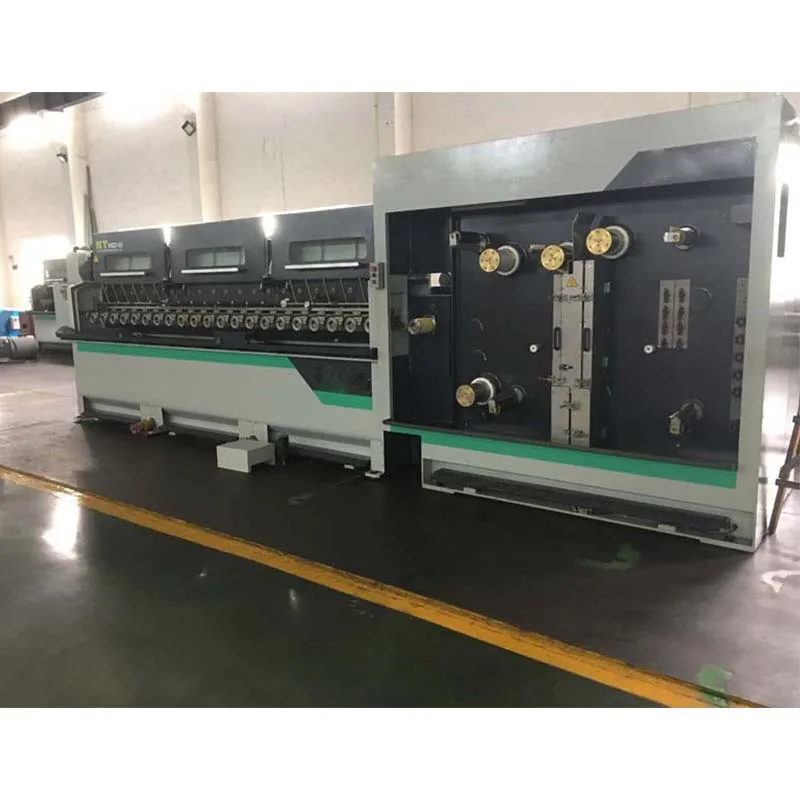

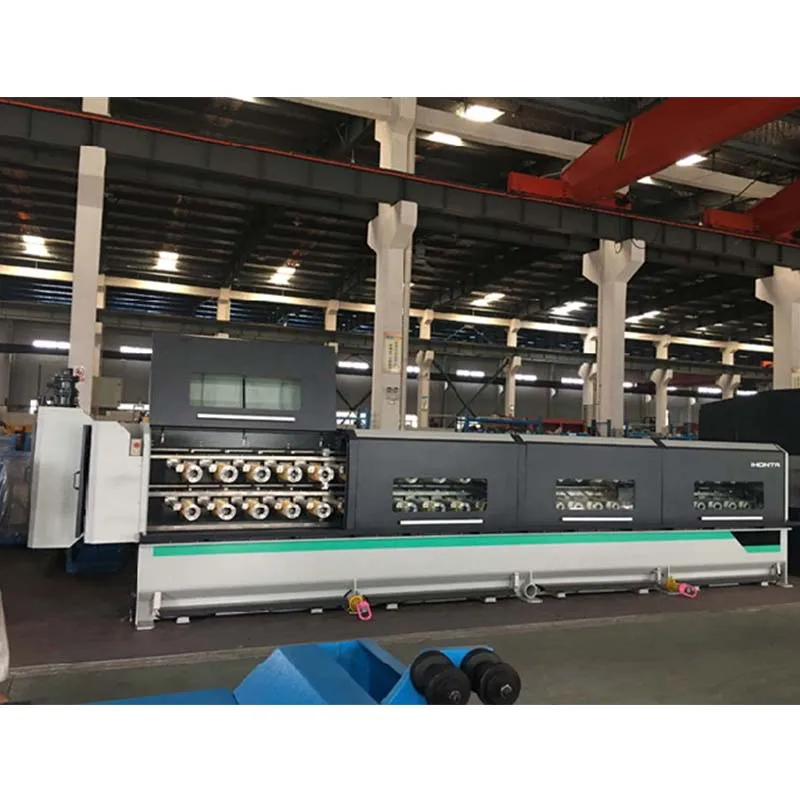

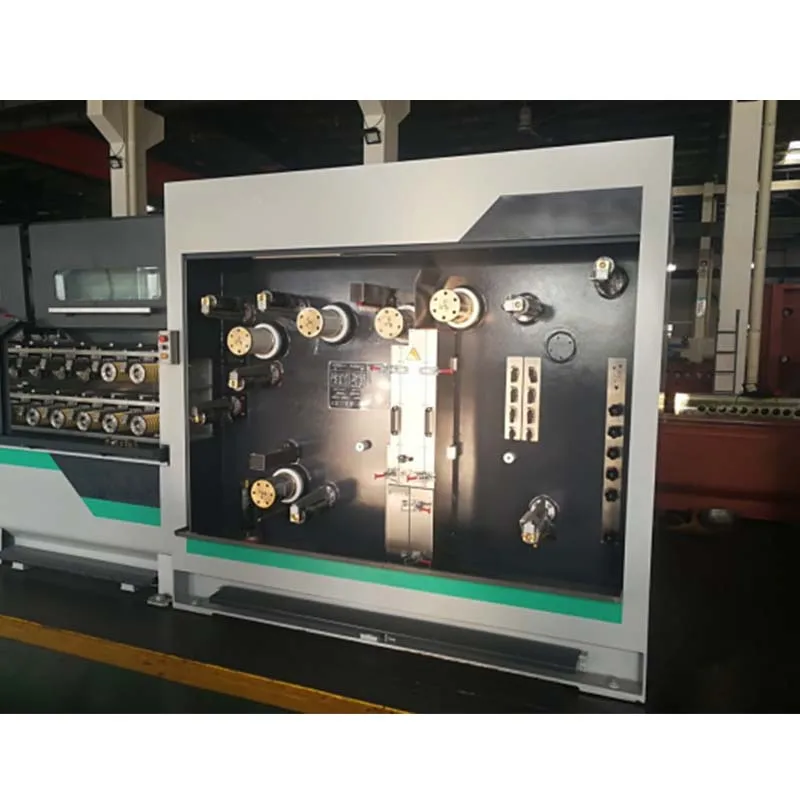

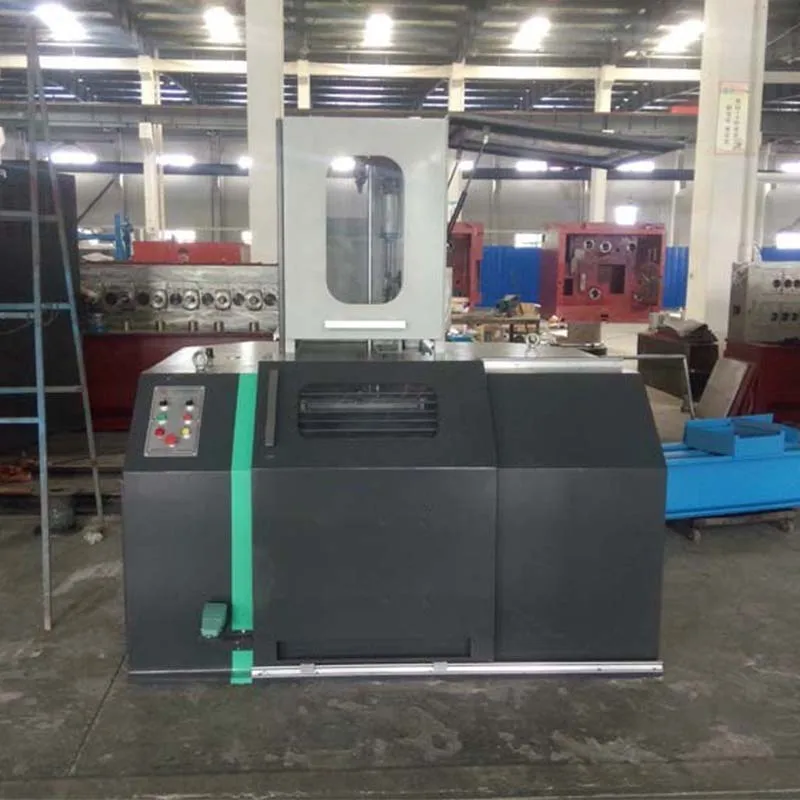

Многопроводная чертежная машина с онлайн-машинкой для отжига медных
- Категория: Wire Drawing Machines >>>
- Поставщик: Jiangyin,City,Source,Electrical,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.20 $* | 0.86 $* |
| Aug-16-2025 | 0.51 $* | 0.99 $* |
| Jul-16-2025 | 0.88 $* | 0.23 $* |
| Jun-16-2025 | 0.57 $* | 0.61 $* |
| May-16-2025 | 0.54 $* | 0.12 $* |
| Apr-16-2025 | 0.72 $* | 0.52 $* |
| Mar-16-2025 | 0.51 $* | 0.38 $* |
| Feb-16-2025 | 0.61 $* | 0.61 $* |
| Jan-16-2025 | 0.11 $* | 0.74 $* |
Характеристики
Equipment | Specifications | |||
Multiwire Drawing Machine | Model | HT.MD100.03.22.08 | HT.MD100.03.22.16 | |
Material | Copper wires/ tinned copper wires | Copper wires/ tinned copper wires | ||
Number of wires | 8 | 16 | ||
Inlet diameter (mm) | 1.50-2.00 | 1.50-2.00 | ||
Outlet diameter (mm) | 0.15-0.50 | 0.15-0.50 | ||
Drawing passes | 22 | 22 | ||
Max. drawing speed (m/s) | 30 | 30 | ||
Power (kw) | 110+37AC | 185+45AC | ||
Capstan diameter (mm) | 100 | 100 | ||
Capstan material | zirconia | zirconia | ||
Control method | AC | AC | ||
1. What service can you supply?
Engineers available to service machinery overseas.

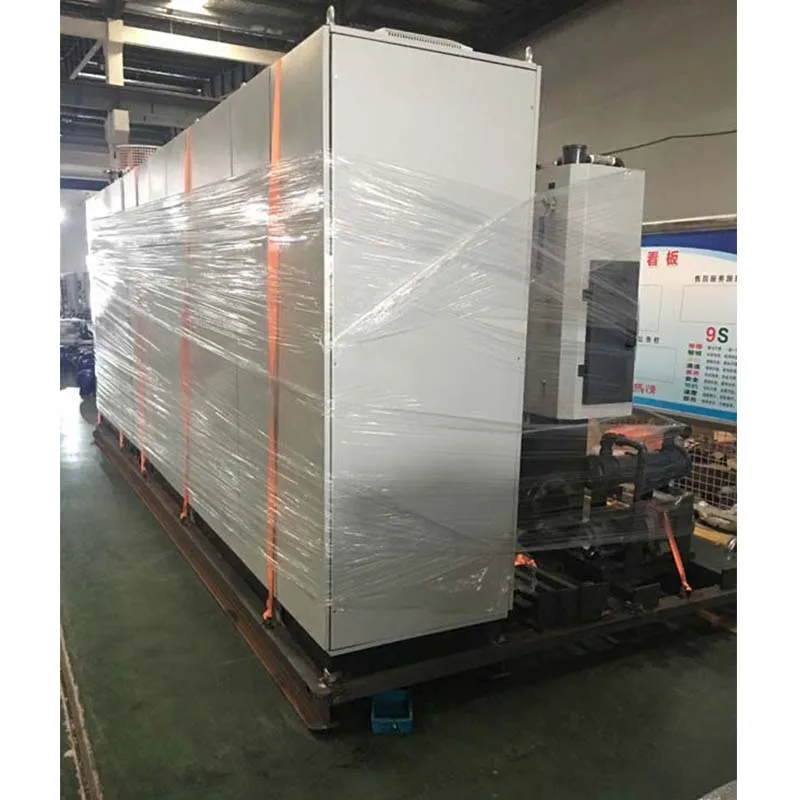

2. What’s the packages?
The normal package is wooden box. If export to foreign countries,the wooden box will be fumigated or use polywood case.
3. Can you do turn-key project?
Yes, We have a mature technical team that can do turnkey engineering.
4. What’s the payment terms?
30% by TT as deposit, 70% by TT or LC at sight vefore delivery.
5. What’s your advantages?
As a member of the family business, we have a copper production plant. Therefore, we are more familiar with the production
process. At the same time, we have professional engineers and can get more direct use feedback. We have a good cooperative
relationship with most of the domestic machinery manufacturers, so we can get a better price.
6. What’s the delivery time?
Usually 60 working days.
Engineers available to service machinery overseas.
2. What’s the packages?
The normal package is wooden box. If export to foreign countries,the wooden box will be fumigated or use polywood case.
3. Can you do turn-key project?
Yes, We have a mature technical team that can do turnkey engineering.
4. What’s the payment terms?
30% by TT as deposit, 70% by TT or LC at sight vefore delivery.
5. What’s your advantages?
As a member of the family business, we have a copper production plant. Therefore, we are more familiar with the production
process. At the same time, we have professional engineers and can get more direct use feedback. We have a good cooperative
relationship with most of the domestic machinery manufacturers, so we can get a better price.
6. What’s the delivery time?
Usually 60 working days.
