Complete Set of vsi7611 Sand Making Machine Specifications



Adopting quality raw materials and advanced technologies, Vertical Sand Making Machine Manufacturer ensures high-quality and good abrasion performance. Complete Set of vsi7611 Sand Making Machine Specifications uses a unique rock on rock crushing method employing a high speed rotor with crushing chamber of the equipment. Velocity is applied in Vertical Shaft Impact crushers as the resulting force, to break stone particles. This machine switches the working principle “crushing between materials” to “crushing between materials and liners”, which can be used to make sand and shape stones.

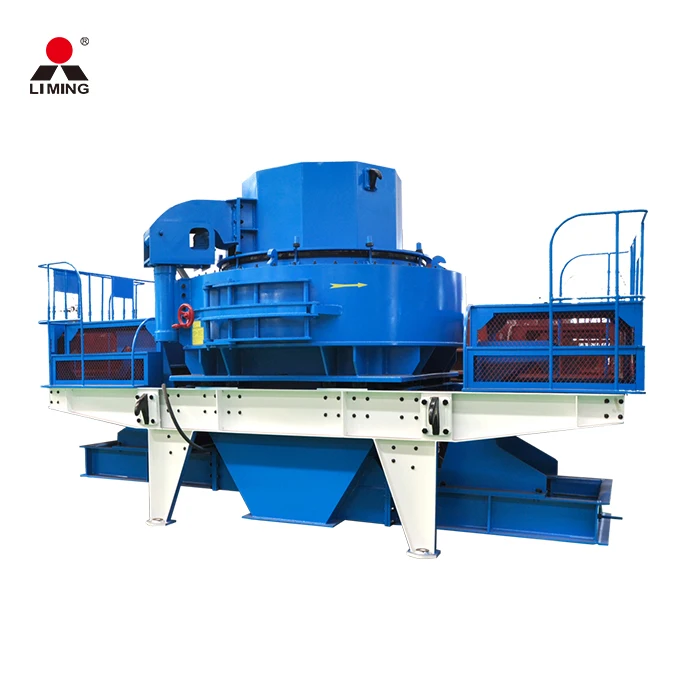

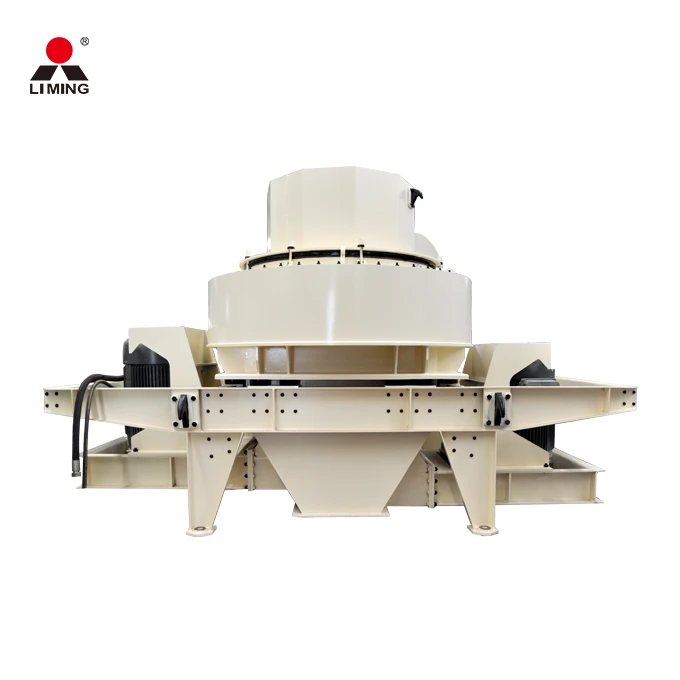

VSI Vertical Shaft Impact Crusher







 Technical Parameters



Model		VSI7611	VSI8518	VSI9526	VSI1140
Capacity (t/h)	Center and Ring feeding	120-180	200-260	300-380	450-520
	Center feeding	60-90	100-130	150-190	225-260
Max Feed Size (mm)	Soft material	<35	<40	<45	<50
	Hard material	<30	<35	<40	<45
Rotation speed (r/min)		1700-1890	1520-1690	1360-1510	1180-1310
Power for double motor (kW)		2×55 (75)	2×90 (125)	2×132 (175)	2×200 (270)
Overall Dimension L×W×H (mm)		4100×2250×2285	4140×2280×2425	4560×2450×2780	5100×2690×3200
Weight (t)		10	12.5	14.5	19
Lubrication hydraulic pressure station	Power for double oil pump	2×0.25(0.33)
	Safety	To make sure the supply of the oil with double oil pump; stop working without oil or hydraulic pressure; temperature falls when the water cools; start the motor by heating it in winter.
	Overall dimension L×W×H(mm)	820×520×1270
	Power for oil box heater	2 kW

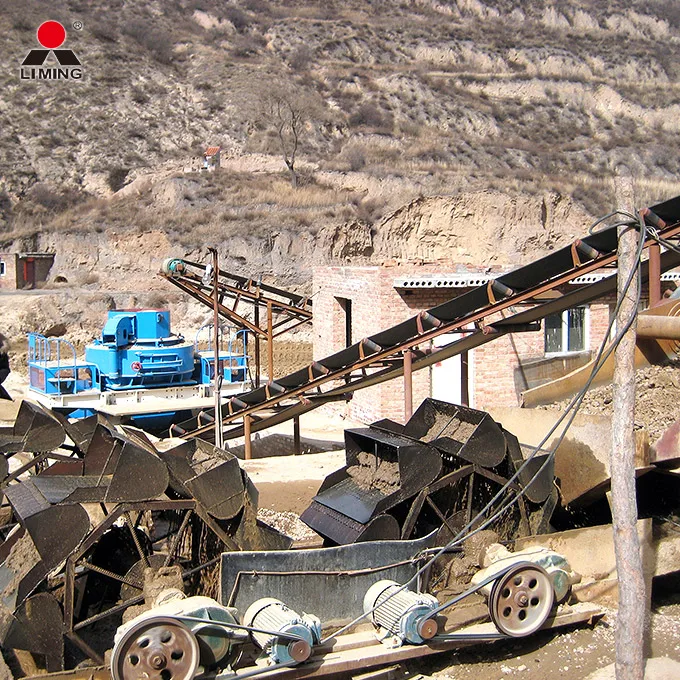

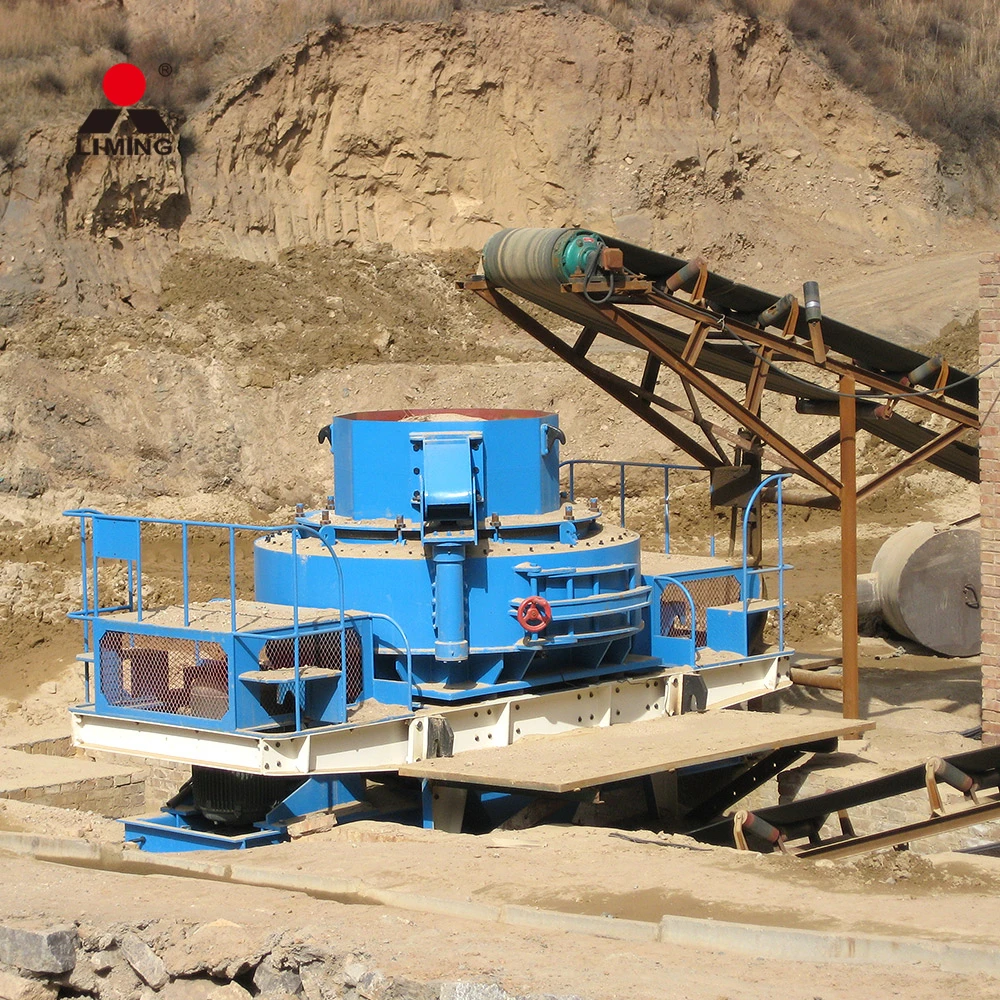

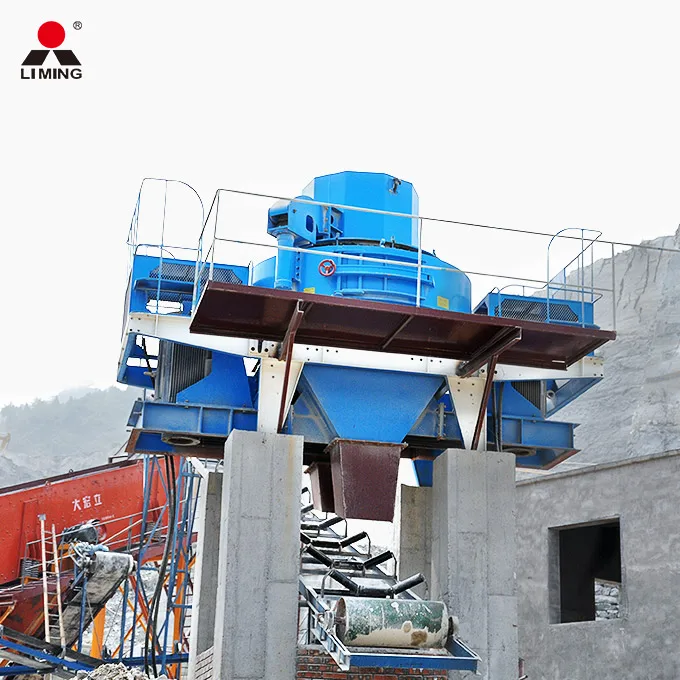

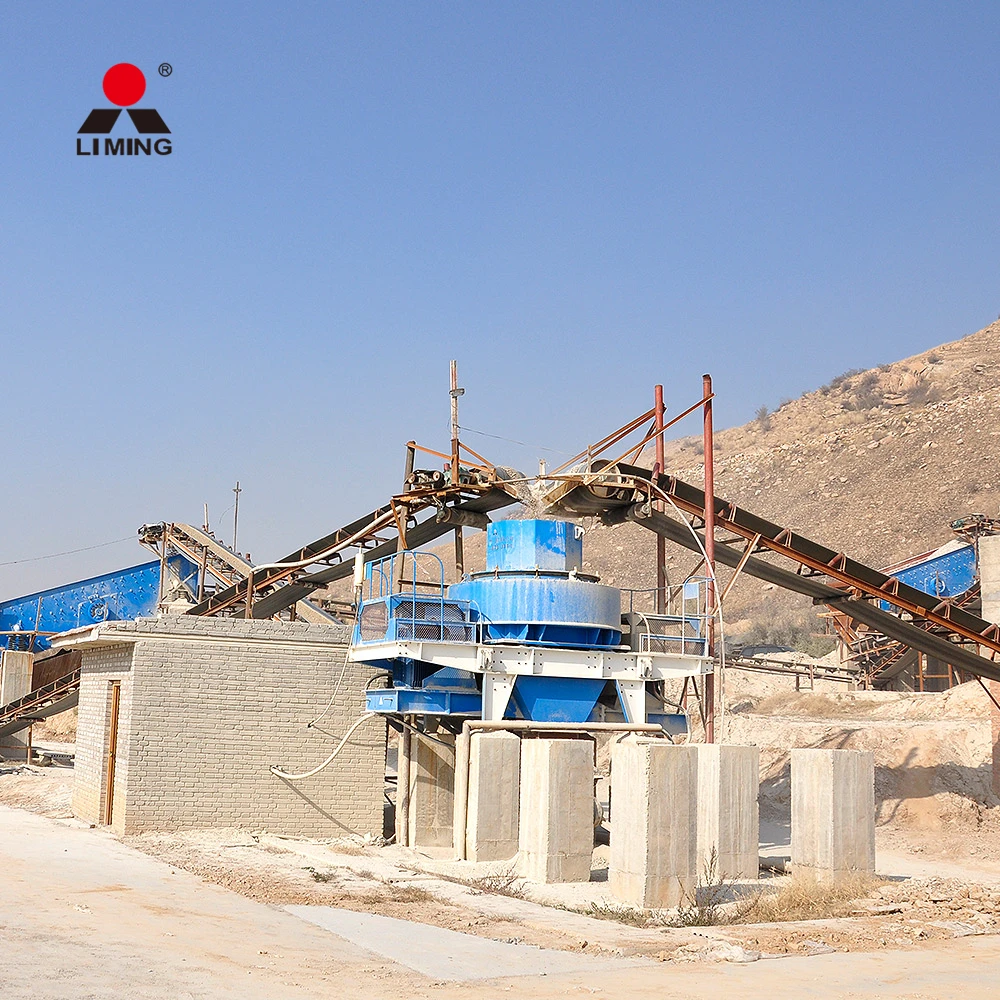

 Customer Sites







Related Products



Our Strength







♦ We are manufacturer of stone crushers and grinding mills since 1987.

♦ We follow the standard of CE, ISO9001, Ghost, CU-TR.

♦ Our factory convers 150000 m³. Welcome to see machines!

♦ We send engineers for installation, commissioning and training.

♦ We have sufficient spare parts in stock.

♦ We have lots of production sites running aroud the world.

♦ Fast maintenance system to deal with customers's after sales issue in time.





FAQ



Q1: Are you trading company or manufacturer?



A: We are factory.



Q2: How long is your delivery time?



A: Generally it is 7-10 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock, it is according to quantity.



Q3: What is your payment method?



A: 30% of total prices should be paid by T/T as down payment; 70% balance payment should b paid by T/T before delivery.



Q4: How long is the warrenty of your equipments? Does your company supply the spare parts?



A: The warranty period of crusher equipments is one year. And we will supply the spare parts for you at lowest cost.



Q5: If I need the complete crushing plant can you help us to build it?



A: Yes, we can help you set up a complete crushing line and give you related professional advices as long as you need. We had already build many mining projects in China & Overseas.
