Samwha-Dsp DA-DIN-50/5 ампер цифровой прибор для измерения уровня энергии переменного тока
- Категория: Panel Meters >>>
- Поставщик: Zhejiang,Hannuo,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.18 $* | 0.59 $* |
| Aug-17-2025 | 0.86 $* | 0.9 $* |
| Jul-17-2025 | 0.81 $* | 0.15 $* |
| Jun-17-2025 | 0.0 $* | 0.36 $* |
| May-17-2025 | 0.37 $* | 0.72 $* |
| Apr-17-2025 | 0.48 $* | 0.58 $* |
| Mar-17-2025 | 0.30 $* | 0.28 $* |
| Feb-17-2025 | 0.90 $* | 0.18 $* |
| Jan-17-2025 | 0.51 $* | 0.50 $* |
Характеристики
Product Description
General

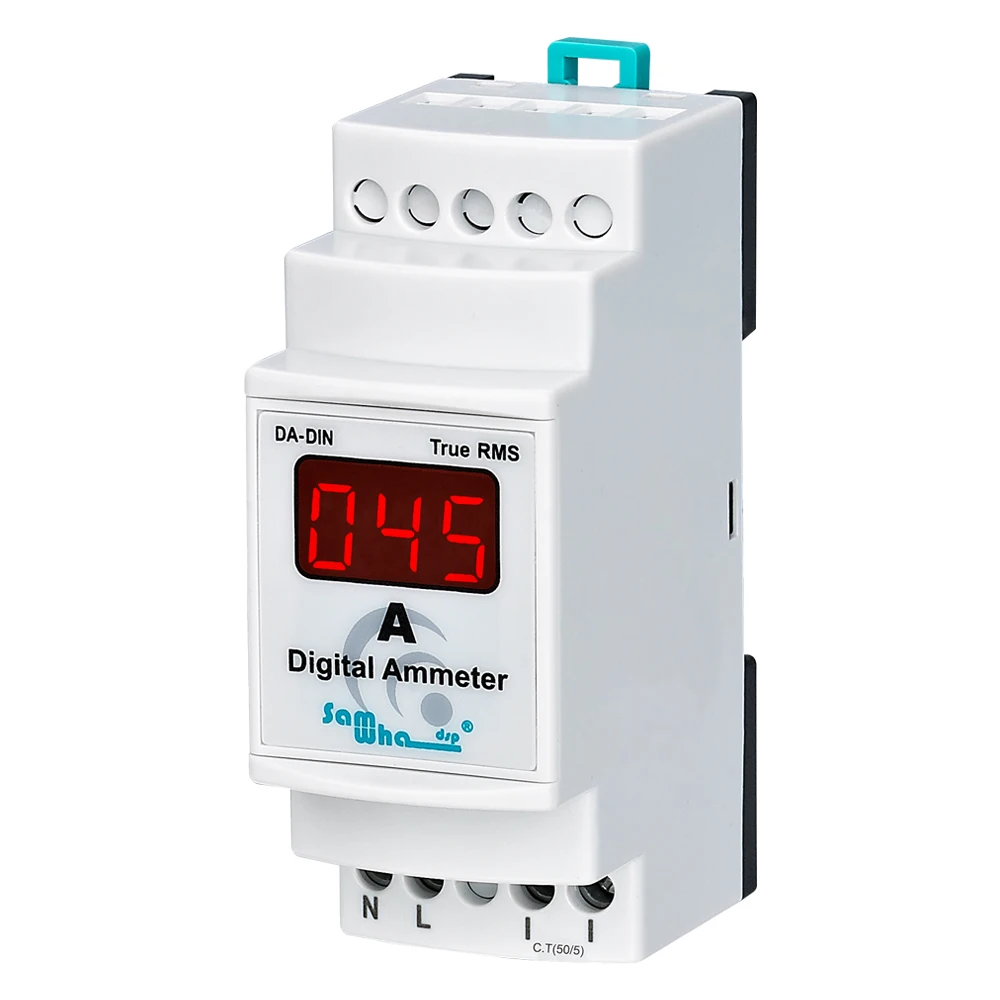

DA-DIN-50/5 Digital ammeter are designed to monitor AC current value by the loads.
Usage and Working Principle
Use standard current transformer with a transformation ratio of 50/5A. Connect the current transformer lead wires to input terminals of the device, Display the current value according to the current transformer. So, don't use standard transformers with other ratios. When the device is energized, The current value is shown on the display. The power supply voltage between the phase and neutral wires connected to the A1 and A2 terminals.
Maintenance
Switch off the device and release from connections. Clean the trunk of device with a swab. Don’t use any conductor or chemical might damage the device.
Make sure device works after cleaning.
Make sure device works after cleaning.
Warnings
Please use the device according to the manual.
Don’t use the device in wet.
Include a switch and circuit breaker in the assembly.
Put the switch and circuit breaker nearby the device, operator can reach easily.
Mark the switch and circuit breaker as releasing connection for device.
Don’t use the device in wet.
Include a switch and circuit breaker in the assembly.
Put the switch and circuit breaker nearby the device, operator can reach easily.
Mark the switch and circuit breaker as releasing connection for device.
Specifications | ||
Operating Voltage(Un) | 140V - 270V AC | |
Operating Frequency | 50/60 Hz | |
Operating Power | <6VA | |
Operating Temperature | -20°C.....+55°C | |
Measurement Range | CT. 50/5A AC | |
Measurement Precision | ±1% | |
Display | 1x3 digit 9mm | |
Connection Type | Terminal | |
Cable Diameter | 2,5mm² | |
Weight | Max. 210gr. | |
Mounting | Vertical assembled in the panel or assembled on the rail. | |
Operating Altitude | <2000meter | |
Connection Diagram
