Лабораторная настольная машина для непрерывного нанесения покрытий в рулоне покрытия

Лабораторная настольная машина для непрерывного нанесения покрытий в рулоне покрытия

Категория: Coating Machines >>>
Поставщик: Quanzhou,Lineng,Machinery,And,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.79 $*	0.70 $*
Aug-16-2025	0.24 $*	0.86 $*
Jul-16-2025	0.8 $*	0.34 $*
Jun-16-2025	0.41 $*	0.18 $*
May-16-2025	0.78 $*	0.84 $*
Apr-16-2025	0.86 $*	0.2 $*
Mar-16-2025	0.87 $*	0.28 $*
Feb-16-2025	0.34 $*	0.64 $*
Jan-16-2025	0.76 $*	0.85 $*

Характеристики

--02_02 Lab Desktop Continous Roll To Roll Coater Machine For Pouch Cell Electrode Film Coating

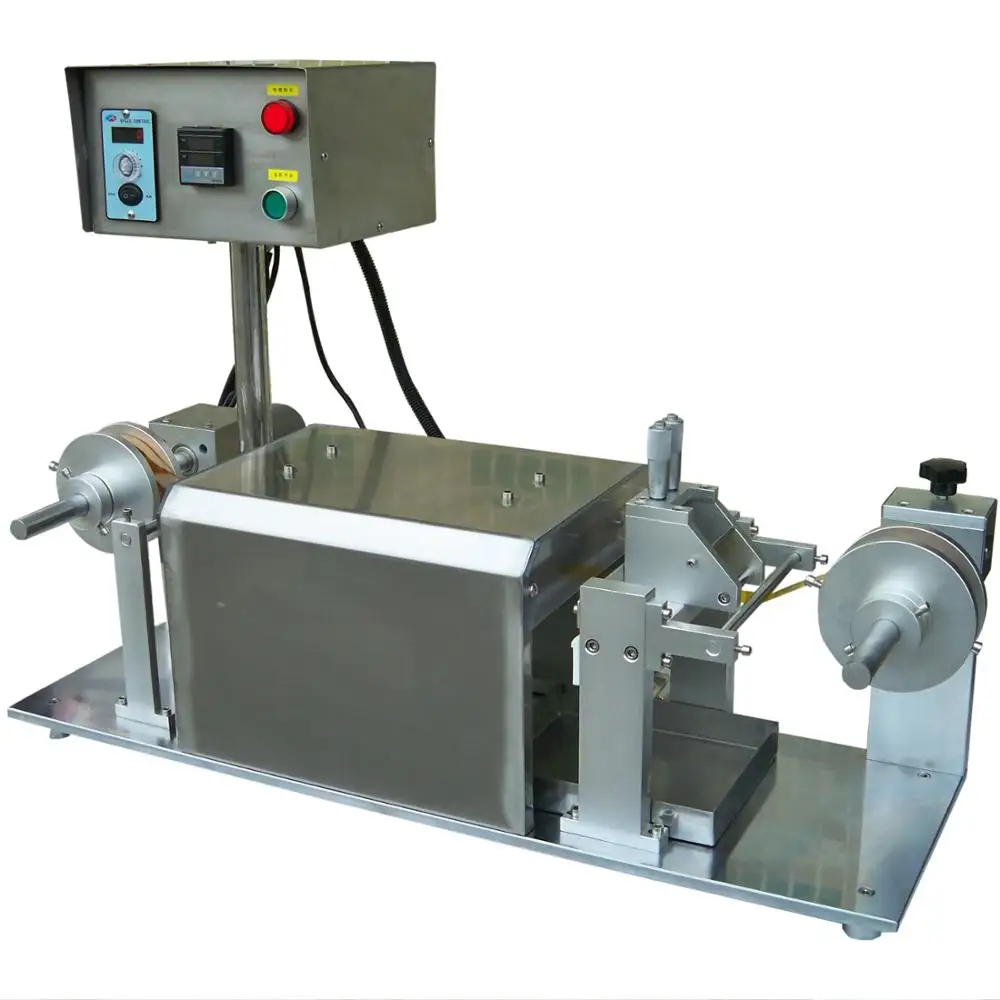

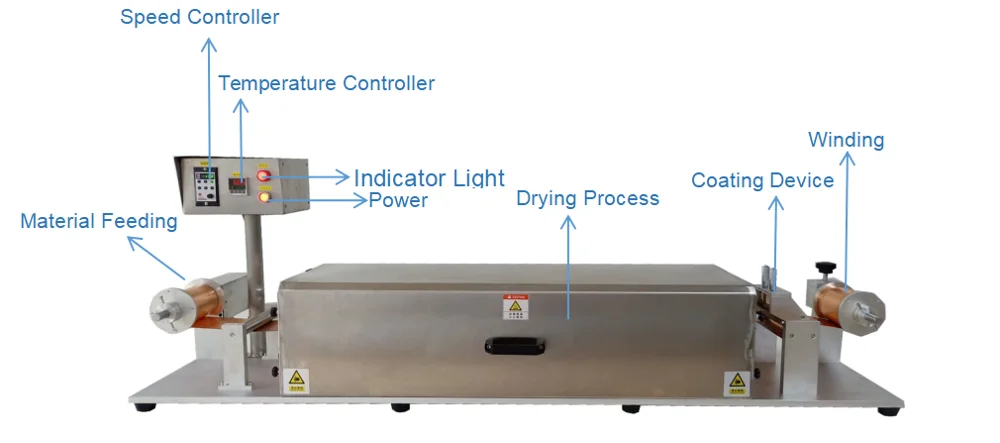

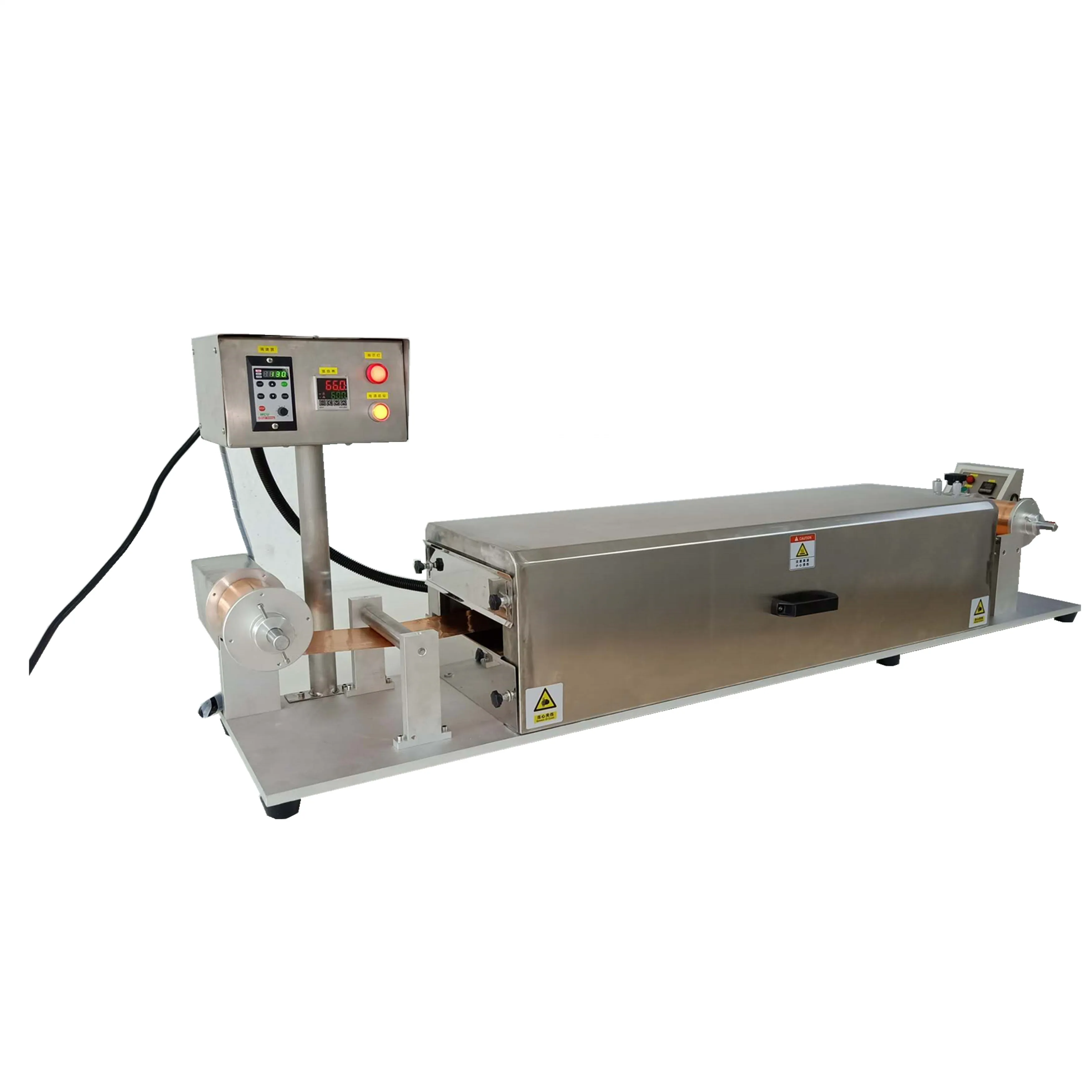

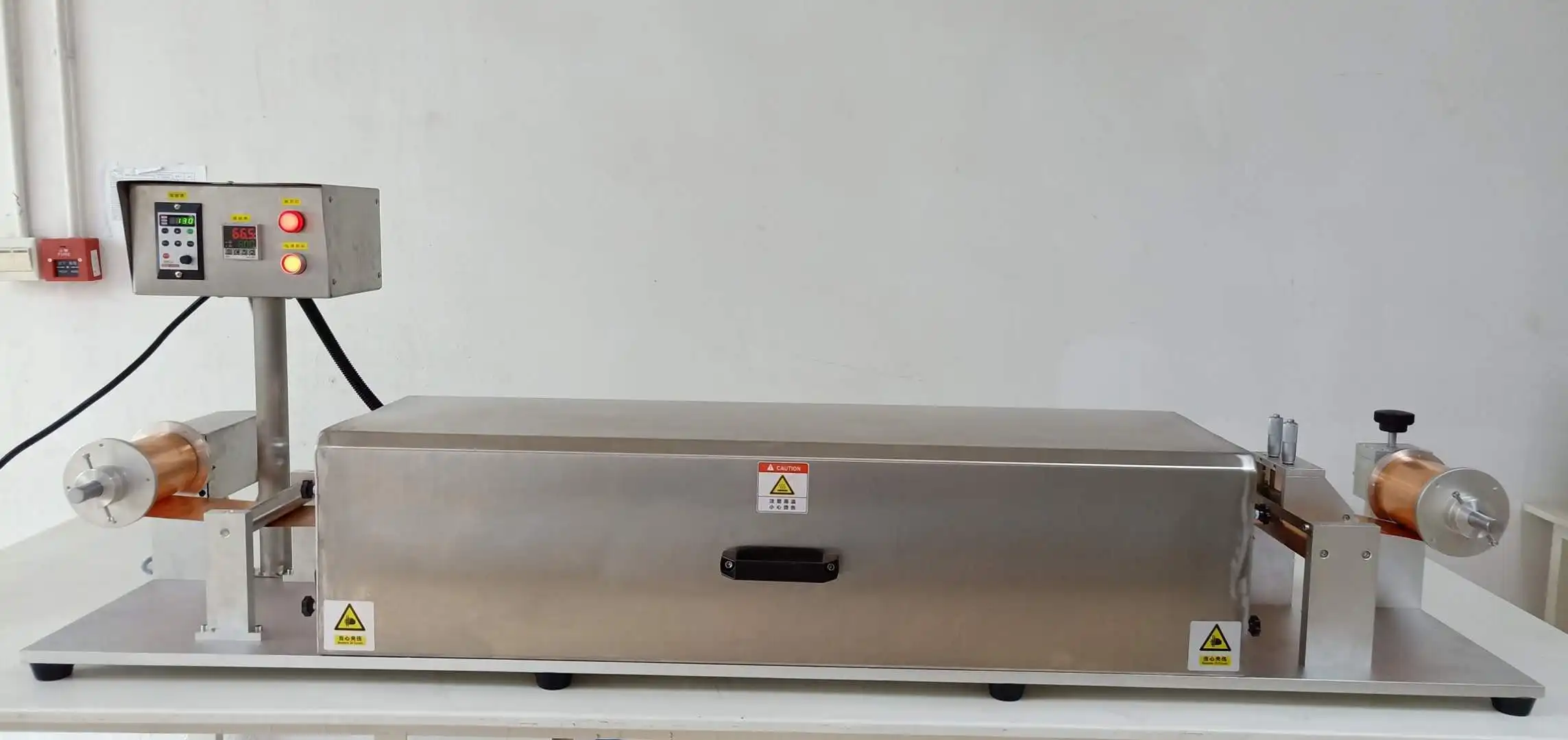

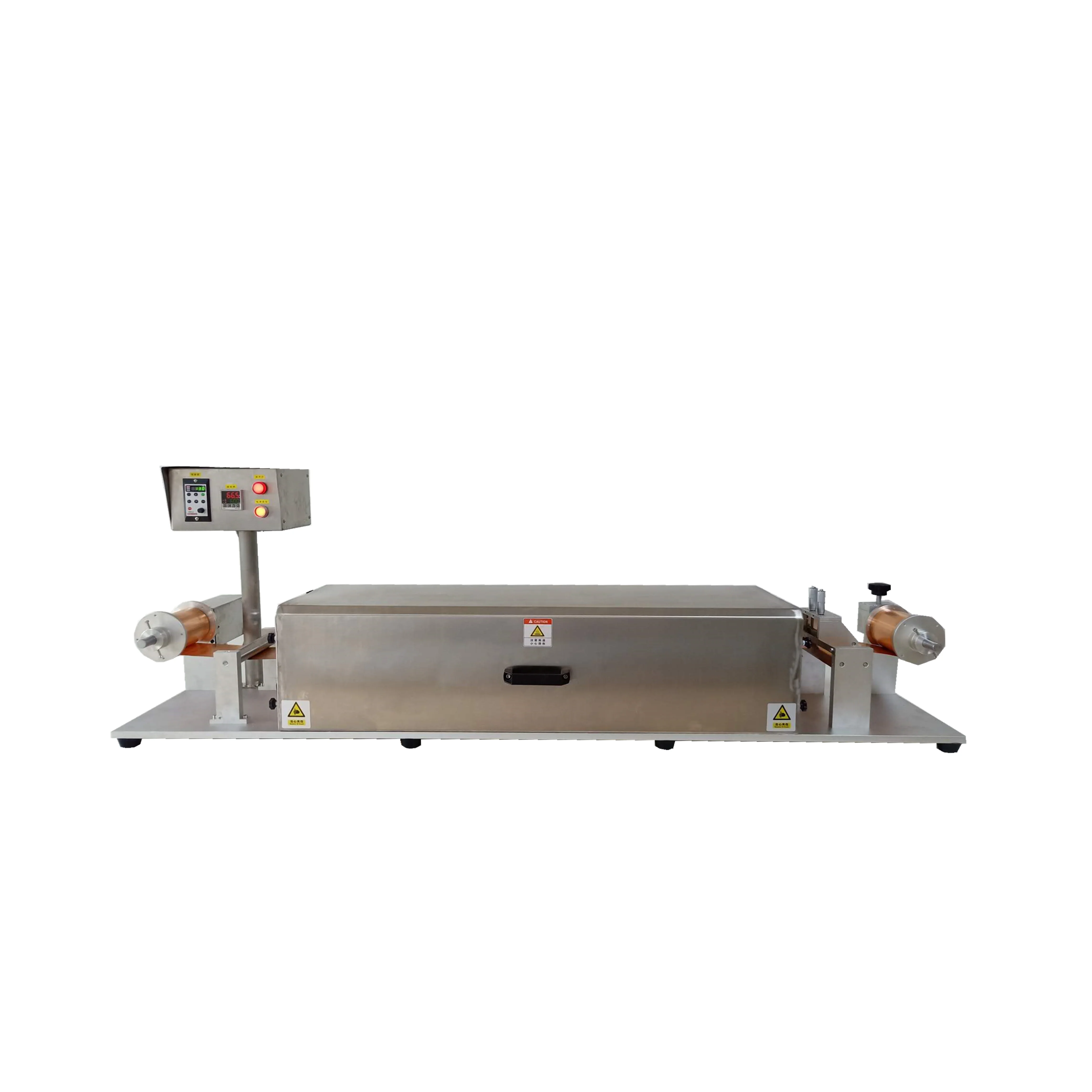

LN-TMJ-180C desktop continuous coating machine is a small roll to roll coating machine (Roll to Roll Coater)for lab research, it is assembled by high precision coating device, suitable for institutions, university and factory pilot scale battery research work.

Model	Roll to Roll Continuous Coating Machine TMAX-TMJ-180C
Source voltage	AC 220V/110V, 50HZ/60HZ
Power	400W
Suitable material thickness	Aluminum foil : 0.01-0.03mm Copper foil : 0.006-0.020mm
Max electrode width	50-180mm
Coating speed	0-2m/min, adjustable
Max. drying temperature	100℃ ,PID control mode
Oven length	400mm/800mm/1100mm or customized length upon request
Coating thickness	0.01mm-2mm
Coating thickness accuracy	0.01mm
Film applicator	One standard film applicator is included as below: Analog film applicator with fix coating width 0~3mm gap/coating thickness adjustable *Coating accuracy: ±0.01mm Optional parts: Digital micrometer Adjustable width Different gap/coating thickness
Warranty	One Year limited warranty with lifetime support
