SD/HD/3G SDI видео-оптический преобразователь с PTZ 1 канал оптоволоконный удлинитель 1080p/60 Гц для видео в реальном времени
- Категория: Other Consumer Electronics >>>
- Поставщик: Shenzhen,Shengtai,Tengan,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 166.56 $* | 169.3 $* |
| Jul-16-2025 | 135.81 $* | 138.35 $* |
| Jun-16-2025 | 164.89 $* | 167.63 $* |
| May-16-2025 | 162.4 $* | 165.70 $* |
| Apr-16-2025 | 130.15 $* | 133.32 $* |
| Mar-16-2025 | 160.72 $* | 163.6 $* |
| Feb-16-2025 | 159.27 $* | 162.95 $* |
| Jan-16-2025 | 157.13 $* | 160.13 $* |
Характеристики
Product Description
3G-SDI SM Fiber Extender Kit ,1 SDI Tx with loop and Rx with 2 output over Fiber
3G-SDI to Fiber Converter STHA-3GSDI-S , provides 1 channel uncompressed 2.97Gbps 3G-SDI (SMPTE 424M), 1.485Gbps HD-SDI (SMPTE 292) or 270Mbps SD-SDI (SMPTE 259M)1080P HD video over fiber Transmission, support 1 channel RS485 data, at the same time the transmitter supports a Local output for local display, and the receiver supports 2 channel output for two remote displays.
3G-SDI to Fiber Converter Features
• Extends uncompressed multi-rate 3G-SDI, HD-SDI or SD-SDI video over fiber
• Supports SMPTE 424M, SMPTE 292M, SMPTE 259M or DVB-ASI compliant
• Supports embedded digital audio stream
• SFP slot design, more convenient and more choices
• Real-Time Lossless and no delay Video Transmission for Exceptional Quality and Resolution
• LED Status Provide Rapid Indication of Operating Parameters
• Produce according to customer's specifications, providing OEM
3G-SDI to Fiber Converter data sheet
3G-SDI to Fiber Converter Features
• Extends uncompressed multi-rate 3G-SDI, HD-SDI or SD-SDI video over fiber
• Supports SMPTE 424M, SMPTE 292M, SMPTE 259M or DVB-ASI compliant
• Supports embedded digital audio stream
• SFP slot design, more convenient and more choices
• Real-Time Lossless and no delay Video Transmission for Exceptional Quality and Resolution
• LED Status Provide Rapid Indication of Operating Parameters
• Produce according to customer's specifications, providing OEM
3G-SDI to Fiber Converter data sheet
Name | 3G-SDI SM Fiber Extender Kit ,1 SDI Tx with loop and Rx with 2 output over Fiber |
Model | STHA-3GSDI-S |
Support signal format | SD-SDI / HD-SDI / 3G-SDI |
Video Resolution | 10 Bit Audio |
Data Rate | 270Mbps ,1.485Gbps and 2.97Gbps (Adaptive) |
TV Signal Standards | SMPTE424M, SMPTE292M |
SMPTE259M, DVB-ASI | |
Video Input | BNC (75 Ohms) |
Input Channels (on Tx): | 1 channel |
Output Channels (on Tx): | 1 channel (for Local Viewing) |
Data Rate | 270 Mbps~ 2.97 Gbps |
Nominal Level | 0.8 Vp-p |
Min/Max Level | 0.5V to 1.0 Vp-p |
Return Loss | ≥ 15 dB @ 5 MHz to 1.5 GHz |
≥ 10 dB @ 1.5 GHz to 3.0 GHz | |
Input Cable Equalization | Up to -30 dB of cable loss |
Video Output | BNC (75 Ohms) |
Video Output Channels (on Rx): | 2 channel |
Re-Clock | 270 Mbps, 1.485 Gbps, 2.98 Gbps |
Or bypassed for unrecognized rates | |
Nominal Level | 0.8 Vp-p |
Min/Max Level | 0.5 V to 1.0 Vp-p |
Return Loss | < -25 dB @ 100 MHz |
Data Interface | RS-485 |
Data Rate | Up to 300 Kbps |
Data Channels | 1 (Return Direction Only) |
Bit Error Rate | 10⁻⁹ |
Optical Connector | LC (Using 3GSFP module) |
Video Connector | BNC |
Data Contact | Screw Terminal Strip |
Power adapter | AC 100-240V to DC12V 1A |
Power consumption | <3W |
Working temperature | -45 C ~ + 75 C |
Storage temperature | -45 C ~ + 85 C |
Relative humidity | 0% ~ 95% (non-condensing) |
MTBF | > 100,000 hours |
Details Images

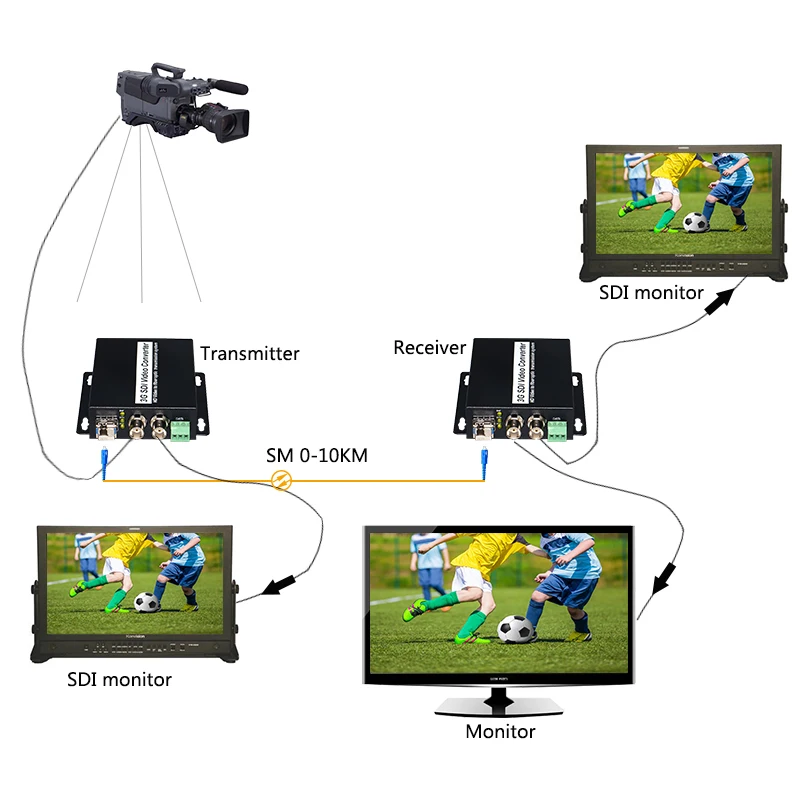

For live broadcast/recording of video

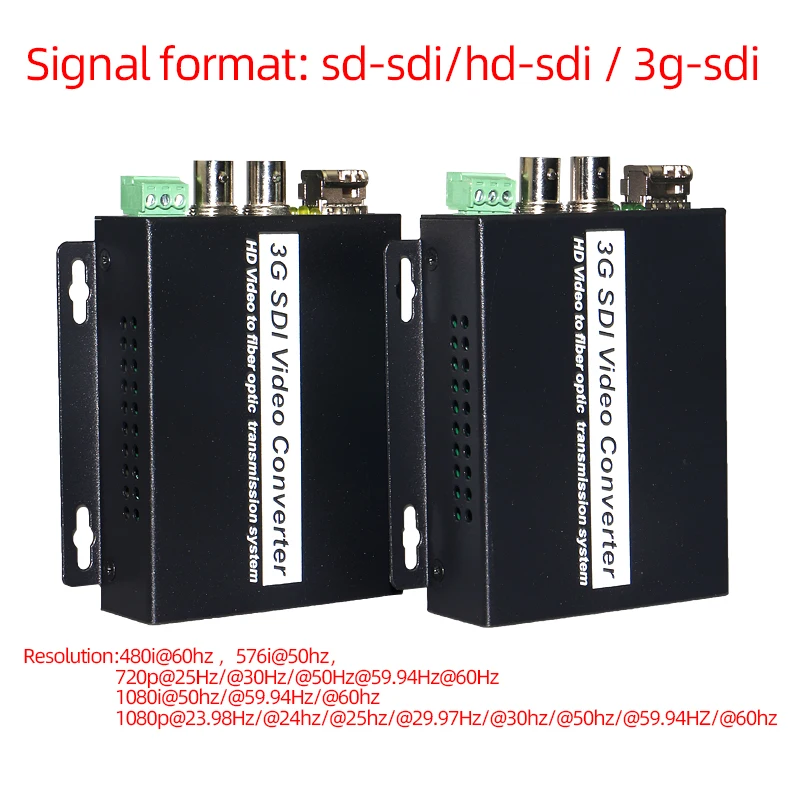

Supported format: 3G-SDI (SMPTE 424M)
HD-SDI (SMPTE 292)
SD-SDI (SMPTE 259M)
Support resolution: 1080p/60hz

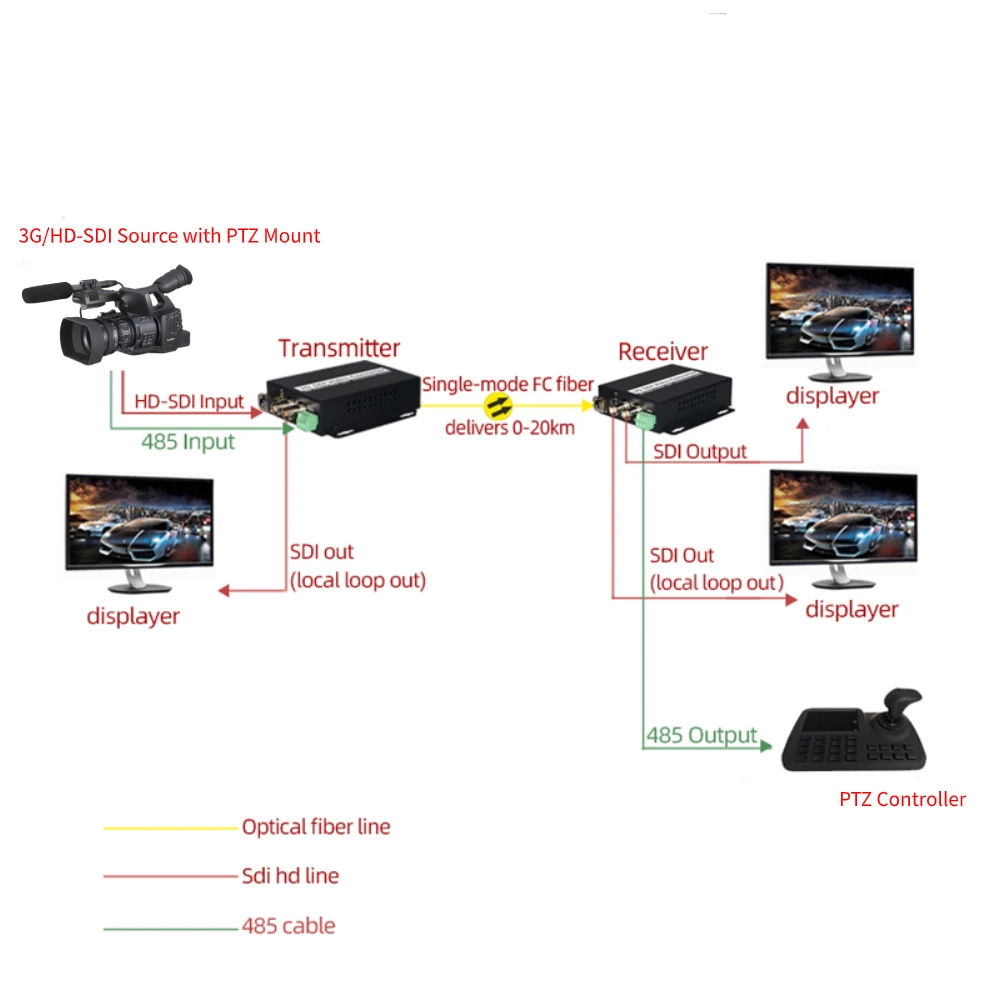

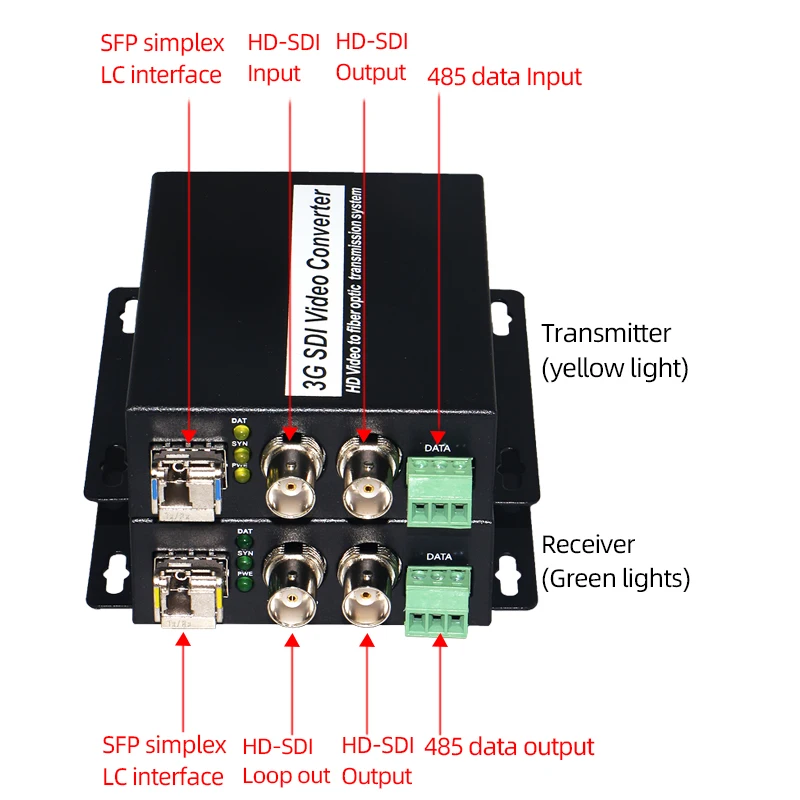

1 Channel SDI Tx with loop and Rx with 2 output
With RS485 data, support PZT controlTransmission distance: single mode single fiber 20KM

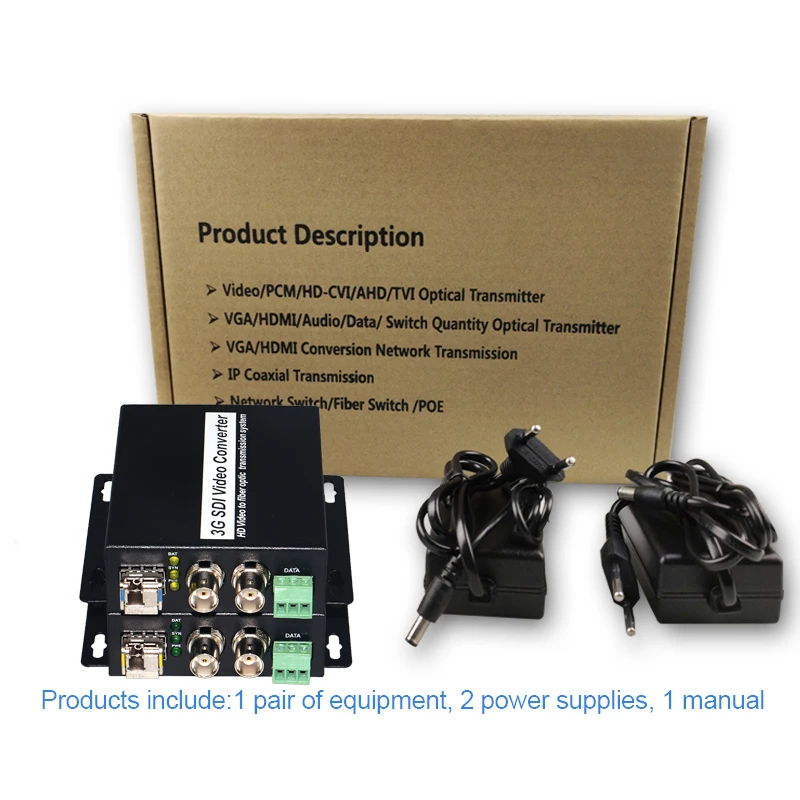

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Shenzhen Sthanco Technology Co., Ltd. is a high-tech company engaged in electronic security and optical communication industry,integrating R&D, production and sales. We specialize in producing HDMI/VGA/DVI extenders, HD / 3G-SDI / HDMI / VGA / DVI fiber converters, HD-CVI / TVI / AHD video converters, FXS / FXO telephone voice fiber converters, audio RCA broadcast fiber converters and RS485 / 422 / 232 serial fiber converters. All of these products are widely used in banking, electricity, transportation, coalmines, schools, border defense, shopping malls and communities
Exhibition
Intersec Dubai 2020
CPSE Shenzhen 2019
Secutech Vietnam 2019
CPSE Shenzhen 2017
FAQ
Q:What is the difference between HD-SDI and 3G-SDI?
A:The transmission rate of HD-SDI is 1.485Gbps, and the maximum resolution supported is 1080i; while the transmission rate of 3G-SDI is 2.97Gbps, which supports higher image quality such as 1080P and digital cinema.
Q:Does 3g SDI support 4k?
A:No, the maximum resolution supported by 3G-SDI is 1080P.
Q:Does 3g SDI carry audio?
A:yes ,there.
A:The transmission rate of HD-SDI is 1.485Gbps, and the maximum resolution supported is 1080i; while the transmission rate of 3G-SDI is 2.97Gbps, which supports higher image quality such as 1080P and digital cinema.
Q:Does 3g SDI support 4k?
A:No, the maximum resolution supported by 3G-SDI is 1080P.
Q:Does 3g SDI carry audio?
A:yes ,there.
