OBD-II CAN Bus макетный

Категория: Other Telecommunications Products >>>
Поставщик: Shenzhen,Ronghuahong,Electronic,Co.,Ltd.

Цена:11,90 $ - 17,90 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-18-2025	14.46 $*	14.19 $*
Jul-18-2025	11.27 $*	11.85 $*
Jun-18-2025	14.83 $*	14.53 $*
May-18-2025	14.33 $*	14.53 $*
Apr-18-2025	11.0 $*	11.83 $*
Mar-18-2025	13.42 $*	13.43 $*
Feb-18-2025	13.37 $*	13.71 $*
Jan-18-2025	13.5 $*	13.82 $*

Характеристики

Product Description

Product Details

OBD-II, the Second On-Board Diagnostics, is an automotive term referring to a vehicle's self-diagnostic and reporting capability. OBD systems give the vehicle owner or repair technician access to the status of the various vehicle subsystems.

This kit allows you to interface with your vehicle's OBD-II interface. The kit includes a Serial CAN Bus module as well as a
OBD-II connector, with this kit you can get data from your vehicle easily. We provide an tutorial which is based on Arduino.

OBD-II (On-Board Diagnostics, Second Generation) is a set of standards for implementing a computer based system to control emissions from vehicles. It was first introduced in the United States in 1994, and became a requirement on all 1996 and newer US vehicles. Other countries, including Canada, parts of the European Union, Japan, Australia, and Brazil adopted similar zegislation. A large portion of the modern vehicle fleet supports OBD-II or one of its regional flavors.

NOTE: The kit does NOT include a controller board.

----------------------------------------------------------------------------------------------------------------------------------

Features:
* ● Up to 1Mb/s CAN Bus rate
* ● Multi-platform available (Arduino, Raspberry, Beaglebone Board, etc.)
* ● Serial communication
* ● Tutorial for Arduino

----------------------------------------------------------------------------------------------------------------------------------

What Is Inside:
* ● Serial CAN Bus Module X1
* ● OBD-II Case x1
* ● Grove Cable x1
* ● Double Stand Cable 1M x1
* ● Screw Driver x1

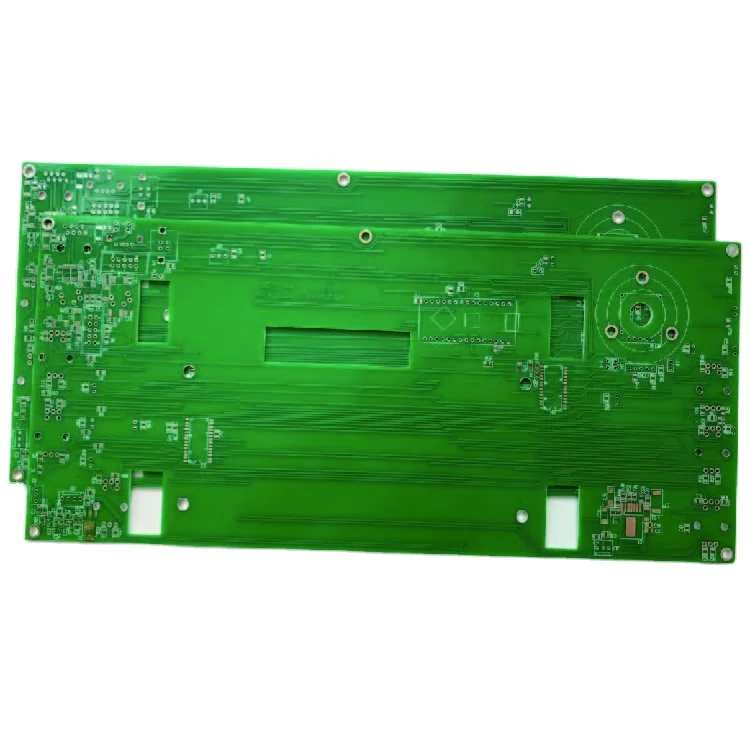

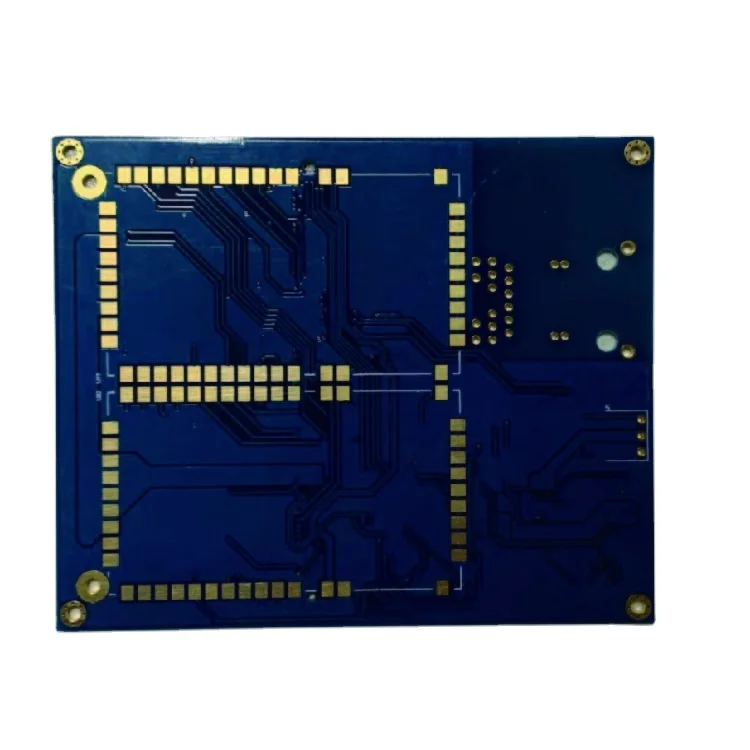

Our PCB manufacturing capability

PCB Layers	2-18 Layers	Min Soldermask bridge	0.076mm
Max Panel Size	600mmx600mm	Insulating resistance	1E+12Ω（general）
Min Board Thickness	4 Layers 0.40mm, 6 Layers 0.80mm, 8 Layers 1.00mm, 10 Layers 1.20mm	Board Thick : hole size	0.209027778
Min Trace Width	0.075mm	Shock heating	(3 times/10 second)
Min Trace Space	0.075mm	Wrap & twist	≤0.7%
Min Hole Size	0.20mm	Electric strength	＞1.3KV/mm
Hole wall thickness	0.025mm	Peel strength	1.4N/mm
Tolerance For PTH hole	±0.076mm	solder mask hardness	≥6H
Tolerance For NPTH hole	±0.05mm	Flammability	94V-0
Hole position tolerance	±0.05mm	Impedance control	±5%
Tolerance for outline	±0.15mm	Surface treatment	OSP, HASL, ENIG, Immersion tin, Immersion silver

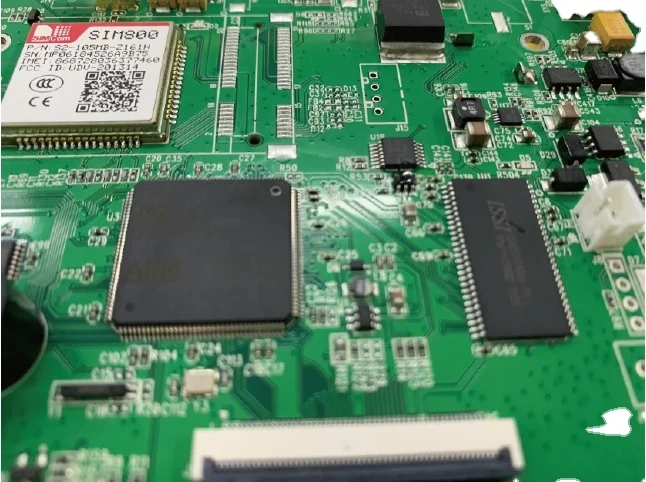

Our PCB Assembly capability

Board Size	Board machine SMT size 40*50 mm
SMT+DIP	Machine SMT and through-hole assembly
BGA part	Able to process 0.35 pitch micro BGA, AQFN, QFP, QFN, & AQFN (advanced quad flat no-leads)
Quantity	Up to 100,000 pieces quick SMT machine per day
Quality check	AIO and X-RAY automatic check
Clean requirement	Clean or not-clean process
ROHS requirement	RoHS / Non-RoHS compliant assembly
Components	100% Material procurement, 100% consigned material management or hybrid
Testing	Flying Probe Testing 100%, Voltage test, Test fixture, Function test, Software test etc
Lead time	Sample order ~2wks, small batch production ~3wk, mass production ~4wks

Company Profile

MakerPCB is a professional ODM/EMS manufacturer with fabrication facilities in China. We specialize in electronics manufacturing, including electronic design and engineering, PCB fabrication, SMT and PCB assembly, components sourcing, prototyping, box build, mechanical & electrical engineering, testing, low, medium, and high - volume production, and cost-effective hybrid global shipping. Our ongoing goal is to assist our customers to achieve the best possible time to market and competitive advantage by producing products in a sustainable way at the lowest total cost through our competence, delivery accuracy, and product quality. As we move into the future, we plan on continuing our cutting-edge innovations and look forward to providing our customers with exceptional products and services.

We value our customers and aim to build long-lasting relationships based on trust and communication because our customers are very important to us. MakerPCB is your pathway towards everlasting success.

FAQ

Q1. What services do you offer?
We provide a one-stop full-turnkey manufacturing solution including PCB fabrication, component sourcing & procurement, SMT, plastic injection & metal, final assembly, testing, certification supports, and the other manufacturing services.

Q2. Could we sign the NDA before sending the files?
Sure, we would like to sign the NDA with our clients and keep the production files confidential. We promised that we won't share our client projects files for any

Q3. What files do you need for the PCB & PCBA quotation?
We need to know the Quantity inquiry, BOM, PCB Gerber, PCB specification requirement, pick and place file, Test plan (if you need). Then we will check and quote to you within 24hours.

Q4. What is the minimum order quantity for the PCBA order?
Our PCBA MOQ is 1pcs, we could support you from the design sample verification to the mass production run. We are professional and willing to help you get all the manufacturing process fast and easily.

Q5. What is the production lead time for the PCBA order?
Our PCBA production lead time is 1~2wks for sample order (1~20pcs); 3~4wks for the trial production run (100~1000pcs), 4~5wks for the mass production run (>1000pcs). We also could offer you the expedited service if you need it urgently.

Based in Shenzhen, where becomes technology heaven for the world's hardware startups. We hope to become a one-stop production factory for you.

Let us work together, cheers! Contact us!
