Оригинальный HD-видео-кольпоскоп цифровой видео-кольпоскоп от
- Категория: Ultrasonic, Optical, Electronic Equipment >>>
- Поставщик: Kernel,Medical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.51 $* | 0.70 $* |
| Aug-19-2025 | 0.48 $* | 0.41 $* |
| Jul-19-2025 | 0.41 $* | 0.10 $* |
| Jun-19-2025 | 0.89 $* | 0.90 $* |
| May-19-2025 | 0.47 $* | 0.26 $* |
| Apr-19-2025 | 0.59 $* | 0.73 $* |
| Mar-19-2025 | 0.89 $* | 0.30 $* |
| Feb-19-2025 | 0.34 $* | 0.23 $* |
| Jan-19-2025 | 0.95 $* | 0.39 $* |
Характеристики

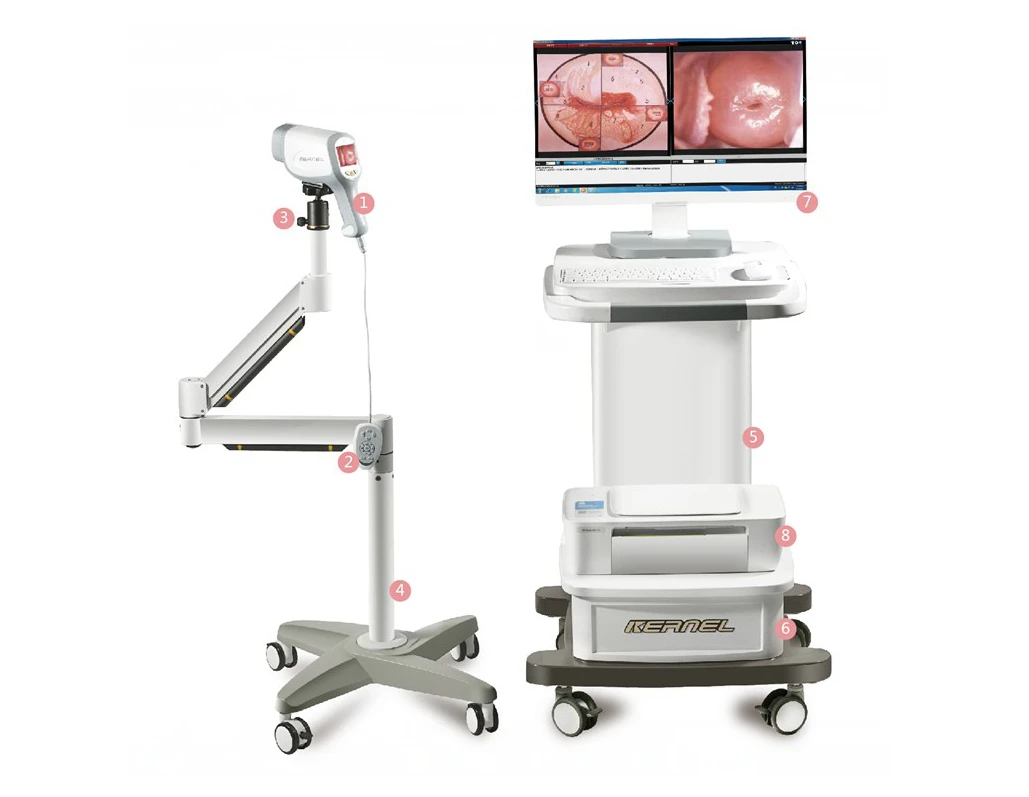

Kernel KN-2200A CE USA 510K Gynecology Colposcopy system digital video colposcope for obstetrics gynecology cervical cancer
Product Description
Colposcope Digital imaging System is the combination of digital imaging technology and colposcope,which is suitable for clinical gynecological examination of vulva,vagina,cervix and other parts.
It can enlarge the observed image to a certain multiple,and find small lesions that cannot be detected by the naked Eye.
With this amplication effect,doctors can clearly see the skin of the cervix and the genital epidermis through the large-screen display of the very small details of the lesions,help to improve the accuracy of the dignosis of cervical,genital and other pathological changes,for the early detection of diseases to provide evidence,so that the cure rate of disease greatly improved.
And through the computer can be observed image collection,processing,Clinical diagnosis,report editing,query statistics,A greater degree of role in the use of colposcope,better to meet the future medical imaging"digital"development requirements.

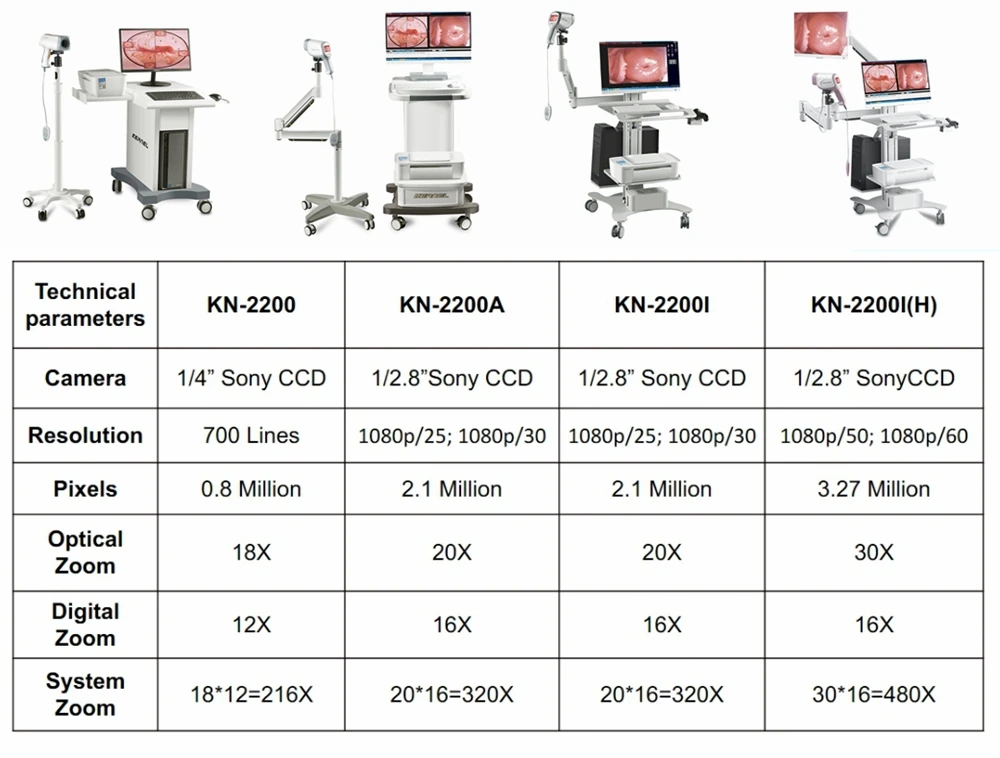

Image Sensor | 1/2.8-inch Sony CCD |
Effective Pixels | 2.1 million effective pixels |
Light cource | 24pcs LED |
Horizontal Resolution | 1080 TVL |
Depth of Field | 5.3mm～96.3mm |
Certificates | CE,USA 510K,ISO |
Working distance | 200～400mm |
Color saturation | 90% |
Focus mode | Fast autofocus, Manual focus |
Light source life | ≥50000 hours |
Product Features:

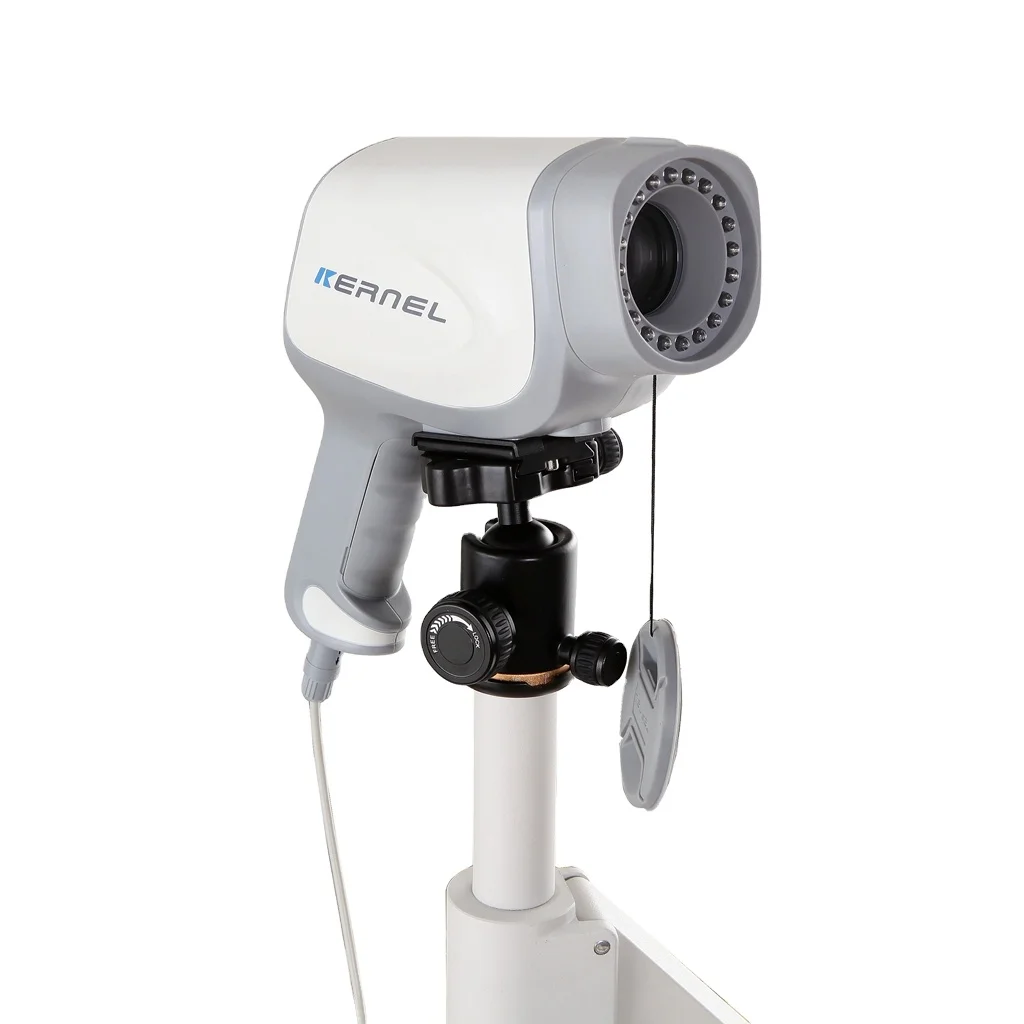

Camera:
1/2.8-inch Sony CCD,2.1 million effective pixels.Optical amplification: 20 times ; digital amplification: 16 times.
Horizontal resolution 1080 lines.
Adopt 24 groups energy-saving and eco-friendly white LED lightsource,long time uniform illunination,High color rendering index, no heat.
Hand-held zoom button convenient for doctors to observe tissue pathological changes in real time.
Can realize zoom,focus,imaging mode,acetic acid timing,image marking,brightness adjustment and other functions with sigle hand.
Control handle
Adopt palm-type handle design,humanized operation panel.Silicone button Oval layout
Can realize zoom,focus,imaging mode,acetic acid timing,image marking,brightness adjustment and other functions with sigle hand.
Free cantilever design
Flexible and simple operation,light weight.Can adjust the lens up dan down.
Or locked at any angle to meet different hospital beds height.
Powerful software management
integrating image acquisition, image processing, clinical diagnosis, report editing, and query statistics.
U disk automatic installation, multi-user operation mode, easy to use for different doctors. Support WIN 7 operating systems above with Chinese, English, Spanish, Russian, Vietnamese, Turkish etc.
Detailed Images
Powerful software characteristics
* Multi-function management software with the ability of image observation,capture,video recording,freezing,editing,report
printing and storage.
* Special Software package,can be used for marking, zoom in and out, partial magnification etc. With the function of acetic acid
reaction countdown,applicable to dynamic observation of examination and operative treatment.
* Abundant cases datebase,have 175 kinds of case pics,satisfied cases images can be added. Suitable for clinical contrast.
* Built-in cases report template,convenient for editing and printing;doctor can design case report.
* search cases via case number,name and date.
* one-key installation software, support Win7/8/10
printing and storage.
* Special Software package,can be used for marking, zoom in and out, partial magnification etc. With the function of acetic acid
reaction countdown,applicable to dynamic observation of examination and operative treatment.
* Abundant cases datebase,have 175 kinds of case pics,satisfied cases images can be added. Suitable for clinical contrast.
* Built-in cases report template,convenient for editing and printing;doctor can design case report.
* search cases via case number,name and date.
* one-key installation software, support Win7/8/10
Optional parts
Benefits of digital colposcopes
* Lower cost
* Ergonomically designed. Eliminates pain, discomfort and migraines related to binocular use.
* Shorter exam time (up to 50% shorter)
* Low learning curve (user friendly)
* Auto focus. No more turning knobs.
* Portable
* Easily integrated with telemedicine
* Easily shared between multiple operators within one facility with no down time to recalibrated eye pieces to each users
specifications.
* Broadly used in education. The image being transmitted onto a TV screen allows for live demonstration by the teacher to a student audience of any size. Conversely, it allows the teach to instruct a student in hands on learning without having to take turns looking into an eye piece, adjusting the focus each time.
* Green filter for acedic acid tests
* Increase patient awareness and education by having the ability to show the patient what is wrong. The image can be displayed on multiple screens (one for the doctor and one for the patient) to show the patient what is going on. In studies, it has shown
that this increases the percentage of patient followups.
* Ergonomically designed. Eliminates pain, discomfort and migraines related to binocular use.
* Shorter exam time (up to 50% shorter)
* Low learning curve (user friendly)
* Auto focus. No more turning knobs.
* Portable
* Easily integrated with telemedicine
* Easily shared between multiple operators within one facility with no down time to recalibrated eye pieces to each users
specifications.
* Broadly used in education. The image being transmitted onto a TV screen allows for live demonstration by the teacher to a student audience of any size. Conversely, it allows the teach to instruct a student in hands on learning without having to take turns looking into an eye piece, adjusting the focus each time.
* Green filter for acedic acid tests
* Increase patient awareness and education by having the ability to show the patient what is wrong. The image can be displayed on multiple screens (one for the doctor and one for the patient) to show the patient what is going on. In studies, it has shown
that this increases the percentage of patient followups.
