Станок для лазерной резки листового металла и труб/труб с
- Категория: Industry Laser Equipment >>>
- Поставщик: Shandong,Raytu,Laser,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 19635.24 $* | 20617.27 $* |
| Aug-18-2025 | 19470.52 $* | 20444.38 $* |
| Jul-18-2025 | 16335.82 $* | 17152.10 $* |
| Jun-18-2025 | 19140.36 $* | 20097.33 $* |
| May-18-2025 | 16665.7 $* | 17498.63 $* |
| Apr-18-2025 | 18810.60 $* | 19751.42 $* |
| Mar-18-2025 | 18645.34 $* | 19577.63 $* |
| Feb-18-2025 | 18480.72 $* | 19404.14 $* |
| Jan-18-2025 | 18315.67 $* | 19231.5 $* |
Характеристики

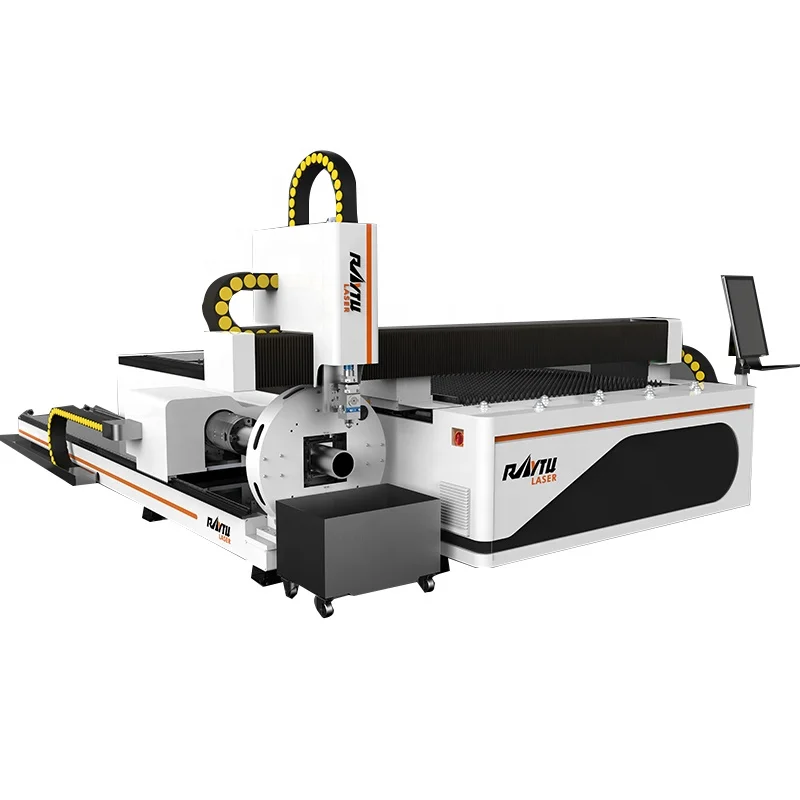

Metal Plate Sheet And Pipe/Tube Laser Cutter CNC Fiber Laser Cutting Machine With Rotary Axis
Specification
Equipment Specification | ||||||||||
Model | RTC3015H | RTC4015H | RTC6015H | RTC4020H | RTC6020H | |||||
Cutting Area | 3000*1500mm | 4000*1500mm | 6000*1500mm | 4000*2000mm | 6000*2000mm | |||||
Laser source | MAX | MAX | MAX | MAX | MAX | |||||
Max Moving Speed | 100m/min,Acc=1.0G | 100m/min,Acc=1.0G | 100m/min,Acc=1.0G | 100m/min,Acc=1.0G | 100m/min,Acc=1.0G | |||||
Position Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | |||||
Reposition Accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | |||||
Power | 380V 50/60Hz 50A | 380V 50/60Hz 50A | 380V 50/60Hz 50A | 380V 50/60Hz 50A | 380V 50/60Hz 50A | |||||
Max Loading(KG) | ≤4000 | ≤5000 | ≤5500 | ≤6000 | ≤6000 | |||||
High precision machine bed
1. Fiber laser cutting machine lathe bed part completely independent research and development, by the party welding lathe bed base, through the large gantry milling machine.
2. For large machine bed we have many years of experience in processing, each machine bed will be placed 30 to 45 days after rough machining natural failure, the internal stress release completely again after finishing, ensure the machining accuracy. High strength, stability, ensuring 20 years of use without distortion.
Laser head
1. Optimized design structure: modularization, easy maintenance, and reduced downtime.
2. Multiple protective lenses: 3 protective lenses, efficient protection of collimating focusing lenses.
3. Durable and durable: 2-way optical water cooling, effectively extending continuous working time.
4. Closed-loop step-by-step automatic focusing: A closed-loop stepper motor is used to effectively avoid losing steps. The focusing speed is 100mm/s, and the repeatability is 1μm.
5. Fast piercing High speed cutting: 16mm low carbon steel, piercing time <6 seconds, cutting speed 0.6m/min.
2. Multiple protective lenses: 3 protective lenses, efficient protection of collimating focusing lenses.
3. Durable and durable: 2-way optical water cooling, effectively extending continuous working time.
4. Closed-loop step-by-step automatic focusing: A closed-loop stepper motor is used to effectively avoid losing steps. The focusing speed is 100mm/s, and the repeatability is 1μm.
5. Fast piercing High speed cutting: 16mm low carbon steel, piercing time <6 seconds, cutting speed 0.6m/min.
Laser source
1. Electro-optical conversion efficiency up to 30%.
2. They are excellent beam quality, high energy density, and reliability, a wide modulation frequency;
3. 100,000 hours of lifetime, free maintenance; Low energy consumption, only 20%-30% of the traditional CO2 machine.
2. They are excellent beam quality, high energy density, and reliability, a wide modulation frequency;
3. 100,000 hours of lifetime, free maintenance; Low energy consumption, only 20%-30% of the traditional CO2 machine.
Water chiller
1. Automatically adjust the temperature according to different working environment, no need to change settings parameters. Reduce the temperature of the laser source and the laser head through water circulation, thereby protecting these two main parts.
2. The chiller has functions such as water flow protection and water temperature protection. If the chiller is not opened or the water flow is insufficient, the laser will not be generated when the water temperature is too high, so as to protect the laser.
2. The chiller has functions such as water flow protection and water temperature protection. If the chiller is not opened or the water flow is insufficient, the laser will not be generated when the water temperature is too high, so as to protect the laser.
Servo motor
Y axis: Double sets Japanese FUJI servo motors and drivers.
X axis: Japanese FUJI Servo motor and driver Our X Y axis structure increases machine speed and precision and more stable for machine working.
Z axis: Japanese Servo motor and driver.
X axis: Japanese FUJI Servo motor and driver Our X Y axis structure increases machine speed and precision and more stable for machine working.
Z axis: Japanese Servo motor and driver.

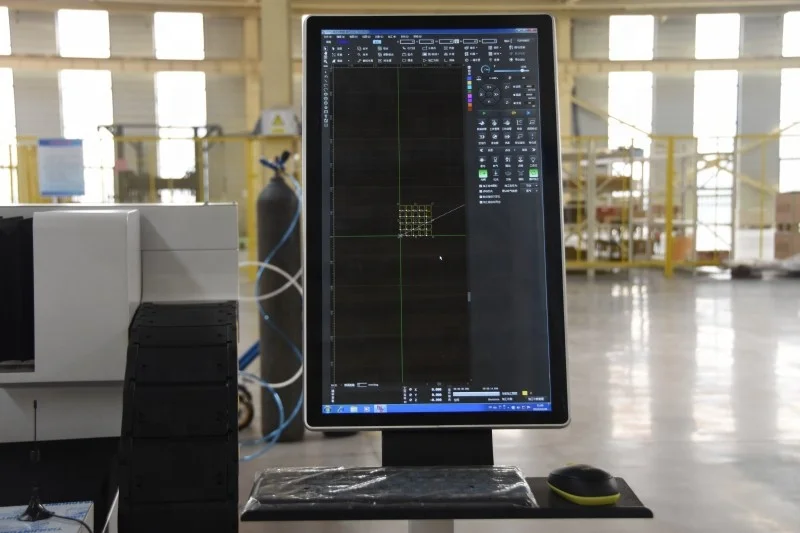

Control system
1. Advantech industrial computer, with professional Weihong optical fiber cutting control system, can cut metal plates well. High cutting speed and perfect cutting edge, smooth plane and exquisite texture.
2. Save the metal cutting parameters of various technologies in the computer before leaving the factory.
What is fiber laser cutting machine Application?
Used in sheet metal processing, aviation, aerospace, electronics, electrical
appliances, subway parts, automobiles, grain machinery, textile machinery, engineering machinery, precision parts, ships,
metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising , metal
processing, kitchen processing and other manufacturing and processing industries.
appliances, subway parts, automobiles, grain machinery, textile machinery, engineering machinery, precision parts, ships,
metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising , metal
processing, kitchen processing and other manufacturing and processing industries.

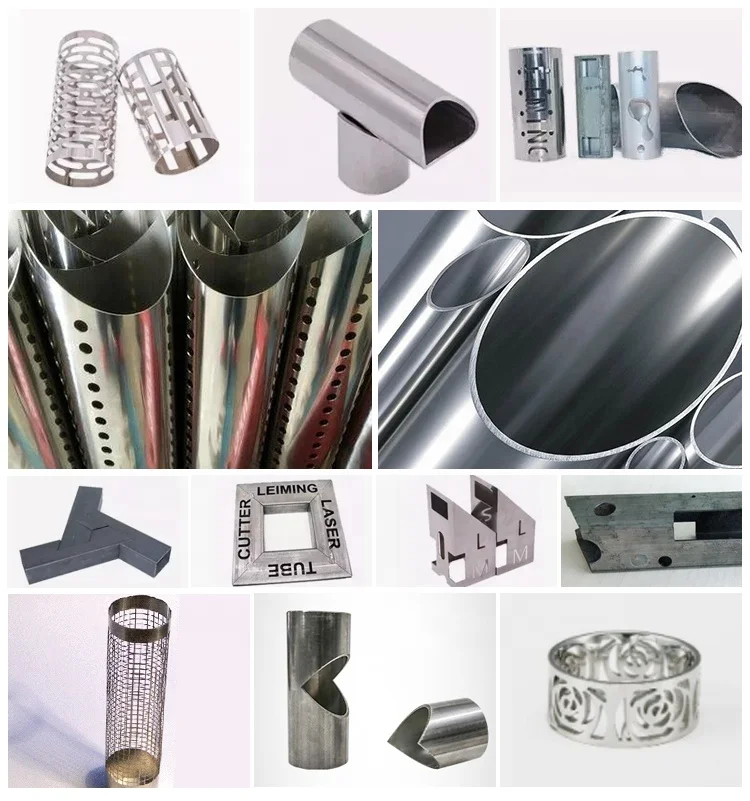

What materials can laser cutting machines be applied to?
Material Application:Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized
sheet, galvanized sheet, pickled sheet, copper, silver, gold, titanium and other metal sheet and pipe cutting.
sheet, galvanized sheet, pickled sheet, copper, silver, gold, titanium and other metal sheet and pipe cutting.
Our Service
① Pre-sale services Before signing a contract, our company provides customers a variety of production technology proposal, technical advice of laser equipment, sample specimens, equipment selection, and price etc. all aspect of consulting and services. We sincerely welcome customers to visit our company and factory, and we provide customers reception staff, food, transportation and other facilities.
② Sale of services Based on the contract, we delivery laser machine to customers place safely within the specified time, We provide Installation and technical training. The training as follows: 1. Training operating instruction of turning on and off machine; 2. Meaning of panel and control parameters; 3. Training parameter selection range; 4. Training control software operation ; 5. Basic maintenance and cleaning of the machine; 6. Dealing with common hardware problem; 7. Noted question in operating ; 8. In addition to, we also provide users technical support related their producing products.
③ After-sale services To provide customers with all aspects of service. We promise: 1. Three year warranty of machine. 2. Customer service will be feedback within 12 hours. 3. We provide machine lifetime maintenance services though warranty expires. 4. Offered a wide range of hardware and software support after the warranty expires, enjoy free upgrades. Installation and commissioning cost, technician's tickets and all cost mentioned need to be negotiated.
Packing & Delivery
Packaging:'By wooden
Shipping:By sea
Shipping:By sea
Company Profile
Shandong Raytu Laser Technology Co., Ltd. is a professional r & D, production and sales of laser equipment high-tech enterprises.The company has a group of top laser technology talents, established a covering China, radiation of the global sales system.The company has a standardized intelligent equipment base, committed to fiber cutting machine, intelligent robot research and development, manufacturing and sales.The equipment is widely used in advertising industry, arts and crafts gifts, precision instruments, auto parts, jewelry and other industries.To meet the needs of customers in different industries, and rely on excellent design, excellent and stable performance, won the unanimous recognition of customers at home and abroad. The company regards the quality as the life, takes the technology as the foothold this, we will always adhere to "the quality, the customer is supreme, strictly observes the prestige, serves the society" the purpose, the warm welcome from all walks of life friend comes to the company to visit, the investigation, the guidance.
Corporate mission: To be a one-stop procurement platform for laser engraving machine industry.Corporate vision: Made in China, leading the world.
Corporate values: integrity, innovation, gratitude, cooperation, efficiency.
Corporate mission: To be a one-stop procurement platform for laser engraving machine industry.Corporate vision: Made in China, leading the world.
Corporate values: integrity, innovation, gratitude, cooperation, efficiency.
FAQ
1. who are we?
We are based in Shandong, China, start from 2020, sell to North America(15.00%), Southeast Asia(10.00%), Mid East(10.00%), Eastern Asia(10.00%), Domestic Market(10.00%), Northern Europe(8.00%), South America(6.00%), Eastern Europe(5.00%), Western Europe(5.00%), Central America(5.00%), Southern Europe(5.00%), South Asia(5.00%), Africa(4.00%), Oceania(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3.what can you buy from us?
Laser cutting machine, Marking machine, CNC router machine, Laser welding machine, Cleaning machine.
4. why should you buy from us not from other suppliers?
We are based in Shandong, China, start from 2020, sell to North America(15.00%), Southeast Asia(10.00%), Mid East(10.00%), Eastern Asia(10.00%), Domestic Market(10.00%), Northern Europe(8.00%), South America(6.00%), Eastern Europe(5.00%), Western Europe(5.00%), Central America(5.00%), Southern Europe(5.00%), South Asia(5.00%), Africa(4.00%), Oceania(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3.what can you buy from us?
Laser cutting machine, Marking machine, CNC router machine, Laser welding machine, Cleaning machine.
4. why should you buy from us not from other suppliers?
Our company has a group of top laser technology talents, established a covering China, radiation of the global sales system. The company has a standardized intelligent equipment base, committed to fiber cutting machine research and development.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES; Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;LanguageSpoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES; Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;LanguageSpoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
