Acrel ADL400 класс 0.5s цифровой AC трехфазный din-рейка счетчик энергии с сертификатом
- Категория: Electrical Instruments >>>
- Поставщик: Acrel,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.77 $* | 0.69 $* |
| Aug-17-2025 | 0.49 $* | 0.27 $* |
| Jul-17-2025 | 0.94 $* | 0.72 $* |
| Jun-17-2025 | 0.28 $* | 0.39 $* |
| May-17-2025 | 0.6 $* | 0.95 $* |
| Apr-17-2025 | 0.66 $* | 0.83 $* |
| Mar-17-2025 | 0.8 $* | 0.84 $* |
| Feb-17-2025 | 0.37 $* | 0.31 $* |
| Jan-17-2025 | 0.25 $* | 0.47 $* |
Характеристики
Product Description

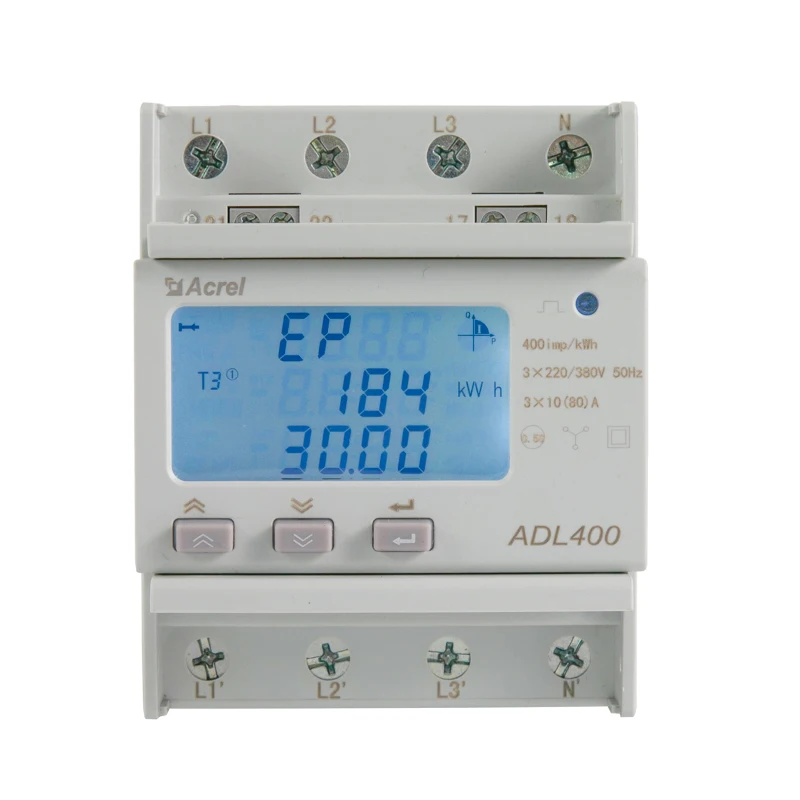

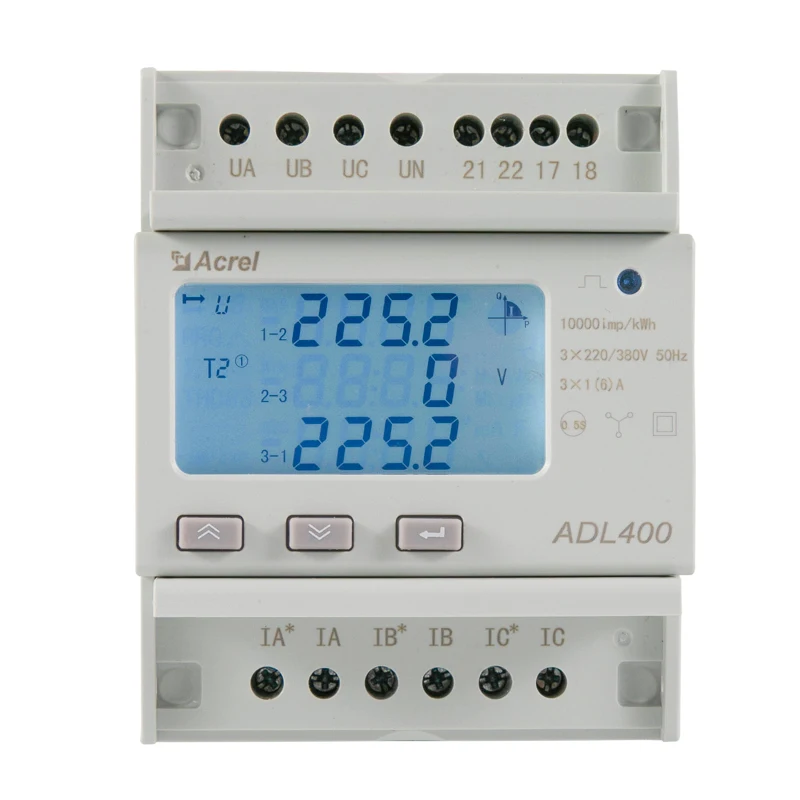

ADL400 Three Phase Energy Meter
Active kWh(positive and negative in total),Frozen data
U、I、P、Q、S、PF、F
2~31st voltage and current harmonic
12 digits LCD display,background light
3 keys to communication and set parameters
Active pulse output
Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates
Max demanded kWh and time happened
Frozen data on last 48 months, last90days
RS485 interface,Modbus-RTU,DL/T645-97,DL/T645-07 protocol
U、I、P、Q、S、PF、F
2~31st voltage and current harmonic
12 digits LCD display,background light
3 keys to communication and set parameters
Active pulse output
Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates
Max demanded kWh and time happened
Frozen data on last 48 months, last90days
RS485 interface,Modbus-RTU,DL/T645-97,DL/T645-07 protocol
ADL400 Three Phase Energy Meter
Rated U and I
Voltage：AC3×100V、 3×380V、3×57.7/100V、 3×220/380V
Current：3*10(80)A，3*1(6)A
Voltage：AC3×100V、 3×380V、3×57.7/100V、 3×220/380V
Current：3*10(80)A，3*1(6)A
Communication
RS485(Modbus-RTU)
Display
12 digits LCD display U, I, P, Q, PF, kWh, Power measure (999999.99kWh)
RS485(Modbus-RTU)
Display
12 digits LCD display U, I, P, Q, PF, kWh, Power measure (999999.99kWh)
Accuracy
kWh Class 0.5s
Frequency
45~65HZ
Consumption
<10VA(Each phase)
Installation
kWh Class 0.5s
Frequency
45~65HZ
Consumption
<10VA(Each phase)

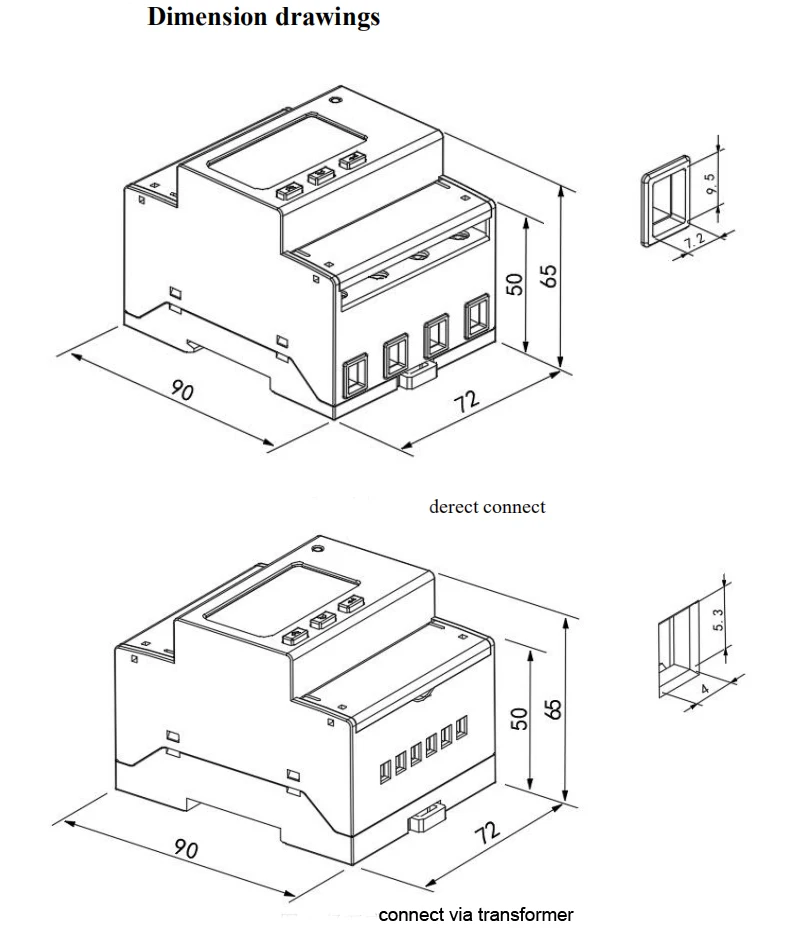

Dimension
90*72*65mm
Installation

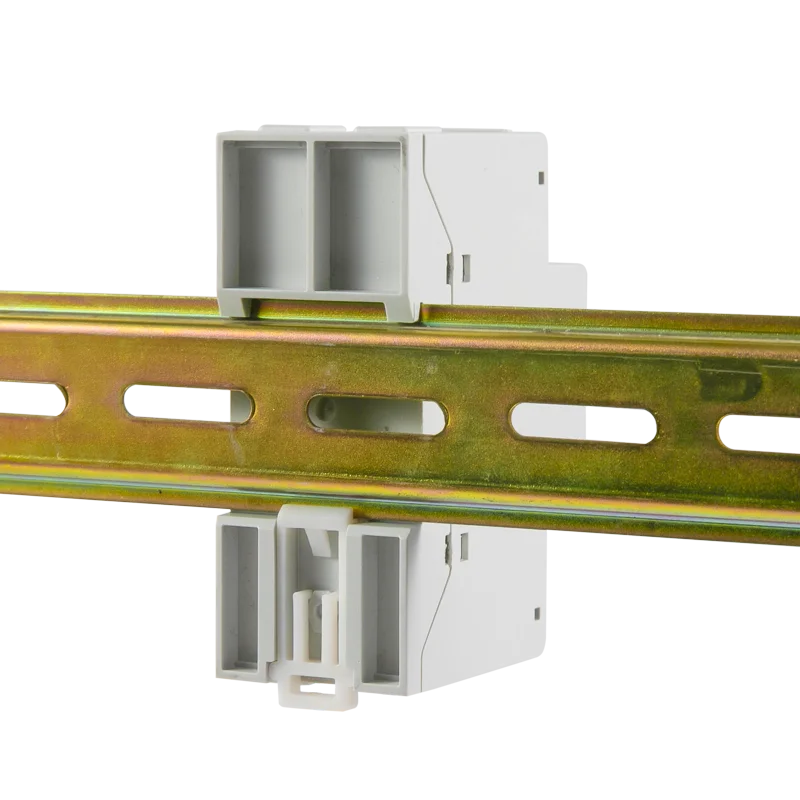

Din rail 35mm

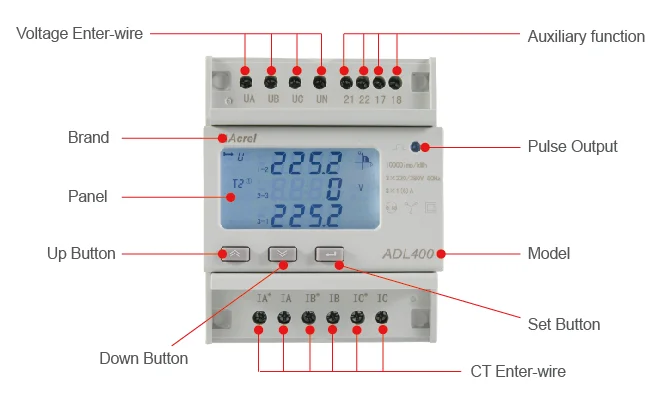

Details Images
Specification
Specification | 3 phase 3 wires, 3 phase 4 wires | ||
Voltage | Reference voltage | 3×100V、 3×380V、3×57.7/100V、 3×220/380V | |
Consumption | <10VA(Single phase) | ||
Accuracy class | Error±0.2% | ||
Current | Input current | 3×1(6)A， 3×10(80)A | |
Consumption | <1VA(Single phase rated current) | ||
Accuracy class | Error±0.2% | ||
Power | Active, reactive, apparent power, error±0.5℅ | ||
Frequency | 45～65Hz（Error±0.2%） | ||
Measuring performance | Energy | Active energy(Accuracy class:0.5, 1) reactive energy(Accuracy class 2) | |
Clock accuracy | error≤0.5s/d | ||
Digit signal | Energy pulse output | 1 active photocoupler output | |
Pulse | Pulse Width | 80±20ms | |
Pulse constant | 1000impkWh,10000imp/kWh(Correspond with the basic current) | ||
Communication | Interface and communication | RS485：Modbus RTU | |
Range of communication address | Modbus RTU:1~ 254 | ||
Baud rate | 1200bps~19200bps | ||
Typical Connection

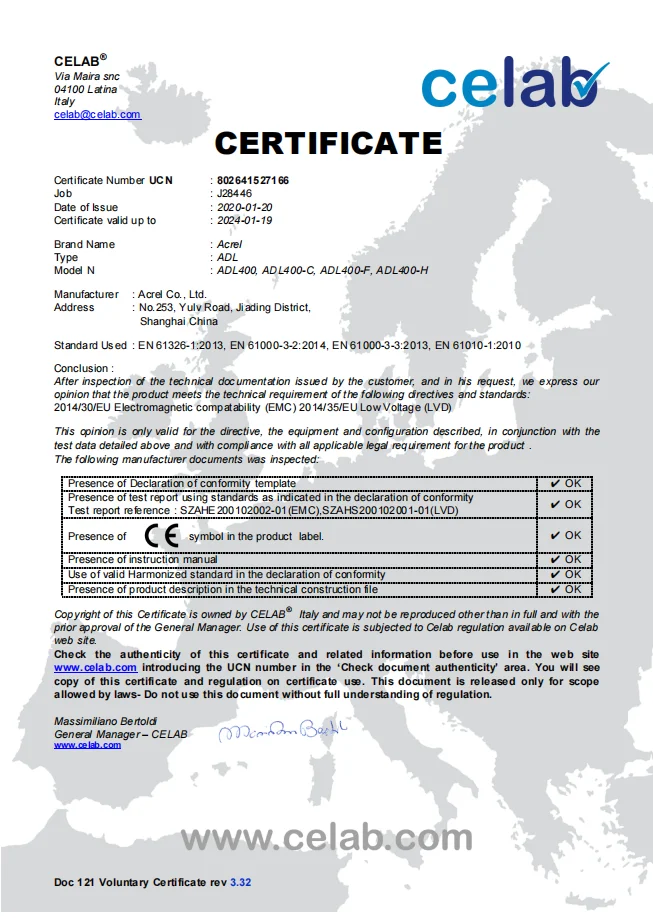

Certificates
