2021 полуопускающаяся Автомобильная окрасочная камера автоматическая
- Категория: Spray Booths >>>
- Поставщик: Guangzhou,Hechuang,Coating,Equipment,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.96 $* | 0.97 $* |
| Aug-17-2025 | 0.71 $* | 0.27 $* |
| Jul-17-2025 | 0.41 $* | 0.47 $* |
| Jun-17-2025 | 0.2 $* | 0.32 $* |
| May-17-2025 | 0.42 $* | 0.11 $* |
| Apr-17-2025 | 0.18 $* | 0.87 $* |
| Mar-17-2025 | 0.83 $* | 0.38 $* |
| Feb-17-2025 | 0.80 $* | 0.81 $* |
| Jan-17-2025 | 0.9 $* | 0.92 $* |
Характеристики

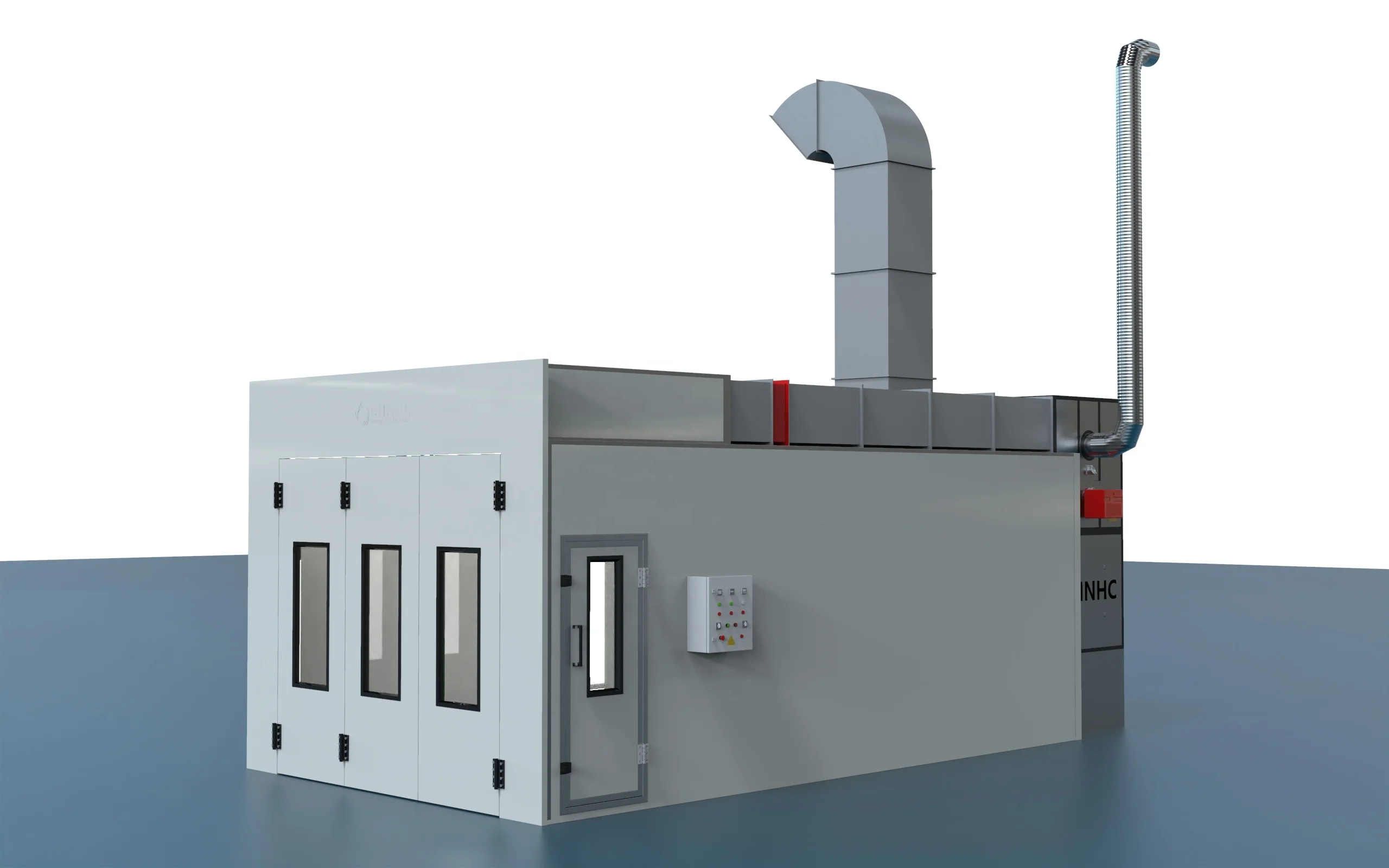

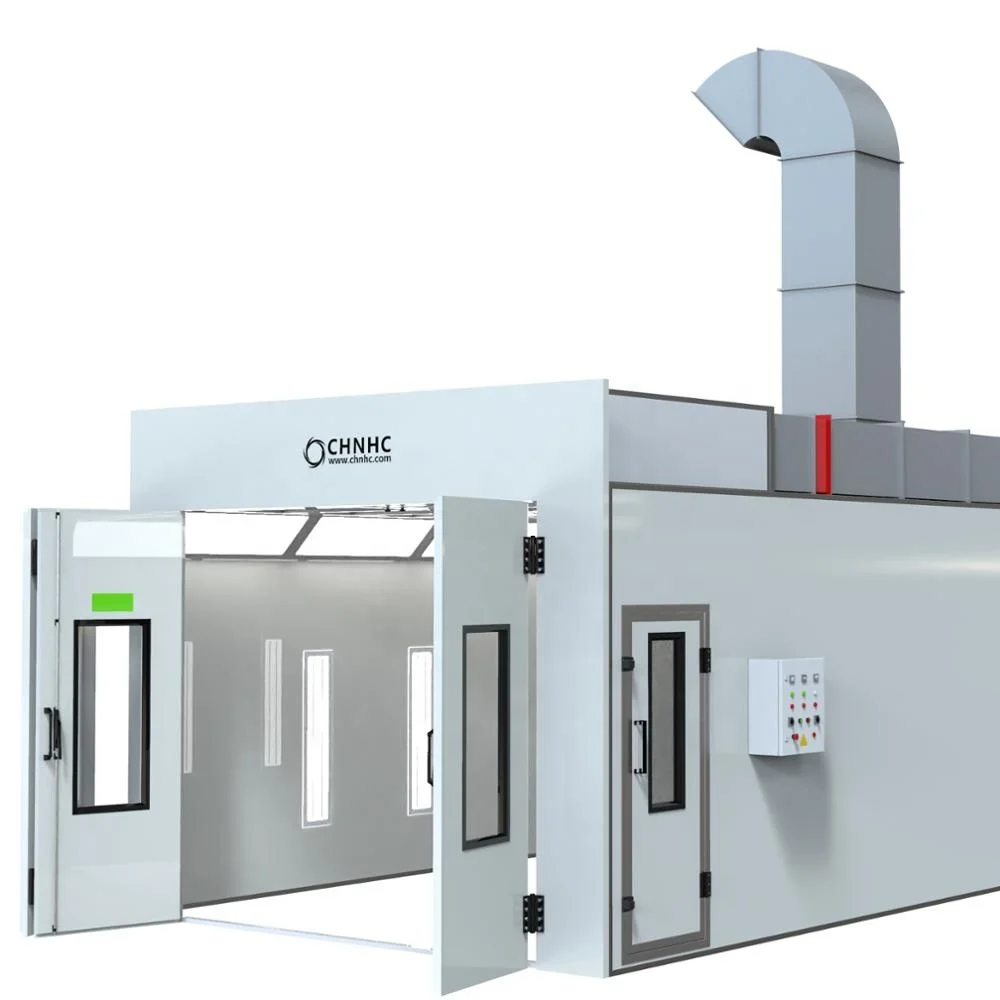

Semi downdraught spray booth E604 | ||
Size (L x W x H) | Inside Size | 6900 x 4000 x 2800mm |
| Outside Size | 8500 x 4110 x 3460mm |
Foundation and Floor | Foundation | No metal foundation, back draft |
Wall and Door | Wallboard | Adopt high quality double construction fireproof insulation EPS panel, thickness: 50mm (rock wool panel as option) |
| Roof Panel | Adopt high quality double construction fireproof insulation EPS panel, thickness: 50mm (rock wool panel as option) |
| Entrance Door | Door with steel frame, 1 set, size: 3100 x 2700mm (W x H), tempering glass observation window |
| Personnel Door | 1 set, size: 800 x 2000mm (W x H),tempering glass observation window |
Light System | Ceiling Lighting | 8 units, each 4 x 16w, adopt LED energy saving light, tempering glass |
| Side Lighting | 8 units, each 2 x 16w, adopt LED energy saving light, tempering glass |
| Ceiling Filters | Adopt high efficient adhesive filter, which can capture the dust who is more than 4μm, its filtering rate reaches 98% |
Ventilation System | Inlet Fan | Adopt big impeller turbo fan 1 x 7.5KW , Three-phase, 6 pole motor, 380V, 960RPM, 50HZ (SIEMENS motor as option) |
Outlet Fan | Adopt big impeller turbo fan 1 x 7.5KW , Three-phase, 6 pole motor, 380V, 960RPM, 50HZ (SIEMENS motor as option) | |
Total Fan Capacity | 25,000m³/h | |
Air Flow Speed in Cabin | 0.35-0.5m/s in loaded booth | |
Painting and Baking Exchange System | Solenoid valve+ pressure adjustment control cylinder driven damper exchange | |
Air flow adjust | Manual air damper to adjust to pressure of booth | |
Manometer | Yes, to indicate the pressure of booth | |
Duct | Straight pipe: 8 meters, bending pipe: 2 units, reducing pipe: 2 units, soft connection: 1 unit, flange connection (air inlet pipe as option) | |
Flue | Galvanized pipe: 3 meters, bending pipe: 2 units (stainless steel pipe as option) | |
Heating System | Heating Exchanger | Adopt high efficient heat-resistant (SUS304) stainless steel as cycling heat exchanger |
Burner Model | Adopt 1 set RIELLO diesel burner G20, each heating capacity 180.000kcal/h (gas burner or infrared light heater as option) | |
Heating Time | 4-6 minutes (from 20 to 60º) under baking status, max baking temperature is 80° | |
Control Box | Control System | Standard control system |
More options | PCL control, touch screen control, inverter control | |
Function | Painting, warm painting, baking, lighting, emergency stop switch, baking time setting, temperature setting, over-temperature alarm indication, baking delay stop protection, temperature limiter , burner error alarm, motor error alarm | |
Total Power | 17KW | |
Option voltage | Three-phase 208/220/240/380/400/415/440/480V, 50/60Hz |
Product Description
Product Description

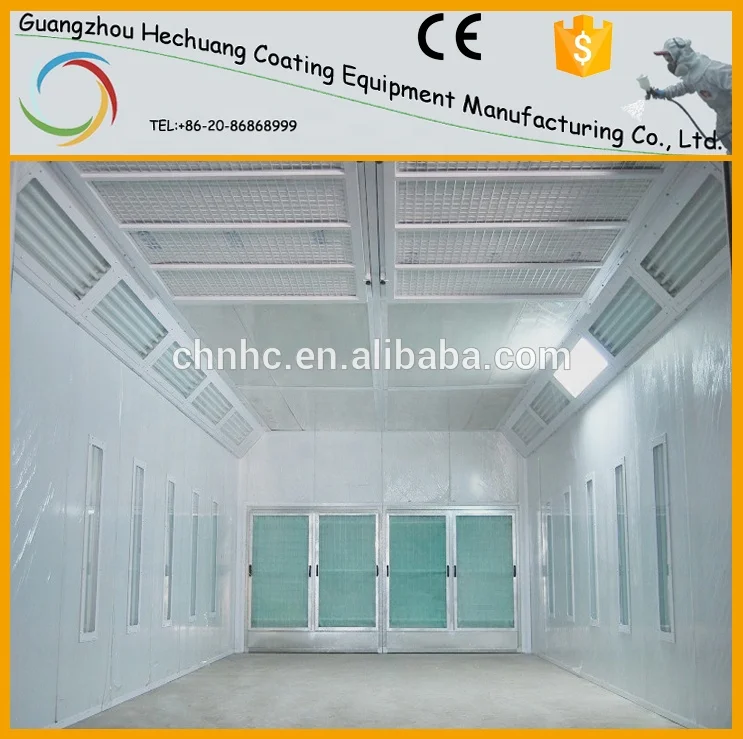

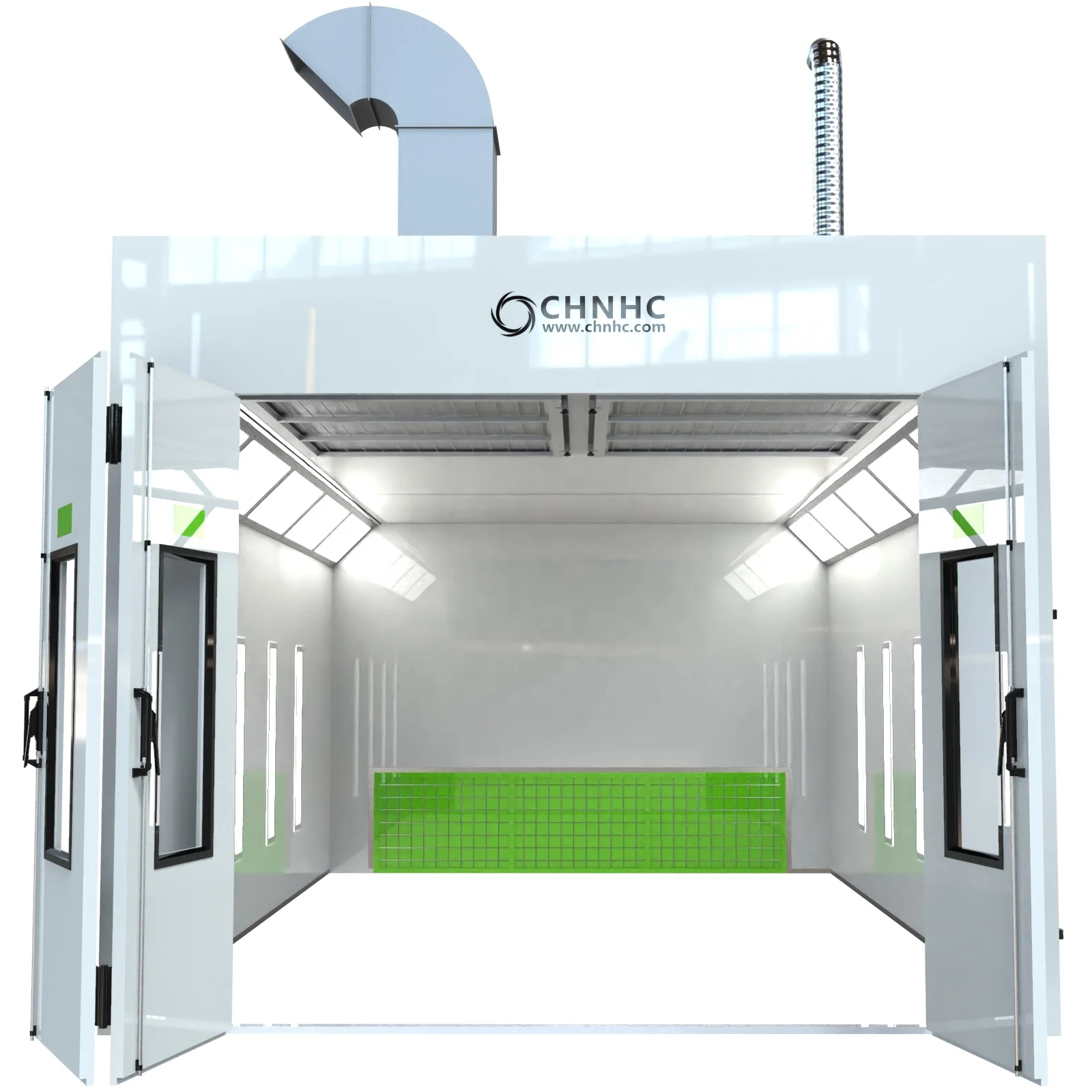

Specification of Semi down draft paint booth for car body
Packaging & Shipping
Package and Shipping
Package: Professional export package-use the iron bracket package
Loading situations: 20GP
Our Services
Our Services
A. All of the machines in our factory can be customized. If you have any other requirements of the machine, please feel free to contact me. We can design it for you.
B: Payment terms: T/T. 30% in advance after order confirmed, 70% in balance before
shipment.
C: Delivery time: To effect shipment within 7 days after the receipt of deposit.
D:Warranty time: 1 year. During the warranty time, any defective caused by product’s quality, CHNHC has responsibility to offer free spare parts to customers freely and bear the
delivery cost for DHL or TNT Carrier.
E:We are a member of Trade Assurance Service.
Company Information
Company Information
HC Coating Equipment Manufacturing Co., Ltd. is an auto maintenance equipment company. Today it is a global player in the automotive aftermarket providing a full range of equipment and service solutions for workshops. The core products in our company are spray painting and baking booth, portable spray booth, bus spray booth, preparation station, mixing room, brake lathe, car bench and so on. All our products are shipped to Europe, East Europe, North & South America, Africa, Australia and Asia as well as different provinces in China.
Our Factory
Product in Exhibition
FAQ
FAQ
Q: Are you a factory or a trading company?
A: We are a factory and all machines are produced at our own factory.
Q:Can I order special color which I like?
A: Yes, we can also produce machines with special color according to client's request.
Q: Can I order spray booth in any special size?
A: Yes,you can.
The size is customized.
Q: I don't know how to assemble your spray booth
A: The complex installation is already finished before delivery, what you need to
do is finishing the simple procedures according to the installation instructions
Q: When the product can be delivered?
A: Commonly the lead time will be within 7 days after receiving 30% deposit by T/T.
Q: What is "Trade Assurance"?
A: Trade Assurance is a new service provided by Alibaba, which can provides buyers with a number of trade safeguards, protect buyers' payments, and to ensure suppliers fufill their obligations regarding order delivery time and product quality.
