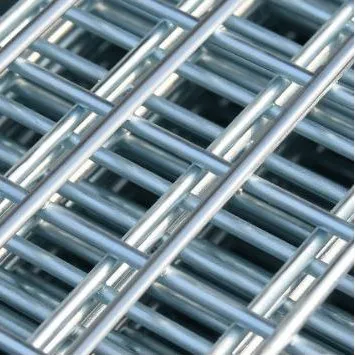

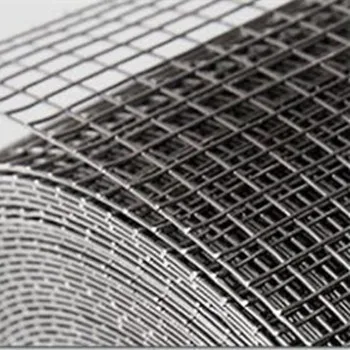

welded wire mesh panel



1. Products Description:
Material: hot dipped,electric galvanized,PVC coated stainless steel
Mesh: 1/4"-4"
Diameter:0.5-12mm
Width: 0.5-1.8m and as your requirement
Length: 30m and as your requirement
Packing:waterproof paper then shrink plastic bag or pallet
Delivery: within 10-20 days
Payment:40% advance payment and 60% after  production
We have free sample,if you want to know the quality,just tell us.
Dear friend,please tell me your exact specification.so that  we can give us your exact specification and we can arrange to produce.



2. Specifications:

Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	9,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16





3.Features

1. Trimmed edges to ensure there is limited overhang of wire to cause injury when handling

2. Weld tests completed on all welders over continuous runs

3. Weld strength to be greater than 75% of the wire UTS

4. Wire diameters, spacing and overall dimensions can be customized to suit particular applications

5. Customized paint lines along the modules to suit roof bolt patterns

6. Available as strap from 4mm to 8mm diameters

7. Custom sheets available with double or additional wires if requested





4. Packing:
Welded wire mesh in panel: are wrapped with the shrink plastic bag then packed in the pallets.
