Зарядные станции для электромобилей переменного тока с разъемом SAE J1772 радиочастотная карта OCPP 11 кВт зарядные устройства уровня
- Категория: Настенные зарядные станции >>>
- Поставщик: Xiamen,Galaxy,Camphol,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 607.50 $* | 637.4 $* |
| Aug-17-2025 | 602.17 $* | 632.28 $* |
| Jul-17-2025 | 505.24 $* | 530.56 $* |
| Jun-17-2025 | 592.1 $* | 622.43 $* |
| May-17-2025 | 515.65 $* | 541.12 $* |
| Apr-17-2025 | 581.69 $* | 610.44 $* |
| Mar-17-2025 | 576.1 $* | 605.48 $* |
| Feb-17-2025 | 571.59 $* | 600.32 $* |
| Jan-17-2025 | 566.81 $* | 594.10 $* |
Характеристики

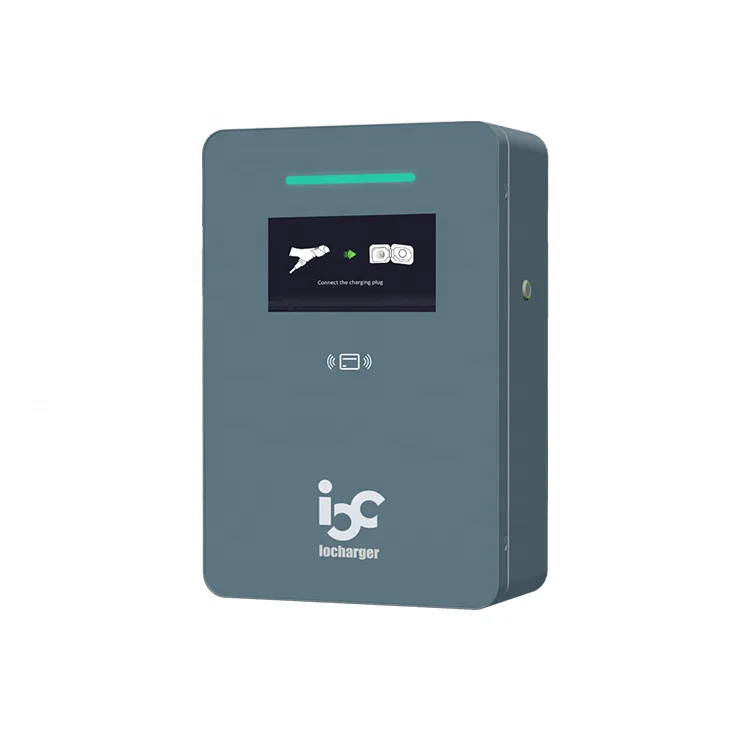

IoCharger level 2 AC EV charging stations with SAE J1772 connector support RFID card OCPP 11KW car charger for electric vehicle
| Protection | RCD | Type B (Type A + Sensor) |
| MCB | Yes | |
| Electrical Protection | Over/under voltage protection, overload protection, short circuit protection, current leakage protection, grounding protection, over temp protection, lightning surge protection | |
| Plug-Out Protection | Power output is terminated upon detection of charging connector plug-out | |
| Emergency Stop Button | Yes | |

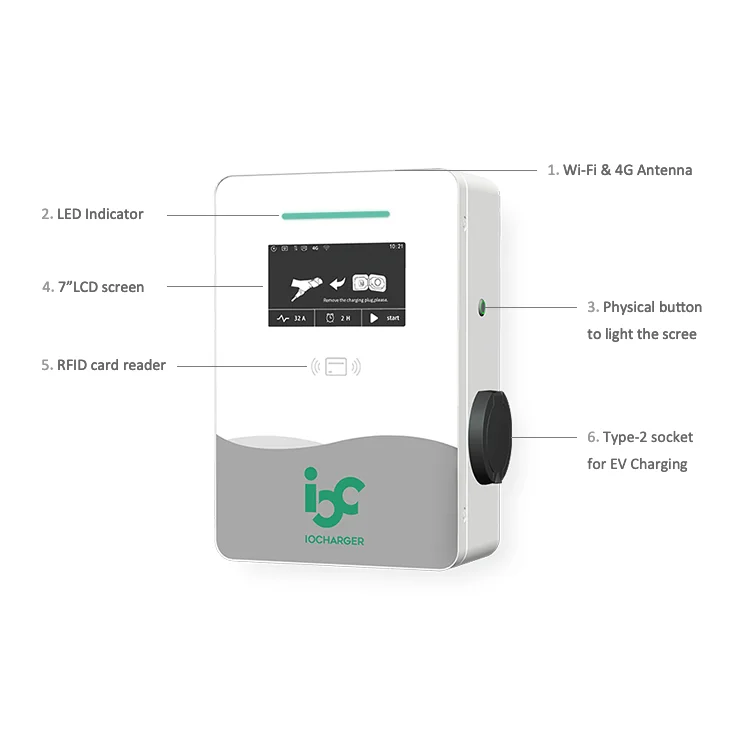

| User Interface | LED Indicator | Standby(Green), Charging(Flashing Green), Fault(Red), Waring(Flash Red) |
| LCD Screen | 7 inch TFT LCD | |
| Buttons/Switches | Start/Stop Charging | |
| Delay Timer | Delay charging for 2/4/6/8 hours. Adjustable | |
| User Authentication | RFID Mifare/ App | |
| Payment | RFID/ APP/ Credit Card (Optional) | |
| Communication | Network Interface | 4G LTE, Wi-Fi, Ethernet |
| Protocol | OCPP1.6J/OCPP1.5S | |
| Environment | Operating Temperature | -30 ° C ~ +50 ° C |
| Storage Temperature | -40 ° C ~ +70 ° C | |
| Working Humidity | 5%~95% without condensation | |
| Working Altitude | <2000m | |
| Mechanical | Charging Outlet | One connector type 2 |
| Cable Length | 5M | |
| Housing Material | Metal + Temper glass panel | |
| Protection Grade | IP55 | |

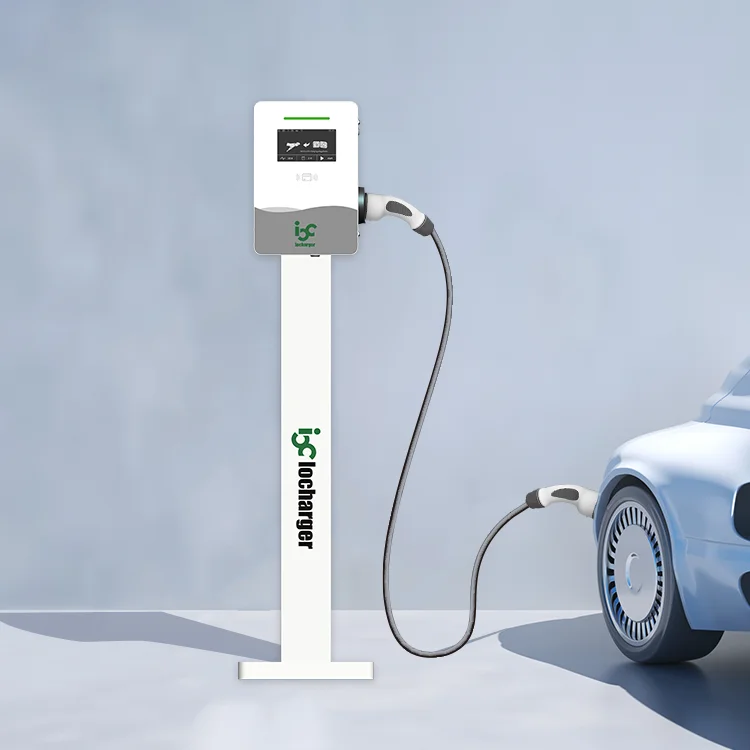

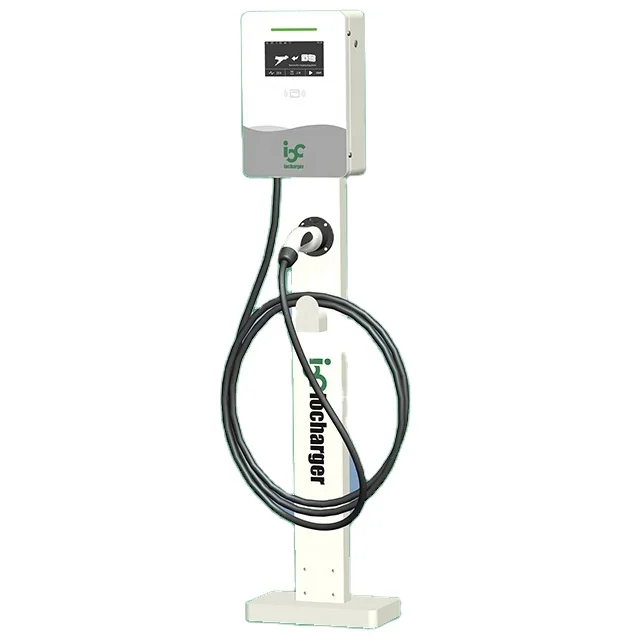

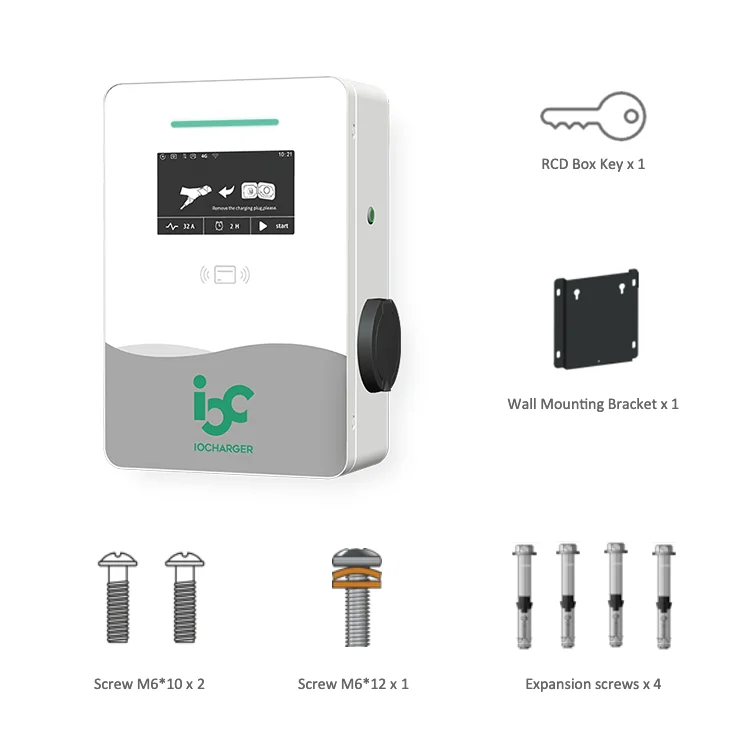

| Mounting Type | Wall-mount(standard); Pedestal-mount, Pole-Mount(optional) | |
| Dimension(W x H x D) | 302 * 402 * 135 mm | |
| Net Weight | 7.5Kg |
Here are some customer’s common questions about our products :
Q1:Are you Trading Company or manufacturer?
A: We are professional design and manufacturer, our factory has been established for 7 years.
Q2:What are your main market?
A:Mostly Europe and America, then Asia.
Q3:How long time to make a sample?
A:3-7 days if we make a new sample for you.
If you just select our existing sample, we can send you sample the next day.
Q4:How long is the lead time:
A: The lead time is 7-30 days, it depends on the quantity and production scheduling.
Q5: How many kinds of payment?
A: We have T/T and L/C etc.
If you need the detailed terms of payment, pls contact us.
Q6: Why is new model expensive than other old models?
A: A new model needs large R&D and mould cost, and the depletion rate is bigger during mould and production. Besides, new model is low productive but labor costs keep same as old model.
Q7: What certifications do you have?
A: We have approved Chinese national standard, European IEC standard, American SAE standard and Japanese CHAdeMo standard etc certification.
Q8: How long is the warranty time?
A: The warranty time is 2 years.
Our Service
1. We will reply you for your inquiry in 24 hours.
2. T/T and L/C etc payment terms all accepted.
3. Shipment:By air, By sea, By International express (DHL,Fedex).
4. Warranty Period: Within 24 months after shipment.
5. Provide operating guide (instruction).
6. Customized design,sample and packing according to clients requirements.
