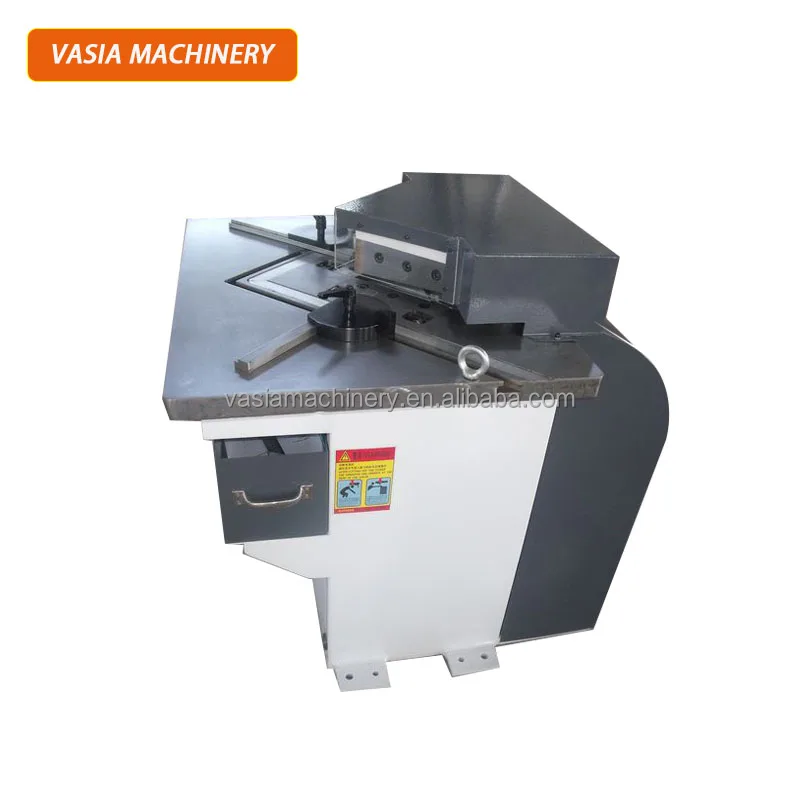

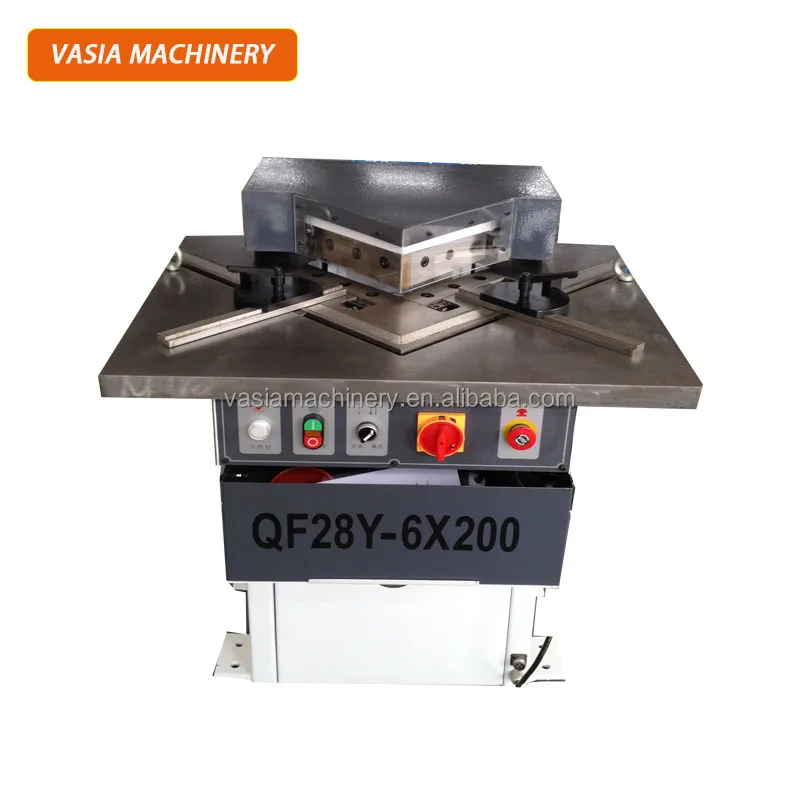

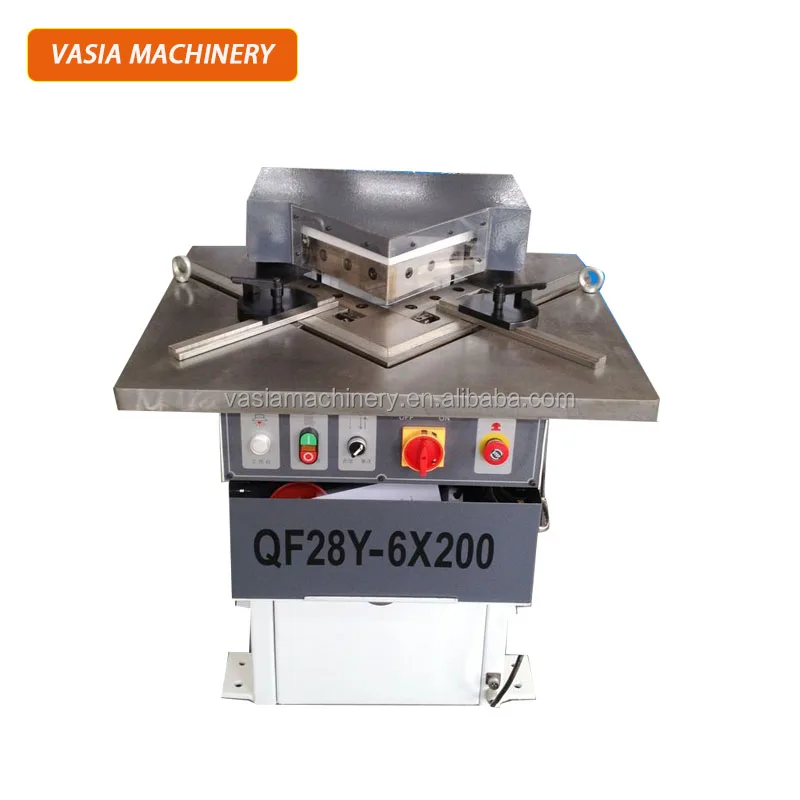

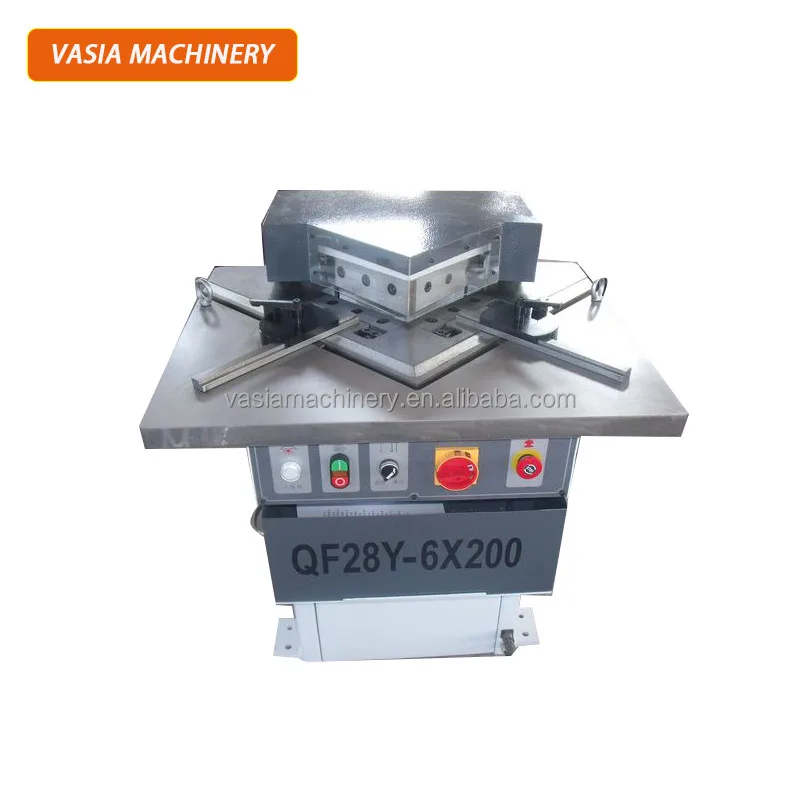

Hydraulic notching machine with Siemens electrical system

Product Introduction:

1.The reason why our corner notching machines stand out of other sheet metal equipment lies in that our patented blade gap adjustment allows the operator to cut different thickness without any adjustments needed by the operator. This allows our blades to last longer and gives us a nice burr free cut;

2.Our notching machines shear with the blades in the negative position as well as the positive position.

Which one you use is based on which part you want to keep, the finished part pulled from the machine (best is Negative) or the dropped piece (best is Positive). Negative cut allows for less deformation on the finished part. Negative cutting clamps the sheet metal down so there isn't any movement. Positive cutting will want to move the sheet away from the stops allowing for room for error;

3.The stop guides have dovetail grooves in the tail that allows for a tighter more secure guide setting, allowing our machine more accuracy and repeatability;

4.The shearing blade of the hydraulic notching machine is the most rigid in the industry because we employ a five point fixed head. A stable shearing head is very important to blade life, and machine life when notching heavier plate;

5.Regarding our variable angle notching, the variable angle blades are fixed in three positions. The pivot point and the end points of each blade are fixed after adjustment to angle is made. This type of rigidity separates us from other sheet metal fabricating equipment on the market;

6.Our hydraulic notching machine drop the waste into a chute and the chute drops the waste in a bin outside of the machine. Believe it or not, there are some machines on the market where the dropped material goes into a bin in the middle of the machine make the operator have to bend into the machine to take out a heavy bin of scrap to throw out. Thus our notching machines offer a more ergonomically friendly machine for the operators back;

7.Our variable angle machines can notch from 45° up to 135°. We can shear a 135° notch in one pass with one drop while some other machines require two cuts resulting in two drops;

Main Technical Parameter:

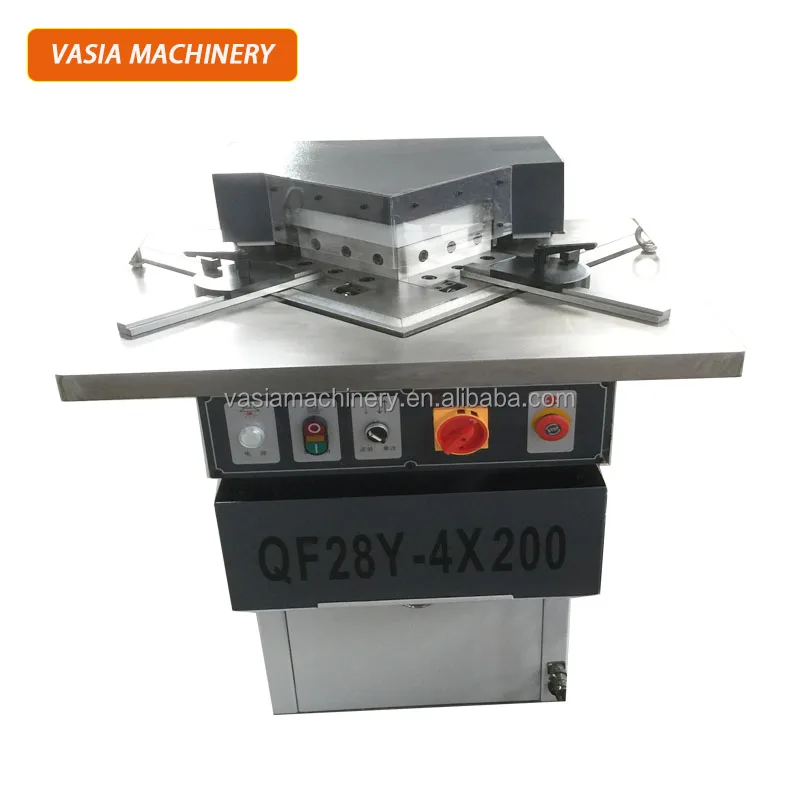

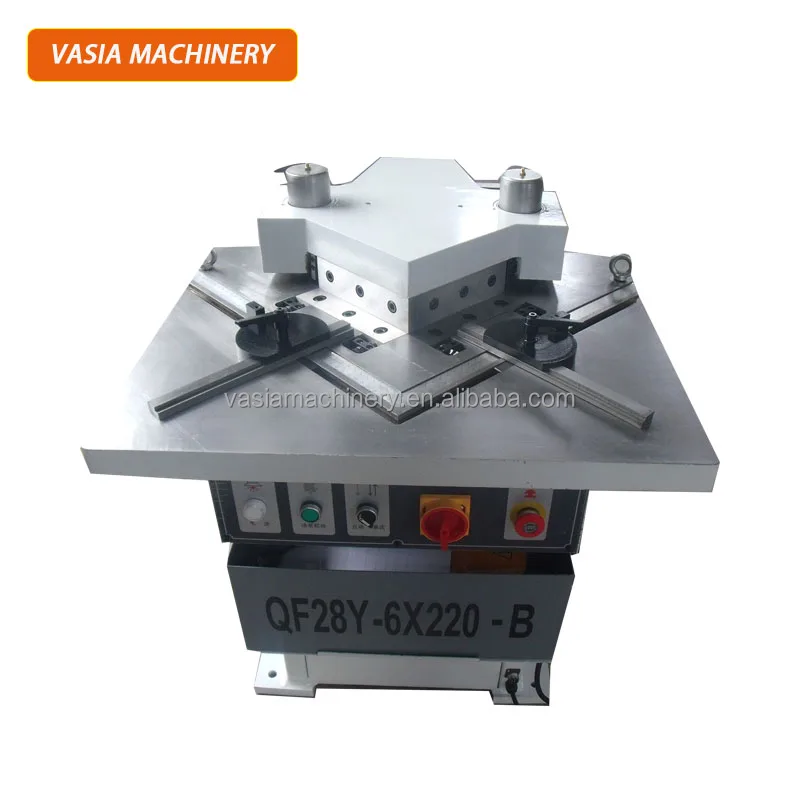

Item			Unit	QF28Y- 4*200	QF28Y- 4*200B	QF28Y- 6*250	QF28Y-6* 220B
Min. Notching thickness			mm	0.3	0.3	0.3	0.3
Max.Notching thickness	Carbon steel		mm	4.0	4.0	6.0	6.0
	Stainless steel		mm	2.5	2.5	4	4
Notching Length			mm	200	200	250	220
Stroke			mm	50	50	60	60
Notching Angle Range			°	90° (Fixed)	45°~135° (variable)	90° (Fixed)	45°~135° (variable)
The speed of notching			Spm	45	45	40	40
System pressure			Mpa	20	20	20	20
Blade Gap Adjustment				Automatic	Automatic	Automatic	Automatic
Motor			Kw	3	4	5.5	7.5
Dimension		F.B.	mm	1350	1450	1450	1550
		L.R.	mm	1400	1550	1500	1600
		Height	mm	1450	1550	1550	1650
Gross Weight			Kg	1650	2150	2650	3850
