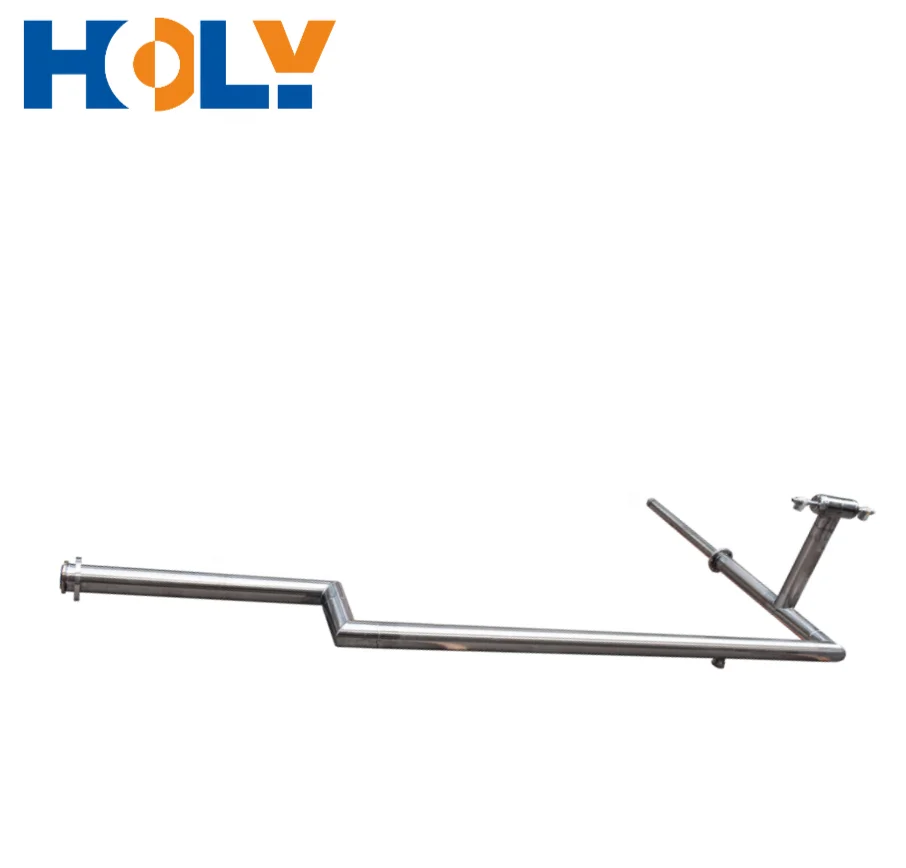

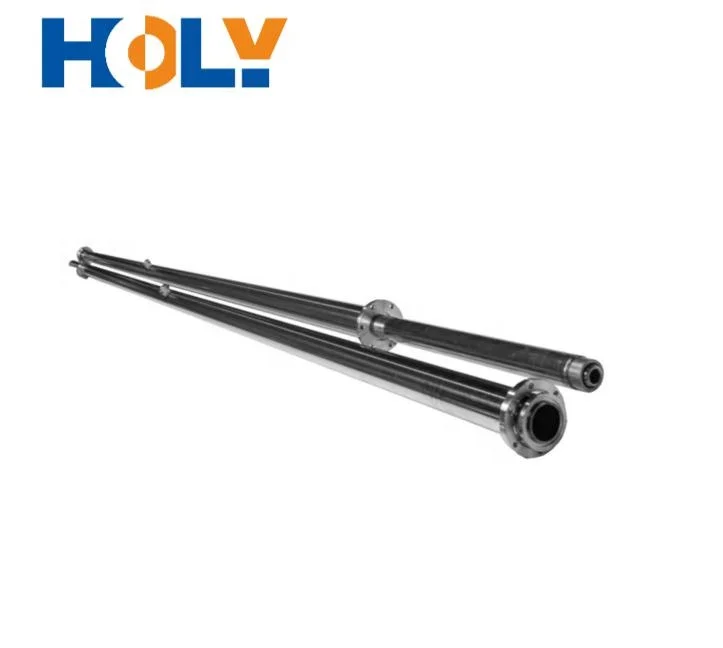

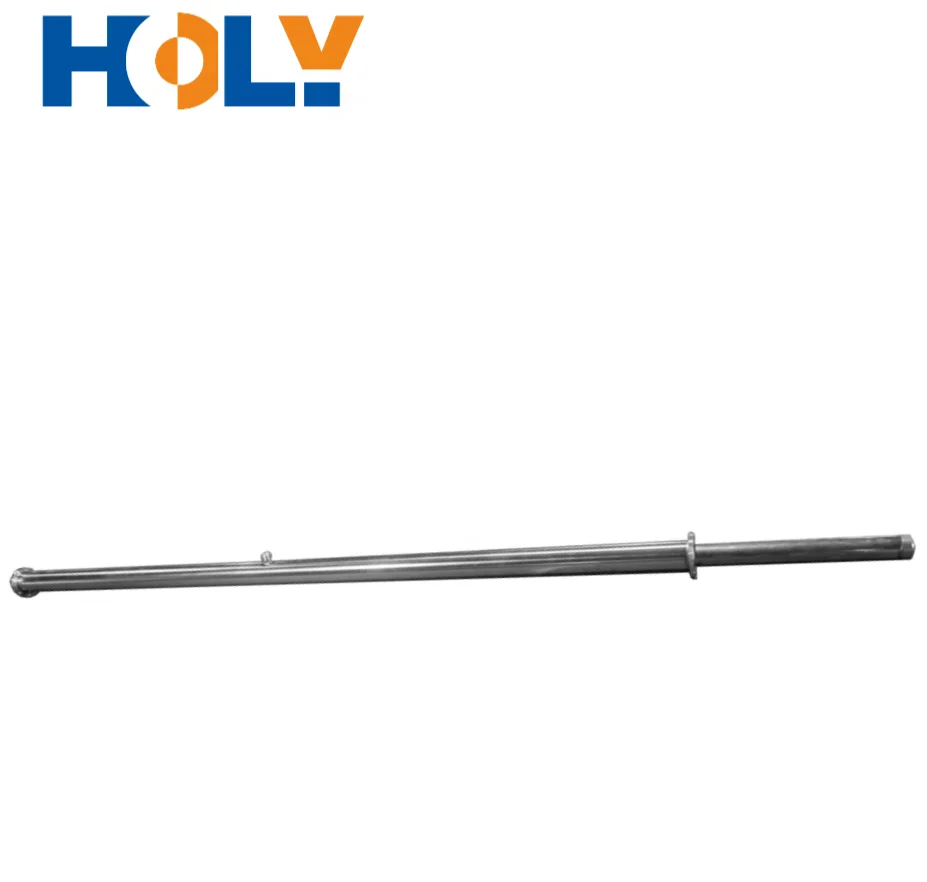

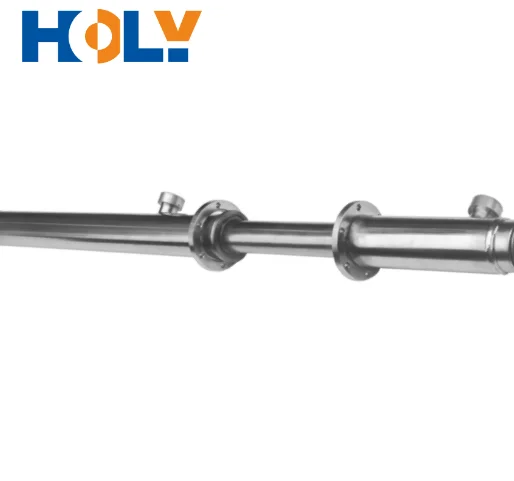

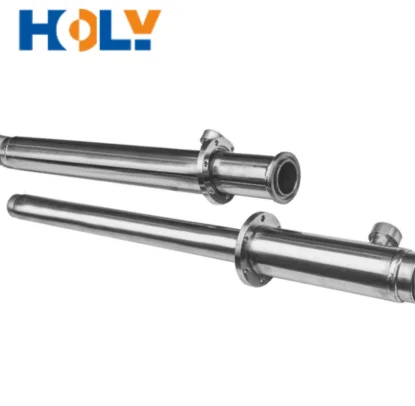

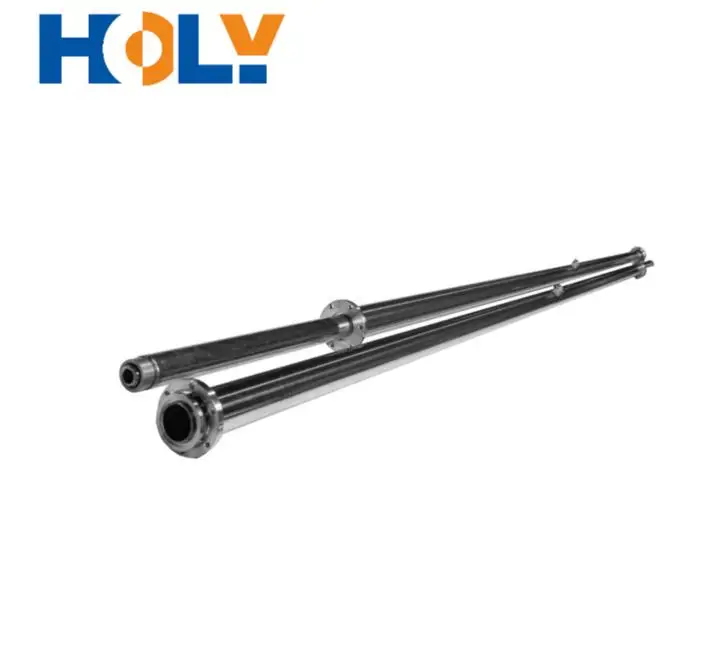

ASME & CE DN20 3/4 дюйма вакуумная трубка с жидким аргоном для пищевой и напитковой

ASME & CE DN20 3/4 дюйма вакуумная трубка с жидким аргоном для пищевой и напитковой

Категория: >>>
Поставщик: Chengdu,Holy,Cryogenic,Equipment,Co.,Ltd.

Цена:160,00 $ - 175,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	190.55 $*	200.1 $*
Aug-17-2025	189.11 $*	198.57 $*
Jul-17-2025	158.26 $*	166.67 $*
Jun-17-2025	186.75 $*	195.32 $*
May-17-2025	162.69 $*	170.16 $*
Apr-17-2025	182.12 $*	191.38 $*
Mar-17-2025	181.28 $*	190.10 $*
Feb-17-2025	179.73 $*	188.36 $*
Jan-17-2025	178.31 $*	187.26 $*

Характеристики

Introduction

Vacuum Insulated Piping System, namely Vacuum Jacketed Piping System, is constructed in a high vacuum and multi-layer multi-screen special insulated materials, and passes through a series of extremely strict technical treatments and high vacuum treatment, which is used for LO₂, LN₂, Lar, LH₂, LHe and LNG.

Three Connection Types

In order to maximize the different needs of customers, Vacuum Insulated Pipe has developed three connection types, namely Vacuum Bayonet Connection Type with Clamps, Vacuum Bayonet Connection Type with Flanges and Bolts and Welded Connection Type. They have different advantages and are suitable for different working conditions.

	Vacuum Bayonet Connection Type with Clamps	Vacuum Bayonet Connection Type with Flanges and Bolts	Welded Connection Type
Connection Type	Clamps	Flanges and Bolts	Weld
Insulation Type at joints	Vacuum	Vacuum	Perlite or Vacuum
On-site Insulated Treatment	No	No	Yes, perlite filled into or vacuum pump out from the Insulated Sleeves at joints.
Nominal Diameter of Inner Pipe	DN10(3/8")~DN25(1")	DN10(3/8")~DN80(3")	DN10(3/8")~DN500(20")
Design Pressure	≤8 bar	≤16 bar	≤64 bar
Installation	Easy	Easy	Welder
Length	1~8.2 meter
Material	Stainless Steel 304, 304L, 316, 316L
Medium	LN2, LOX, LAr, LHe, LH2, LNG

Specification

Model	Connection Type	Nominal Diameter of Inner Pipe	Design Pressure	Material of Inner Pipe	Standard	Remark
HLPDF01000X	Vacuum Bayonet Connection Type with Flanges and Bolts for Static Vacuum Insulated Piping System	DN10, 3/8"	8~16 bar	300 Series Stainless Steel	ASME B31.3	00: Design Pressure. 08 is 8bar, 16 is 16bar. X: Material of Inner Pipe. A is 304, B is 304L, C is 316, D is 316L, E is other.
HLPDF01500X							DN15, 1/2"
HLPDF02000X							DN20, 3/4"
HLPDF02500X							DN25, 1"
HLPDF03200X							DN32, 1-1/4"
HLPDF04000X							DN40, 1-1/2"	300 Series Stainless Steel	ASME B31.3
HLPDF05000X							DN50, 2"
HLPDF06500X							DN65, 2-1/2"
HLPDF08000X							DN80, 3"

Nominal Diameter of Inner Pipe:

Recommended ≤ DN80 or 3". Or selects the Welded Connection Type (from DN10, 3/8" to DN500, 20"), Vacuum Bayonet Connection Type with Clamps (from DN10, 3/8" to DN25, 1").

Nominal Diameter of Outer Pipe:

Recommended by the Enterprise Standard of HL Cryogenic Equipment. It also can be produced according to requirement of the customer.

Design Pressure:

Recommended ≤ 16 bar. Or selects Welded Connection Type (≤64 bar).

Material of Outer Pipe:

Without special requirement, the material of inner pipe and outer pipe will be selected the same.

Power Condition:

The site needs to supply power to the vacuum pumps and inform HL Cryogenic Equipment the local electricity information (Voltage and Hertz)

Dynamic and Static Vacuum Insulated Piping System

	Dynamic Vacuum Insulated Piping System	Static Vacuum Insulated Piping System
Introduction	Compared with Static Vacuum System, the vacuum degree of Dynamic Vacuum System is more stable and does not decrease with time.	VJP completes the vacuum insulation work in the manufacturing plant.
Advantages	Recommended to install in a place where the room is too small for future maintenance.	More economical investment and simple on-site installation
Vacuum Bayonet Connection Type with Clamps	Applicative	Applicative
Vacuum Bayonet Connection Type with Flanges and Bolts	Applicative	Applicative
Welded Connection Type	Applicative	Applicative

Dynamic Vacuum Insulated Piping System: Consist of Vacuum Insulated Pipes, Jumper Hoses and Vacuum Pump System.

Product packaging

About The Production

About the Scope of Supply

* Vacuum Insulated/Jacketed Pipe
* Vacuum Insulated/Jacketed Flexible Hose
* Phase Separator/Vapor Vent
* Vacuum Insulated (Pneumatic) Shut-off Valve
* Vacuum Insulated Check Valve
* Vacuum Insulated Regulating Valve
* Vacuum Insulated Connector for Cold Box & Container
* MBE Liquid Nitrogen Cooling System
* Other cryogenic support equipment related to VI piping, including but not limited to, such as safety relief valve
(group),liquid level gauge, thermometer, pressure gauge, vacuum gauge, electric control box and so on.

About the Application of VI Piping

*Air Separation Plant

*Electronic Engineering Industry

*Semiconductor and Chip

*Aerospace

*Automobile Engine and Electromotor

*Bio-pharmaceutical Industry

*Food & Beverage Industry

*Liquefied Natural Gas (LNG)

About Our Partnership

HL Cryogenic Equipment passed International Gases Companies’ (inc. Air Liquide, Linde, AP, Messer, BOC) on-site audit and became their qualified supplier. The International Gases Companies respectively authorized HL to produce with its standards for its projects. HL provided solutions and products to them in air separation plant and gas application projects.

About the Raw Materials

HL Cryogenic Equipment is a vacuum manufacturer. All raw materials are purchased from qualified suppliers. So, The raw materials can be specified standards and requirements by user. Usually, ASTM /ASME 300 Series Stainless Steel (Acid Pickling, Mechanical Polishing, Bright Annealing and Electro Polishing) is selected.

FAQ

Q：About the Minimum Order.

A：There is no limited for minimum order.

Q： About the Manufacture Standard.

A：HL's Vacuum Insulated Pipe (VIP) is built to ASME B31.3 Pressure Piping code as the standard.

Q：About the Specification.

A：The size and design pressure of the inner pipe shall be according to the customer's requirements.The size of the outer pipe shall be according to the HL standard (or according to the customer's requirements).
