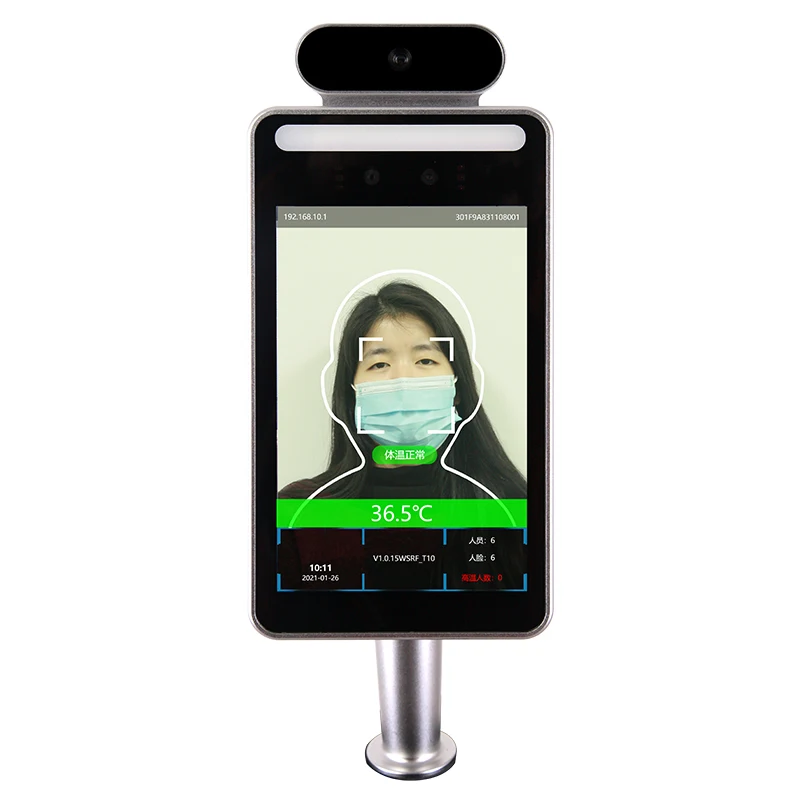

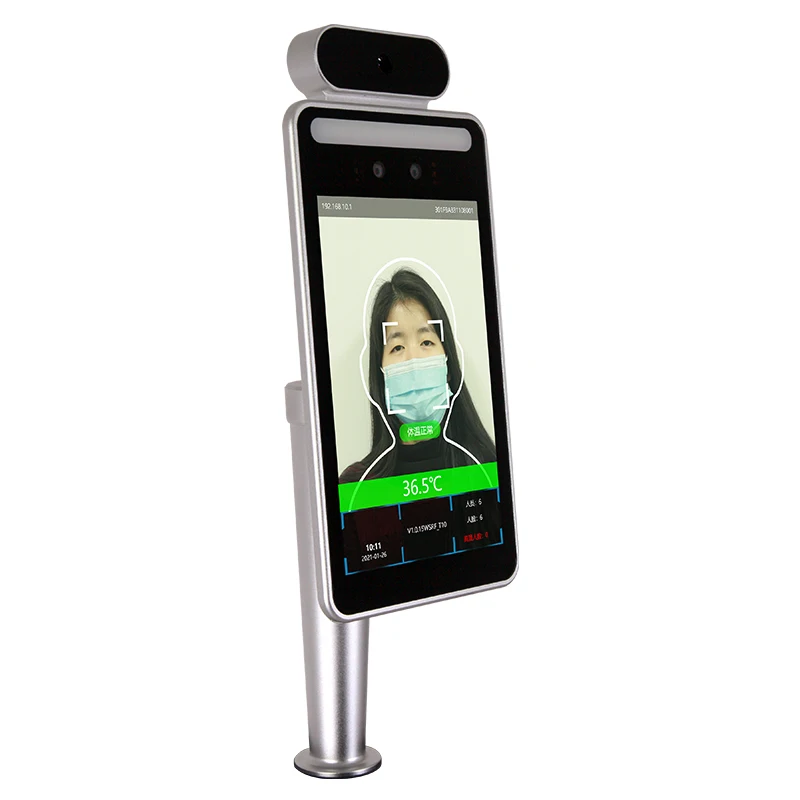

8 дюймов ЖК-экран температуру тела и распознавание лица киоск датчик

Camera

Resolution

2 megapixel

Type

Wide dynamic binocular camera

Aperture

F2.4

Focal length

50-150cm

White balance

Automatic

Fill-in light

LED and Infrared double fill light

Screen

Size

8.0 "IPS LCD

Resolution

800x1280

Touch screen

Not avaiable

Processor

CPU

 RK3288 Four Core  RK3399 Six Core

Local storage

EMMC 8G

Interface

Network module

supports Ethernet and Wi Fi

Audio

support 2W / 4R speaker

USB interface

1-way USB OTG, 1-way USB host standard a port

Exit button interface

1 way

Relay output

1-way door opening signal output

Wigan interface

1-way Wigan 26 / 34 output, 1-way Wigan 26 / 34 input

Restart button

device line to reserve the restart button

Wire network interface

One RJ45 Ethernet socket for wired network interface

Functions

card reader

IC Card reader;

ID Card;

N/A

Face database supports

Up to 20,000

1:N Face recognition

Support

1:1 Face matching

Support

Stranger detection

Support

Recognition distance configuration

Support

UI configuration

Support

Remote upgrade

Support

Interface

personnel / photo management, record query, etc

Deployment mode

support private deployment and LAN use

Infrared thermal imaging module

Human body temperature measurement

Support

Measuring distance

1m(Best distance 0.5m)

Accuracy

≤ ±0.5℃

Measuring range

10℃~42℃

Normal temperature

Voice reminder, Flap barrier received signal is opening(option)

Fever temperature

Voice reminder, Flap barrier received signal is closed(option)

alarm temperature value can be set

General parameters

Power supply

DC12V(±10%)

Working temperature

20℃~35℃

Storage temperature

-20℃~60℃

Power consumption

13.5W(Max)

Installation method

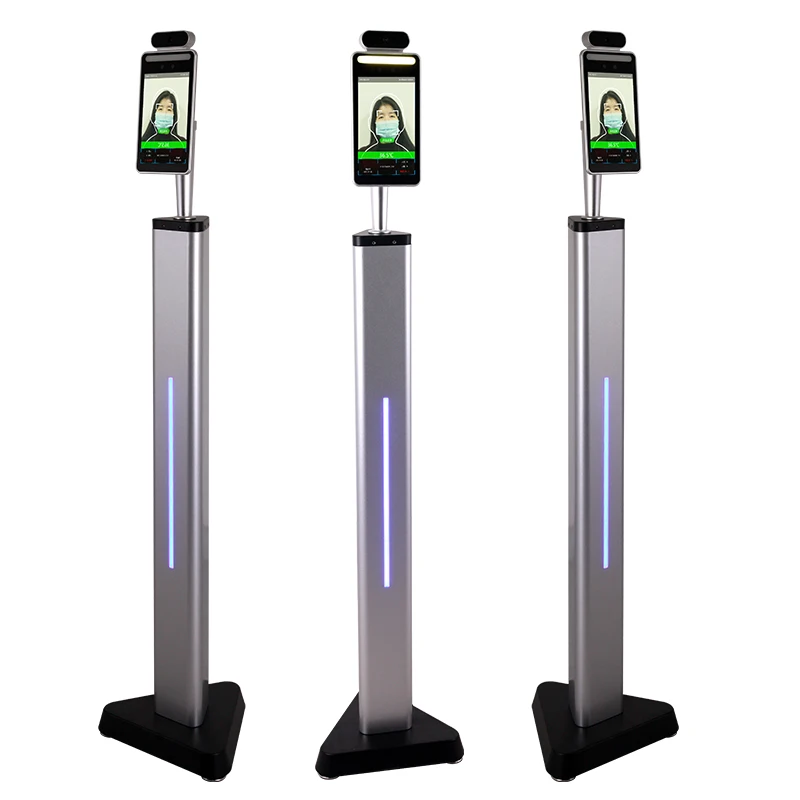

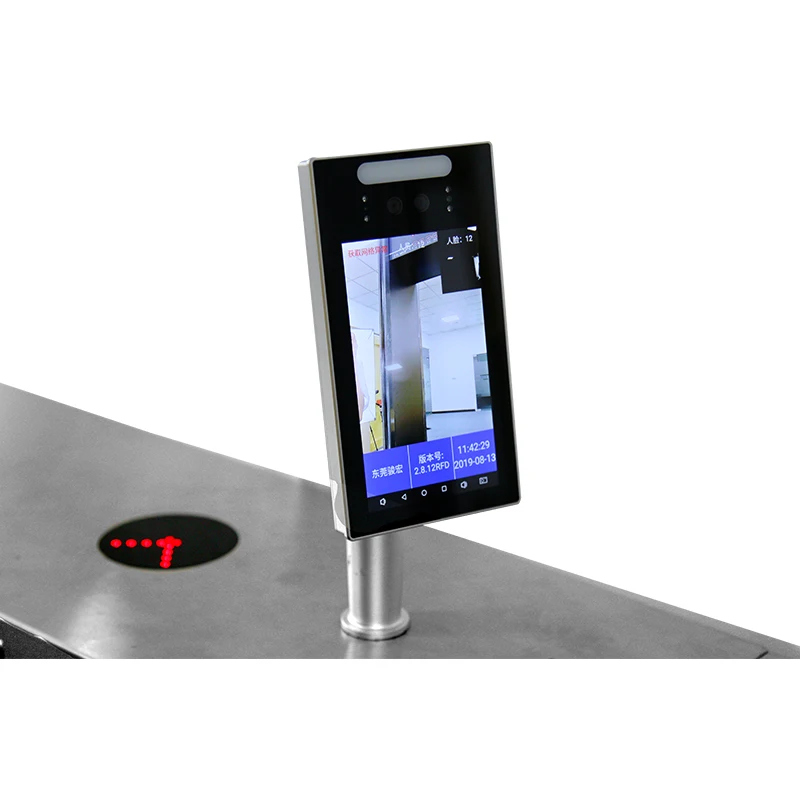

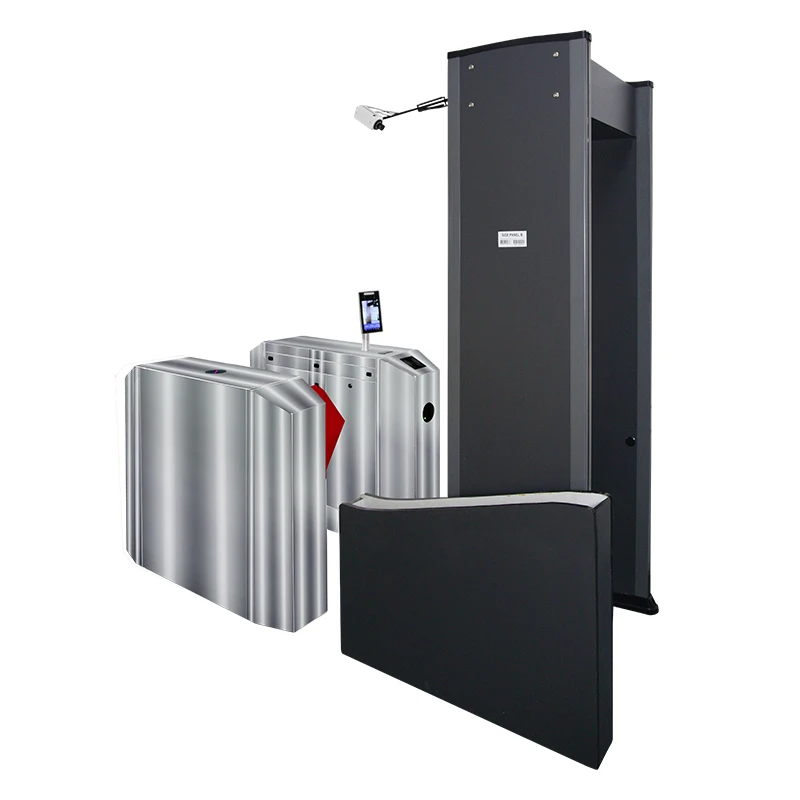

Flap barrier, Pillar stand

Device diemnsions

296.18*132.88*25(mm)Included card reader

Packing list

Device x 1; Power adapter x 1; Instruction Manual x 1: Certificate x 1;
