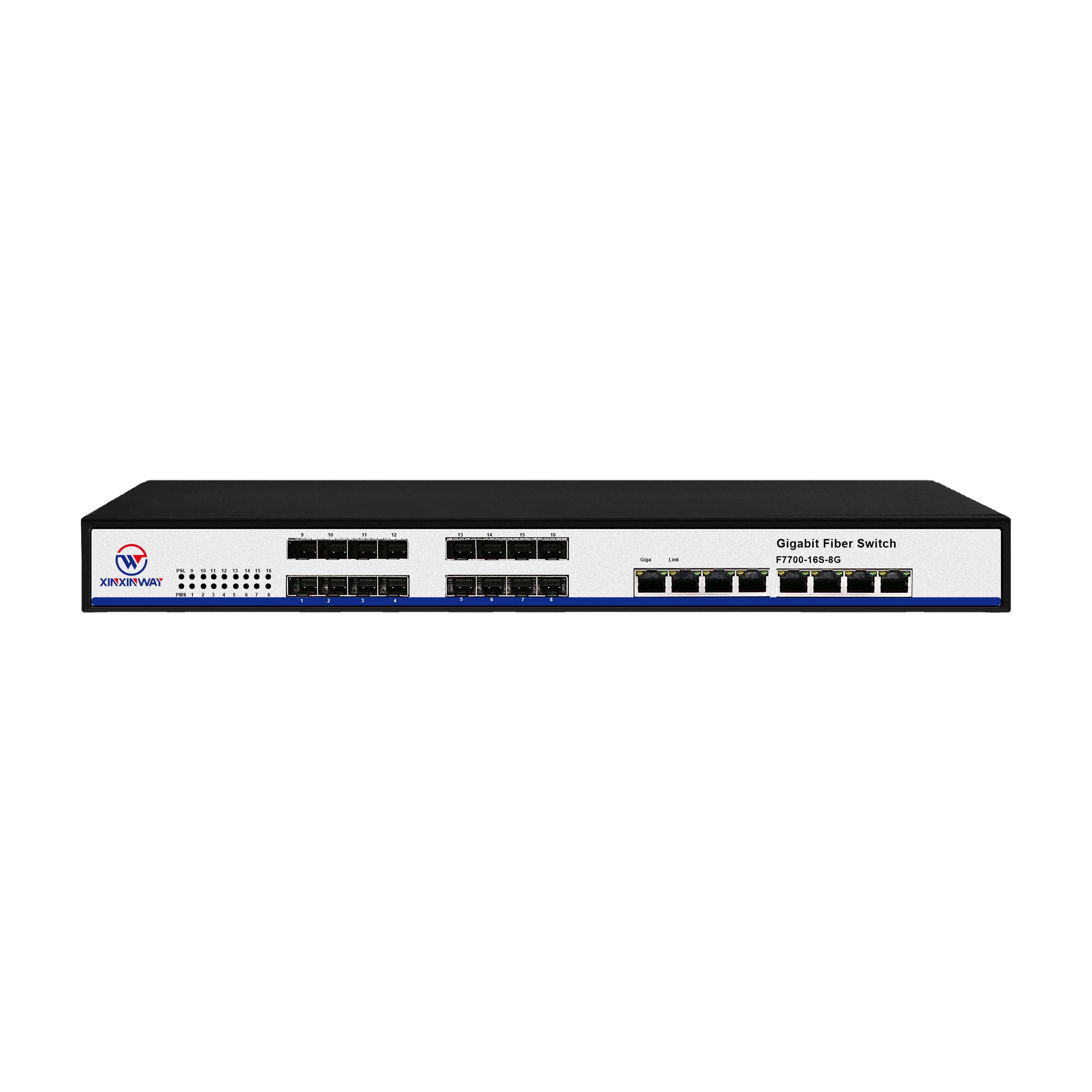

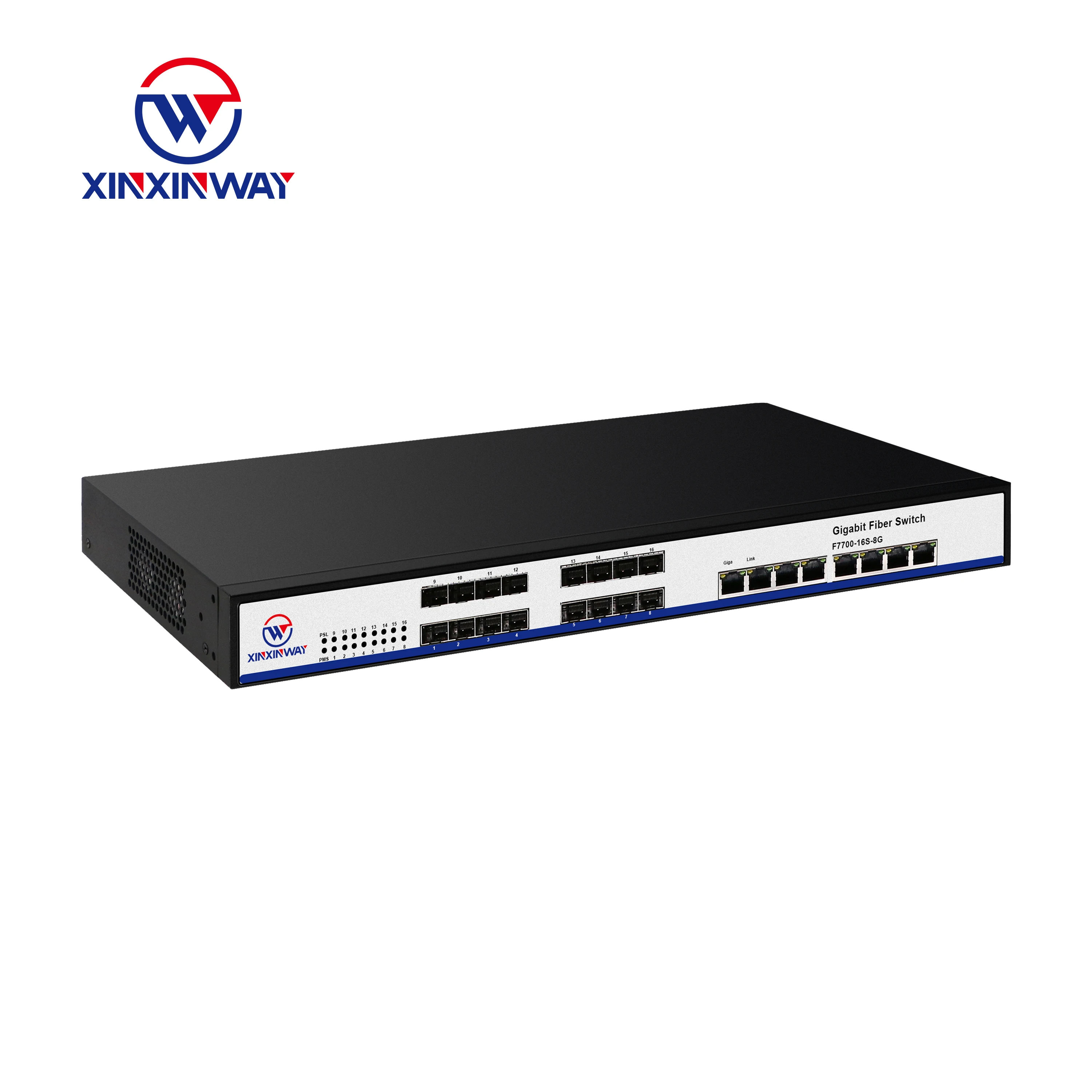

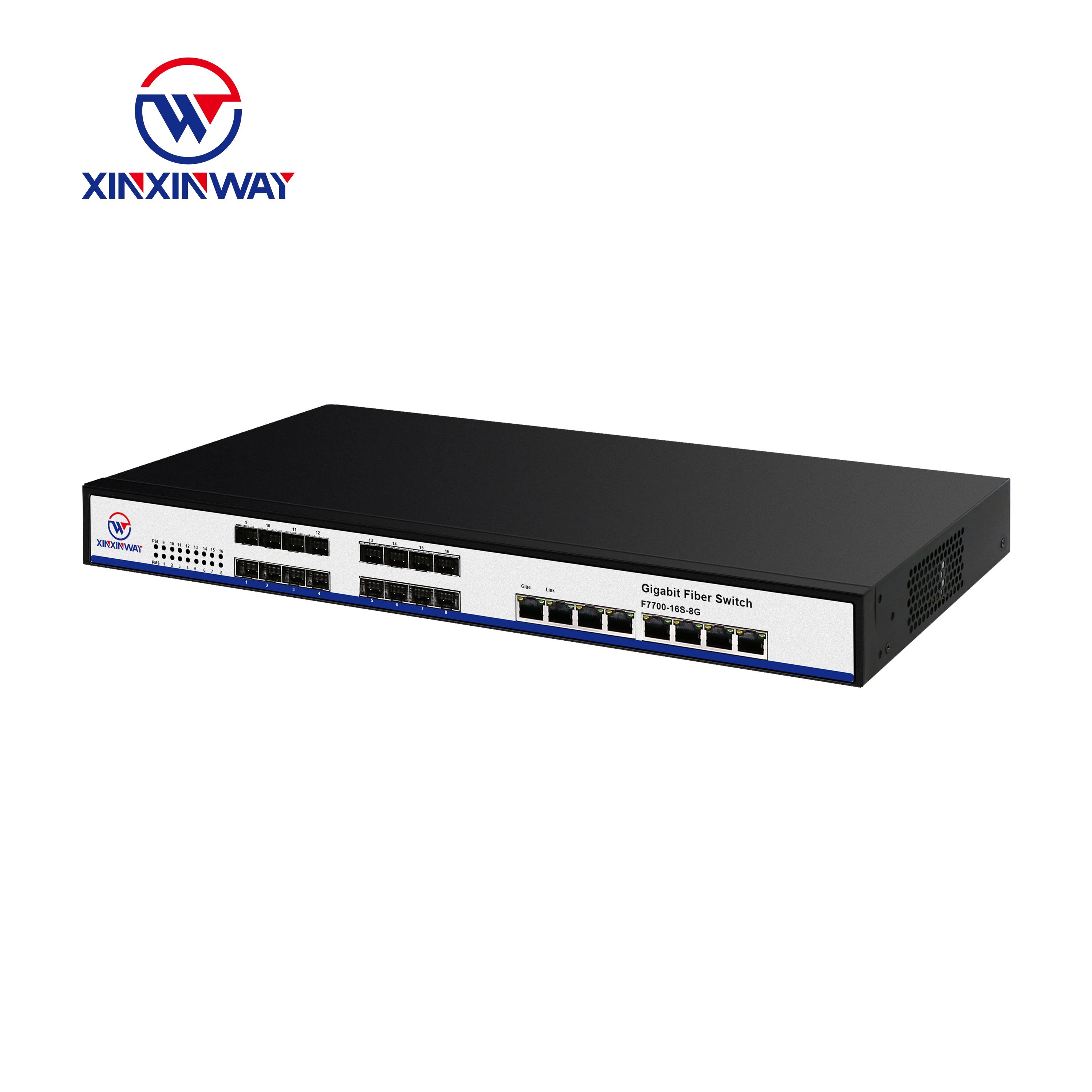

16 полный гигабитный волоконный sfp порт неуправляемый ethernet основной коммутатор с 8 гигабитным портом
- Категория: Аппаратное обеспечение компьютера >>>
- Поставщик: Sichuan,Xinxinway,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 118.98 $* | 120.27 $* |
| Jul-19-2025 | 96.3 $* | 98.31 $* |
| Jun-19-2025 | 116.76 $* | 118.6 $* |
| May-19-2025 | 115.89 $* | 117.40 $* |
| Apr-19-2025 | 92.34 $* | 94.88 $* |
| Mar-19-2025 | 113.78 $* | 115.61 $* |
| Feb-19-2025 | 113.47 $* | 115.20 $* |
| Jan-19-2025 | 112.65 $* | 114.40 $* |
Характеристики
Product Paramenters
Basic Parameters
Model name | 16 full gigabit fiber sfp port unmanaged ethernet core switch with 8 gigabit rj45 port |
Fixed Port | 8*10/100/1000Base-TX RJ45 port (Data) 16*1000M SFP |
Bandwidth | 52Gbps |
Packet Forwarding | 40.32Mpps |
Power Input | Built-in power AC 100~240V 50/60HZ 1A |
Watt | ≤30W； |
Product Size | 440mm*205mm*45mm(L*W*H) |
Products Description
Comparison with similar products Paramenters
Model | F7700-16S-8G |
Fixed Port | 8*10/100/1000Base-TX RJ45 port (Data) 16*1000M SFP |
Network Protocol | IEEE802.3 IEEE802.3i 10BASE-T IEEE802.3u100BASE-TX IEEE 802.3ab1000BASE-T IEEE802.3x IEEE 802.3z 1000BASE-X |
Port Specification | 10/100/1000BaseT（X）Auto |
Transmission Mode | Store and Forward(full wirespeed) |
Bandwidth | 52Gbps |
Packet Forwarding | 40.32Mpps |
MAC Address | 8K |
Buffer | 4.1M |
Transmission Distance | 10BASE-T ： Cat3,4,5 UTP(≤250 meter) 100BASE-TX ： Cat5 or later UTP(150 meter) 1000BASE-TX ： Cat6 or later UTP(150 meter) Optional single mode single fiber(MAX 20KM) Optional single mode double fiber (MAX 20KM) Optional multiple mode double fiber(MAX 850M/2KM) Optional 3-80KM SFP |
Watt | ≤30W； |
LED Indicator | PWR:Power LED 1~16:(SFP LED) Port:(Green=10/100M LED+Orange=1000M LED) |
Power Input | Built-in power AC 100~240V 50/60HZ 1A |
Operating Temperature/Humidity | -10～+55°C；5%～90% RH Non coagulation |
Storage Temperature/Humidity | -40～+75°C；5%～95% RH Non coagulation |
Product size/Packing size(L*W*H) | 440mm*205mm*45mm 515mm*295mm*95mm |
N.W/G.W(kg) | 2.2kg/3.1kg |
Installation | Rack-mount(optional machine hanger spare parts) |
Lightning protection level | 3KV 8/20us； IP30 |
Certificate | CE mark, commercial；CE/LVD EN60950； FCC Part 15 Class B；RoHS； |
Warranty | Whole device for 1 year(Accessories not included) |
Our Advantages
Why Choose Us
Company Profile
Certifications
Packing&Shipping
FAQ
Q: What is your most advantageous products?
A: Ai PoE Switch，Solar Energy Switch
Q: Could I use our own logo and label?
A: Yes. We are good at offering OEM&ODM products. If there is a certain order quantity, we can do including printing, logo, and customized model for you.
Q: Can I have a sample order? What is your MOQ?
A: Yes. We welcome sample order to test and check quality. MOQ is 1 for normal products.
Q: Can we get the free samples?
A: Generally we would not provide a free sample. However, if the customers confirm the specification and price, they can pay the samples firstly for testing. When they place the mass order, the sample cost will be returned to the customers.
Q: Is it easy to set up your product?
A: Yes. Most products are plug and play. Besides，We have a user manual and support technical support 24/7.
Q: What is your warranty time?
A: We promise 1-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of the warranty. As for the mass order, we will provide a certain proportion of spare parts.
Q: What about the lead time?
A: For usual products, we keep stock, could ship 1-3days after receiving your advance payment. For big quantity and special products, please check lead time with our salesperson.
Q: What is your terms of payment?
A: Payment Terms:We mainly accept prepayment by Alibaba,T/Tbank transfer, West Union or Cash You can select the terms of payment which is more convenient for you.Price Terms:EXW ChengDu
Q: Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba，which will guarantee your products receiving, we also accept another safe payment way as you want.
Please feel free to contact us if any other questions:
Yeats Wang
snapchat：yeats.wang
Mob/WeChat: +86 17760423538
WhatsApp: +86 18982050197
