5BV приборов 5 один клапан
- Категория: Needle Valves >>>
- Поставщик: Hubei,Hi-Tek,Valve,And,Fitting,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.55 $* | 0.93 $* |
| Aug-17-2025 | 0.30 $* | 0.72 $* |
| Jul-17-2025 | 0.79 $* | 0.31 $* |
| Jun-17-2025 | 0.71 $* | 0.27 $* |
| May-17-2025 | 0.24 $* | 0.56 $* |
| Apr-17-2025 | 0.52 $* | 0.25 $* |
| Mar-17-2025 | 0.4 $* | 0.15 $* |
| Feb-17-2025 | 0.79 $* | 0.64 $* |
| Jan-17-2025 | 0.51 $* | 0.33 $* |
Характеристики
Products Description
Type | 5 Way Valve Manifold |
Body Material | SS 316, SS304 |
Process size | 1/2" NPT Female |
Instrument size | Flange(MSS) |
Vent size | 1/4" NPT Female |
Packing | PTFE packing standard |
Installation Method | Direct instrument mount and remote mount |

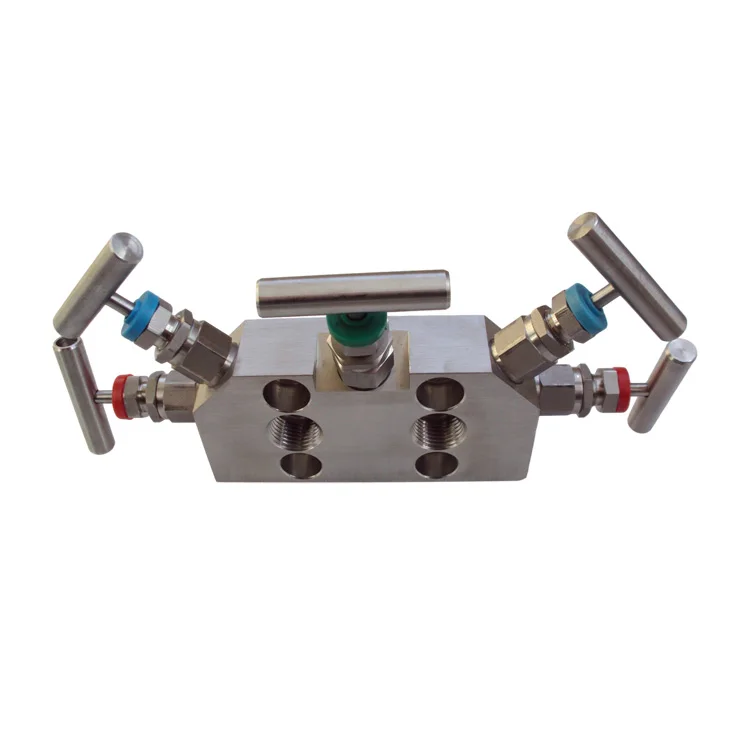

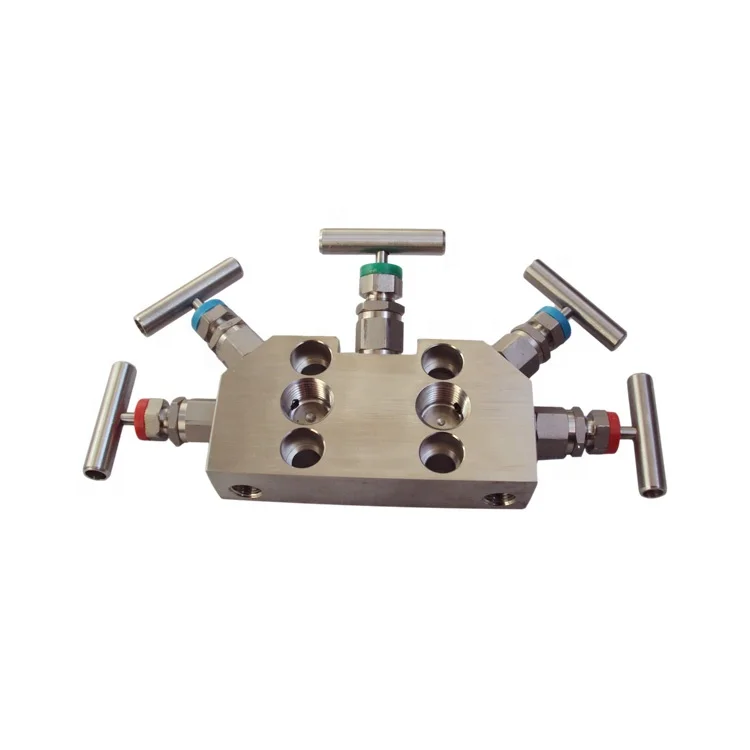

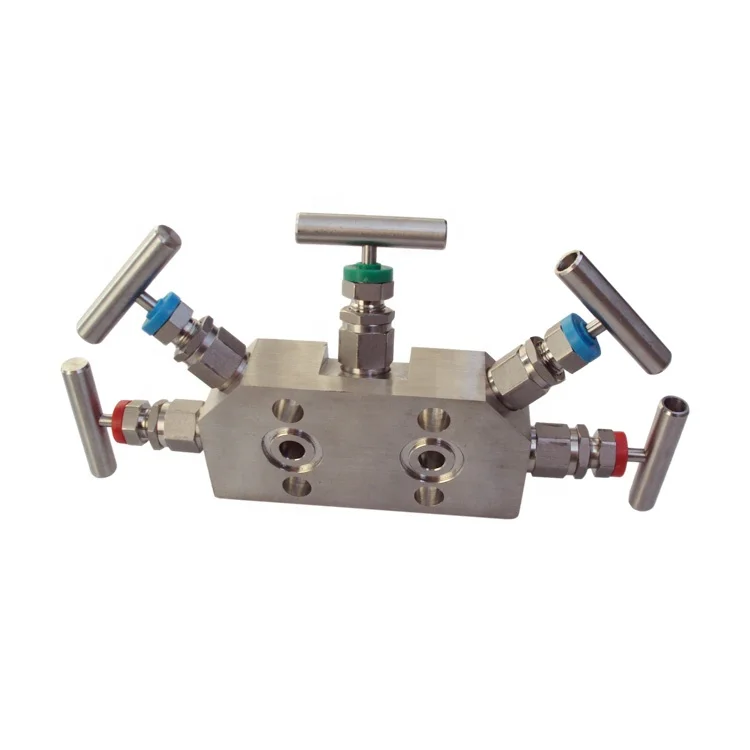

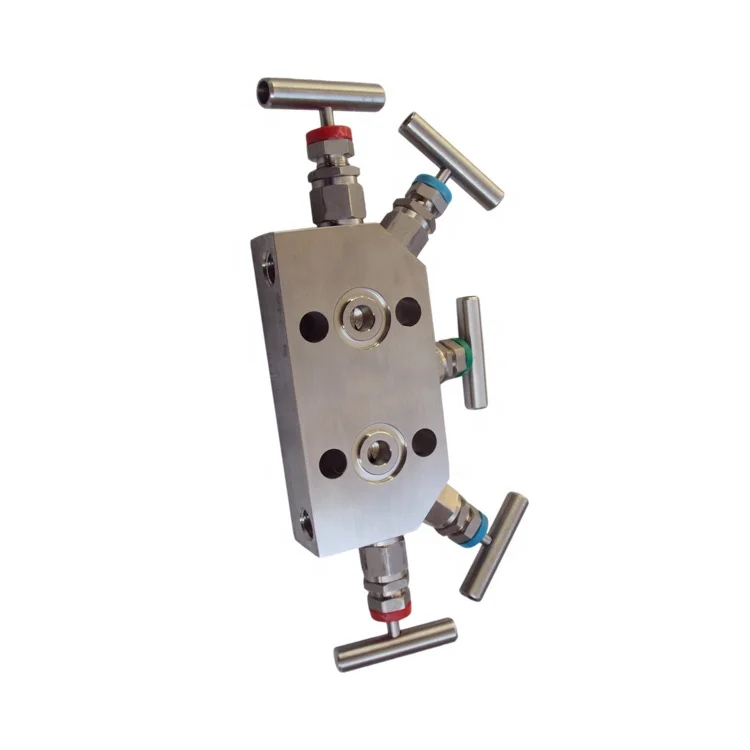

5BV Instrumentation 5 Way Manifold Valve
To compliment the range of differential pressure gauges and transmitters, providing a variety of 5 valve manifolds. These
manifolds offer the instrument engineer the ability to isolate the differential pressure instrument for removal without
interrupting the process. In higher static, but lower differential pressure applications, the equalization valve may be left open during install to balance pressure across ports, protecting the DP instrument diaphragm from sudden pressure surges on one side.
OPERATING PARAMETERS
TESTING :
To compliment the range of differential pressure gauges and transmitters, providing a variety of 5 valve manifolds. These
manifolds offer the instrument engineer the ability to isolate the differential pressure instrument for removal without
interrupting the process. In higher static, but lower differential pressure applications, the equalization valve may be left open during install to balance pressure across ports, protecting the DP instrument diaphragm from sudden pressure surges on one side.
OPERATING PARAMETERS
APPLICATIONS
1. Designed for mounting on differential pressure transmitters
2. Pressure Rating: up to 6000 psig (408 bar) at CWP
3. Temperature Rating: -54ºC to 232ºC with PTFE packing
4. Packing: PTFE packing standard, Graphite packing for high temperature on request
5. Available with Pipe to Pipe, Pipe to Flange, Flange to Flange, Direct instrument mount and remote mount
6. Options: Available with 2 way, 3 way and 5 way valve manifolds
7. MM Dimensions are for reference only and may change
TESTING :
•Standard Test : Each Valve is factory tested with nitrogen at 1000 psig (69 bar) for leakage at the seat and packing,
the maximum allowable leak rate of 0.1 sccm
the maximum allowable leak rate of 0.1 sccm
Note:
△ A packing adjustment may be required periodically to increase service life and to prevent leakage.
△ Valves that have not been cycled for a period of time may have a higher initial actuation torque.
Detailed pictures
More options
Packaging pictures
Related Products
Customers feedback
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer and trading company . We have specialized in manufacturing fittings and valves for more than 12 years.
Q: Can you OEM?
Yes, we can OEM according to your drawings.
Q: How long is your delivery time?
A: In stock -- 1 to 7 days
No stock -- 7 to 30 days
Depending on the quantity
Q: Do you provide samples ? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance, balance before shipment.
If you have another question, pls feel free to contact us as below:
A: We are manufacturer and trading company . We have specialized in manufacturing fittings and valves for more than 12 years.
Q: Can you OEM?
Yes, we can OEM according to your drawings.
Q: How long is your delivery time?
A: In stock -- 1 to 7 days
No stock -- 7 to 30 days
Depending on the quantity
Q: Do you provide samples ? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance, balance before shipment.
If you have another question, pls feel free to contact us as below:
