Ancreu переключатель коробки темно-синий нефритовый Кристалл Королевский белый красный коричневый черный розовый RGB SMD Kailh

Mechanical Keyboard Replacement Switches

Kailh

Box Blue,Box Jade,Box Navy,Speed Navy,Box Black,Linear,Box Blue,Clicky,Box Brown,Box Red,Box Royals,Kailh Crystal,Kailh Pumper,Box Dark Yellow,Box Pale Blue,

3 Pins( Most popluar type)

DIY for replacment Switch of mechanical keyboard

0.01A

16V

Box Blue (white colored)

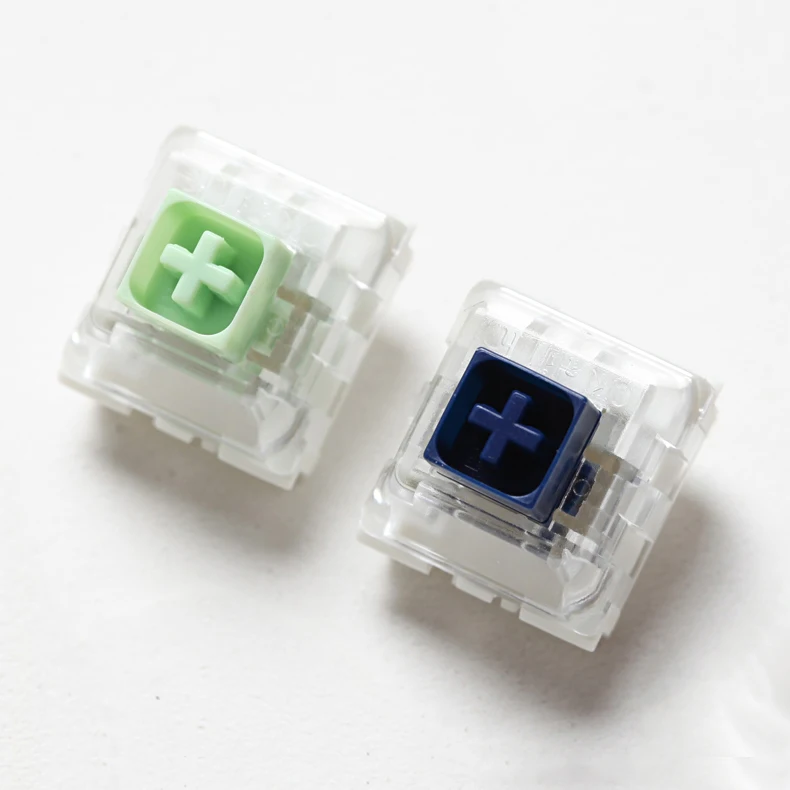

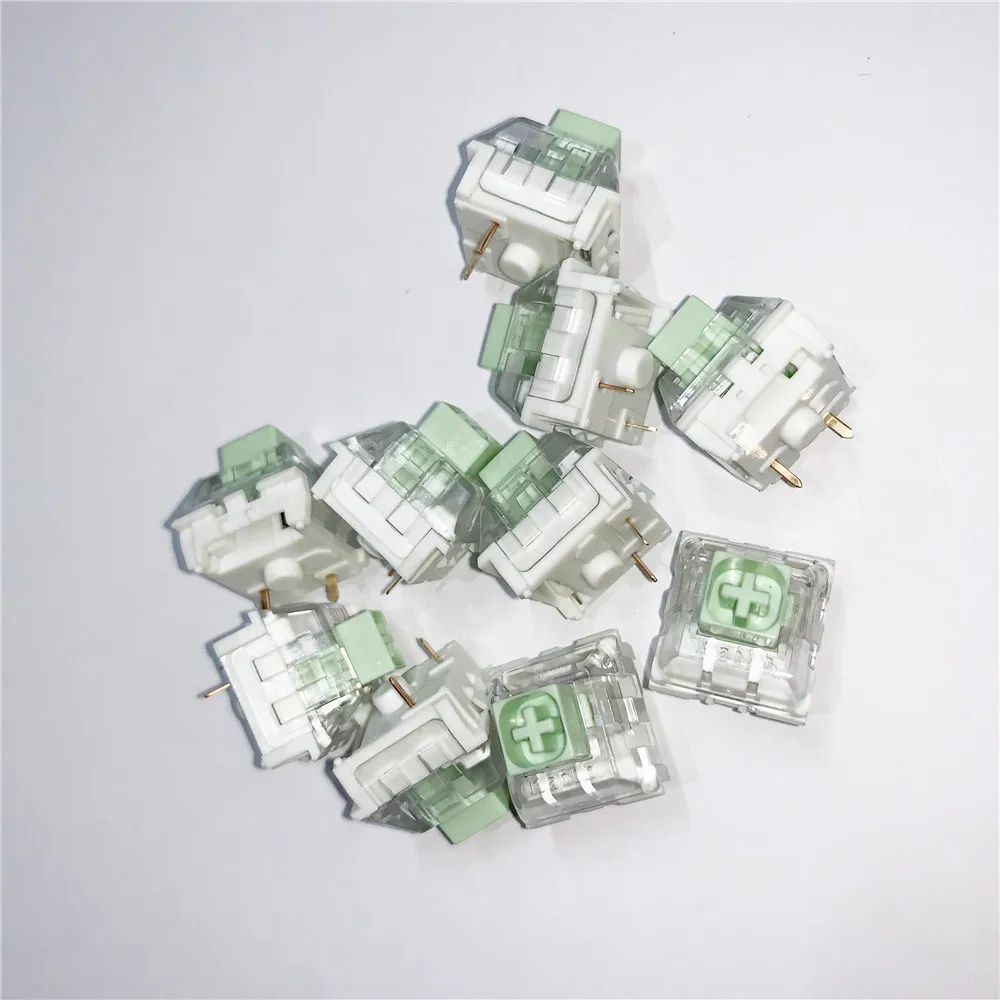

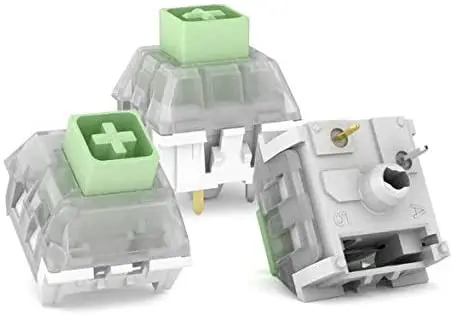

Box Jade
Operating force: 50 gf (+/-10 gf)
Tactile force: 55 gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Pressure point: 1.7 mm
Total travel: 3.6 mm (+/- 0.3 mm)
Reset point: 1.8 mm

Box Navy
Operating force: 60 gf (+/-10 gf)
Tactile force: 65 gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Pressure point: 1.7 mm
Total travel: 3.6 mm (+/- 0.3 mm)
Reset point: 1.8 mm

Speed Navy
Operating force: 60 gf (+/-10 gf)
Tactile force: 65 gf (+/-10 gf)
Pretravel: 1.4 mm (+/- 0.3 mm)
Pressure point: 1.3 mm
Total travel: 3.5 mm (+/- 0.3 mm)
Reset point: 1.3 mm

Box Black

Linear
Operating force: 60 gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Total travel: 3.6 mm (+/- 0.3 mm)
Reset point: 1.8 mm

Box Blue (white colored)

Clicky
Operating force: 50 gf (+/-10 gf)
Tactile force: 55 gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Pressure point: 1.7 mm
Total travel: 3.6 mm (+/- 0.3 mm)
Reset point: 1.8 mm

Box Brown

Tactile
Operating force: 50 gf (+/-10 gf)
Tactile force: 60gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Pressure point: 0.6 mm
Total travel: 3.6mm (+/- 0.3 mm)
Reset point: 1.8 mm

Box Red

Linear
Operating force: 45 gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Total travel: 3.6 mm (+/- 0.3 mm)
Reset point: 1.8 mm

Box Royals

Tactile
Operating force: 75 gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Total travel: 3.6 mm (+/- 0.3 mm)
Reset point: 1.8 mm

Kailh Crystal
Box switch stem
Tactile switch
5 pin (PCB mount)
Clear housing
50-million-keystroke cycle life
Actuation force, 62g: 67g (+/- 10gf)
Actuation force, 67g: 72g (+/- 10gf)

Kailh Pumper
Tactile mechanical switch
CyberPcolorway
Stainless steel spring (62 g or 67 g)
Plate mount, 3 pin
Lifespan: 50 million keystrokes
Actuation force (62 g): 67 g (+/-10 gf
Actuation force for (67 g): 72 g (+/-10 gf)

Box Dark Yellow

Linear
Operating force: 70 gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Total travel: 3.6 mm (+/- 0.3 mm)
Reset point: 1.8 mm



Box Pale Blue

Clicky
Operating force: 60 gf (+/-10 gf)
Tactile force: 65 gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Pressure point: 1.7 mm
Total travel: 3.6 mm (+/- 0.3 mm)
Reset point: 1.8 mm

Box Burent Orange

Tactile
Operating force: 60 gf (+/-10 gf)
Tactile force: 70gf (+/-10 gf)
Pretravel: 1.8 mm (+/- 0.3 mm)
Pressure point: 0.6 mm
Total travel: 3.6mm (+/- 0.3 mm)
Reset point: 1.8 mm

NovelKeys x Kailh Box Pinks

The BOX Pink switches feature a midsized clickbar. The clickbar is right in between the clickbar of the BOX Whites and the BOX
Jades. The creates a decent sized tactile bump that is more defined than the BOX Whites and more rounded than the BOX Jades.


BOX Pink - Clicky | 3.6mm Travel | 65g Actuation | 55g Bottom Out
