Запасные части и аксессуары для грузовых контейнеров угловые

Запасные части и аксессуары для грузовых контейнеров угловые

Категория: Dry Containers >>>
Поставщик: Lisen,Wood,Industrial,Shouguang,Co.,Ltd.

Цена:100,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	119.38 $*	125.52 $*
Aug-19-2025	118.6 $*	124.84 $*
Jul-19-2025	99.33 $*	104.43 $*
Jun-19-2025	116.1 $*	122.95 $*
May-19-2025	101.61 $*	106.17 $*
Apr-19-2025	114.38 $*	120.46 $*
Mar-19-2025	113.38 $*	119.49 $*
Feb-19-2025	112.39 $*	118.21 $*
Jan-19-2025	111.7 $*	117.18 $*

Характеристики

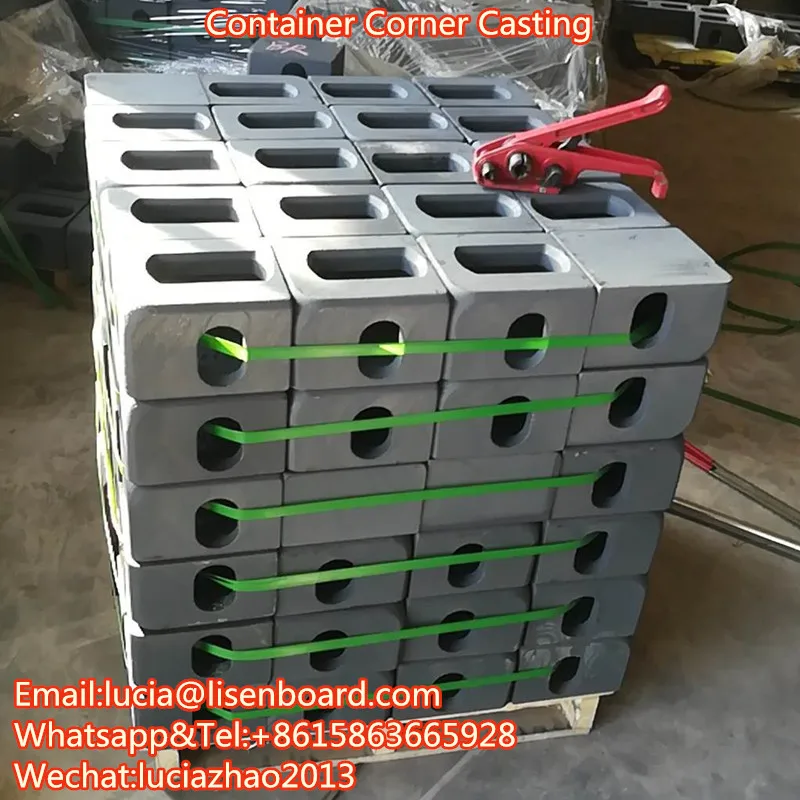

High Quality ISO 1161 Standard container corner castings , container spare parts

Part	Descriptions	Dimensions(mm)	Material
Door End	ISO Corner Fitting, 8pcs/set	178x162x118	SCW490
	Door Hinge Set	Blade, Pin, Lug, Bush
	Container Door Locking Device
	Door Gaskets	1143x2254	EPDM
	Gasket Retainer		SUS304
	CSC plate	0.8x100x200	SUS304
	Door Panel (3 CORR)	2.0X943X1957	CORTEN
	Door Vertical Member Edge SQ.Tube	3.2x50x100x2260	CORTEN
	Door Horizontal Member Edge, Channel	3.0x50x150x1024 or 943	CORTEN
	Door Sill	4.5x158x150x2400	CORTEN
	Door Header Lower	4.0x112.5x113x137.5x2400	CORTEN
	Rear Corner Post inner	12x113x40x2353	CORTEN
	Rear Corner Post outer	6.0x70x39x230x2400	CORTEN
Front End	Front End Panel	2.0x1024x2400	CORTEN
	Front Corner Post	6.0x209x225x2400	CORTEN
	Front Bottom Rail	4.0X115X154x2400	CORTEN
	Top End Member SQ.Tube (Horizontal)	3.0x60x60x2112	CORTEN
Roof	Container Roof Panel (5 CORR)	2.0x1045x2356	CORTEN
	Door Header Upper (Extension Plate)	3.0x388x2400	CORTEN
	Top End Rail (Extension Plate)	3.0X397x2400	CORTEN
Side	Container Side Panel	1.6x1116x2400	CORTEN
	Top Side Rail, SQ. Tube	3.0x60x60x5702	CORTEN
	Ventilator Cover	204x67x25	ABS
Base	Container Plywood Flooring, 19ply	28x1160x2400	Hardwood
	Floor screw	L=5 to 120
	Bottom Side Rail	4.5x50x162x30x5702	CORTEN
	Cross Member Small	4x45x122x45x2350	CORTEN
	Cross Member Large	4x45x122x75x2350	CORTEN
	Fork Pocket Bottom Plate	360x300	CORTEN
	Fork Pocket Top Plate	360x2350	CORTEN
	Gooseneck parts		CORTEN
Other	Lashing Ring		SS41
	Hexagon Set screws Nuts and Bolts	L=6 to 200	CORTEN
	Sealed pop rivet Blind rivet	4.8*16.5	CORTEN
	Decals: Weight& Capacity, UIC, Container Type, Ower's Serious		CORTEN
	Open Top Container: Header Hinge,Tarpaulin, Eyelet,TIR Cable, D-Ring
	Flat Rack: Twistlocks

20ft 40ft Cargo Containe Parts

One ISO container contains many parts, we could supply full sets of parts for 20ft and 40ft cargocontainer , here is the details
for the main structure:

Roof End: Roof Panel
Side End: Side Panel, Top Side Rail
Front End: Front Top End Rail, Front Bottom Rail, Front Corner Post, Corner casting, Front Hearder Plate
Rear End: Door Heard Upper and Lower, Door Sill, Rear Corner Post Inner and Outer, Double Door, Gasket, Corner Casting, Hinge set.
Bottom Base: Bottom Side Rail, Cross Memerber, Fork Lift Pocket.

Usually firstly producing these six parts, and then welding them together as one 20ft container. Finally, Painting, installing
rubber gaskets, CSC plate & placing the floor, etc.
