Product Description

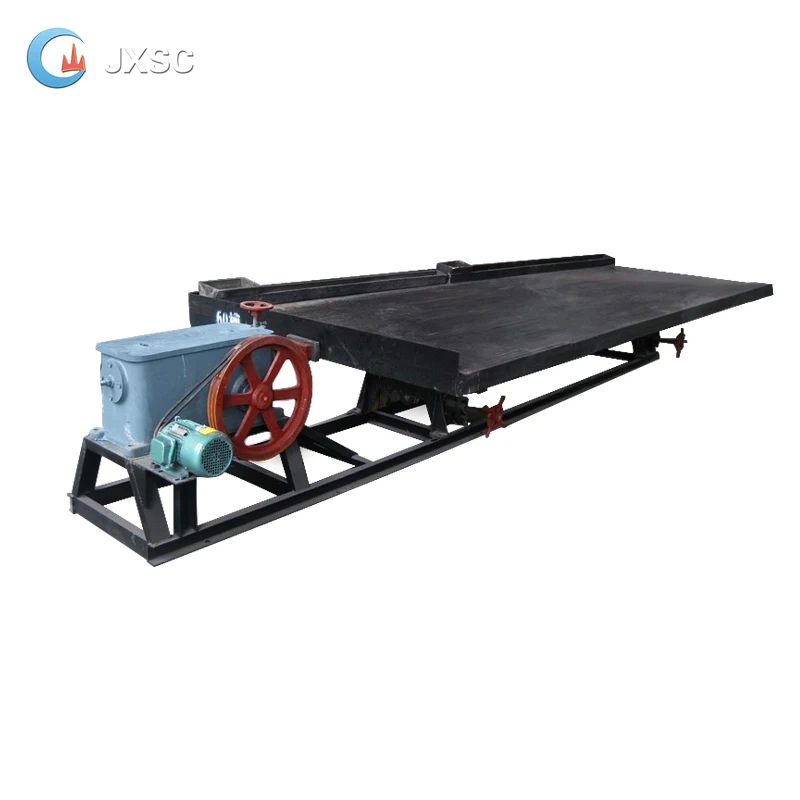

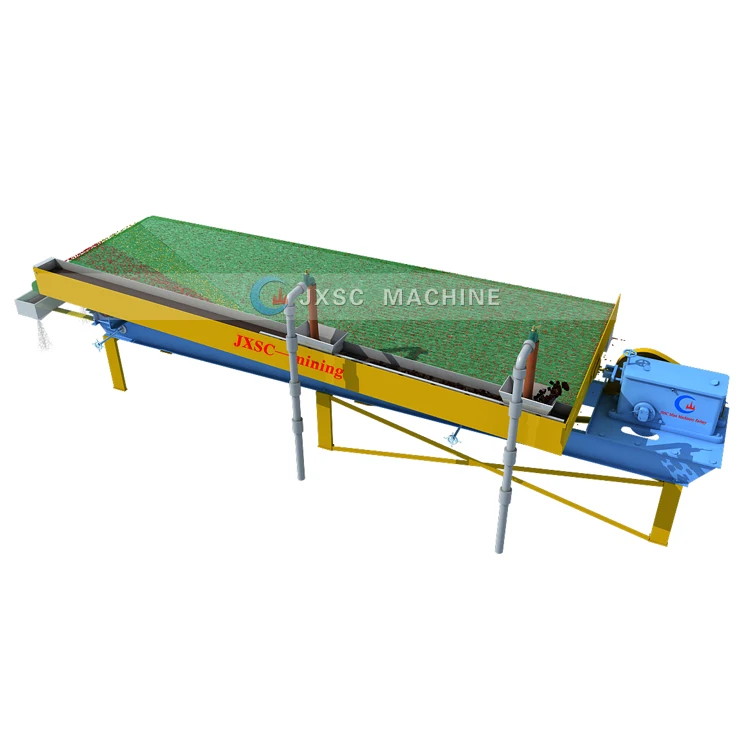

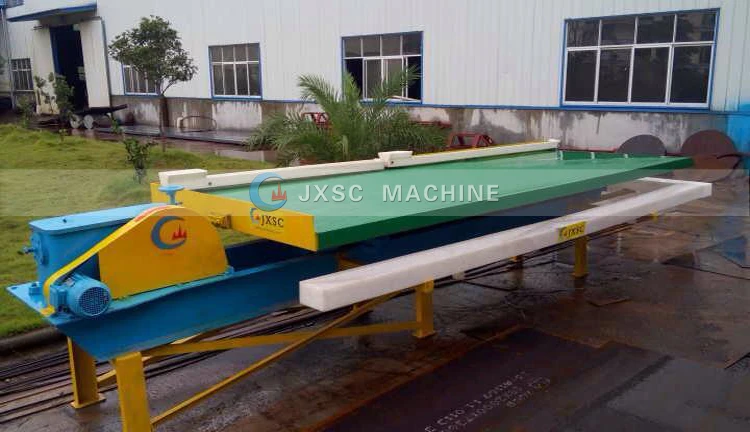

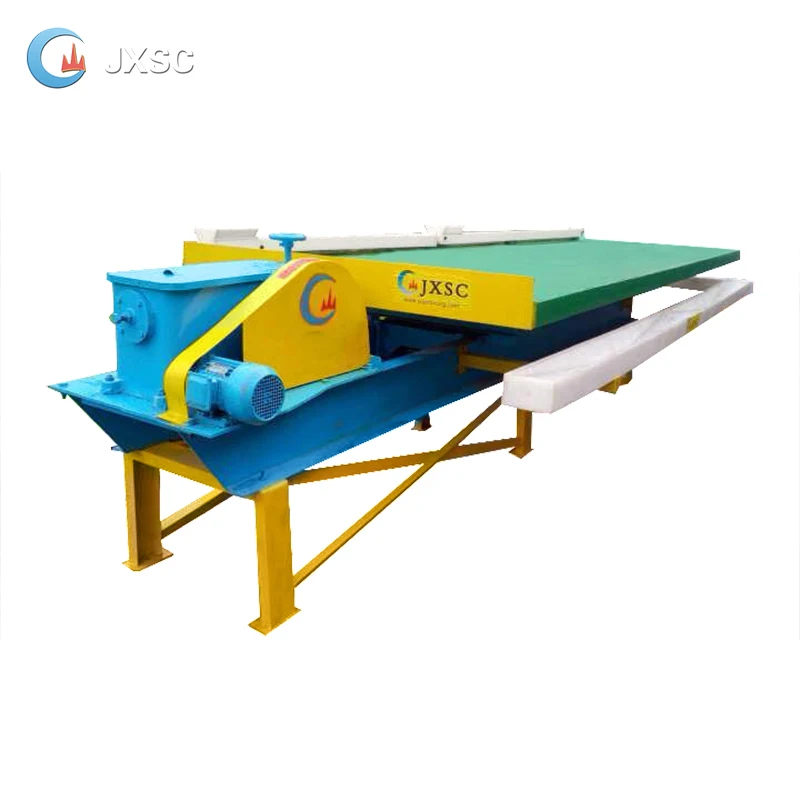

Shaking Table Product Introduction
6s New Type Shaking table for Sale widely used to separate gold, tin, tungsten, chromite, silver, diamond,
zircon,cobalt,tantalum-niobium, lead, zinc, copper, antimony, other rare metal and noble metal ores.
6s Shaker Table Advantage:1. Higher and Thicker steel channel make it more durable.
2. PP material feeding trough more durable than normal steel material.
3. Have a protect cover for belt.
4. The shaking table surface add wear resistant coating.
5. More colors can choose from.
zircon,cobalt,tantalum-niobium, lead, zinc, copper, antimony, other rare metal and noble metal ores.
6s Shaker Table Advantage:1. Higher and Thicker steel channel make it more durable.
2. PP material feeding trough more durable than normal steel material.
3. Have a protect cover for belt.
4. The shaking table surface add wear resistant coating.
5. More colors can choose from.

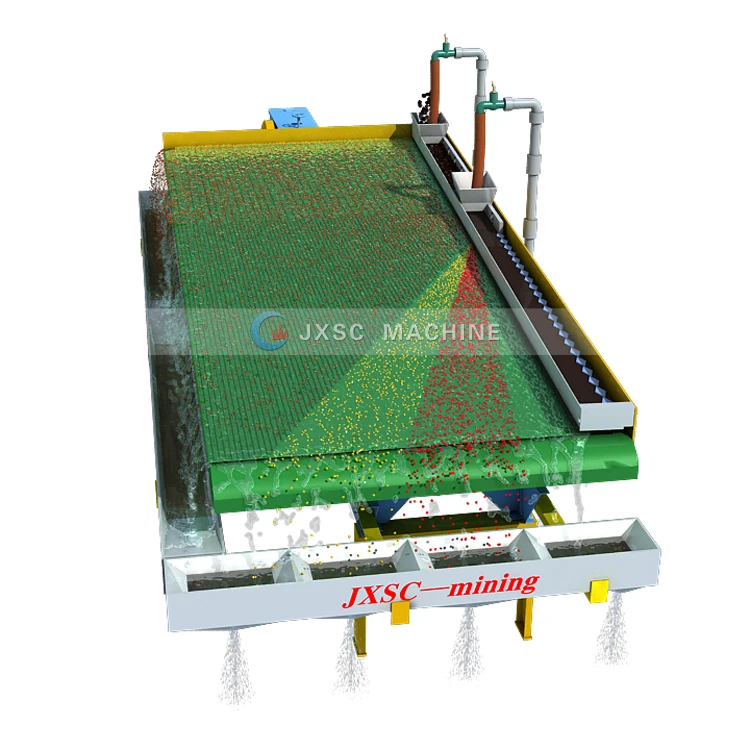

Working principle of Shaking Table Separation:
The working principle of Cobalt Shaker Table is separate the heavy material from light material by using their different
proportion & specific gravity, under the effect of gravity, the minerals will divide into the ore concentrate, the middling and
the tailing.
The prominent advantage of ore shaking table is precise separation.
The enrichment ratio of concentrate is very good, up to 95% high recovery ratio for kinds of heavy minerals, when dealing with low grade tungsten ore and tin ore, the enrichment ratio could reach about 300 times.
We can get some final concentrates, final tailings and 1 or 2 kinds of middling products after first separating from the feeding mineral.
The working principle of Cobalt Shaker Table is separate the heavy material from light material by using their different
proportion & specific gravity, under the effect of gravity, the minerals will divide into the ore concentrate, the middling and
the tailing.
The prominent advantage of ore shaking table is precise separation.
The enrichment ratio of concentrate is very good, up to 95% high recovery ratio for kinds of heavy minerals, when dealing with low grade tungsten ore and tin ore, the enrichment ratio could reach about 300 times.
We can get some final concentrates, final tailings and 1 or 2 kinds of middling products after first separating from the feeding mineral.
Shaking Table Data
Successful cases
Congo 2 TPH Hard Rock Gold Processing Plant
This Plant also can be used for Hard Rock Tin ore/ Coltan ore/ Tungsten Ore/ Chrome Ore
primary processing.Process flowchart as below: Jaw crusher-> belt conveyor-> hammer crusher-> shaking table
Main machines specifications :
1- Jaw crusher: 2 sets (one set for reserve), model PE150*250. with 1-3 TPH capacity, flywheel with cover, with diesel engine.
2.-Belt Conveyor: 1 set, 10 m long, 500 mm width.
3.-Hammer crusher: 1 set, model PC400*300, 1-3 TPH capacity, 0-2 mm output size. flywheel with cover, with diesel engine, with strong frame operation floor, wet process.
4.-Shaking table: 2 sets, model 6S big shaking table, with 1 TPH capacity, table size 4500*1850mm. New
This Plant also can be used for Hard Rock Tin ore/ Coltan ore/ Tungsten Ore/ Chrome Ore
primary processing.Process flowchart as below: Jaw crusher-> belt conveyor-> hammer crusher-> shaking table
Main machines specifications :
1- Jaw crusher: 2 sets (one set for reserve), model PE150*250. with 1-3 TPH capacity, flywheel with cover, with diesel engine.
2.-Belt Conveyor: 1 set, 10 m long, 500 mm width.
3.-Hammer crusher: 1 set, model PC400*300, 1-3 TPH capacity, 0-2 mm output size. flywheel with cover, with diesel engine, with strong frame operation floor, wet process.
4.-Shaking table: 2 sets, model 6S big shaking table, with 1 TPH capacity, table size 4500*1850mm. New
Placer Ore Processing Case in Ghana
Date: 2017Place: Russia Federation
Mineral: Chrome
Maximum Feeding Size: 0-2mm
Order quantities: 20sets
Other machines:hopper,trommel screen, mixing tank, sluice box, smelting furnace, etc.
Date: 2017Place: Russia Federation
Mineral: Chrome
Maximum Feeding Size: 0-2mm
Order quantities: 20sets
Other machines:hopper,trommel screen, mixing tank, sluice box, smelting furnace, etc.
100tph Coltan Process Plant in Uganda
Date: 2019Mine site: Uganda
Processing mineral: Coltan ore
Full set equipment for entire line:Trommel scrubber>Vibration screen>Jig machine>Shaking table
Customer's feedback: Coltan recovery reached 90%, customer was happy with our equipment.
Date: 2019Mine site: Uganda
Processing mineral: Coltan ore
Full set equipment for entire line:Trommel scrubber>Vibration screen>Jig machine>Shaking table
Customer's feedback: Coltan recovery reached 90%, customer was happy with our equipment.

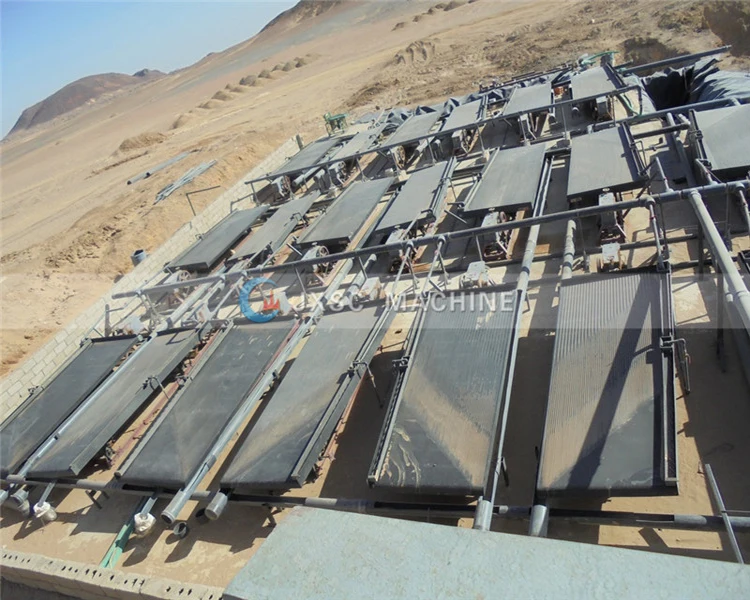

We have provided the shaking table for many customers in Sudan,Mali, Mozambique, Nigeria, Suriname, Ghana, South Africa,Uganda,Zambia, Tanzania, Angola, Canada, Austrialia, Chile, Peru,ect. For Alluvail gold washing plant, coltan ore mining plant,diamond washing plant, Iron ore washing plant,ect.
Packing & Delivery
Company Profile
Jiangxi Shicheng Mine Machinery Factory
Jiangxi Shicheng Mine Machinery Factory is an experienced supplier of complete set mining equipments, professional at providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, ect. As well as complete set small lab mining machines.
Our Core Advantages as below :
1.+30 years history FACTORY at mining machinery
2.Provide engineer team after sales service
3.Provide Complete set mineral processing plant
4.Provide Sample testing service in factory lab for free
5.Provide professional Mining Solution Consulting
Jiangxi Shicheng Mine Machinery Factory is an experienced supplier of complete set mining equipments, professional at providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, ect. As well as complete set small lab mining machines.
Our Core Advantages as below :
1.+30 years history FACTORY at mining machinery
2.Provide engineer team after sales service
3.Provide Complete set mineral processing plant
4.Provide Sample testing service in factory lab for free
5.Provide professional Mining Solution Consulting
