Lingqiao Prestressed Electric PC Strand Stressing Hydraulic Jack For Mono Stressing Jack
Product Description

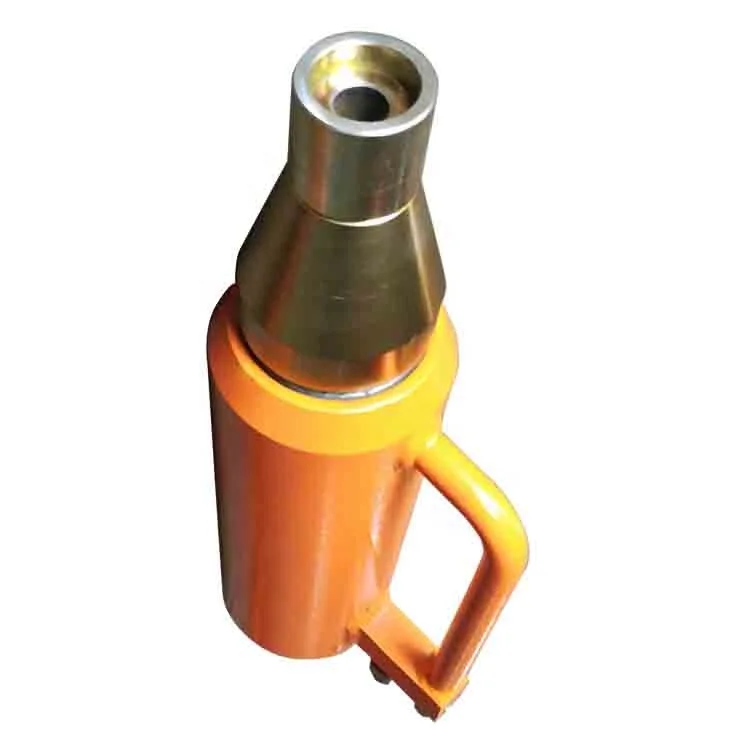

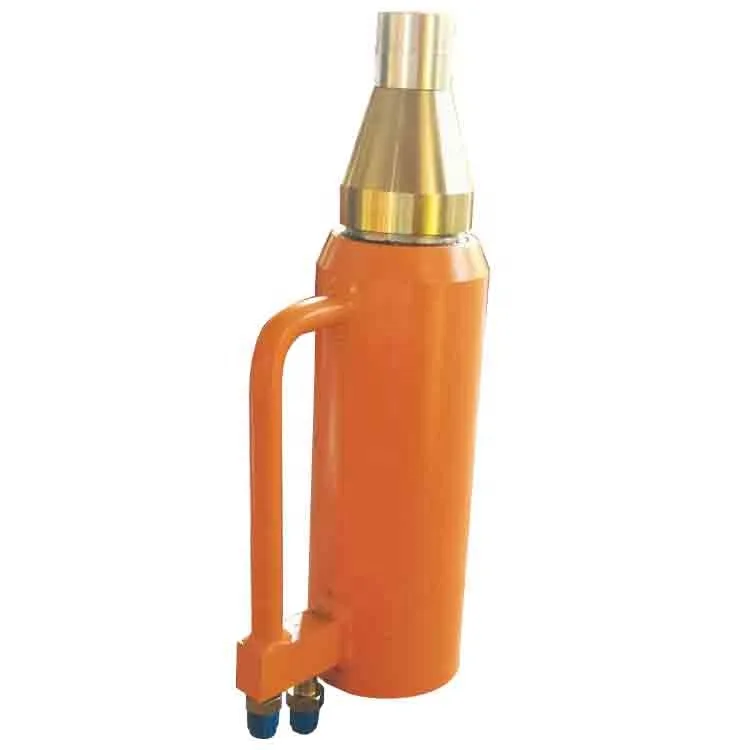

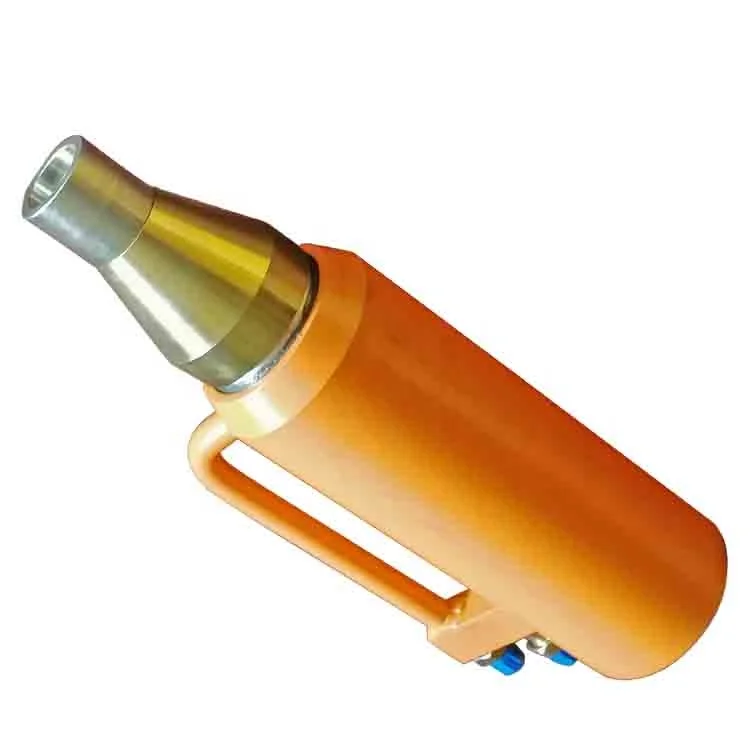

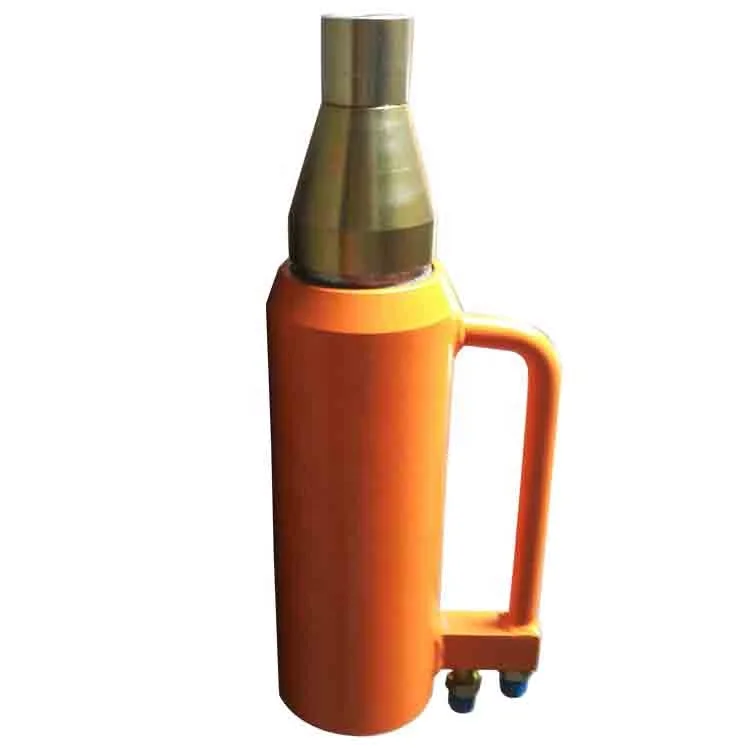

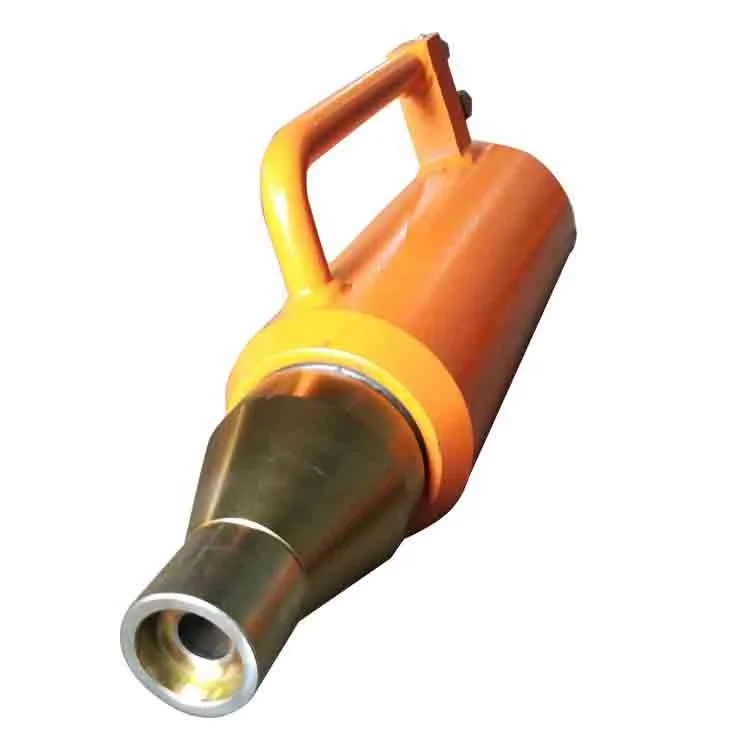

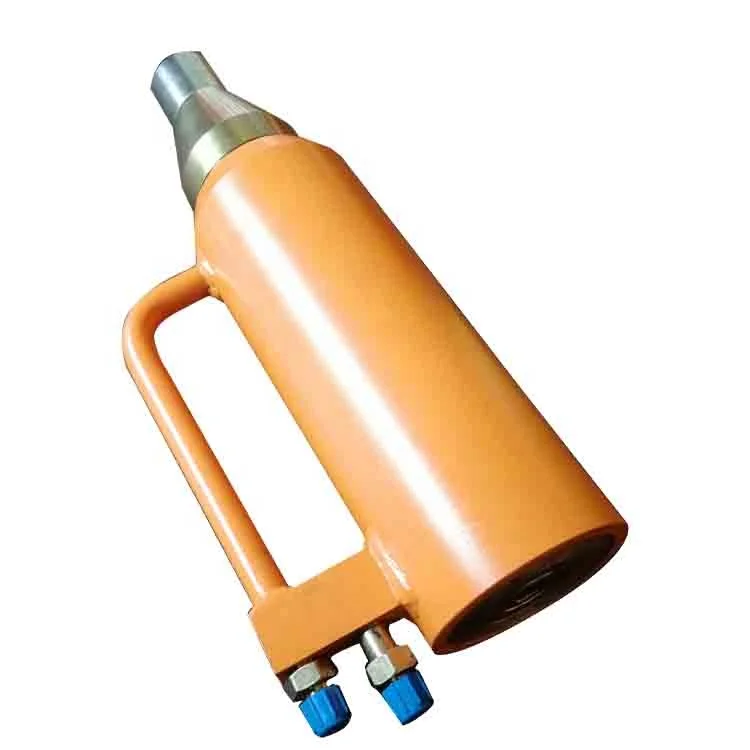

Product name: YDC 250Q type jack
Tension anchor: M5, M13
(M anchoring system)
Supplying oil pump: ZB4-500 model
Application: It is widely used in prestressed concrete structure, bridge, rock and soil anchorage by pre - and post- tensioning method
Advantages: small weight, especially suitable for high altitude operation, easy to carry
Product parameters
| YDC250QX | Nominal Tension Force | Nominal Oil Pressure | Tension Piston Area | Return piston Area | Cross-core Aperture | Stroke For Tension | Overall Size | Weight | ||||
| KN | MPa | m2 | m2 | mm | mm | ΦA×L mm | KG | |||||
| 252 | 53 | 4.77×10-3 | 1.335×10-3 | Φ19 | 200 | Φ114×474 | 21.5 | |||||
Usage & Technical Performance
Bridge construction small mono 25 tons bottle hydraulic jack price is a multipurpose prestressed tensioning device, easy to operate. Mainly used for single hole tension. also used for,porous preloaded , tensioning and troubleshooting,and cable tensioner can be applied to a variety of sizes of high strength steel wire and steel strand
Mono hydraulic jacks: especially for high-altitude operations, easy to carry.Steel stranded wire reserve length is 200 mm can be tensioned , can save prestressed tendon material.
Mono jack Description:One set cable jack will complete with 2pcs construction jackoil pipe;stressing device,retracting device,1 set jack wedge,and hydraulic jack machine seal rings.
Construction and range of application
Packaging & Shipping
Packing Methods:
1.According To Customer's Requirement.
2.Plywood wooden cases.
3.Safe and reliable
