Гидравлический шланговый обжимной станок YONG FENG Y120
US $1950-$4100
2-1/2 дюймов BNT-P32 13 наборов штампов двигатель сименм гидравлических шланговых прессовочных машин с умирает зубчатой рейкой и
- Категория: Rubber Product Making Machinery >>>
- Поставщик: Dalian,Barnett,Flex,Hydraulics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.66 $* | 0.79 $* |
| Aug-20-2025 | 0.71 $* | 0.10 $* |
| Jul-20-2025 | 0.39 $* | 0.32 $* |
| Jun-20-2025 | 0.24 $* | 0.89 $* |
| May-20-2025 | 0.91 $* | 0.4 $* |
| Apr-20-2025 | 0.26 $* | 0.35 $* |
| Mar-20-2025 | 0.16 $* | 0.18 $* |
| Feb-20-2025 | 0.50 $* | 0.12 $* |
| Jan-20-2025 | 0.44 $* | 0.59 $* |
Характеристики
CRIMPING MACHINES
BNTP32
PROFESSIONAL WORKSHOP
BENCHTOP
BENCHTOP
KEY ADVANTAGES
• Ergonomic micrometer
•Radial die movement
•High crimping force
•Electronic control and semiautomatic opening
•Cylinder protection
•Easy front access for elbow fittings
•Energy savings
MAIN APPLICATIONS
Dedicated to hydraulic maintenance specialists working on medium sized machines and equipment. Also suitable for assemblers involved in medium sized hoses and quantities.
TECHNICAL SPECIFICATIONS
Motor:4KW
Noise Level:71dB
Crimp Range:10-87mmCrimp force:2000KN
Opening with dies:+33mm
Complete Opening:120mm
Master Die Length:75mm
Standard Dies:14,16,19,22,26,30,34,
39,45,51,57,63,69mm
39,45,51,57,63,69mm
Dimensions:597mm*436mm*1200mmNet Weight:310kg
Packaging:650*480*1300mm
Gross Weight:350kg
Voltages:220/240 V, 3Ph, 50 Hz
380/415 V, 3Ph, 50 Hz
208/240 V, 3Ph, 60 Hz
380/415 V, 3Ph, 60 Hz
Capacity:2wb:2'' max.
4ws: 2” max.
6ws: 1” max.
Packaging:650*480*1300mm
Gross Weight:350kg
Voltages:220/240 V, 3Ph, 50 Hz
380/415 V, 3Ph, 50 Hz
208/240 V, 3Ph, 60 Hz
380/415 V, 3Ph, 60 Hz
Capacity:2wb:2'' max.
4ws: 2” max.
6ws: 1” max.
Technical Features:
The BNTP32 crimping machine is a cost-effective alternative for single-piece production.BNTP32-models (precision, durability,force and ease of use), the P32 model is totally unmatched in it's own class.
AVAILABLE DIE SETS
Product Code | Description | N° | Crimp Range(mm) | Die Length (mm) |
1 | Die set n. 14 - length 55mm | 14 | 14-16 | 55 |
2 | Die set n. 16 - length 55 mm | 16 | 16-19 | 55 |
3 | Die set n. 19 - length 55 mm | 19 | 19-22 | 55 |
4 | Die set n. 22 - length 70 mm | 22 | 22-26 | 70 |
5 | Die set n. 26 - length 70 mm | 26 | 26-30 | 70 |
6 | Die set n. 30 - length 70 mm | 30 | 30-34 | 70 |
7 | Die set n. 34 - length 75 mm | 34 | 34-39 | 75 |
8 | Die set n. 39 - length 75 mm | 39 | 39-45 | 75 |
9 | Die set n. 45 - length 90 mm | 45 | 45-51 | 90 |
10 | Die set n. 51 - length 90 mm | 51 | 51-57 | 90 |
11 | Die set n. 57 - length 100 mm | 57 | 57-63 | 100 |
12 | Die set n. 63 - length 110 mm | 63 | 63-69 | 110 |
13 | Die set n. 69 - length 110 mm | 69 | 69-75 | 110 |

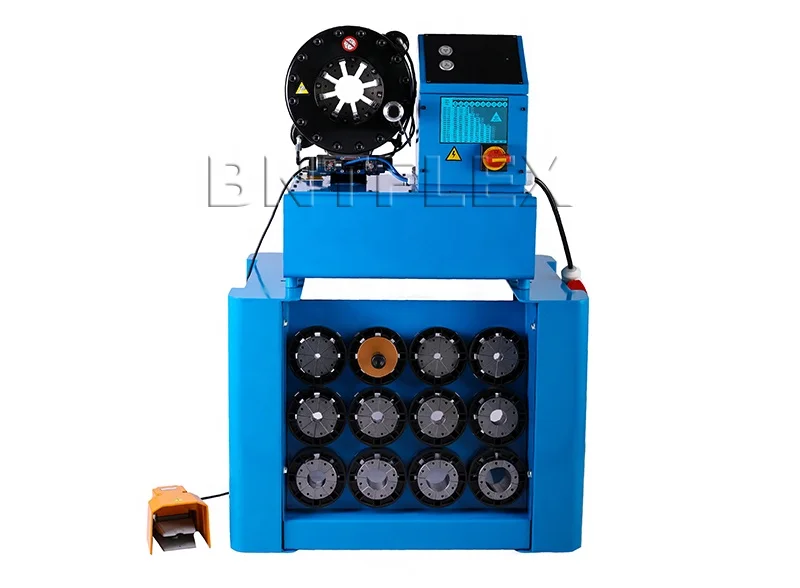

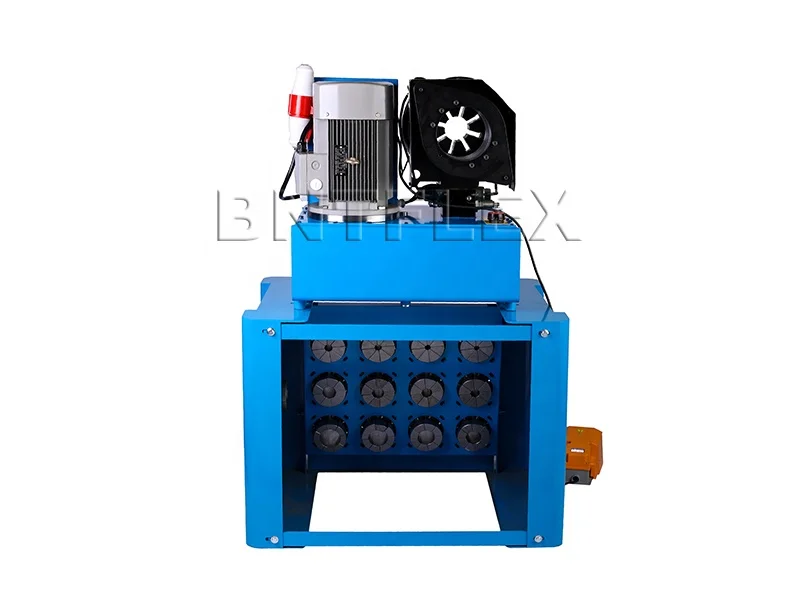

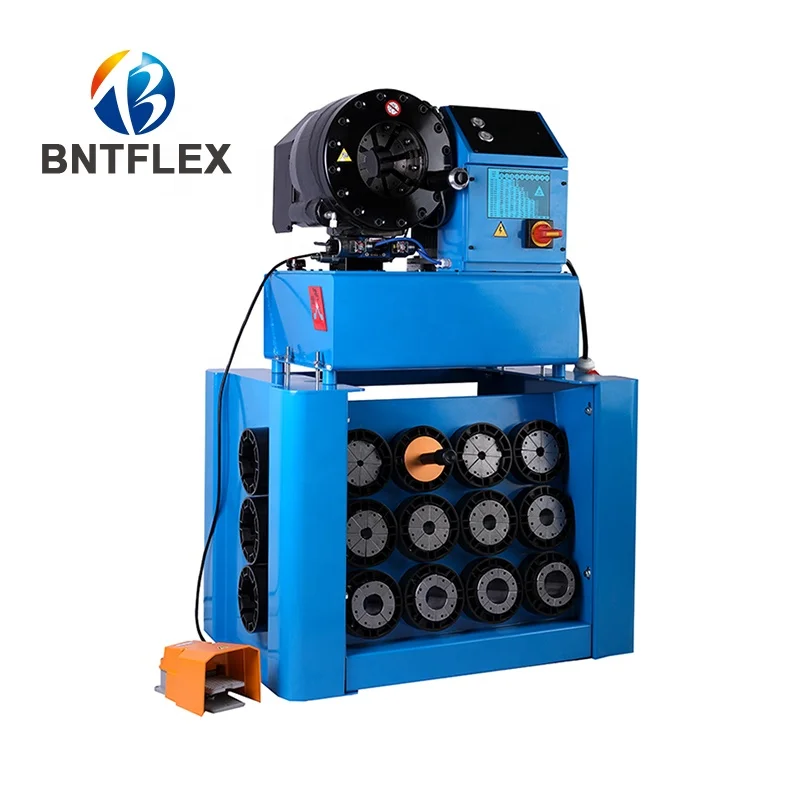

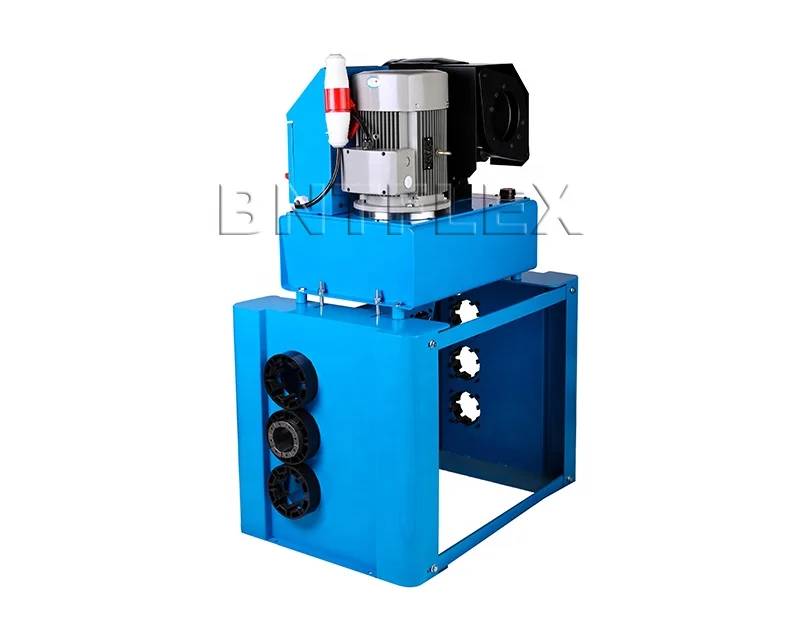

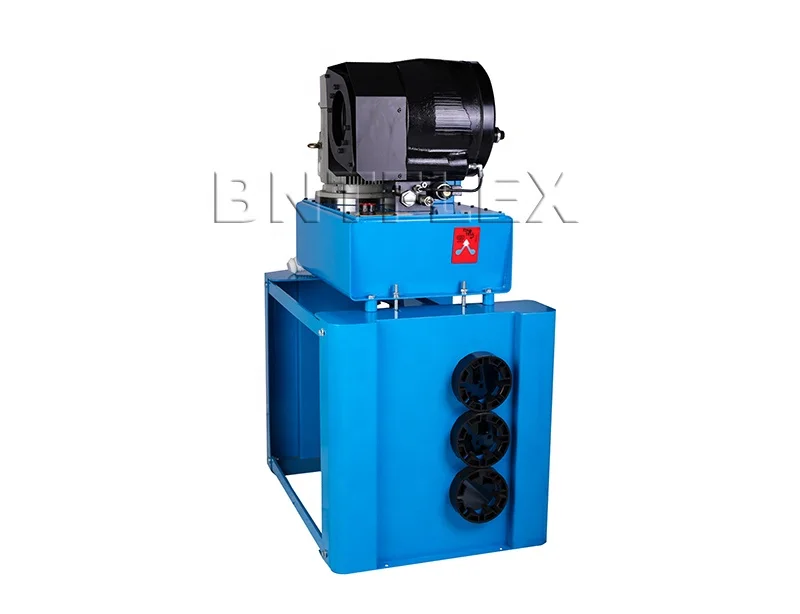

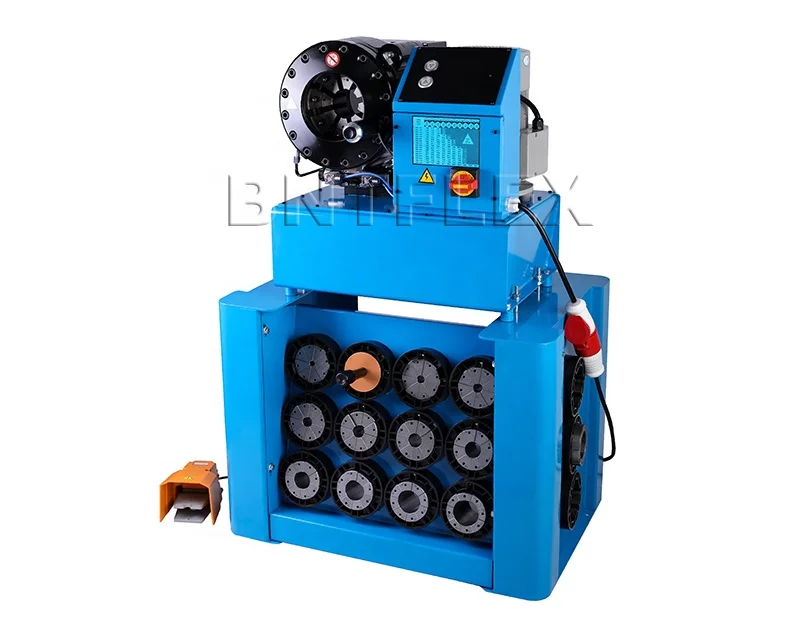

Detailed Images
OUR RANGE OF BNTP32 POWER MACHINES HAVE VARIOUS
OPTIONS OF CONTROL AND A WIDE RANGE OPTIONAL
EXTRAS TO SUIT WHAT YOU NEED.
OPTIONS OF CONTROL AND A WIDE RANGE OPTIONAL
EXTRAS TO SUIT WHAT YOU NEED.
Capacity: 2″ 4wb (may vary according to assembly material)
Crimp range: 10 – 87 mm
Crimp force: 200t
Crimp range: 10 – 87 mm
Crimp force: 200t
OUR RANGE OF BNTP32 POWER MACHINES HAVE VARIOUS
OPTIONS OF CONTROL AND A WIDE RANGE OPTIONAL
EXTRAS TO SUIT WHAT YOU NEED.
OPTIONS OF CONTROL AND A WIDE RANGE OPTIONAL
EXTRAS TO SUIT WHAT YOU NEED.
Capacity: 2″ 4wb (may vary according to assembly material)
Crimp range: 10 – 87 mm
Crimp force: 200t
Crimp range: 10 – 87 mm
Crimp force: 200t
OUR RANGE OF BNTP32 POWER MACHINES HAVE VARIOUS
OPTIONS OF CONTROL AND A WIDE RANGE OPTIONAL
EXTRAS TO SUIT WHAT YOU NEED.
OPTIONS OF CONTROL AND A WIDE RANGE OPTIONAL
EXTRAS TO SUIT WHAT YOU NEED.
Capacity: 2″ 4wb (may vary according to assembly material)
Crimp range: 10 – 87 mm
Crimp force: 200t
Crimp range: 10 – 87 mm
Crimp force: 200t
