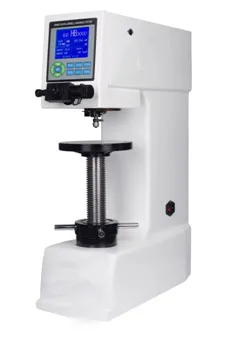

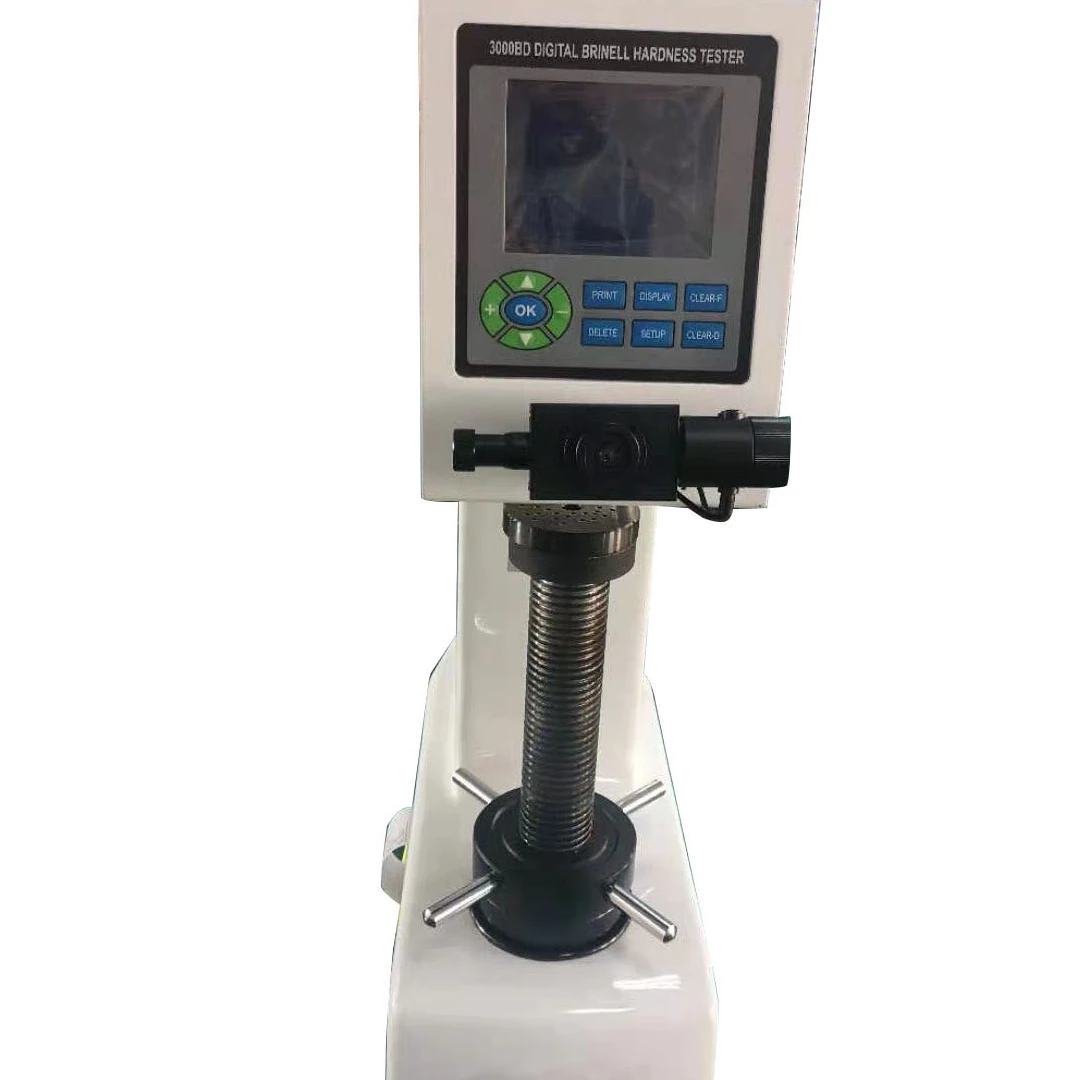

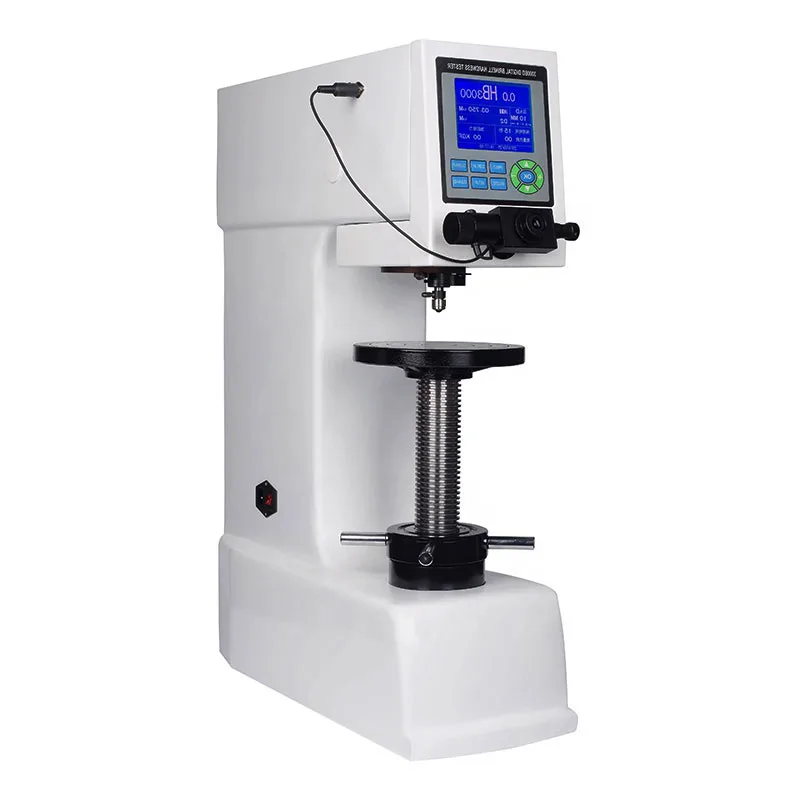

Цифровой универсальный тестер твердости стали brinell Vicker все в

Цифровой универсальный тестер твердости стали brinell Vicker все в

Категория: Тестеры твердости >>>
Поставщик: Shenzhen,Pengjie,Precision,Instrument,Co.,Ltd.

Цена:3 600,00 $ - 4 600,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	4284.12 $*	4498.57 $*
Aug-19-2025	4248.80 $*	4460.75 $*
Jul-19-2025	3564.83 $*	3742.30 $*
Jun-19-2025	4176.14 $*	4385.39 $*
May-19-2025	3636.0 $*	3818.45 $*
Apr-19-2025	4104.1 $*	4309.13 $*
Mar-19-2025	4068.12 $*	4271.82 $*
Feb-19-2025	4032.42 $*	4234.67 $*
Jan-19-2025	3996.73 $*	4196.9 $*

Характеристики

Products Description

Main Features
• Closed-loop sensor loading
• Electronic control system
• 10-level Test force range 62.5kgf to 3000kgf
• Hardness scale conversion function

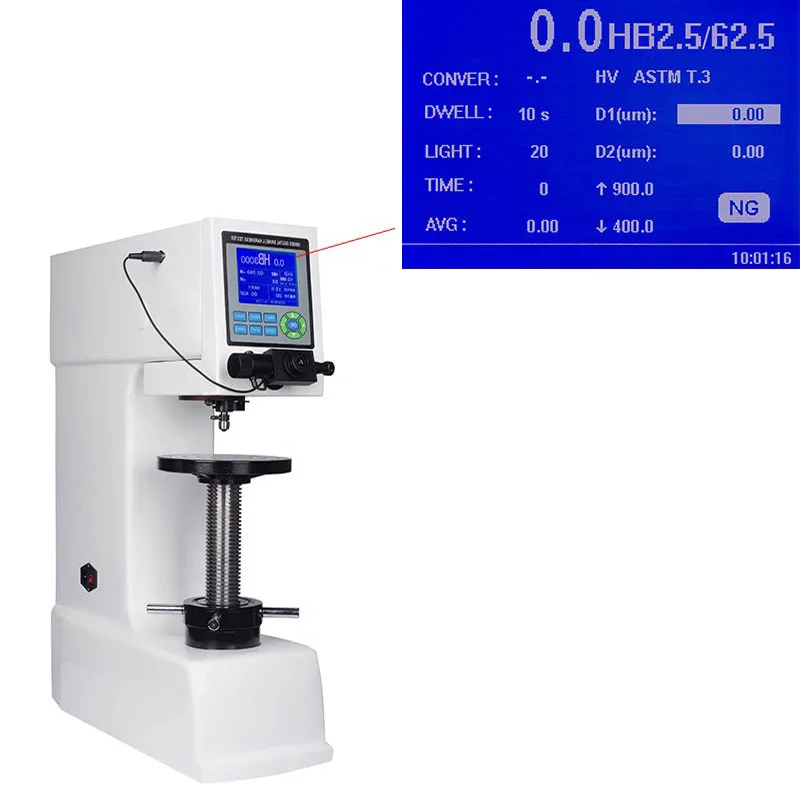

• Digital display, Large LCD multi-function screen
• Built-in printer for data output
• Optional high-definition CCD camera and system

Application
• Suitable for the precision testing of parallel plane
• Stable and reliable for the curved surface testing
• Ferrous metals, nonferrous metals and bearing alloy material

*Technical Specifictions*
Model	PJ-3000D
Testing Range	(8 - 650) HBW
Max Height of Specimen	220mm	Min Measuring Unit	0.0625 um
Duration time	5~60s	Carried Standard	EN, ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384 GB/T231.2, JJG150

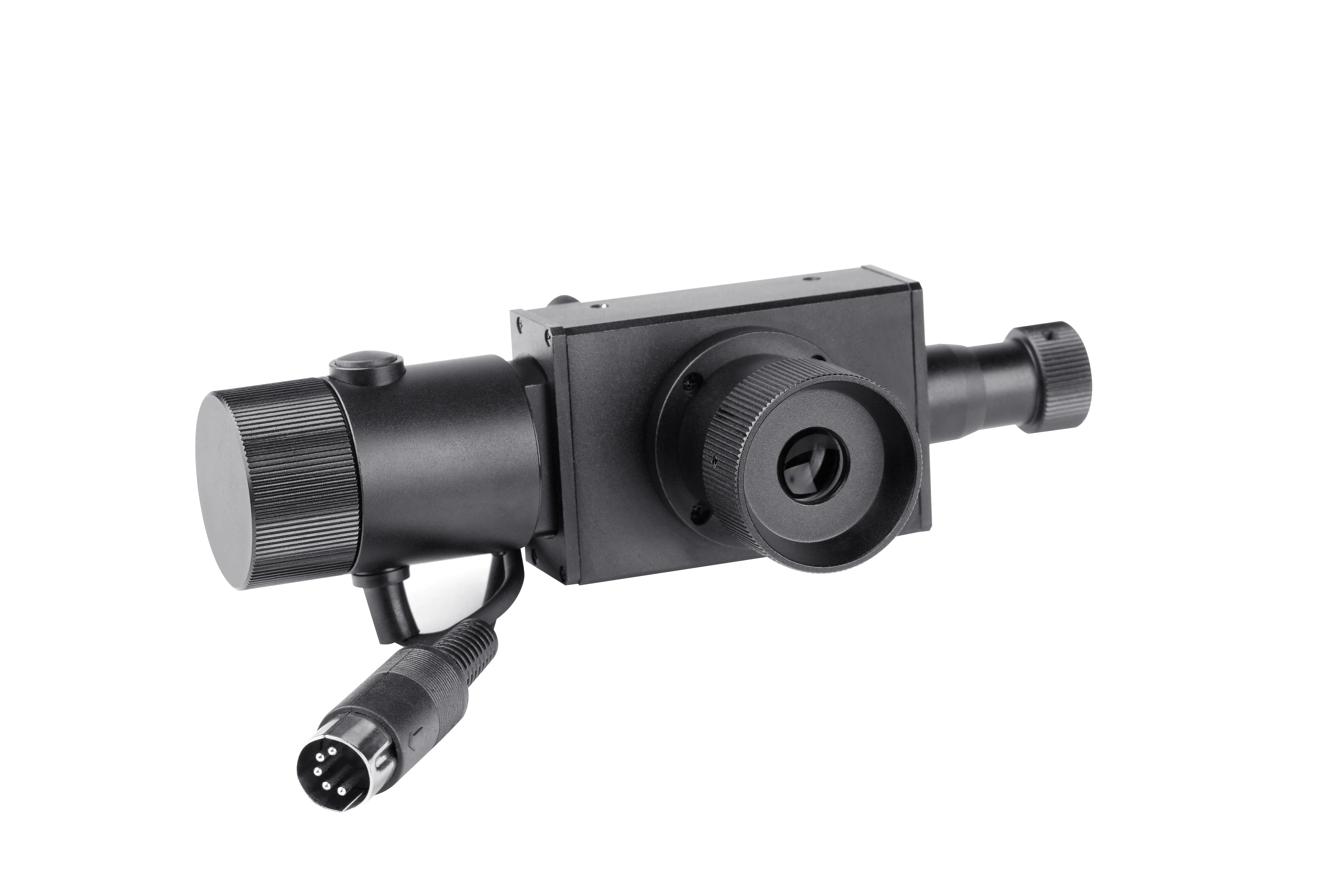

Magnification of Microscope	20X	Distance of Indenter to outer wall	145mm
Power supply	AC220+5%, 50 〜60Hz	Overall Dimension (mm)	550250780mm

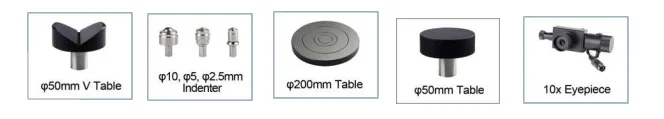

Standard Accessories	lndenter3, Hardness Block3, Testing platform3,20x Microscope 1, 2A Fuse*1, ect. (Please see Packing list)
Brinell Scale	HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 HBW10/100 HBW10/250 HBW10/500 HBW5/125 HBW5/250 HBW5/750 HBW10/1000 HBW10/1500 HBW10/3000
Testing Force	62.5kgf (612.9N) 10Okgf (980.7N) 125kgf (1226N) 187.5kgf (1839N) 250kgf (2452N) 500kgf (4903N) 750kgf (7355N) 1000kgf (8907N) 1500kgf (14710N) 3000kgf (29420N)
