Product Description

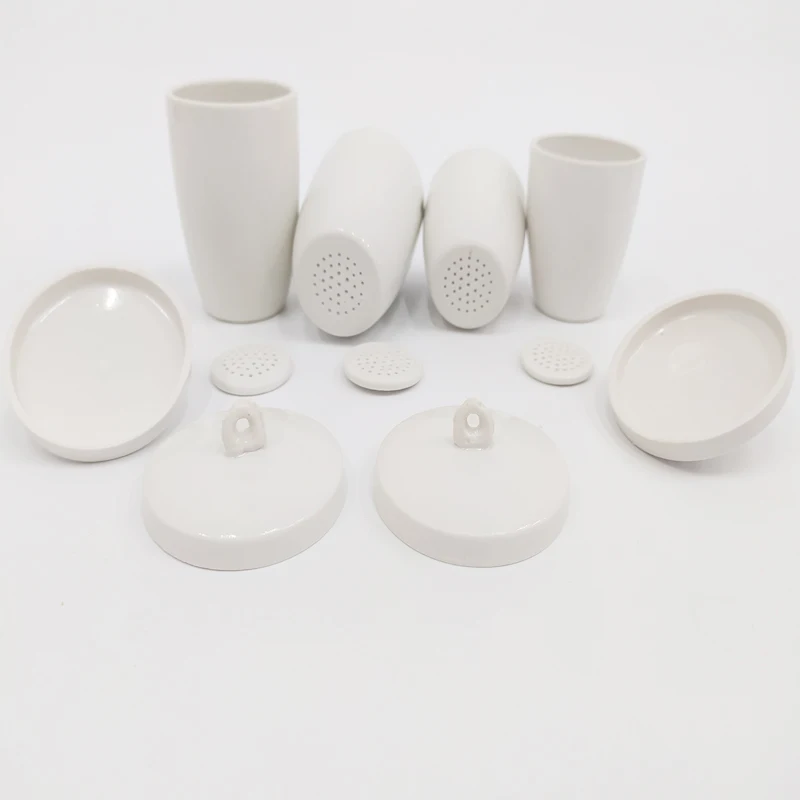

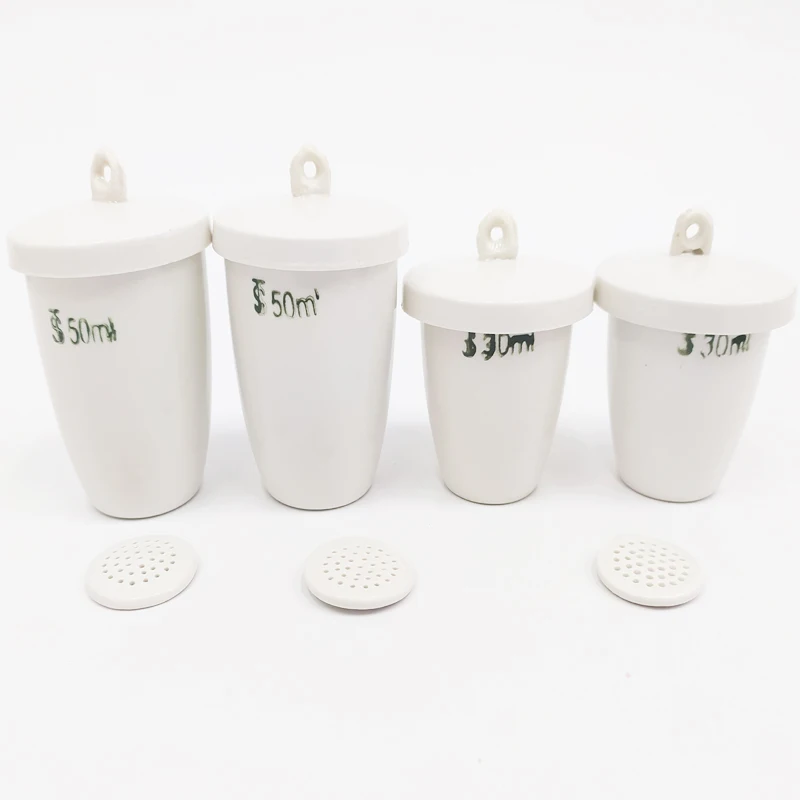

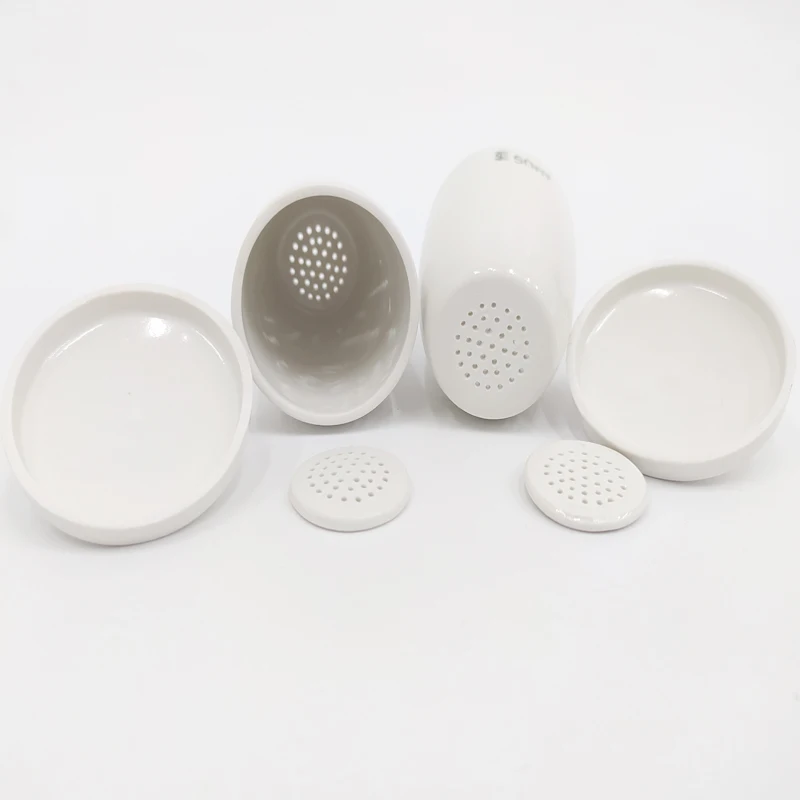

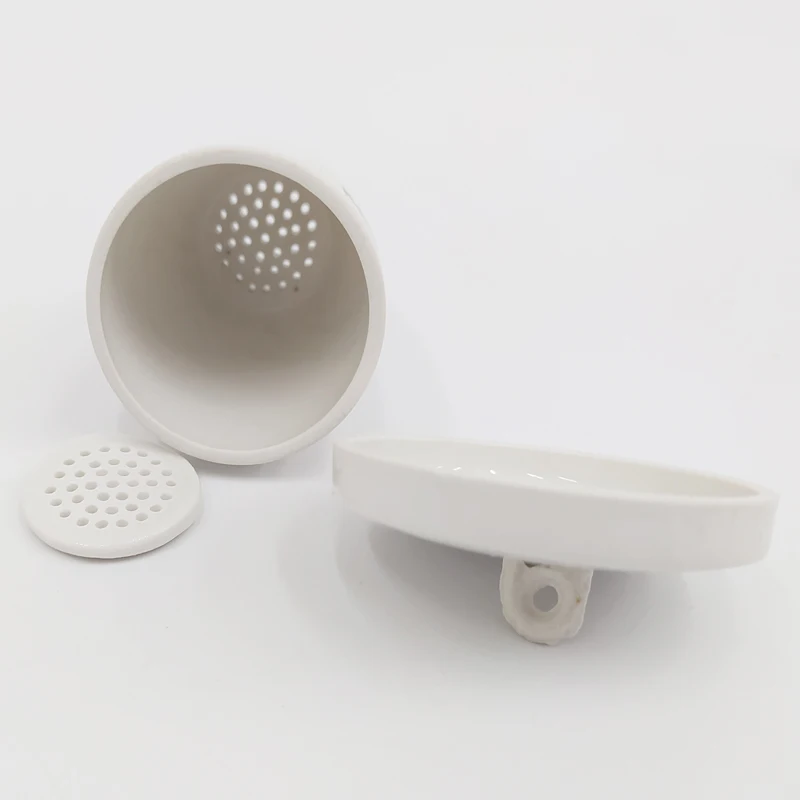

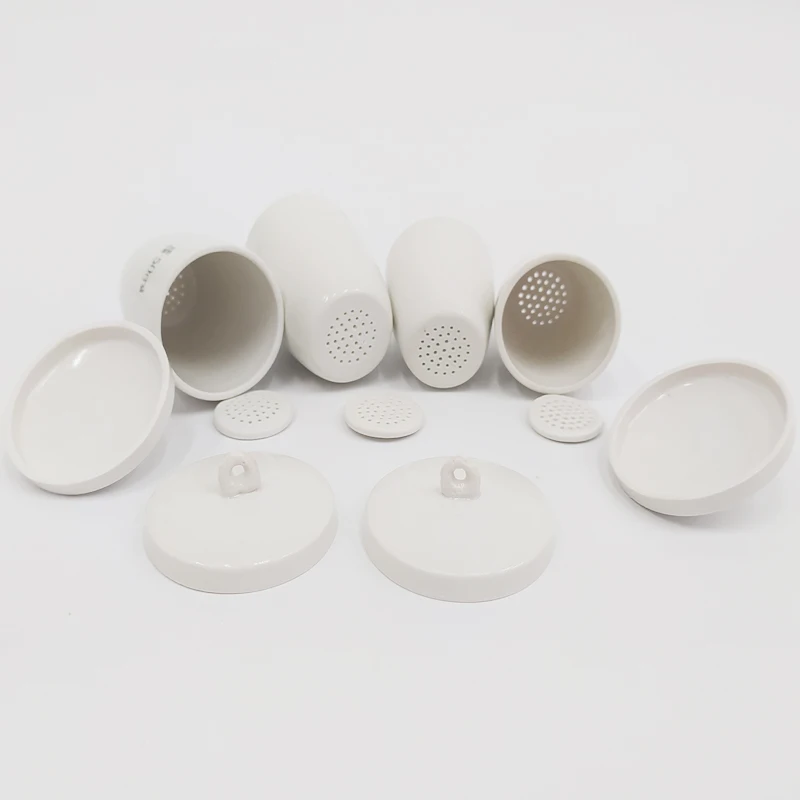

Gooch filter crucible

Item no	Capacity (ml)	Top OD mm	Bottom OD mm	Height mm
Y-35	15	32	20	34
Y-36	20	36	22	38
Y-37	25	38	23	40
Y-38	30	40	25	46
Y-39	35	41	26	50
Y-40	40	42	27	54
Y-41	50	43	28	58

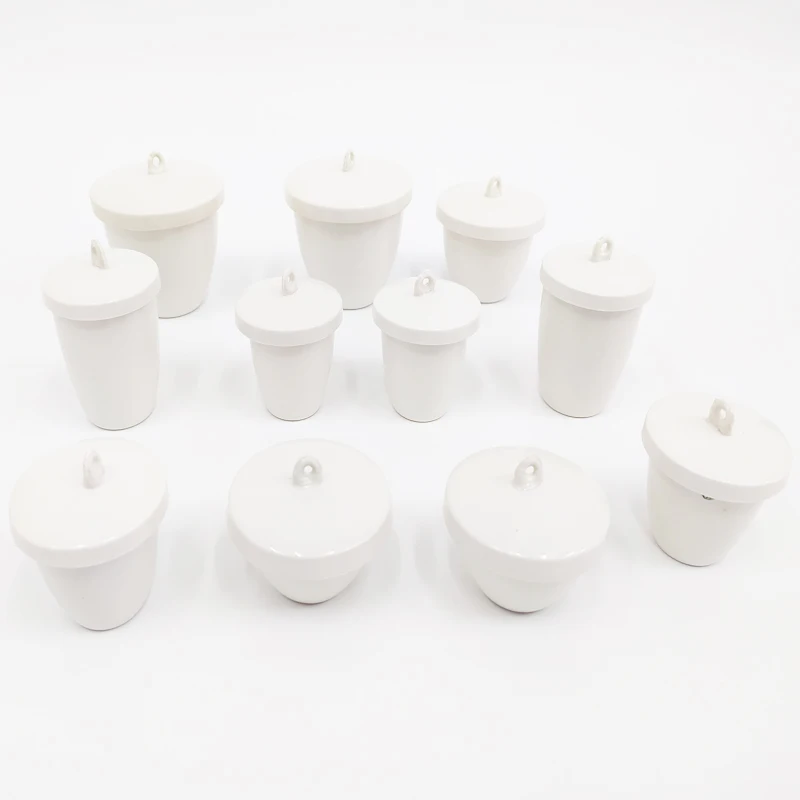

Porcelain crucible

Material: chemical porcelain

Chemical porcelain is also called physical and chemical porcelain or special ceramics. The main component is 45% alumina and the rest is silicon dioxide. It is a type of hard porcelain. It has excellent chemical resistance and thermal shock resistance, as well as high mechanical strength. Widely used in chemical industry, pharmaceutical industry and chemical laboratory. For example,crucible, evaporating dish, funnel, mortar, porcelain tube, porcelain boat, etc.

Some wear-resistant industrial equipment such as ball mill barrels, porcelain balls and porcelain-lined bricks ect can also be manufactured according to the chemical porcelain ingredients.

Features: strong acid and alkali resistance, cold and heat resistance, chemical resistance.
Long-term use temperature: no more than 1200C
Firing temperature: 1320 C

Low form crucible

Item no	Capacity (ml)	Top OD mm	Bottom OD mm	Height mm
Y-10	15	43	19	23
Y-10-1	18	45	20	25
Y-11	25	47	24	27
Y-12	30	51	25	30
Y-12-1	40	55	26	34
Y-13	45	57	27	36
Y-14	50	59	28	38

Middle wall crucible

Item no	Capacity (ml)	Top OD mm	Bottom OD mm	Height mm
Y-17	5	25	16	21
Y-18	10	30	20	28
Y-18-1	15	35	21	30
Y-19	18	37	22	31
Y-20	20	38	22	32
Y-21	25	40	23	36
Y-22	30	42	25	41
Y-23	40	48	26	42
Y-24	50	53	30	46
Y-24-1	70	58	32	59
Y-25	100	63	34	57
Y-26	150	77	39	63
Y-27	200	80	41	70
Y-28	300	90	43	78
Y-29	400	100	45	100

High form crucible

Item no	Capacity (ml)	Top OD mm	Bottom OD mm	Height mm
Y-30	20	32	20	44
Y-31	25	36.5	22	45
Y-32	30	40	24	51.5
Y-33	40	42	29	55
Y-34	50	44	30	58

Volatile determination crucible

Item no	Capacity (ml)	Top OD mm	Bottom OD mm	Height mm
Y-42	20	32	20	43
Y-43	25	37	22	46
Y-44	30	40	24	50

Tight crucible

Item no	Capacity (ml)	Top OD mm	Bottom OD mm	Height mm
Y-45	15	28	18	40
Y-46	20	30	20	43
Y-47	30	40	24	50

Double crucible

Item no	OD mm	H mm
Y-48	30	43

Precautions for use:
Before use,porcelain crucibles need be dried,preheat 50C-80C. Preheat time less than 5 hours.Or it is easily cracked.
