Product Description

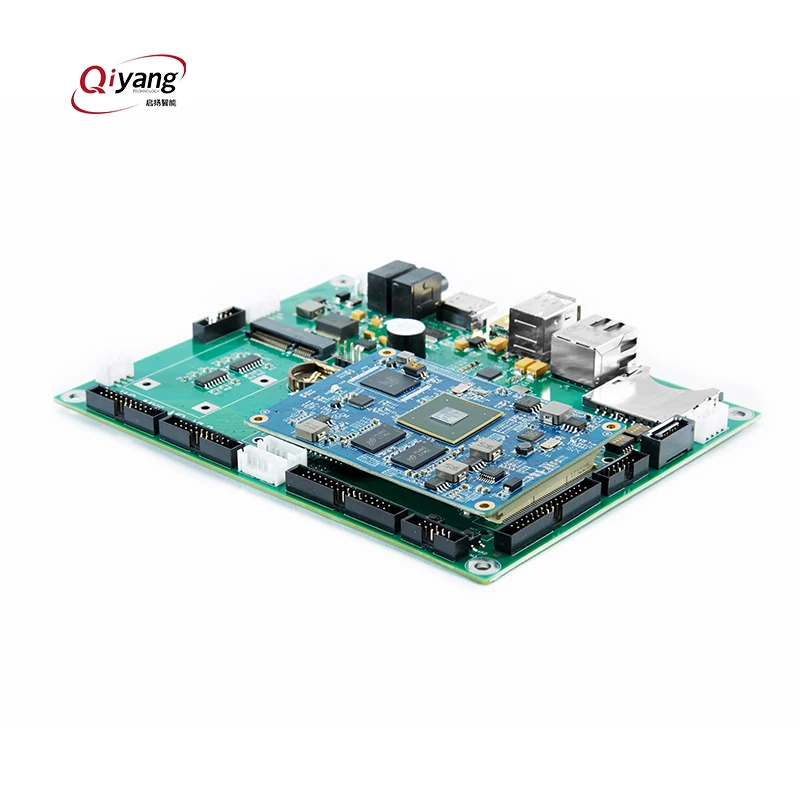

ARM embedded industrial development board with imx6 processor for Industrial Control Computer
IAC-IMX6-KIT embedded mainboard, adopts Freescale i.MX6 processor, Cortex-A9 core with 1G Hz and can be compatible with solo/dual/quad micro processor for upgrading. This mainboard is with standard i.MX6 Dual series: The i.MX 6Dual family provides dual cores running up to 1.0 GHz with 1 MB of L2 cache and 64-bit DDR3 or 2-ch., 32-bit LPDDR2 support. Integrated FlexCAN, MLB bus, HD grade NEON SIMD Media Accelerator, Triple Play 3D/2D/VG Accelerator, 1080P video codec,PCI Express and SATA-2 provide excellent conne IAC-IMX6-Kit Hardware Manualctivity, while integration of LVDS, MIPI display port, MIPI camera port and HDMI v 1.4, the i.MX 6Dual provides a scalable solution for consumer, automotive and indust rial applications.




Product Paramenters


CPU
Freescale i.MX6D processor,ARM® Cortex™-A9 core
Frequency
 1.0 GHz
RAM
DDR3 SDRAM，4*256MB,total 1GB
Flash
4GB EMMC
Communication
3-ch RS232, 1 port as the debug UART, 2-ch RS232 multiplexes with
RS485 ;
1-ch High speed USB OTG,4-ch USB HOST, 1-ch connects to MIN_PCIE
Interface ;
2-ch CAN, support CAN2.0 protocol ;
1-ch 10/100/1000Mbps Ethernet port, with ACT/LINK indicator
CSI&DSI interface
2-ch LVDS port,
HDMI, support HDMI 1.4
Audio
McASP audio interface; binaural output; MIC audio input
Input
Standard I2C Capacitive panel
Expansion Interface
MINI_PCIE 2.0 ;SIM Card  ;EIM Bus
Storage
1*SD Card Interface;1-ch SATA Hard disk interface
other onboard resource
Reset circuit, Watch dog, RTC, Buzzer, JTAG interface
Power Input
+12V power supply, can support +4.75V~+18V wide range voltage supply
Size
160mm*125mm
Layer
Core Board:8-layer high precision immersion gold process
Back Board: 4-layer high precision immersion gold process
Power
Consumption
≤3W
Operation
Temperature
-20℃ ~ +70℃ (Could be upgraded to industrial level temperature)
Operation
Humidity
5% ~ 95%, Non-Condensing
OS support
linux
