TPA3116D2 двухканальный стерео высокомощный цифровой аудио усилитель мощности плата класса D 2*120 Вт
- Категория: Receivers & Amplifiers >>>
- Поставщик: Shenzhen,iSmart,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 6.73 $* | 6.60 $* |
| Jul-16-2025 | 5.5 $* | 5.71 $* |
| Jun-16-2025 | 6.57 $* | 6.51 $* |
| May-16-2025 | 6.28 $* | 6.59 $* |
| Apr-16-2025 | 5.79 $* | 5.49 $* |
| Mar-16-2025 | 6.64 $* | 6.23 $* |
| Feb-16-2025 | 6.47 $* | 6.90 $* |
| Jan-16-2025 | 6.62 $* | 6.20 $* |
Характеристики

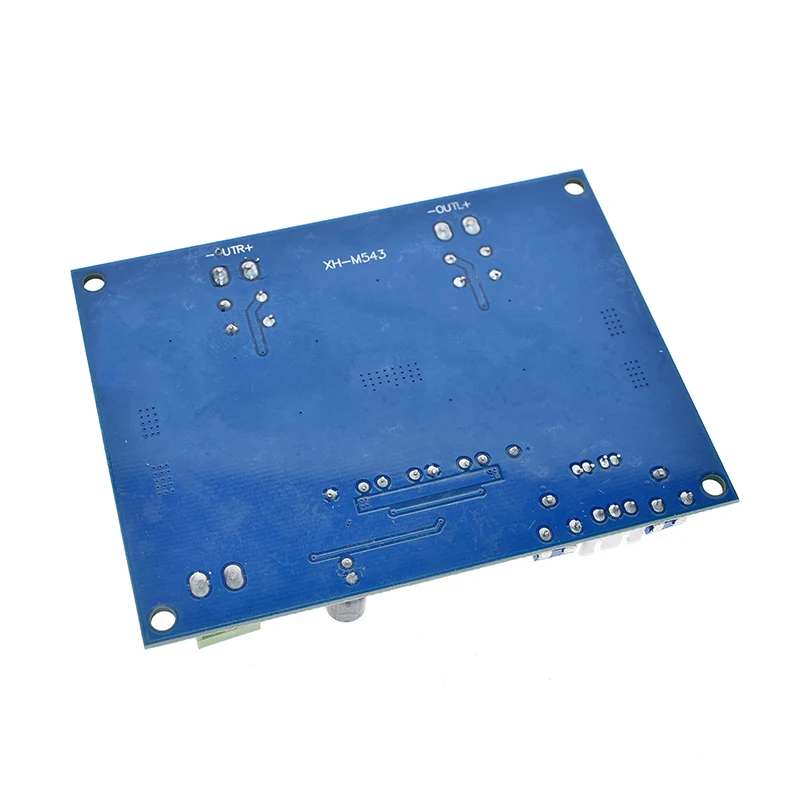

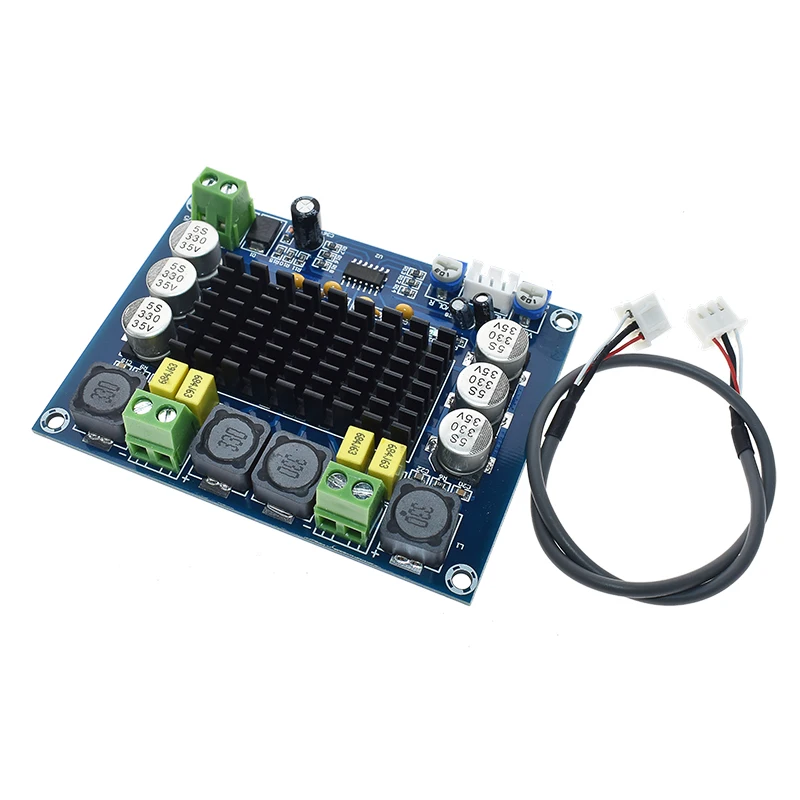

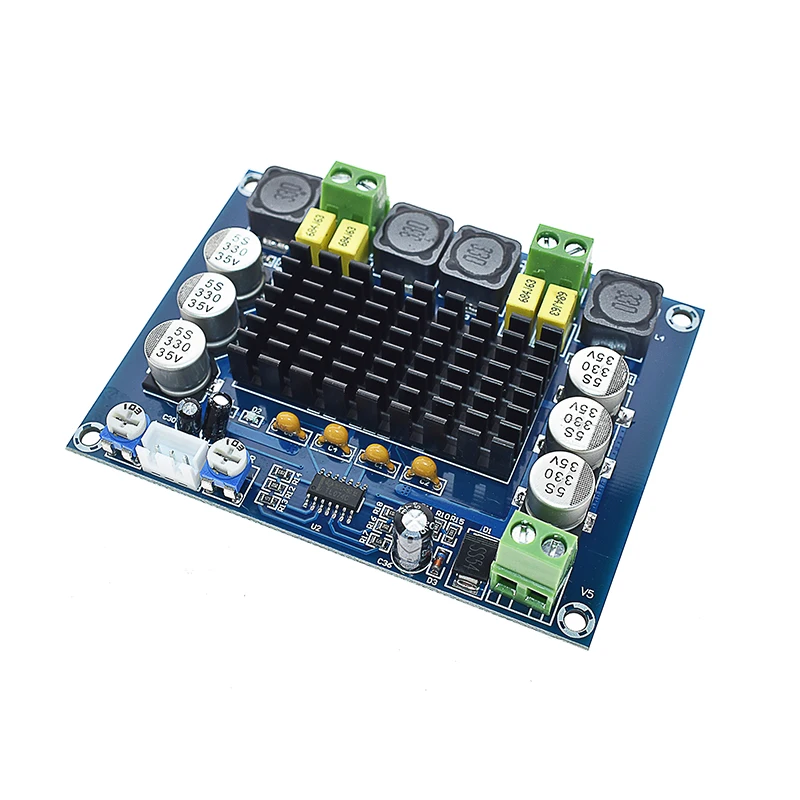

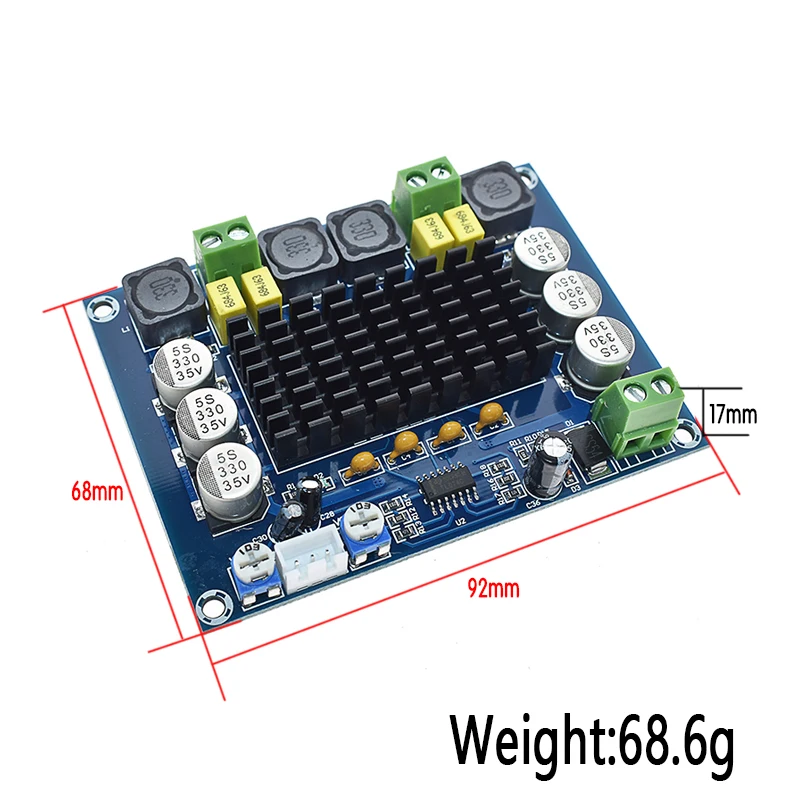

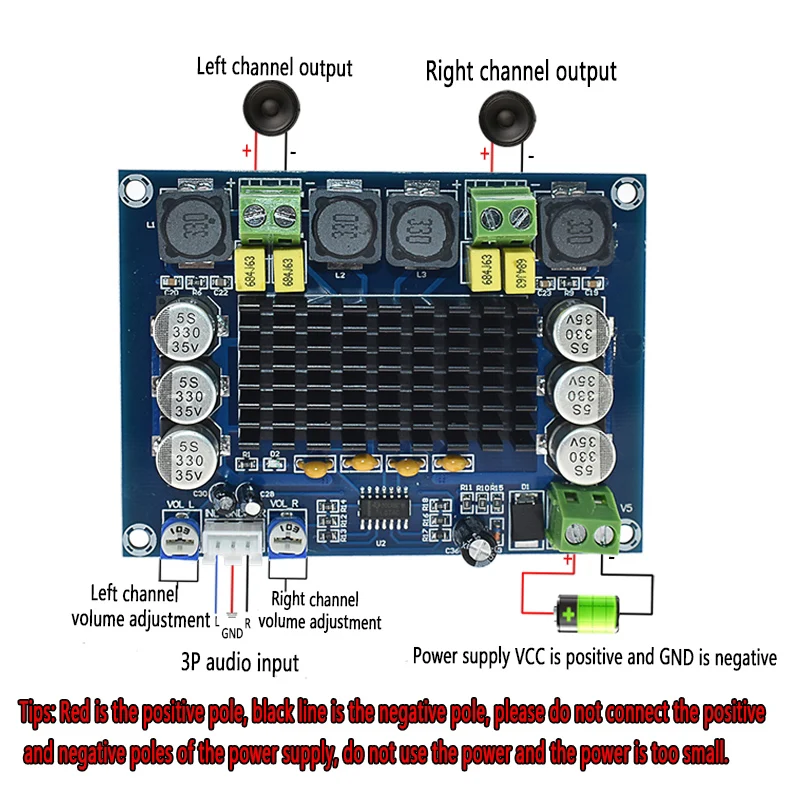

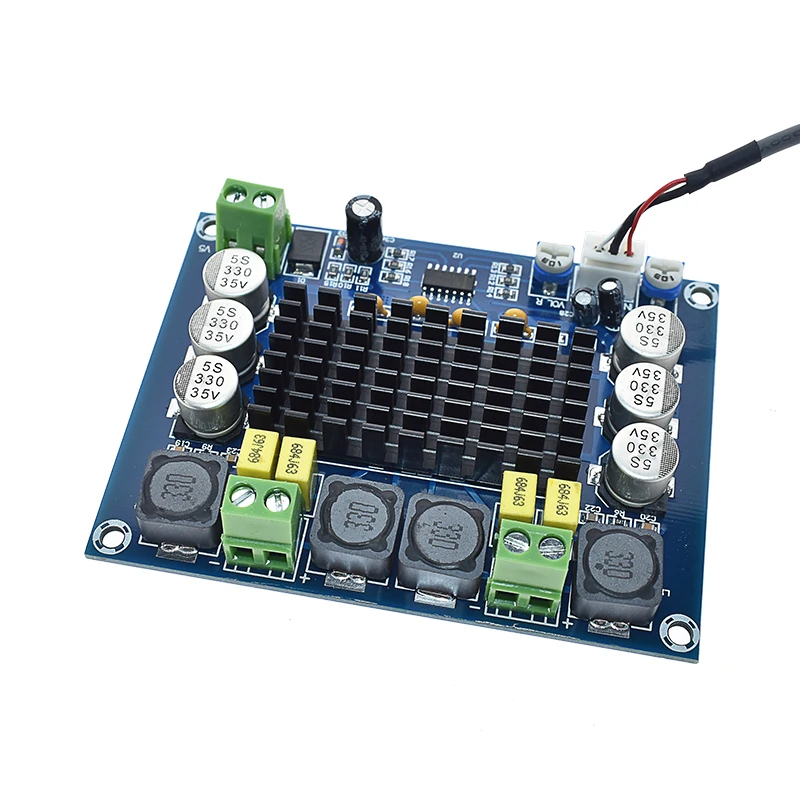

Tpa3116D2 Dual-Channel Stereo High Power Digital Audio Power Amplifier Board 2X120W Xh-M543
Features:
Onboard front-facing IC to improve the input sensitivity, high-definition sound quality.
Efficient Class D operation, with over 90% power efficiency and low idle loss characteristics, advanced modulation system configuration, multiple switching frequencies, AM interference prevention
TPA3116D2 Advanced Oscillator/PLL Circuit adopts multi-switching frequency options to suppress AM interference, and when combined with master-slave mode options, multiple devices can be synchronized.
TPA3116D2 devices provide comprehensive protection against short circuit, overheating, overvoltage, undervoltage and DC faults. In case of overload, the device will report the failure to the processor to avoid damage to itself.
Specifications:
Model: XH-M543
Chip type: TPA3116D2
Working voltage: DC12-26V
Output power: 120*2W MAX, DC12V, 2*50W,DC24V, 2*120W
Signal to noise ratio: 100db
Channel: Dual channel stereo
Package included:
1 x Audio Amplifier Board
