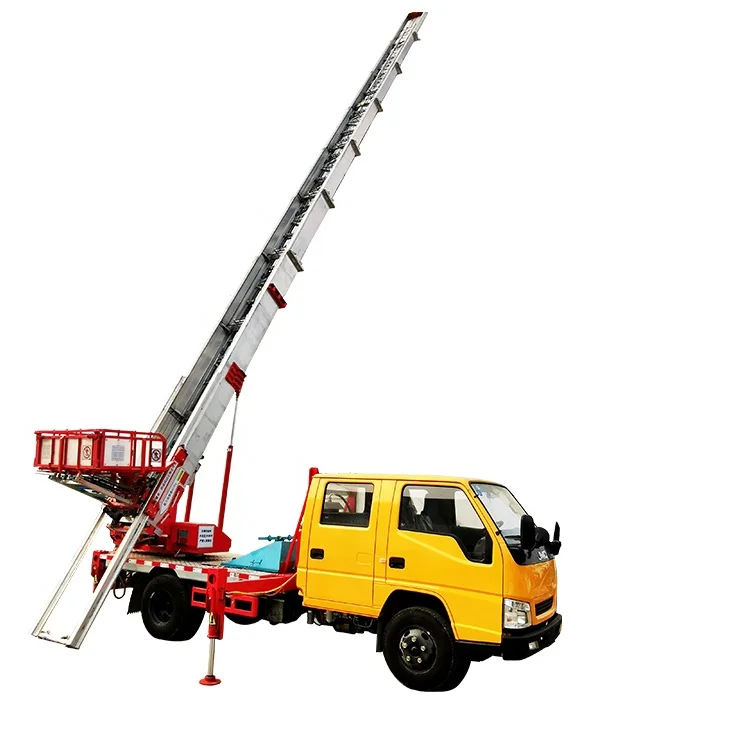

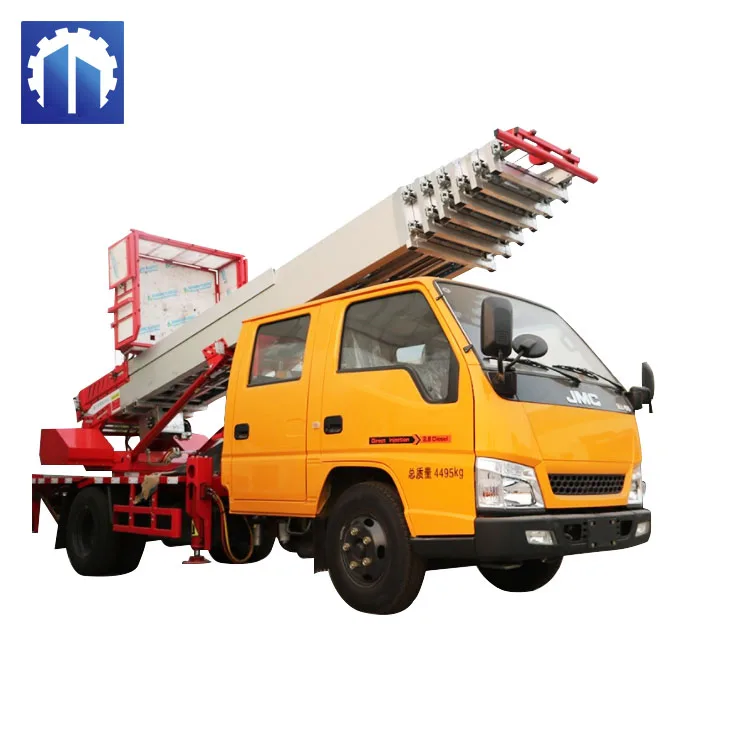

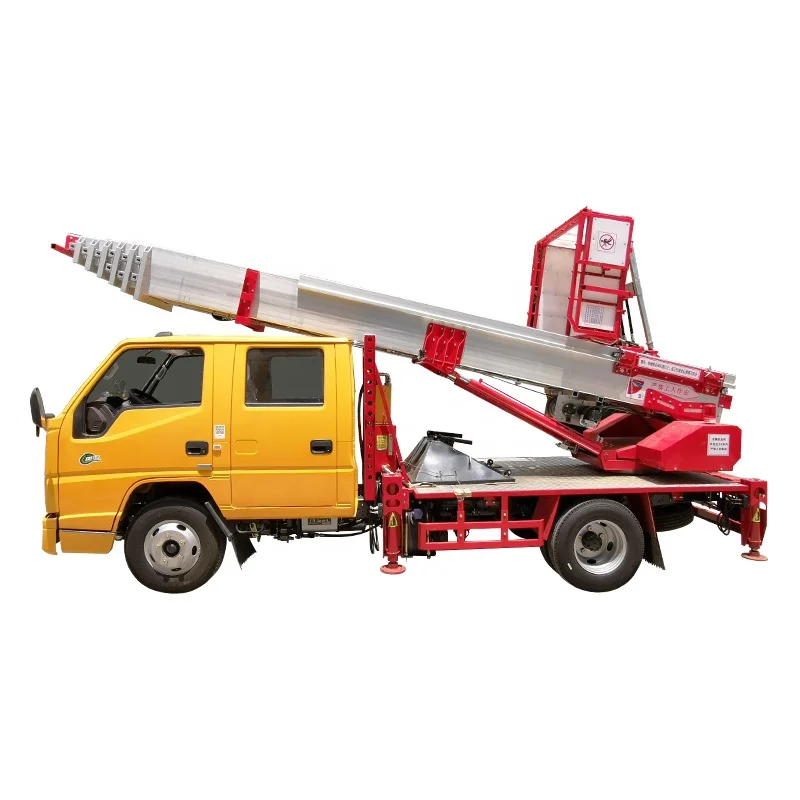

Высококачественный Грузовик с высокой лестницей 32 м изготовленный в Китае платформа JMC производитель

Описание и отзывы

Трекер стоимости

Характеристики

Category	Project	unit	data
Dimensional parameters	Total	mm	5995
	Total width	mm	1990
	Total high	mm	2850
Quality parameter	Number of passengers (including drivers)	person	5
	Total quality	kg	4495
	Quality of preparation	kg	4170
Main performance parameters	Working platform rated load	kg	400
	Maximum operational height	m	30/32
	Leg span	mm	1000
	Leg recovery time	s	20
Driving parameters	Number of axes	piece	2
	Axial load		1835/2660
	Shaft	mm	3360
	Front wheel distance	mm	1385
	Rear wheel distance	mm	1425
	Number of springs	piece	7/4+5
	Number of tyres	piece	6
	Tire specifications		700R16LT
	Maximum speed	Km/h	100
	Approach angle	°	28
	Close angle	°	18
Configuration note
Description of components		Brief description
Chassis		Jiangling Shun Da
Engine engine		Diesel engine, maximum power 85 kw, turbocharged
Cabinets		Double seat ,5 passengers, cab equipped with driving record system
Platform board		Anti-skid platform board
Force-taking system		Hydraulic operations
Working platform		1100*1000*450(mm)
Arm form		Seven Synchronous Stretch
Arm ups and downs		Double variable amplitude oil cylinder, arm rise and fall, turn more smoothly
Rotary device		Around 90 per cent
Outrigger		Front leg, two H telescopic leg, individually adjustable, automatic hydraulic
Operation		Electric operation of working platform and ground remote control, hydraulic operation of turntable
Radiator		Can be manual, when the temperature reaches 55 °, natural heat dissipation
Basic functions and security configuration
The basic functional safety configuration of the ladder truck, the operating vehicle can achieve a platform load of 400kg, the maximum operating height of 29/30/32 meters, and the maximum operating range of 12 meters
name		Brief description
Automatic Interlocking Device		Used to lock up and down to prevent misoperation
Vehicle Level State Test		It can detect the tilt state of the whole vehicle in two directions
Elevator limit alarm device		Step up to limit automatic alarm
Emergency brake		Used to force a platform to stop running
One - key ignition, flameout		The engine can be ignited and flameout controlled at the operating table
Night Safety Lighting		Engineering lights on the ladder arm
Leg safety warning device		Used to warn the leg not to be secured
