FTTH 10G XGS-PON WDM оптический приемник \ конвертер
- Категория: Radio & TV Broadcasting Equipment >>>
- Поставщик: Hangzhou,Fullwell,Optoelectronic,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 14.47 $* | 15.99 $* |
| Aug-17-2025 | 14.43 $* | 15.58 $* |
| Jul-17-2025 | 12.71 $* | 13.49 $* |
| Jun-17-2025 | 14.80 $* | 15.25 $* |
| May-17-2025 | 12.19 $* | 13.27 $* |
| Apr-17-2025 | 14.15 $* | 15.2 $* |
| Mar-17-2025 | 14.63 $* | 15.88 $* |
| Feb-17-2025 | 13.39 $* | 14.1 $* |
| Jan-17-2025 | 13.36 $* | 14.94 $* |
Характеристики
Products Description

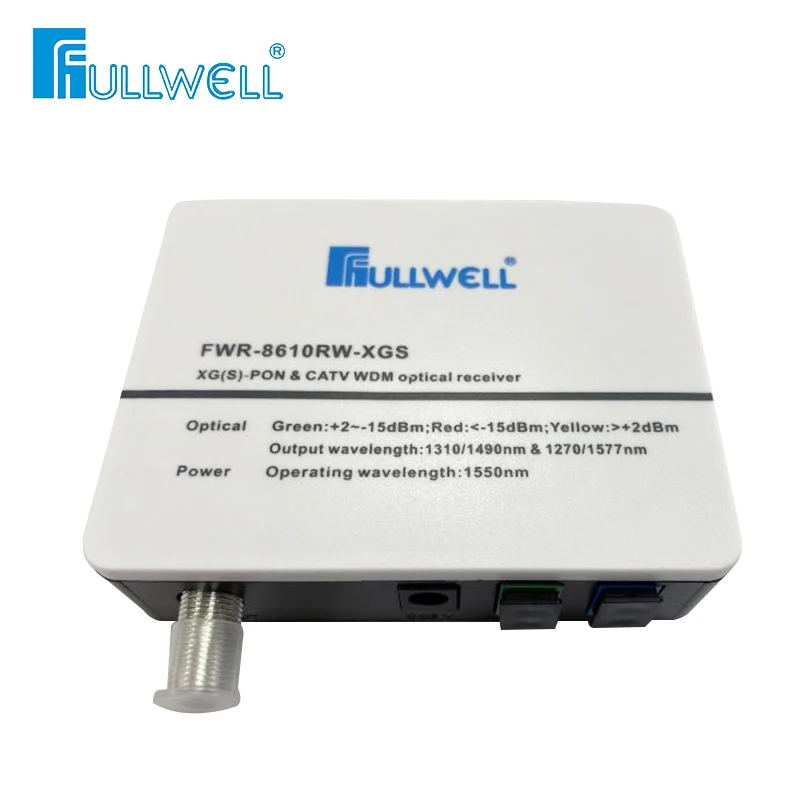

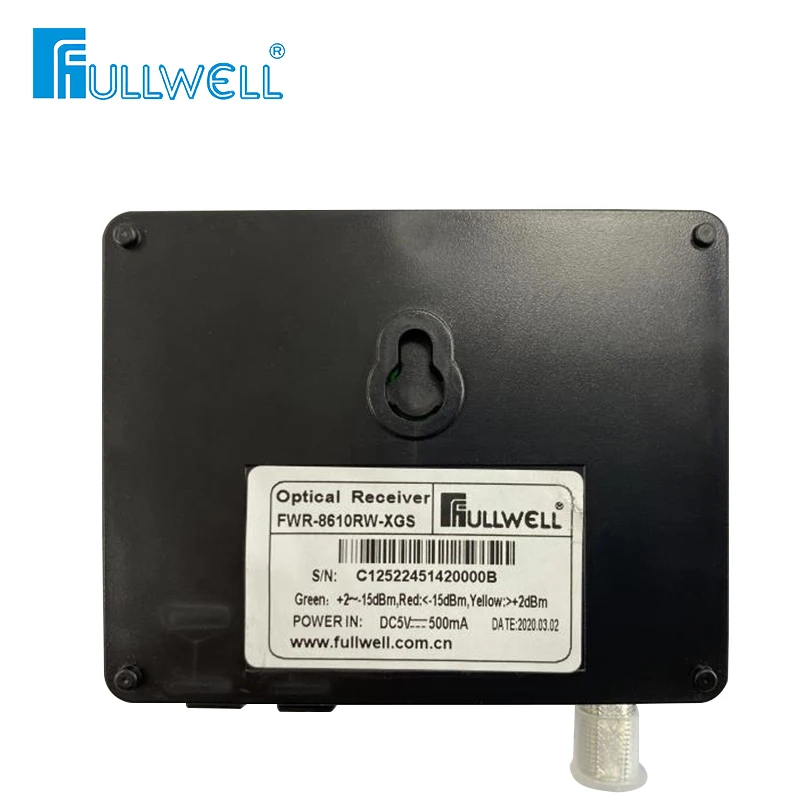

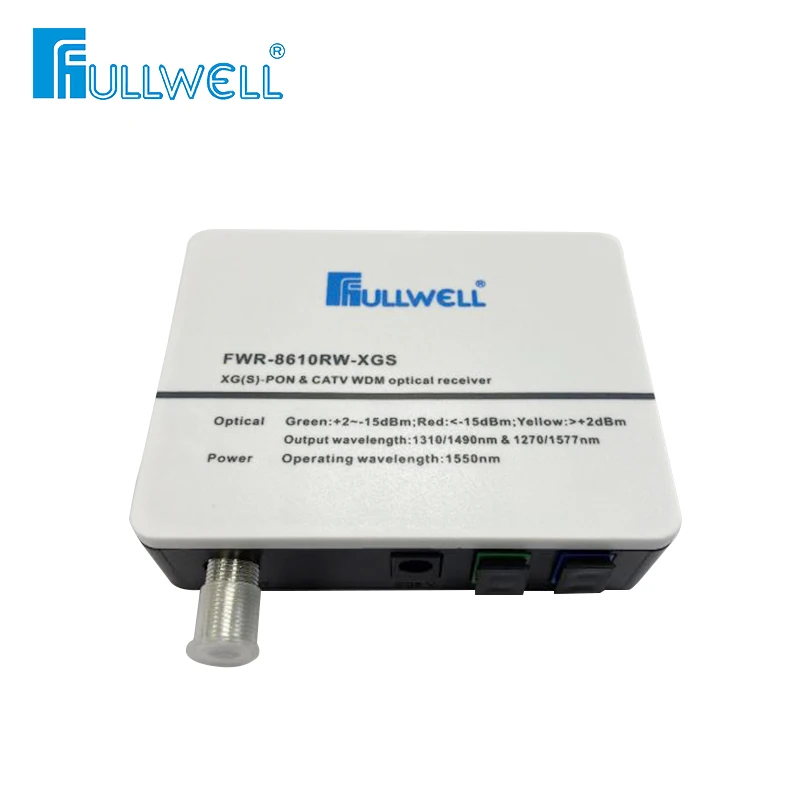

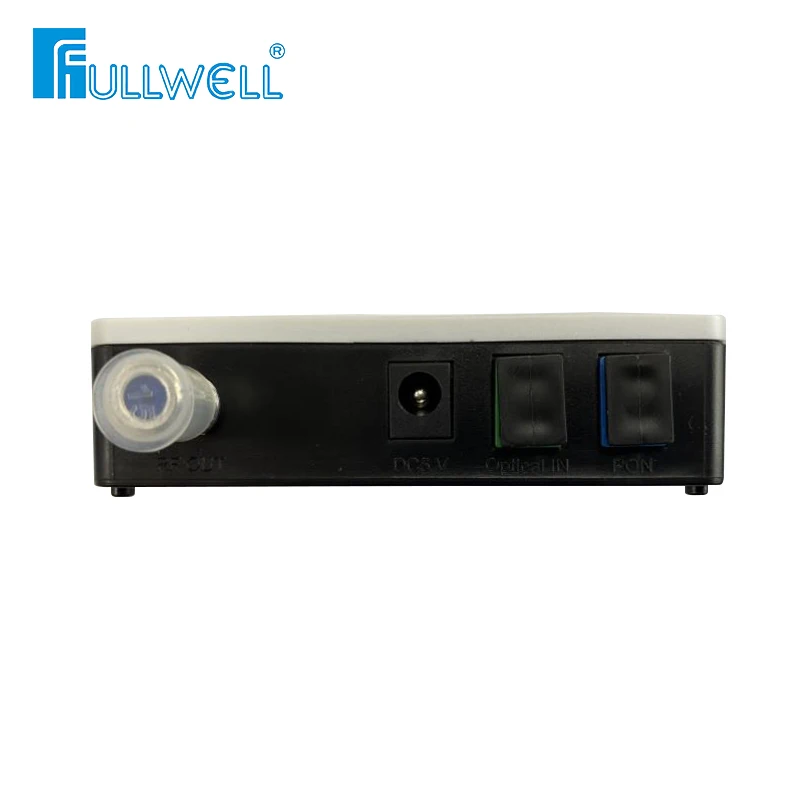

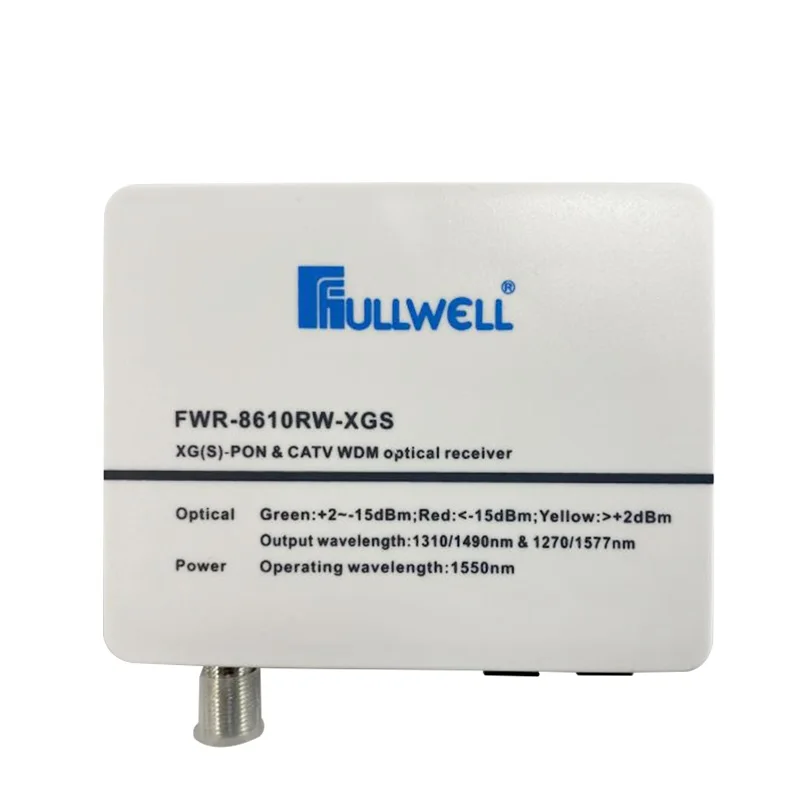

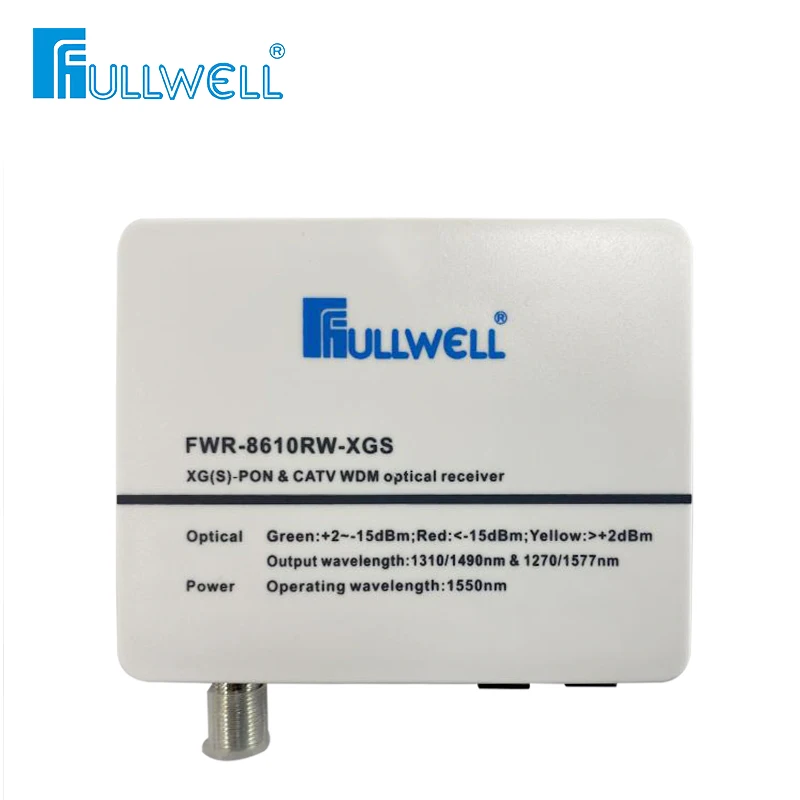

♦ FWR-8610RW-XGS wave-splitting optical receiver adopts high isolation and WDM technology to separate CATV and ONU signals, which can meet the needs of FTTH fiber to household in CATV+XPON or XG (S) -pon optical network to receive 1550nm CATV signal and output PON signal (1310/1490nm & 1270/1577nm).
♦ FWR-8610RW-XGS partial wave WDM optical receiver chooses high bandwidth, high sensitivity photoelectric cell, and low noise matching circuit, all Shen gallium IC amplifier, with low optical power receiving and RF - AGC technology, light receiving range - 18 ~ + 2 DBM, electric AGC:-2 ~ -12 dBm, RF constant output 82 dbuv, also on the front panel LED lights with optical power monitoring (15 DBM) or higher.
♦ G/EPON and XG(S)-PON access technologies are becoming more and more mature, which conforms to the construction idea of FTTH.
♦ Fwr-8610rw-xgs optical receiver adopts the integrated PD with XG(S)-PON WDM channel and 1550 wavelength reception, which also caters to the end user's downlink G/EPON or XG(S)-PON ONU, and realizes 1540-1565nmcatv optical signal reception.
♦ The machine adopts low-light power receiving and light-controlled AGC technology, which can receive at -2 ~ -12dBmRF 82dBuv constant output; The machine is also equipped with light power receiving and monitoring (≤ -15dbm), constant RF output and LED indicator light for working power supply on the panel, which is convenient for users to use.
Product Paramenters
Item | Unit | Performance Parameter | ||
Input wavelength | (nm) | 1310,1490,1550（XG(S)-PON,1270/1577nm） | ||
Output wavelength | (nm) | 1310,1490 (XG(S)-PON,1270/1577nm) | ||
Operation wavelength | (nm) | 1540～1560 | ||
Channel separation | (dB) | ≥40（1310/1490nm and 1550nm ) | ||
Response | (A/W) | ≥0.9 | ||
Receive power range | (dBm) | +2～-18 | ||
Reflection loss | (dB) | ≥55 | ||
Fiber linker | / | SC/APC | ||
PON linker | / | SC/UPC(or SC/APC) | ||
Bandwidth/flatness | MHz/dB | 47-1000/≤±1 | ||
Output level | dBuv | 1 RF | AGC: 82±1/(-2～--12dBm) | |
2RF（Can be customized） | AGC: 78±1/(-2～--12dBm) | |||
Output level adjustable Range | dB | 0～15（Can be customized） | ||
Reflection loss | dB | ≥14（75Ω characteristic impedance） | ||
RF output interface | / | Inch (one way output)（Can be customized two ways output） | ||
CNR | dB | ≥44/34(PAL-D 60CH,OMI3.8%,-9dBm) | ||
CTB | dB | ≥65/≥60/≥60(-1dBm receive) | ||
Power supply/consumption | V/W | AC100～240V→DC5/3 | ||
Working/storage Temperature | ℃ | -35～50/-40～75(humidity 5～90%) | ||
Size | mm | 95×92×23 | ||
