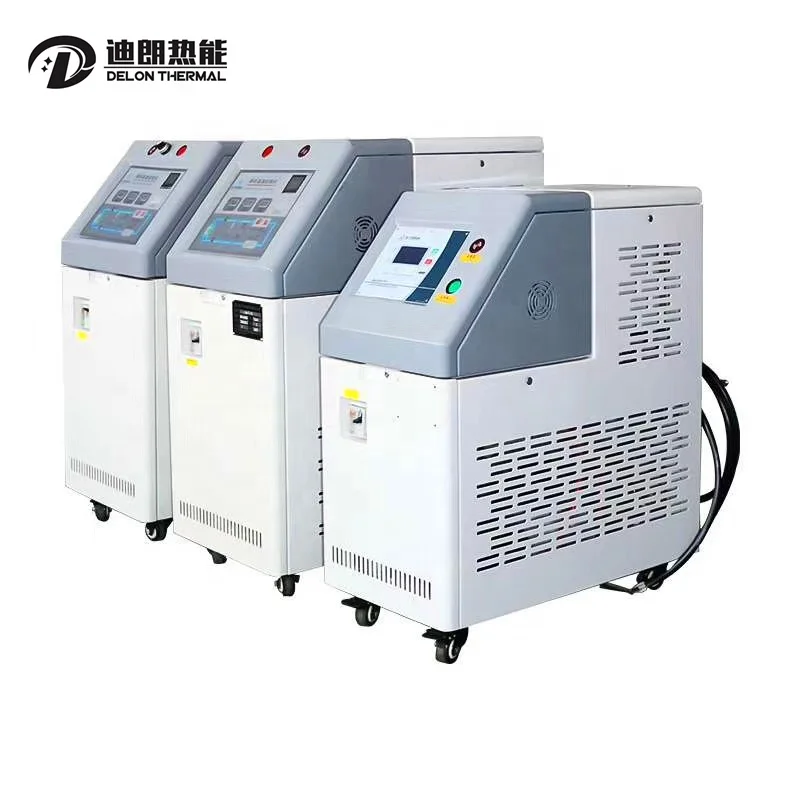

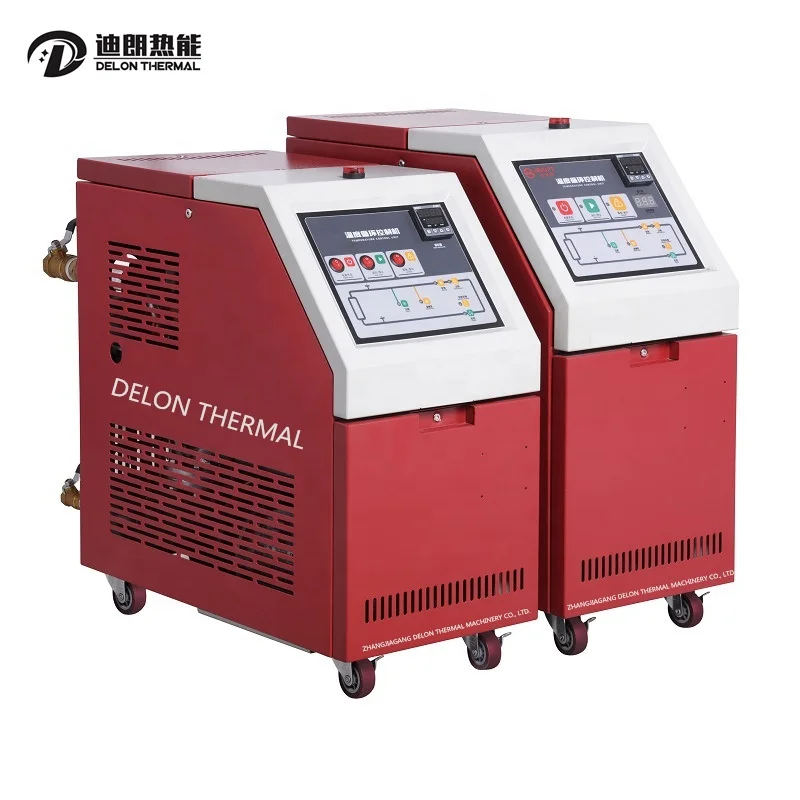

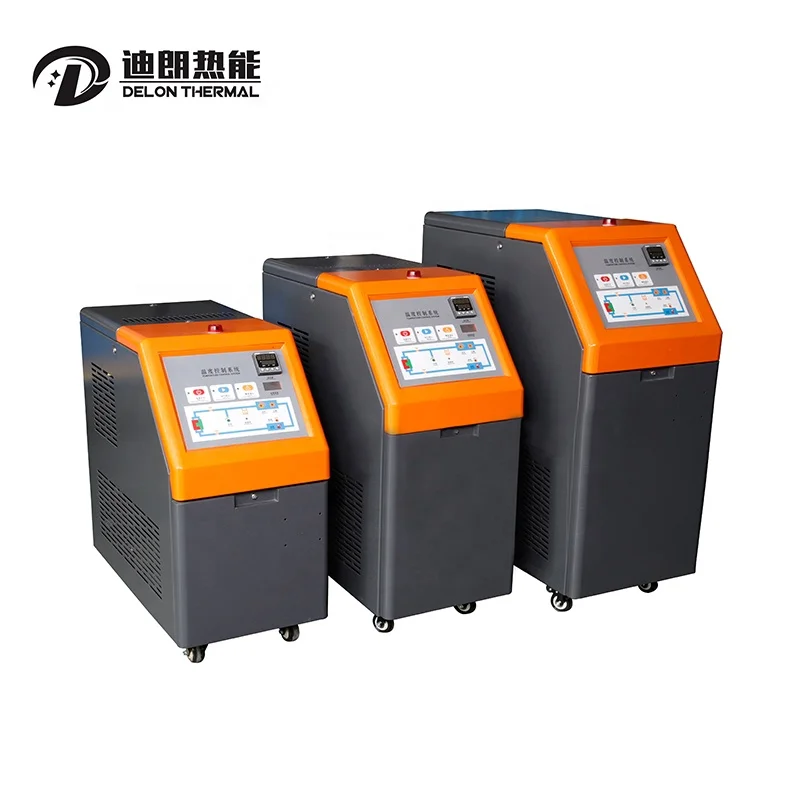

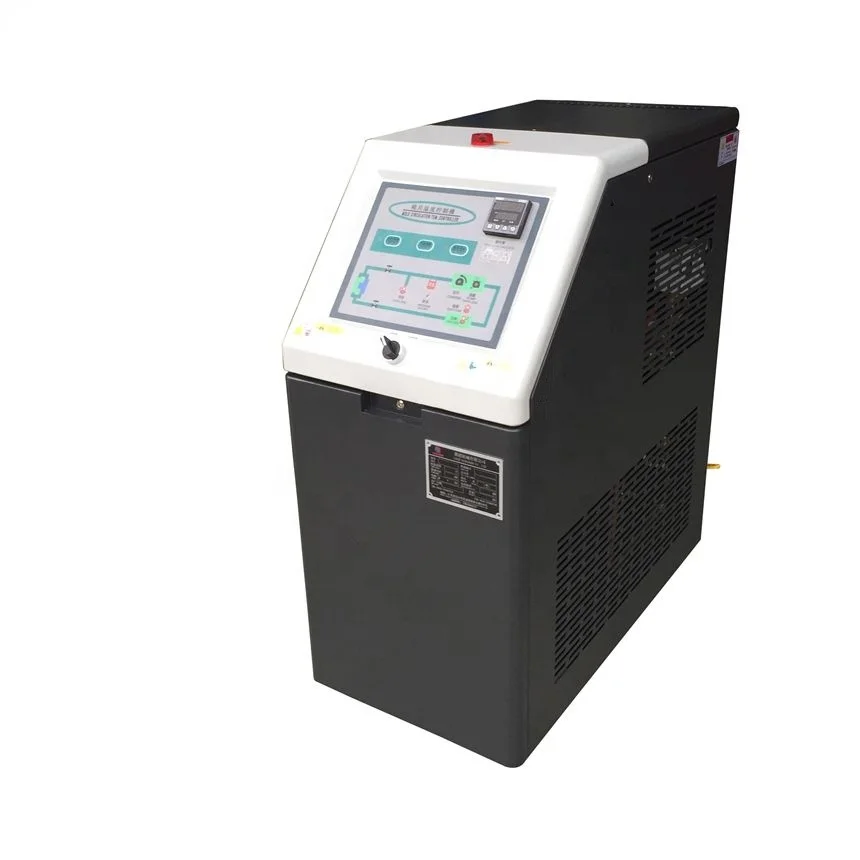

Features for Water Mold Temperature Controller:

1. Return water temperature display

2. Automatic air exhaust at startup

3. Heating power switching

4. BY-PASS pressure discharge circuit

5. Multi-point temperature control unit can be customized

6. Oil pump horsepower and heating power can be customized

7. Temperature control accuracy: PID±1°C

8. Isolated electric control box to extend the service life of electrical appliances

9. The electrical appliance adopts ABB, SCHNEIDER, WEIDMULLER, SIEMENS, OMRON, FUJI, LS, MOELLER, WEST…

10. Temperature control range: Water inlet temperature +25℃ to +180℃

11. 304/316L stainless steel or carbon steel integrated pipeline to reduce resistance and rust…

12. The thermometer adopts WEST or OMRON microcomputer dual-group P.I.D control, touch-measure internal storage automatic calculation, accurate and reliable, saving more than 35% of power

13. Complete security protections with faults display. Repair and maintenance does not require professionals.

(Options)

14. Explosion-proof type

15. Air blowing and oil returning

16. Instant cooling shutdown

17. RS485 communication to realize automatic management and remote control.

18. Control system: PLC programmer + HMI



Mold Temperature Controller for Die:



Model/Series	Unit	DEL-05(B)	DEL-10(B)	DEL-15(B)	DEL-20(B)	DEL-25(B)	DEL-30(B)
Max. outlet water temperature	°C	120 (Adjustable)
Main power supply	V/HZ	380V±5%/50HZ, 3Ph (3P+N+E) or Custom made
Heat transfer medium	—	Water
Cooling mode	—	Indirect cooling
Input power	kW	6	9	12	18	24	36
Pump motor power	HP	0.5	1	2	3	3	5
Max. flow rate of pump	m3/h	2.1	3.6	6.2	7.8	9.6	10.8
Max. system pressure	bar	3.5	3.5	4	4	4	4
Water Inlet diameter	DN	15	15	15	20	20	20
Water outlet diameter	DN	15	15	15	20	20	20
Expansion tank volume	Liter	7	10	25	35	35	40
System power consumption	kW	7	10	12	20.5	20.5	27.75
Cooling water pipe	INCH	1/2	1/2	1/2	1/2	1/2	1/2
Circulation water pipe	INCH	3/8×2	3/8×4	3/8×4	1/2×4	1/2×4	1/2×4
Overall size	L  mm	730	630	630	850	1000	1000
	W  mm	330	330	330	400	430	430
	H  mm	580	730	730	820	1100	1100
Net weight	Kg	65	71	90	100	160	160



Note:

1. The choice of pump is as per customers’ requirements.

2. The diameter of inlet & outlet could be modified as per customers’ requirements.

3. The above specifications are subject to change without notice, special requirements could be designed.
