Description of Waste market vegetable and fruit liquid separator

Waste market vegetable and fruit liquid separator is widely used to separate the liquid and solid.Material being shredded by shredder,then go into the screw press machine.It separate liquid and solid by screw press to punch the material with screen and end core,so the liquid will discharge from the screen hole or screen space,the dewatered residues will discharge from the end cone space.

Waste market vegetable and fruit liquid separator pressure adjust part can be spring or by hydraulic system.When tight the pressure part,the interval of discharge area begin small,then press chamber has more big pressure,so the discharge material moisture content lower.We have single screw press machine and double screw press machine,different material use different type screw press machine.

Application of Waste market vegetable and fruit liquid separator
It is mainly used in four field,but also use in other field
1.Kitchen waste,food waste,vegetable market waste
2.Other waste residues,like herb residues,paper pulp,poultry feather etc.
3.Fruit,vegetable,grass
4.Spent grains(stiller's grains,beer residues)

Main structure of Waste market vegetable and fruit liquid separator

Waste market vegetable and fruit liquid separator include shredder and dewatering machine in one body,it mainly include motor,reducer,shredder body,screw press body,shelf,leg,screw,screen,end core,etc.Material touched is 304SUS,the other part is carbon steel.If whole body stainless steel can be customed.

Data of Waste market vegetable and fruit liquid separator

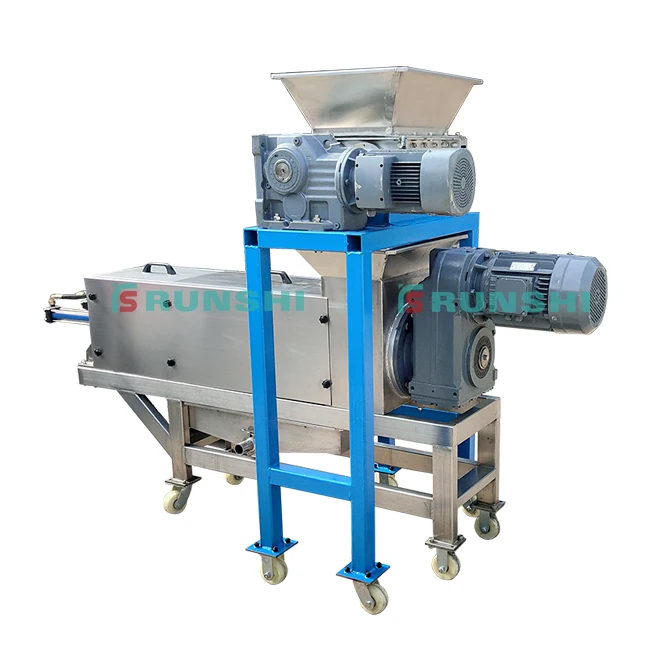

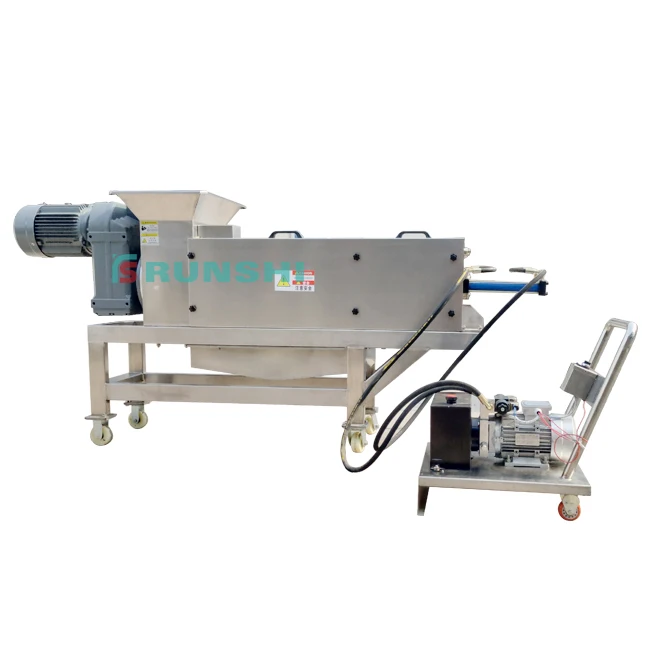

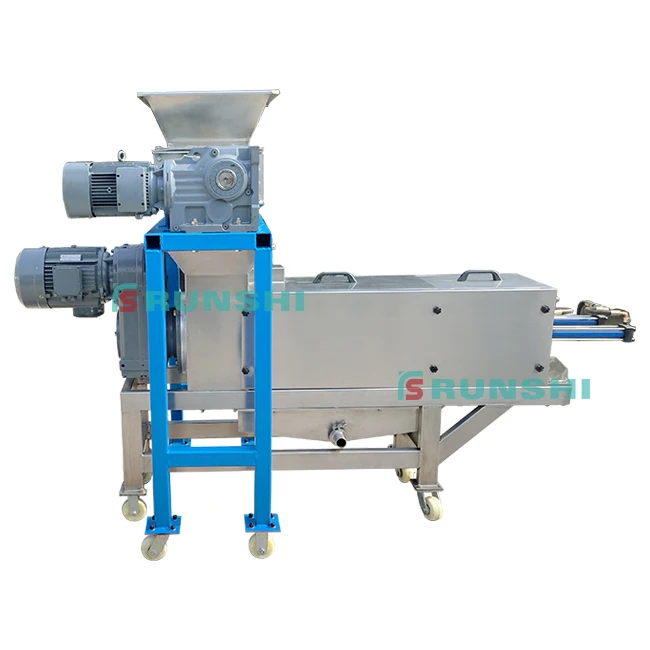

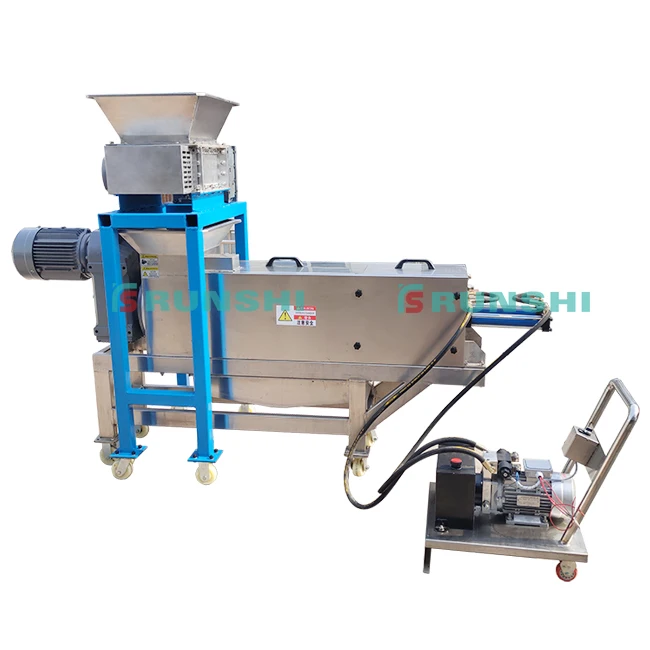

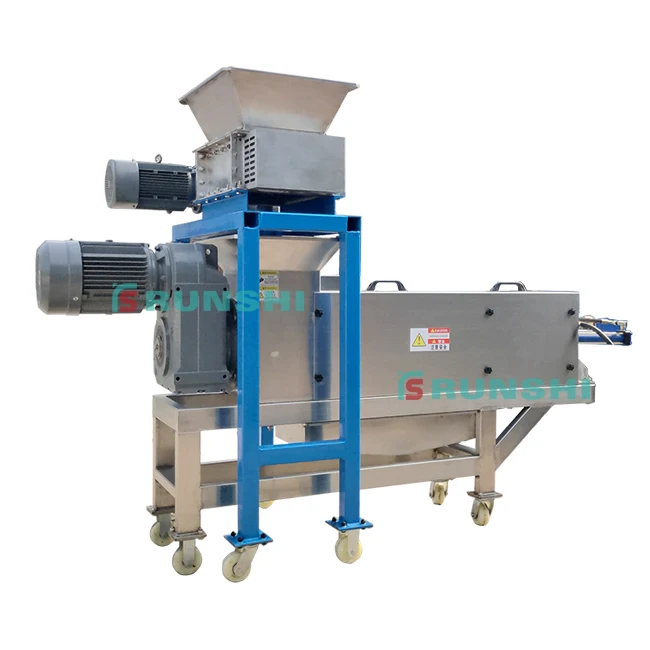

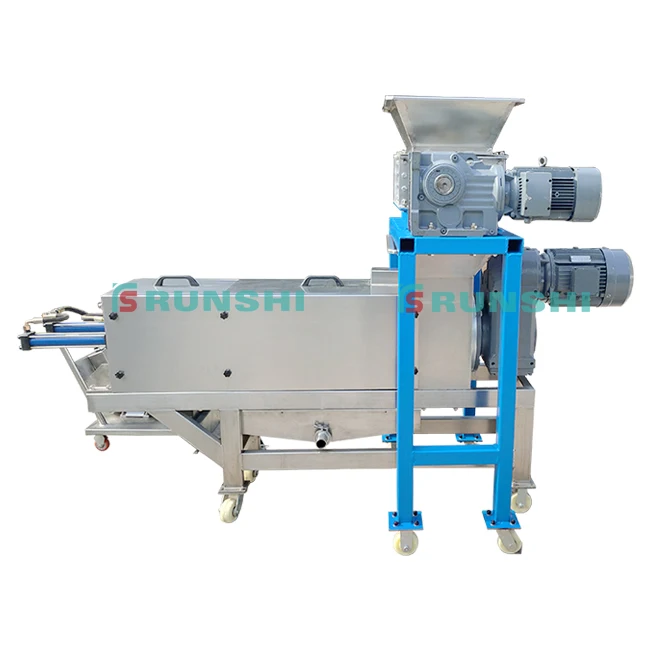

Photos of Waste market vegetable and fruit liquid separator

Shredder detail introduction(Click photo to know more)

Double shaft Shredder 1-5t/h is single motor(For waste vegetable and kitchen waste)

400 Model stainless steel shredder inside photos

Dewatering machine detail(200 Model as example)

Shredded material photos

6mm thickness Shredded materials(Chinese Cabbage,fresh corn,carrot)

Dewatered material photos

Components workshop of Waste market vegetable and fruit liquid separator

Waste market vegetable and fruit liquid separator Installation and manufacture workshop

Waste market vegetable and fruit liquid separator Warehouse of components and machines

Related machines:

Belt conveyor,Elevator,Screw conveyor,Shaftless screw conveyor,etc.Click photos to know more

Q1.About installing:

We have video and photos to show you how to intall and use our Waste market vegetable and fruit liquid separator.

Q2.About quality:

We provide customers with the most resonable and excellent proposal,We can accept trade assurance which can protect  your profit.

Q3.What is your warranty service?

We supply one year free warranty,after years with favorable price for spare parts.
