4 'универсальная муфта для труб из стали DI CI PE
- Категория: Соединительные муфты >>>
- Поставщик: Anqing,Great,Wall,Pipeline,Co.,Ltd.Anqing,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 14.86 $* | 15.79 $* |
| Aug-20-2025 | 14.45 $* | 15.84 $* |
| Jul-20-2025 | 12.44 $* | 13.89 $* |
| Jun-20-2025 | 14.92 $* | 15.7 $* |
| May-20-2025 | 12.90 $* | 13.67 $* |
| Apr-20-2025 | 14.42 $* | 15.86 $* |
| Mar-20-2025 | 14.66 $* | 15.90 $* |
| Feb-20-2025 | 13.79 $* | 14.46 $* |
| Jan-20-2025 | 13.53 $* | 14.89 $* |
Характеристики
Product Overview

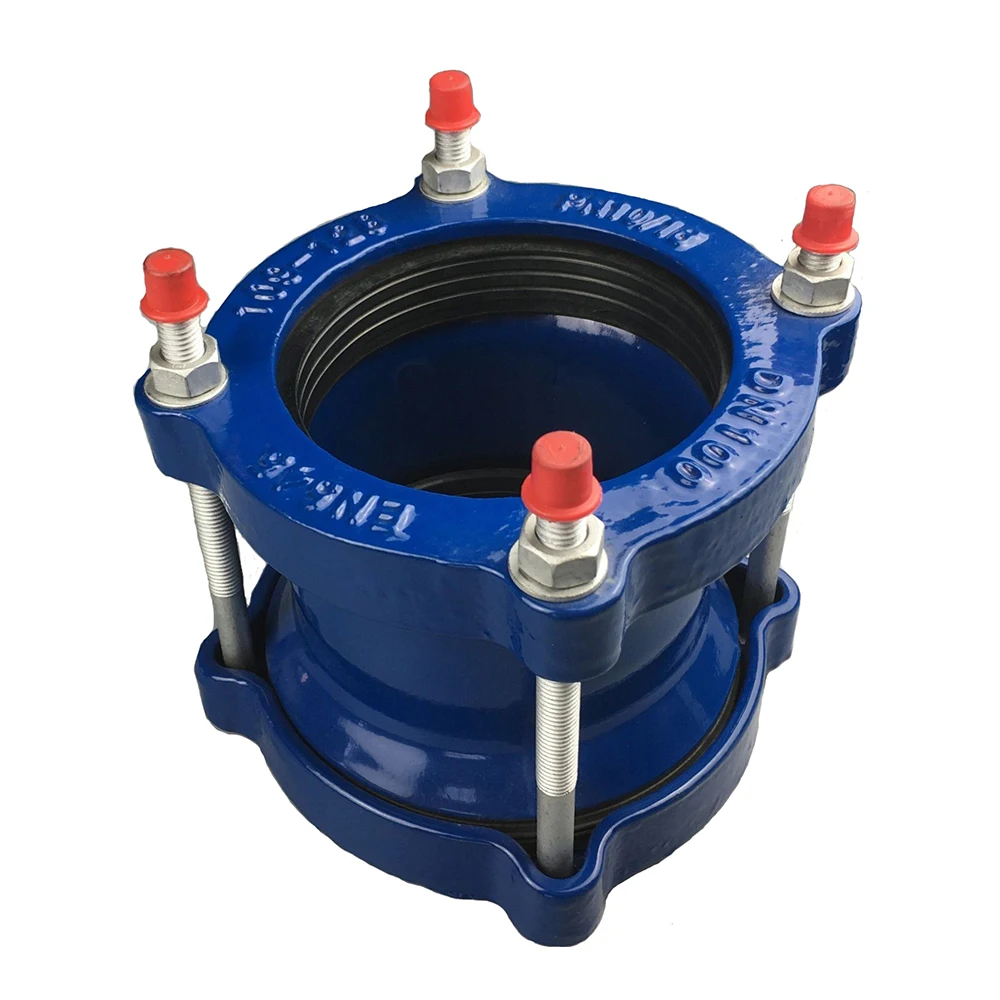

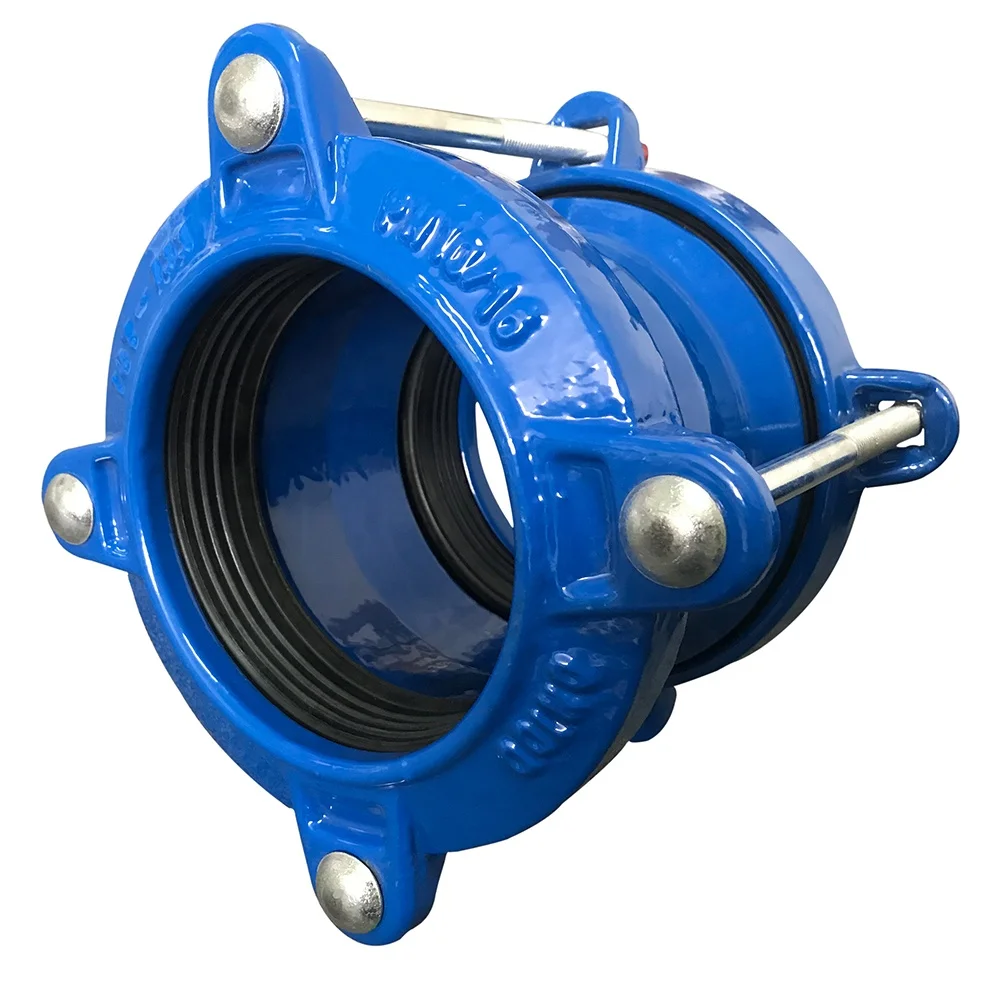

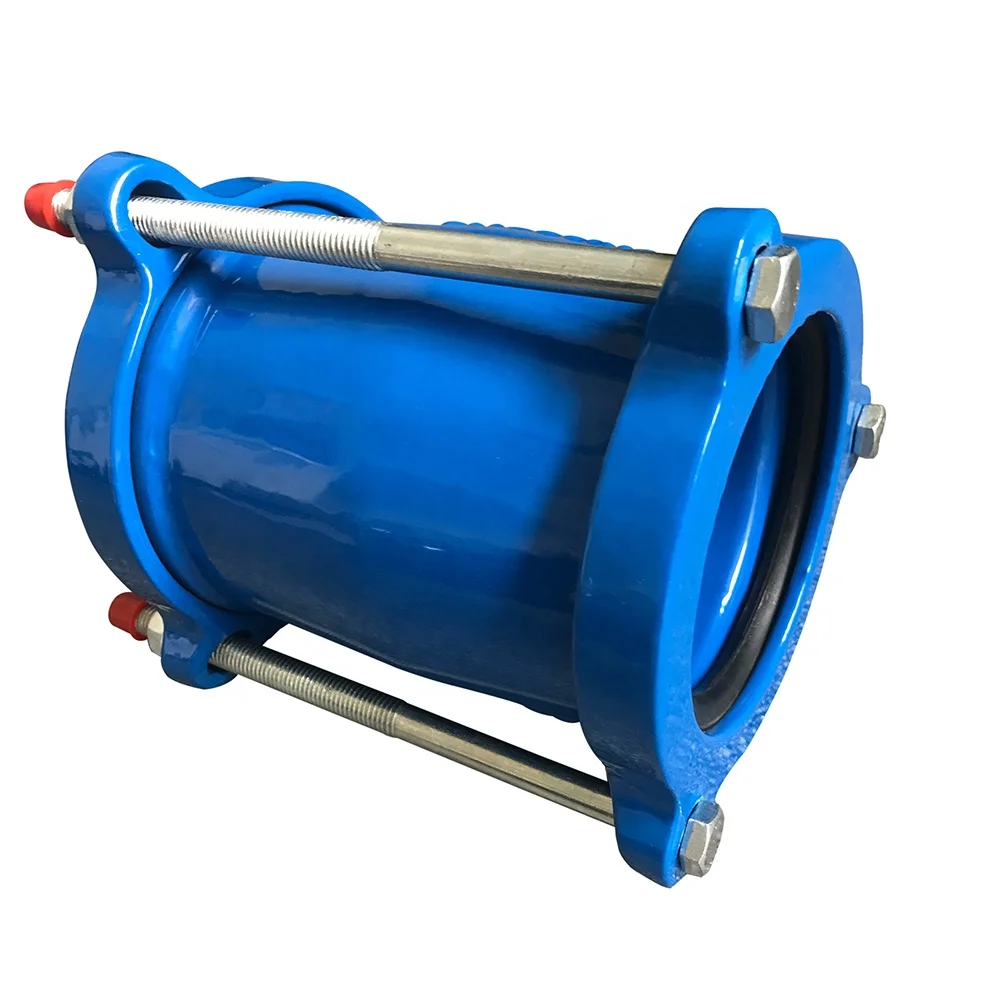

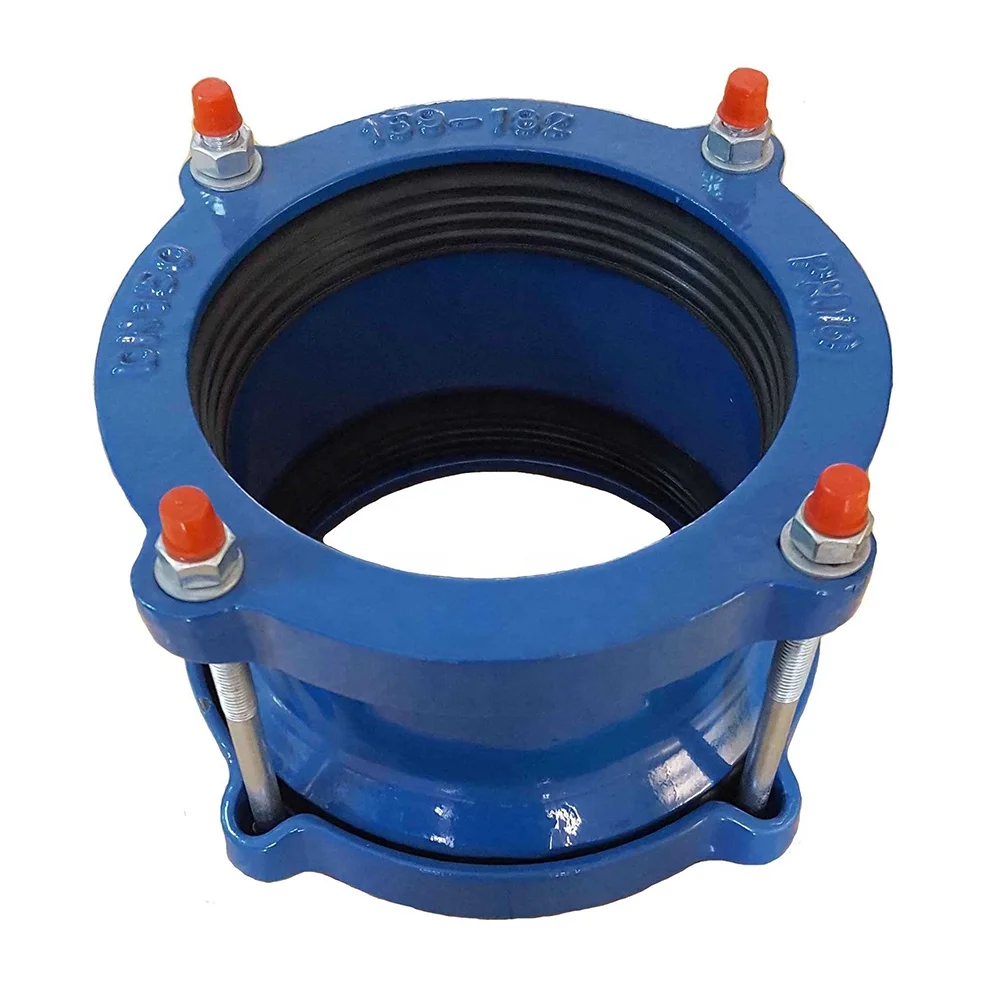

Ductile Iron Universal Joint Coupling
Universal Joint Coupling is used to connect pipes of various materials and it's widely applied in the water and sewage industry .
Product Features
Universal Coupling
QUICK INSTALLATION
CORROSION RESISTANCE
WIDE RANGE O.D TOLERANCEEASY HANDLE
LABOR-SAVING
List of Sizes
S/N | Size | O.D Range | Pressure |
1 | DN40 mm | 48-60 mm | PN16 bar |
2 | DN50 mm | 59-73 mm | PN16 bar |
3 | DN65 mm | 72-85 mm | PN16 bar |
4 | DN80 mm | 88-103 mm | PN16 bar |
5 | DN100 mm | 96-116 mm | PN16 bar |
6 | DN100 mm | 108-120 mm | PN16 bar |
7 | DN100 mm | 109-128 mm | PN16 bar |
8 | DN125 mm | 132-146 mm | PN16 bar |
9 | DN125 mm | 138-153 mm | PN16 bar |
10 | DN150 mm | 158-172 mm | PN16 bar |
11 | DN150 mm | 159-182 mm | PN16 bar |
12 | DN175 mm | 192-210 mm | PN16 bar |
13 | DN200 mm | 198-225 mm | PN16 bar |
14 | DN200 mm | 218-235 mm | PN16 bar |
15 | DN250 mm | 242-262 mm | PN16 bar |
16 | DN250 mm | 250-267 mm | PN16 bar |
17 | DN250 mm | 250-274 mm | PN16 bar |
18 | DN250 mm | 272-289 mm | PN16 bar |
19 | DN300 mm | 315-332 mm | PN16 bar |
20 | DN300 mm | 322-339 mm | PN16 bar |
21 | DN350 mm | 340-360 mm | PN16 bar |
22 | DN350 mm | 351-378 mm | PN16 bar |
23 | DN350 mm | 374-391 mm | PN16 bar |
24 | DN400 mm | 390-410 mm | PN16 bar |
25 | DN400 mm | 398-430 mm | PN16 bar |
26 | DN400 mm | 417-437 mm | PN16 bar |
27 | DN400 mm | 425-442 mm | PN16 bar |
28 | DN450 mm | 450-463 mm | PN16 bar |
29 | DN450 mm | 455-475 mm | PN16 bar |
30 | DN450 mm | 476-500 mm | PN16 bar |
31 | DN500 mm | 500-508 mm | PN16 bar |
32 | DN500 mm | 500-533 mm | PN16 bar |
33 | DN500 mm | 526-546 mm | PN16 bar |
34 | DN600 mm | 600-630 mm | PN16 bar |
35 | DN600 mm | 608-636 mm | PN16 bar |
36 | DN600 mm | 630-650 mm | PN16 bar |
37 | DN700 mm | 710-739 mm | PN16 bar |
38 | DN800 mm | 816-842 mm | PN16 bar |

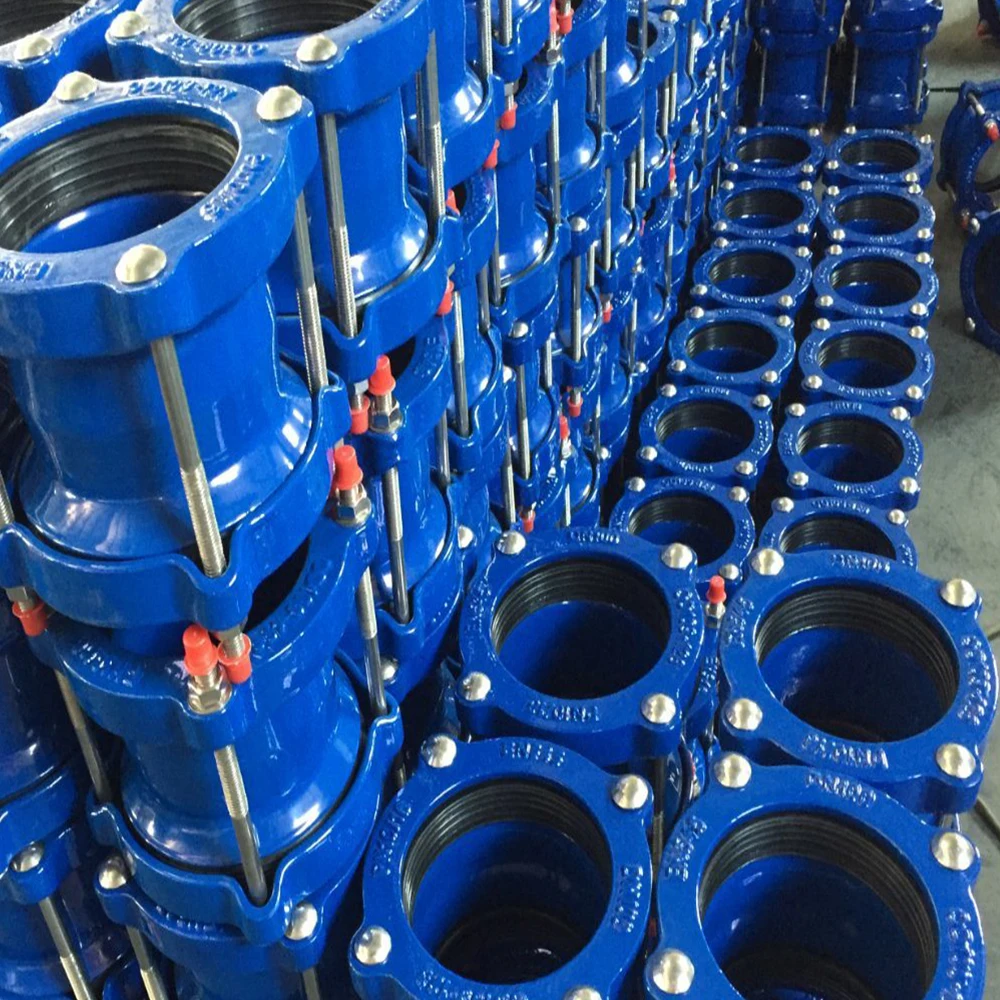

Packing & Delivery
Successful Project
Certifications
FAQ
Q1：How to choose suitable ductile iron coupling ?
A1：You should provide the information including your pipe material, pipe O.D, pipe medium and medium temperature .
and then will choose suitable models for you based on your above information .
Q2：What about your warranty period ? Can I return goods to you if we are not satisfied ?
A2：We provide one year warranty for the quality of our products .
A2：We provide one year warranty for the quality of our products .
Coupling should be fixed on the pipeline as per our video installation instruction .
No responsibility will be taken for damage due to incorrect installation .
Returns will be only accepted only if our product provde to be defective .
Q3：I wonder if your coupling can contain pipe angular deflection
A3： Yes, our coupling can contain angular deflection of +/-4°
A3： Yes, our coupling can contain angular deflection of +/-4°
