Машина для производства льда 30
- Категория: Refrigeration & Heat Exchange Equipment >>>
- Поставщик: Tianjin,Hitrees,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.89 $* | 0.71 $* |
| Aug-17-2025 | 0.97 $* | 0.61 $* |
| Jul-17-2025 | 0.60 $* | 0.94 $* |
| Jun-17-2025 | 0.12 $* | 0.69 $* |
| May-17-2025 | 0.73 $* | 0.91 $* |
| Apr-17-2025 | 0.69 $* | 0.8 $* |
| Mar-17-2025 | 0.20 $* | 0.49 $* |
| Feb-17-2025 | 0.82 $* | 0.66 $* |
| Jan-17-2025 | 0.12 $* | 0.98 $* |
Характеристики
Product Description
(1)Commercial flake ice machines are widely applied into big supermarket chains, seafood market, Fishing boat ，hotels, food processing and vegetable preservation industries, etc.
(2) Ice Thickness:1.8-2.5mm; Fake ice temperature: -7degree Applications
(3)The following standard cooling methods can be customized according to customer needs: air cooling or water cooling.
(4)Standard conditions: ambient temperature 25 °C, water supply temperature 15 °C, evaporation temperature -22 °C, condensation temperature 40 °C;
(5)Core Accessories: Bitzer / GEA / Copeland / Danvers.
(6)High efficiency ratio(COP=3.0~3.2) high production(≥100%)
(7)Can be customized to meet any type of non-standard custom requirements，(Voltage can be customized according to customer needs).
(2) Ice Thickness:1.8-2.5mm; Fake ice temperature: -7degree Applications
(3)The following standard cooling methods can be customized according to customer needs: air cooling or water cooling.
(4)Standard conditions: ambient temperature 25 °C, water supply temperature 15 °C, evaporation temperature -22 °C, condensation temperature 40 °C;
(5)Core Accessories: Bitzer / GEA / Copeland / Danvers.
(6)High efficiency ratio(COP=3.0~3.2) high production(≥100%)
(7)Can be customized to meet any type of non-standard custom requirements，(Voltage can be customized according to customer needs).
PARTS LIST OF BLOCK ICE MAKER:
Name | Parts supplier | Name | Parts supplier |
Compressor | Danfoss | Float valve | Keyu |
Evaporator(Drum) | SURE | Water level protector switch | FAST |
Condenser | GreenHalgh | Float valve | Keyu |
Expansion Valve | Alco | PLC Controller | LG |
Filter | Alco | Contactor | LG |
High&low pressure controller | LeiLi | Thermal relay | LG |
Reducer | Gongji | Phrase protector | SongLing |
Circulation water pump | Honking | Air switch | CHINT |
Brine Pump | RDOSE | Ice storage | SURE |
Infra-red Ray | RIKO | Ice scoop | SURE |
Water level protector switch | FAST | Salt water Drum | SURE |
TECHNICAL DATA OF BLOCK ICE MAKER
Name | Technical Data | Name | Technical Data |
Ice production | 1000kg/24h | Condensing Fan Power | 0.18KW |
Cooling capacity | 6kw | Brain Pump Power | 0.016KW |
Evaporating Temp. | -22℃ | Power Supply | 3P-380V-50HZ |
Condensing Temp. | 40℃ | Inlet Water pressure | 0.1Mpa-0.5Mpa |
Ambient Temp. | 25℃ | Refrigerant | R404A |
Inlet water Temp. | 18℃ | Ice Temp. | -5℃ |
Total Power | 4.31kw | Feeding tube | 1/2” |
Compressor Power | 5HP | Net weight | 227KG |
Reducer Power | 0.25KW | Dimension | 1310*970*905mm |
Water Pump Power | 0.12KW | Ice Storage bin | 1320*1250*1100mm |
Product application

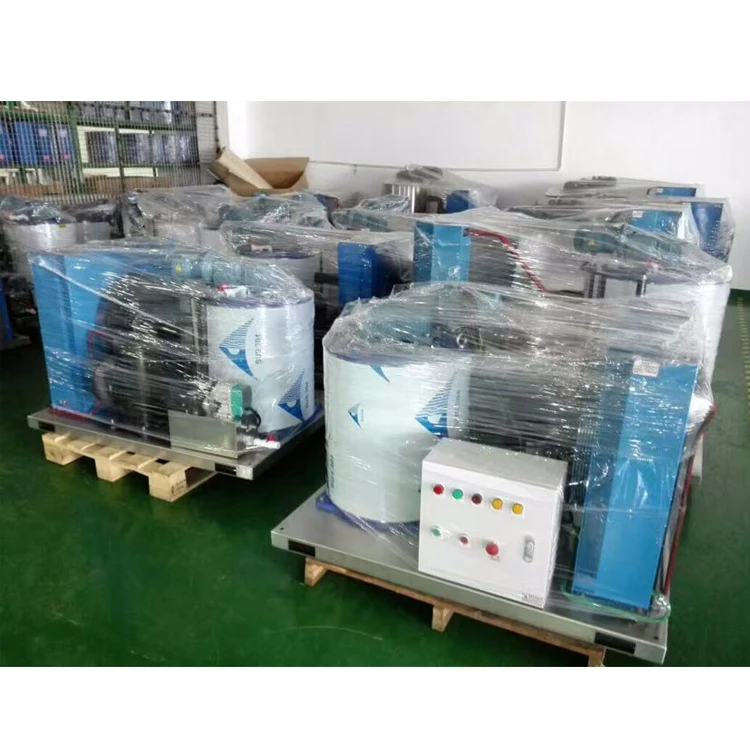

Packing&Shipping
Company Introduction
We specialized to produce machines for food industry,include cooling & freezing equipment,bakery equipment,kitchen equipment,ice cream machines,processing lines for meat,dumplings,fishes,shrimps,fruits and vegetables,candies,chocolates and snack foods.Besides,we also provide site installation and commissioning services, and craft consultation services.
