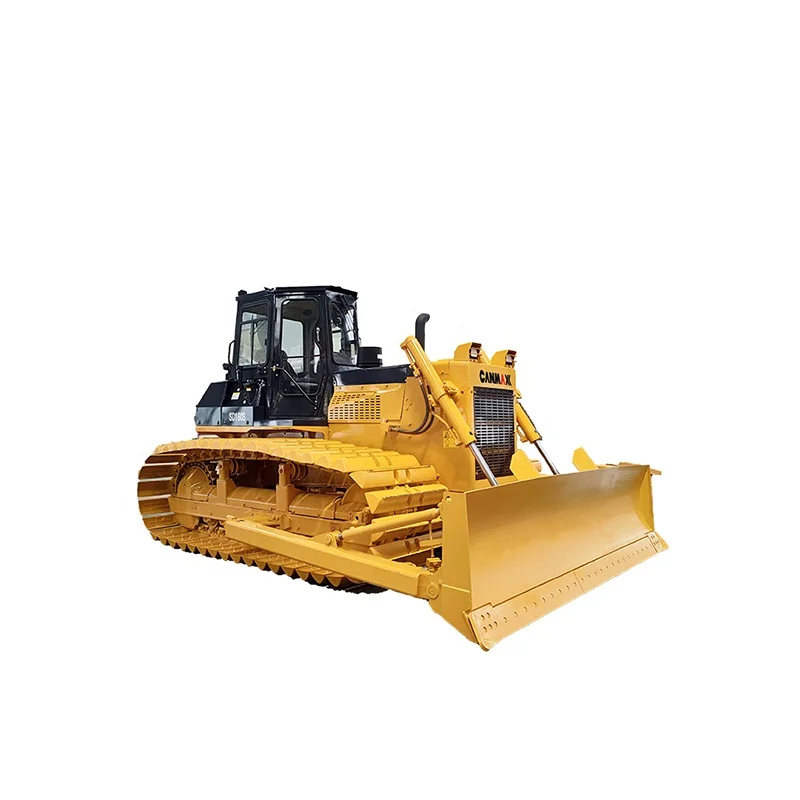

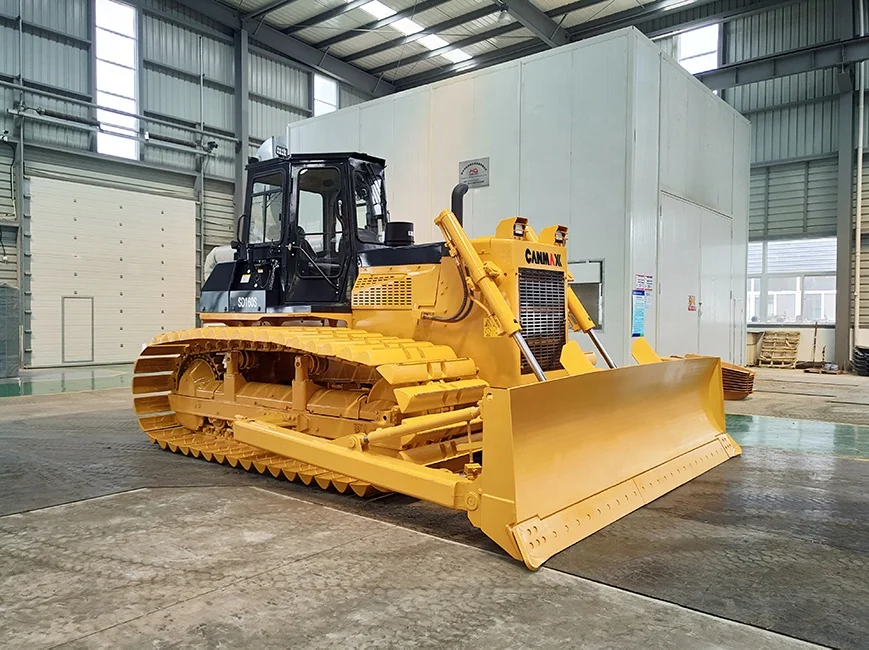

Бульдозер гусеничный бульдозер Shanghai CANMAX 160hp SD160S тяжелый низкая цена
- Категория: Бульдозеры >>>
- Поставщик: Shanghai,Canmax,Construction,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 74970.34 $* | 78719.25 $* |
| Aug-18-2025 | 74340.19 $* | 78057.1 $* |
| Jul-18-2025 | 62370.67 $* | 65489.74 $* |
| Jun-18-2025 | 73080.53 $* | 76734.13 $* |
| May-18-2025 | 63630.87 $* | 66812.4 $* |
| Apr-18-2025 | 71820.2 $* | 75411.46 $* |
| Mar-18-2025 | 71190.85 $* | 74750.83 $* |
| Feb-18-2025 | 70560.90 $* | 74088.1 $* |
| Jan-18-2025 | 69930.14 $* | 73427.75 $* |
Характеристики
PRODUCTS DESCRIPTION
Swamp Crawler
Bulldozer
SD160S
WWW.CANMAXCM.COM
SHARE TO GET
SINCE 2006
* Engine: Weichai WD10G178E25
* Rated Power: 131KW (178HP) @1850 rpm
* Operating Weight: 18.4 ton
* Rated Power: 131KW (178HP) @1850 rpm
* Operating Weight: 18.4 ton
Weichai WD10G178E25 engine gives you more power and reliability you need. Improved fuel economy over the previous model with strong torque output and low fuel consumption gives you excellent overall fluid efficiency.
The gearbox uses a planetary gear structure that operates the hydraulic control valve to achieve forward, reverse and various shifts. The structure is planetary gear, muti-plate clutch, hydraulic combined with forced lubrication, which is divided into three forward and three reverse. The main frame of the full box structure adopts steel plate welded full box type integral structure, which is welded with the rear axle box. It has high impact load bearing capacity and resistance to bending and twisting. High quality weld seam ensures the main frame has a full life cycle. Mainstream 14Mpa working hydraulic system, can greatly reduce the failure rate of hydraulic components with overload protection function.
The gearbox uses a planetary gear structure that operates the hydraulic control valve to achieve forward, reverse and various shifts. The structure is planetary gear, muti-plate clutch, hydraulic combined with forced lubrication, which is divided into three forward and three reverse. The main frame of the full box structure adopts steel plate welded full box type integral structure, which is welded with the rear axle box. It has high impact load bearing capacity and resistance to bending and twisting. High quality weld seam ensures the main frame has a full life cycle. Mainstream 14Mpa working hydraulic system, can greatly reduce the failure rate of hydraulic components with overload protection function.
Overall | Dimension | 5262×4150×3074 mm | ||||
Operating Weight | 18400 kg | |||||
ENGINE | Model | Weichai WD10G178E25 | ||||
Type | Water-cooled, in-line, 4-stroke,direct injection | |||||
Number of Cylinders | 6 | |||||
Bore × Stroke | Φ126×130 mm | |||||
Piston Displacement | 9.726 L | |||||
Rated Power | 131 KW (178HP) @1850 rpm | |||||
Max Torque | 765 N·m @1300 rpm | |||||
Fuel Consumption | 214 g/kW·h | |||||
TRANSMISSION SYSTEM | Torque Converter | 3-element, 1 stage, 1 phase | ||||
Gearbox | Planetary gear type, power-shift, forced lubrication | |||||
Central Drive Shaft | Spiral bevel gear, single-stage speed reduction, splash lubrication | |||||
Steering clutch | Wet,multi-disc, spring loaded, hydraulically separated, hydraulic control | |||||
Steering brake | Wet type,floating band structure,foot brake with hydraulic booster | |||||
Final drive | 2-stage speed reduction of spur gear, splash lubrication | |||||
TRAVEL SPEED | Gear | 1st | 2nd | 3rd | ||
Forward | 0~3.29 km/h | 0~5.82 km/h | 0~9.63 km/h | |||
Reverse | 0~4.28 km/h | 0~7.59 km/h | 0~12.53 km/h | |||

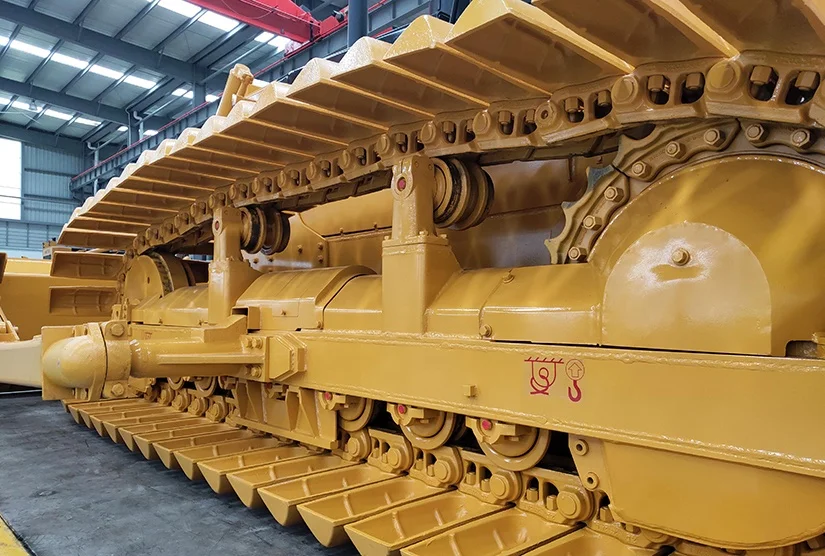

UNDERCARRIAGE SYSTEM | Type | Sprayed beam, suspended structure of equalizer | ||||
No. of Carrier Rollers | 2 each side | |||||
No. of Track Rollers | 7 each side | |||||
No. of Track Shoes | 42 each side | |||||
Track Shoe type | Arc Triangle type | |||||
Width of Track shoe | 950 mm / 1100 mm | |||||
Pitch | 203.2 mm | |||||
Track Gauge | 2300 mm | |||||
Ground Pressure | 0.027 Mpa | |||||
HYDRAULIC SYSTEM | Max Pressure | 14 Mpa | ||||
Pump Type | Gear Pump | |||||
Displacement | 243 L/Min | |||||
Bore of Working Cylinder | 110 mm × 2 | |||||

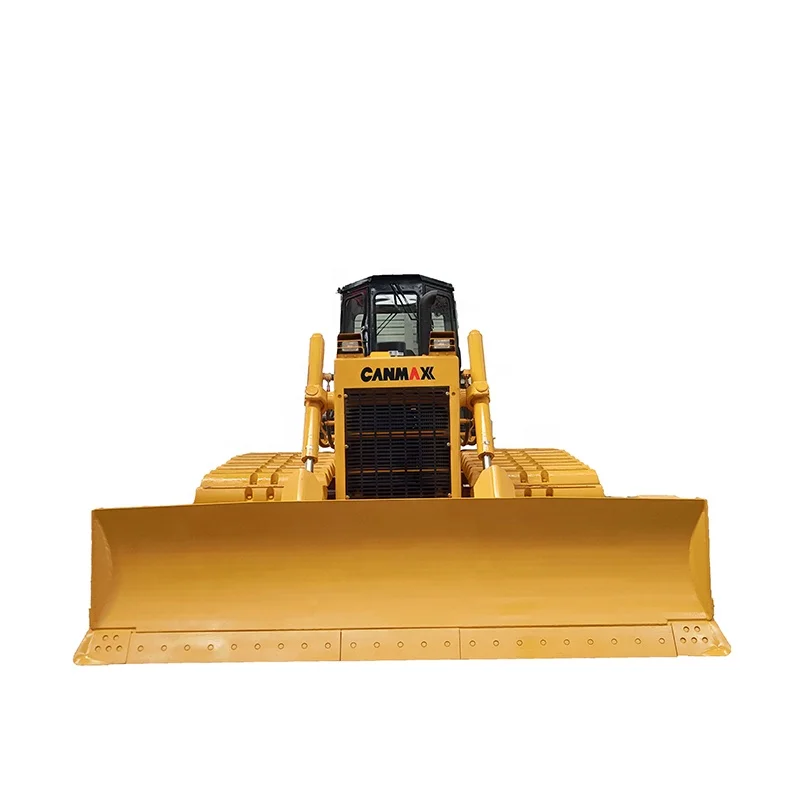

BLADE | Blade Type | Straight-tilt Blade | ||||
Blade Capacity | 3.8 m³ | |||||
Blade Width | 4150 mm | |||||
Blade Height | 962 mm | |||||
Max Drop Below Ground | 485 mm | |||||
COMPANY PROFILE
Shanghai CANMAX Construction Machinery Co., Ltd was funded in 2006, sales office is located in the Shanghai Free-Trade zone, a center of global finance, trading and shipping. Thanks to years of construction machinery industry experience, CANMAX had built a professional team provides customer professional technical support and all-around before& after sales service. Till now, CANMAX had expanded its business to more than 80 countries in Asia, Europe, South America, Africa, Oceania, etc. Our main products including backhoe loaders, mini excavators, wheel loaders, self-loading concrete mixers, telescopic loaders, skid steer loaders, etc. Adhere to "Honest, strict, share to get" and "Creating value for all customers", We are constantly developing new and excellent products to satisfy customer's demand and to become one of the top one-stop solution suppliers for construction machinery.
EXHIBITION
CANMAX machinery attended Russia, Uzbekistan, Philippines, Kenya, Peru Construction Machinery exhibition every year. More and more customer know about CANMAX products and culture. CANMAX will grow together with every customer.
CERTIFICATIONS
Shanghai Canmax Constrution Machinery Co., Ltd is one of the China's top earthmoving manufacturer. Now we offer wheel loader, mini excavator, backhoe loader, skid steer loader, telescopic loader and self loading concrete mixer from our Shandong factory.
We have always invested heavily in research and development. All products are granted CE certificate and meets the European standard for Rops and Fops protection.
PACKING&DELIVERY
From the factory to our customer's destination, we will conduct all-round supervision.We can also help to sign purchase order contracts, test product quality, guarantee timelydelivery, and accomodate special orders.
OUR SERVICES
For After-sales, to minimize the downtime, we offer air delivery for the spare parts which are within guarantee within 5 working days. We have professional technician to support trouble clearing and maintenance.
