Автоматический ЧПУ плутоколеблющийся нож для резки ткани кожи ПВХ резак машины
- Категория: Оборудование для производства кожи >>>
- Поставщик: Jinan,Truster,CNC,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.74 $* | 0.77 $* |
| Aug-19-2025 | 0.77 $* | 0.32 $* |
| Jul-19-2025 | 0.86 $* | 0.41 $* |
| Jun-19-2025 | 0.45 $* | 0.30 $* |
| May-19-2025 | 0.72 $* | 0.1 $* |
| Apr-19-2025 | 0.10 $* | 0.87 $* |
| Mar-19-2025 | 0.0 $* | 0.34 $* |
| Feb-19-2025 | 0.8 $* | 0.30 $* |
| Jan-19-2025 | 0.90 $* | 0.82 $* |
Характеристики

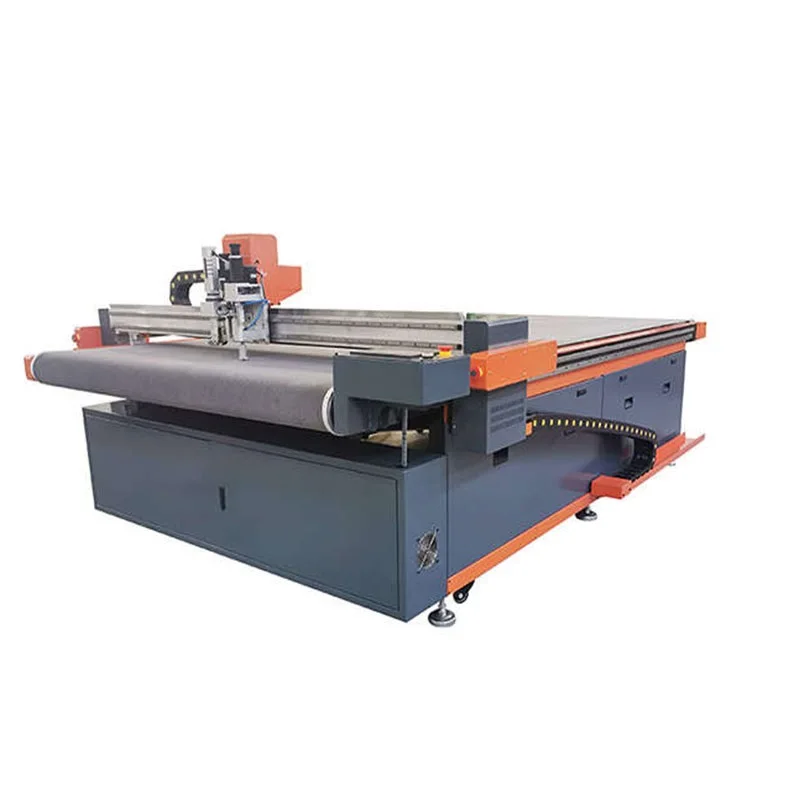

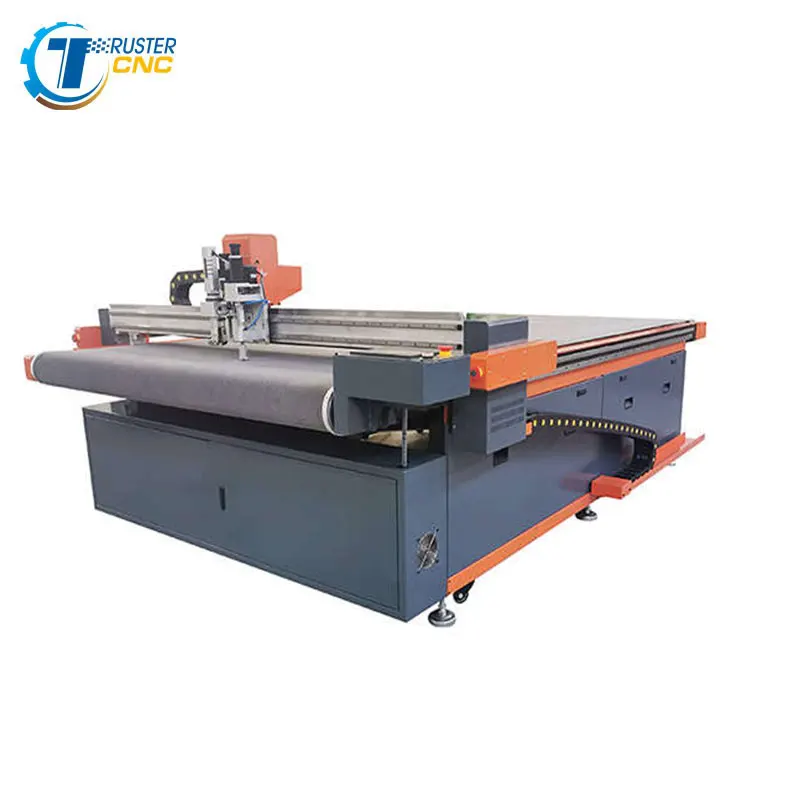

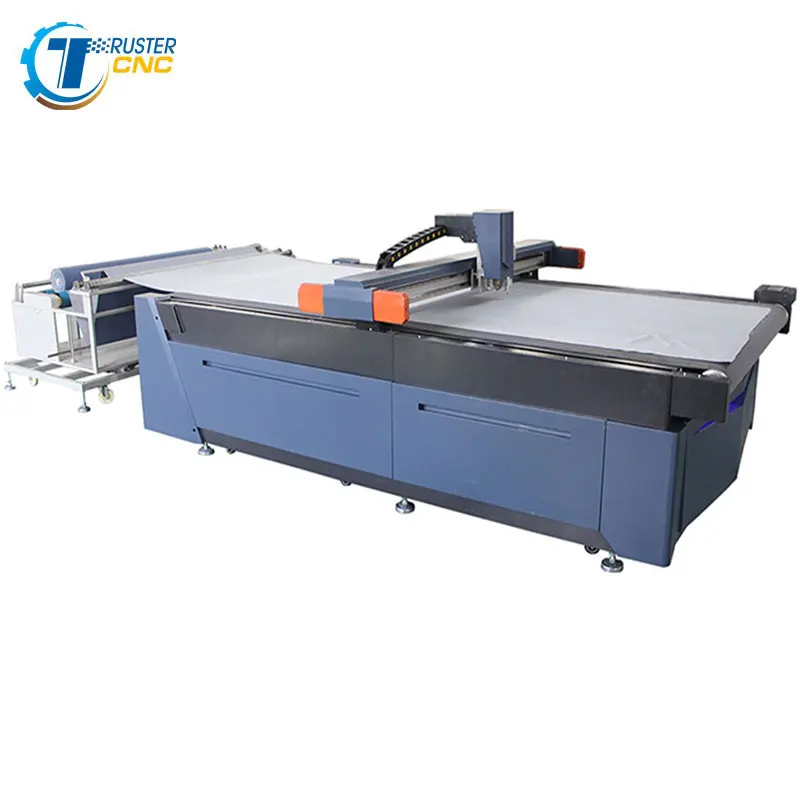

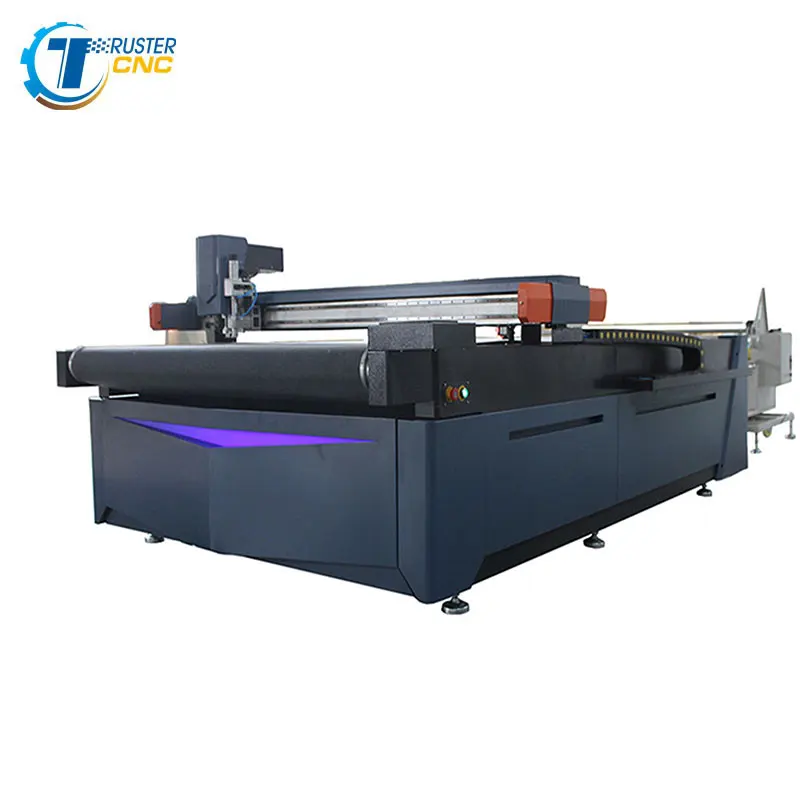

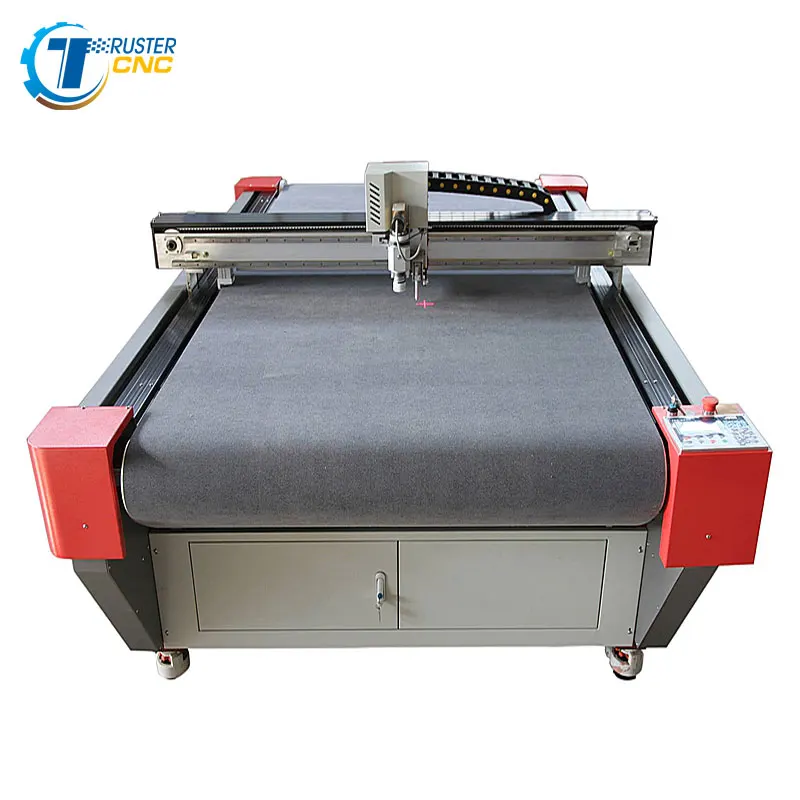

Machine Details
Product Description
Model | TO-1625 vibration cutting machine |
Working area | 1600*2500mm |
Rated power | 11KW |
Fixed mode | Flate plate table /auto feding plate optional |
Multifunctional heads optional | Vibration knife/oscillating blade knife |
Cutter head function | Vibrate full cut; |
Safety device | Using infrared sensors, responsive, safe and reliable. |
Translational velocity | 800-1200mm/s |
Cutting speed | 200-800mm/s(according to different cutting materials) |
Cutting thickness | ≤50mm(according to different cutting materials) |
Cutting material | Leather, all kinds of clothing flexible material, Sponge leather, PVC, soft glass, Silicon, rubber |
Repeated accuracy | ≤0.1mm |
Software resolution | 0.025mm/0.01mm/0.1mm |
Transmission port | Ethernet port |
Network transmission distance | ≤ 350 meters |
Rated voltage | 380V±10% |
Capacity | 2GB |
Transmission system | imported(Digital servo motor, linear guide,aynchronous belt, ball screw) |
Instruction system | HP-GL compatible format |
Control system | TC6828(OLT custom made) |
Voltage | 380V±10% |
Other configuration | Germany imported conveyor belt, vacuum table, Taiwan Hiwin rail, vacuum pump |
Specification
Hiwin guide rail
Sample show
The Material can be processed:
Leather ,PU, EVA, XPE,Corrugated Board, PVC, Sponge, Adhesive Sticker, Carpets,Composite, cloth etcApplicable fields:
Automotive interior, Shoe-making,Clothing, Leather products , Case and Handbag, Pilot chair, Carton and Gift box, Lamp designing, Fabrics, Paper products, Low thickness of flexible material of plastic products
Recommend Products
Factory Details
Our Service
Technical support：
1. Technical support by phone, email or WhatsApp/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas.
1. Technical support by phone, email or WhatsApp/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas.
After sales services：
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately afterreceived machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email WhatsApp/tel etc.
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately afterreceived machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email WhatsApp/tel etc.
Customer feedback
