Product Description

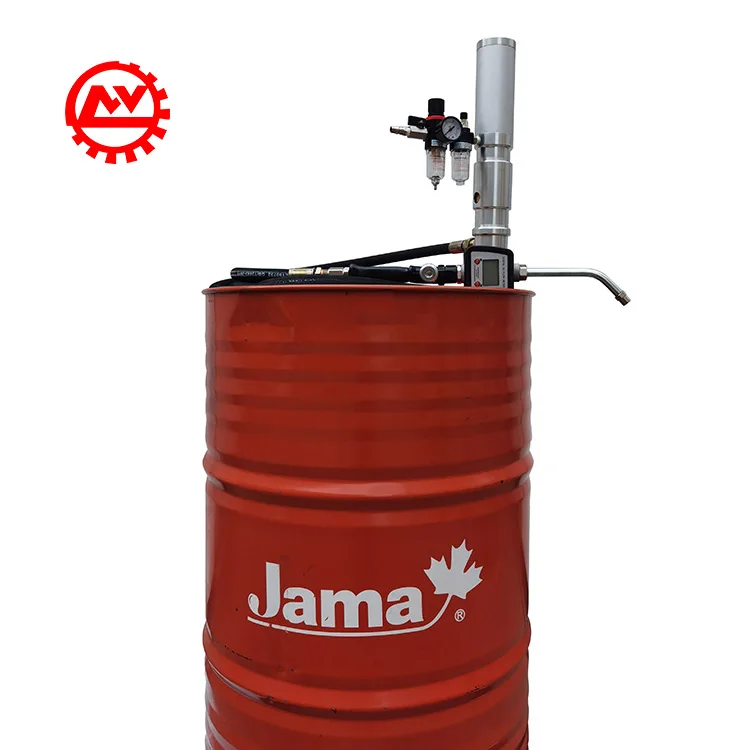

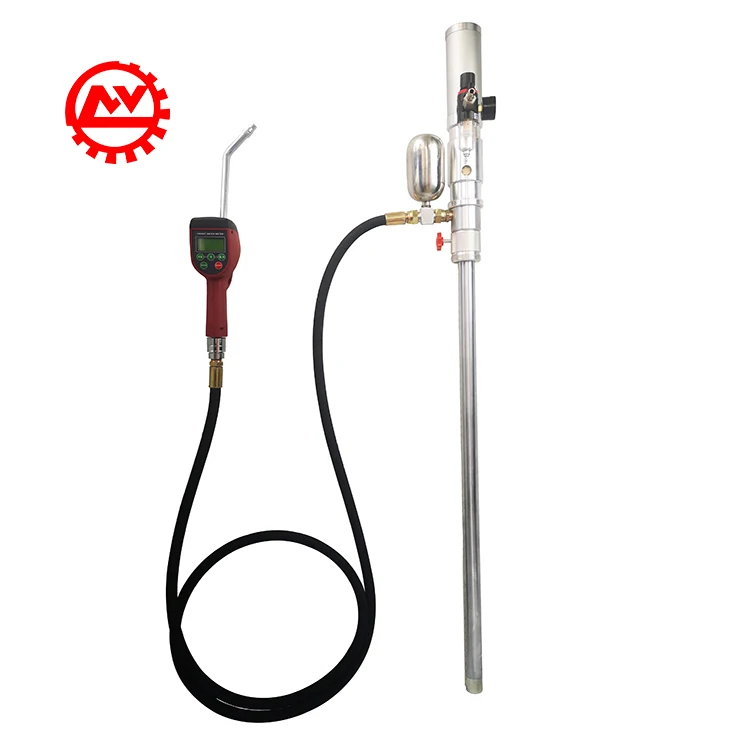

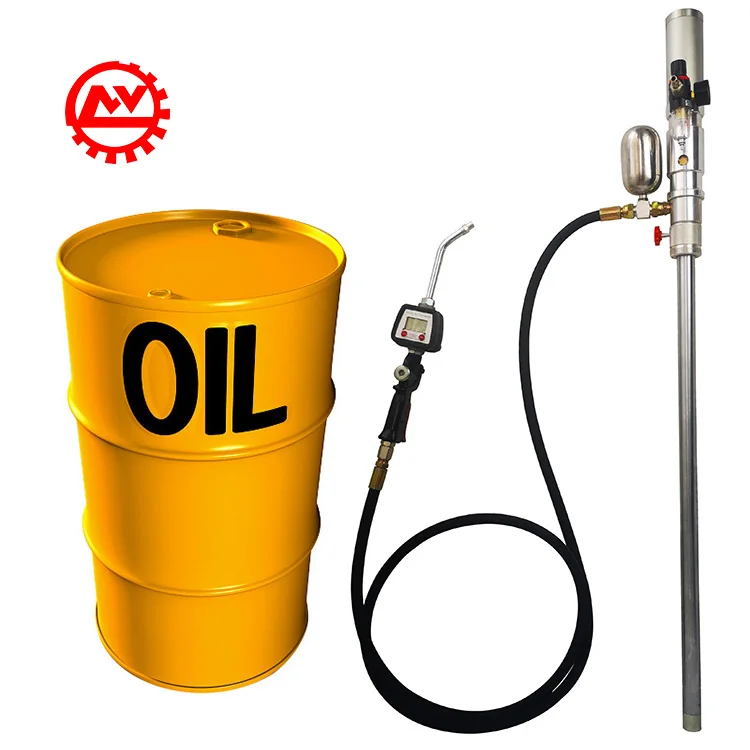

Air Operated Oil Pump Kit-OA940
Details Images
Oil Pump Technique Specification | ||||||
Pressure Ratio: | 5:1 | Air inlet: | 1/4'' | |||
Air Input Pressure: | 6-8bar | Oil outlet: | 1/2'' | |||
Flow Rate: | 8-18L/min | Drum application: | 400LB/55gal | |||
Digital Oil Meter Gun-#3200 | ||||||||
Inlet | 1/2'' NPT-1/2''F | |||||||
Outlet | 1/2'' NPT-1/2''F | |||||||
Pressure Range | 0.5 BAR-100BAR | |||||||
Oil Temperature | MAX 60℃ | |||||||
Oil Viscosity | MAX SAE 240(8-5000mPas) | |||||||
Precise Unit | 0.01L | |||||||
Net Weight | 3.1LB | |||||||
Features
1.Mobile 5:1 oil pump and digital oil meter gun (Model #3200),easy to use & maintain
2. High flow rate to 18 L/min
3. Max air inlet pressure 6-8 BAR
4.Air consumption (per minute) 8 BAR
5.Best suited for a multiple fluid at a short to medium distance, typical fluids handled include: Lubricating oil such as Engine Oil, Gear Oil, Hydraulic Oil and Refrigerant
6.Pump can be barrel, cart or wall mounted.
7.Includes a set of Oil/Water Separator
8.1/2 in. x 4 m connection hose
2. High flow rate to 18 L/min
3. Max air inlet pressure 6-8 BAR
4.Air consumption (per minute) 8 BAR
5.Best suited for a multiple fluid at a short to medium distance, typical fluids handled include: Lubricating oil such as Engine Oil, Gear Oil, Hydraulic Oil and Refrigerant
6.Pump can be barrel, cart or wall mounted.
7.Includes a set of Oil/Water Separator
8.1/2 in. x 4 m connection hose
What's Included
(1) Oil pump kit
(1) Digital oil meter gun
(1) 1/2 in. x 4 m connection hose
(1) Digital oil meter gun
(1) 1/2 in. x 4 m connection hose
Model: OA940HG

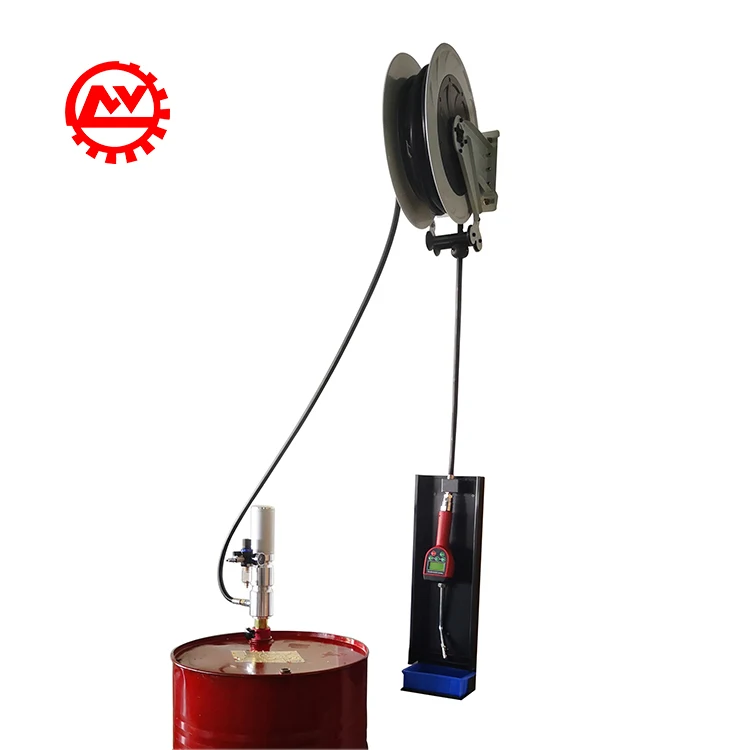

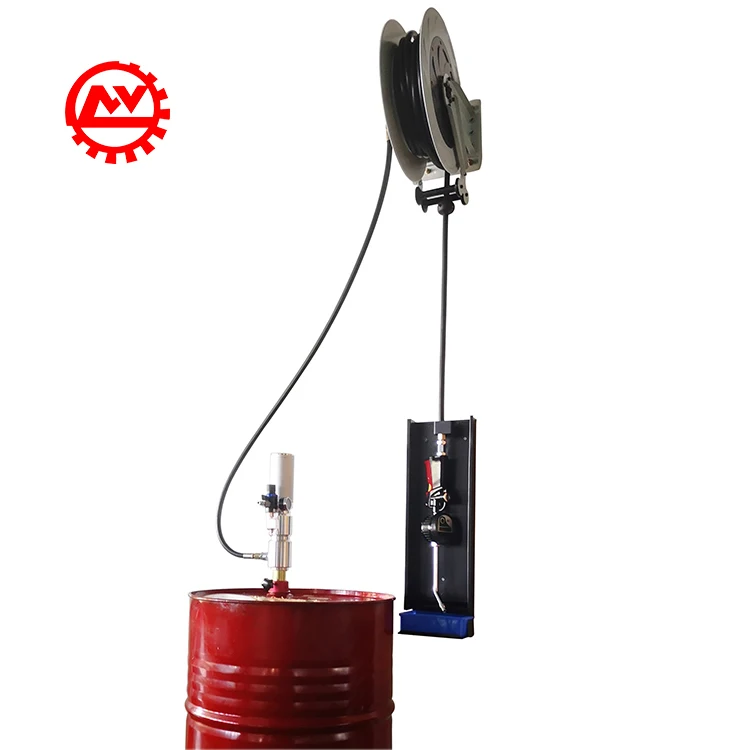

Wall Mount Pneumatic Oil Pump Kit
Oil Pump Kit with High Pressure Hose Reel to supply long distance service.
Equipped Anti-leakage General Oil Gun.
Company Profile
Shenzhen Folawing Technology Co.,Ltd focus on the automotive aftermarket,based on more than 10 years of rich R&D experience, we can provide various customized dispensers and non-standard equipment, which are used for lubrication in Oil change Maintenance Center, Auto Repair shops, Automobile, Auto door locks/brakes/wipers/seat rails, Ships, Agricultural Vehicles, Subways etc. It is also widely used in Workshop Production Line, Metallurgy, Paper-making, Electronics, Electric Power, Port, Construction Machinery. In addition, it can be used in Bearing when assemble the seal cover, the Reduction Gear in Micro Motor Industry Assembly line and Gear Pair Assemble in Electric Tool Industry, etc.
Our Advantages
1. A strong technique team, with more than 10-year experience of making lubricating equipment.
2. ODM products can be supplied, especially the non-standard high precision lubricating dispensers.
3. Products are with stable quality and low maintenance cost.
4.Competitive price and quicky delivery.
5.We provide best service for all of our guests!
FAQ
Q1: What's your delivery time?
A: Usually we have oil pumps in stock.For other normal models, the delivery time is 15-20days.
Q2: What's the MOQ?
A: Based on the product models.Usually for 1model, the MOQ is 1 pcs.
Q3: What kind of ODM equipment can you supply?
A: All kinds of lubricating equipment, such as Quantify Oil Dispenser, Grease Dispenser and Heavy Duty Hose Reel can be designed and produced based on customer's requirements.
