Машина для холодной ковки

Категория: Metal Forging Machinery >>>
Поставщик: Beijing,OCEPO,Construction,Machinery,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.85 $*	0.89 $*
Aug-16-2025	0.30 $*	0.39 $*
Jul-16-2025	0.63 $*	0.16 $*
Jun-16-2025	0.66 $*	0.31 $*
May-16-2025	0.45 $*	0.40 $*
Apr-16-2025	0.77 $*	0.82 $*
Mar-16-2025	0.88 $*	0.1 $*
Feb-16-2025	0.2 $*	0.27 $*
Jan-16-2025	0.33 $*	0.32 $*

Характеристики

Product Description

1. Application

AGD-40 Double Cylinder Automatic Rebar Cold Forging Machine is used for upsetting the rebar end to increase its diameter by cold forging high pressure, and then cut thread on it. The thread diameter is larger than the reinforcement base metal, in order to improve the quality of splicing, and make the compression strength and tensile strength on splicing section bigger than the base metal. The machine is suitable for bridges, subways, tunnels, power plants and other high requirement projects.

2. Feature
The machine is easy to operate, with high-quality processing and high speed, free from the impact of the environment, which could upset 16-40mm HRB335 and HRB400 grade steel rebar.

3. Structure

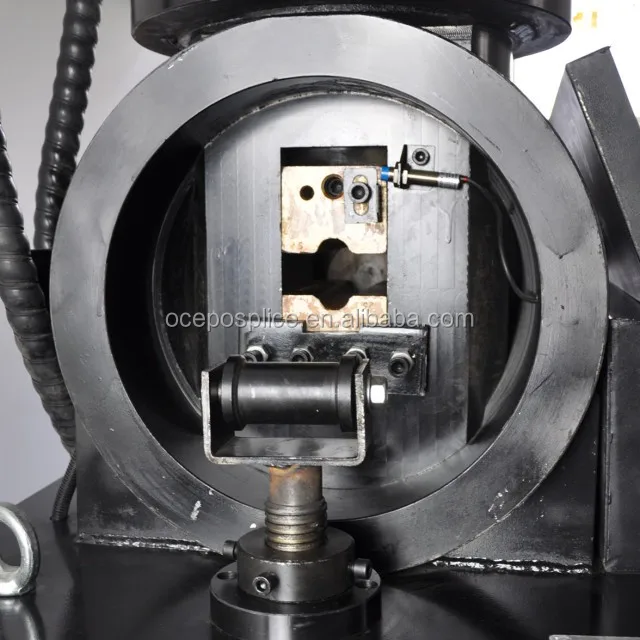

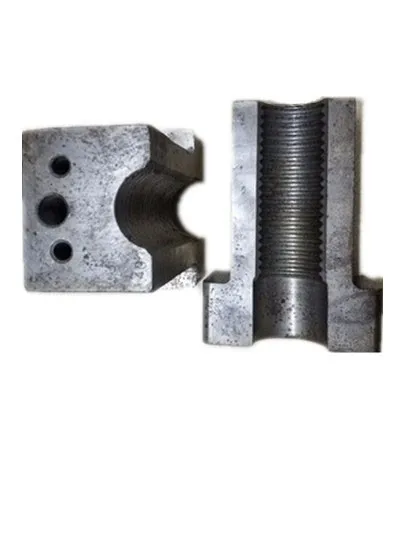

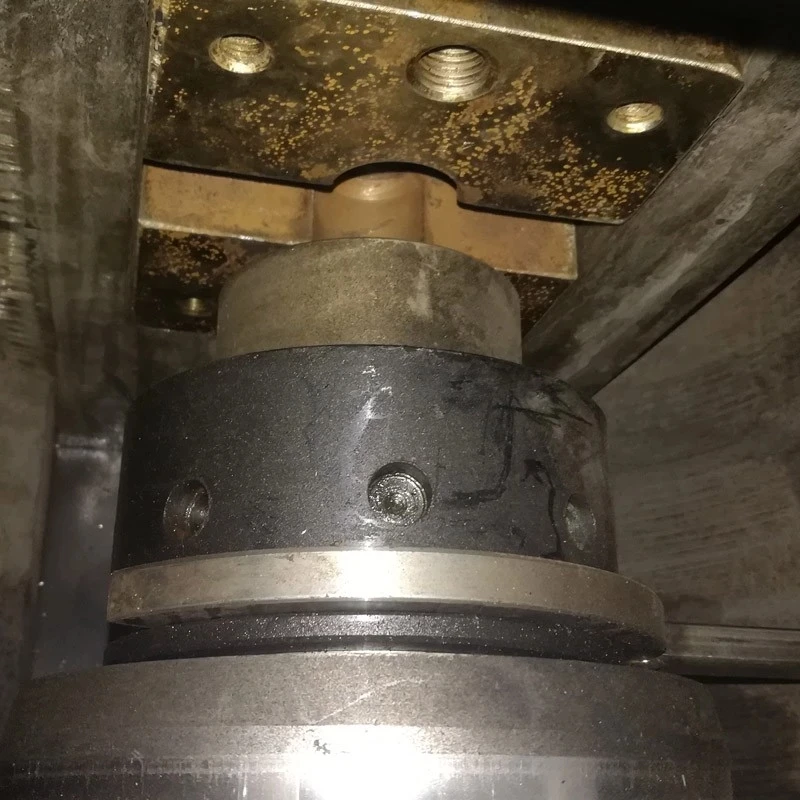

The machine includes the under-frame, downward cylinder, forward cylinder, mold and mate mold, electrical control system, hydraulic system and other components.

	AGD-32	AGD-40/45	AGD-40L
Dia. of Upsetting Rebar	16-32mm	16-45mm	16-40mm
Power	Y132M-4, 7.5KW	Y132M-4, 7.5KW	Y132M-4, 7.5KW
Voltage	380V 50Hz, 3Phase	380V 50Hz, 3Phase	380V 50Hz, 3Phase
Oil Pump	10MCY14-1B, 31.5MPa	16YCY14-1B, 31.5MPa	16YCY14-1B, 31.5MPa
Hydraulic Oil	46# Antiwear	46# Antiwear	46# Antiwear
Oil Tank Capacity	115L	115L/180L	115L
Net Weight	850kgs	1200kgs/1350kgs	1200kgs
Dimension	12508501650mm	12508501700mm	12508501700mm

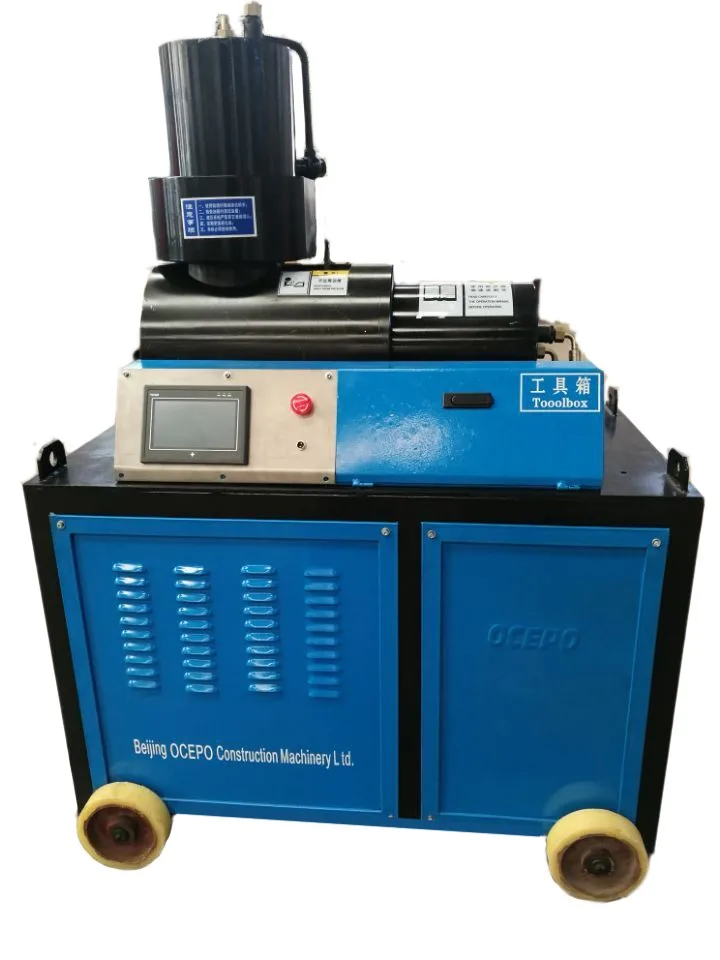

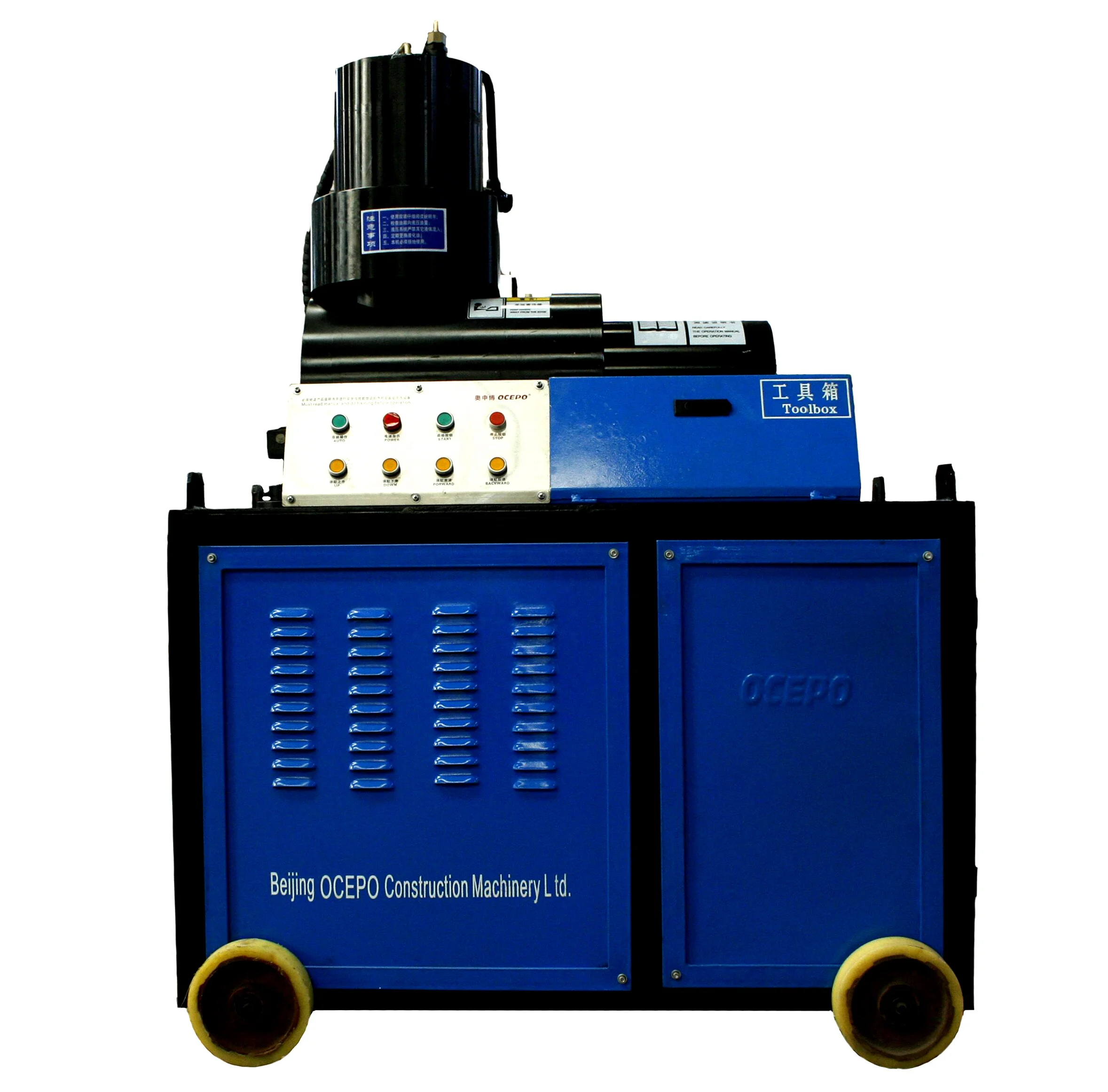

	AGD-40 is controlled by buttons, and AGD-40L is controlled by touch screen with LCD.
