Мгновенный коммерческий настенный газовый водонагреватель для
- Категория: Electric Water Heaters >>>
- Поставщик: Zhangjiagang,Delon,Thermal,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 345.71 $* | 362.69 $* |
| Aug-18-2025 | 342.36 $* | 359.63 $* |
| Jul-18-2025 | 287.18 $* | 301.86 $* |
| Jun-18-2025 | 336.55 $* | 353.58 $* |
| May-18-2025 | 293.79 $* | 308.14 $* |
| Apr-18-2025 | 331.57 $* | 348.63 $* |
| Mar-18-2025 | 328.72 $* | 344.4 $* |
| Feb-18-2025 | 325.76 $* | 341.37 $* |
| Jan-18-2025 | 322.76 $* | 338.33 $* |
Характеристики
Product Overview

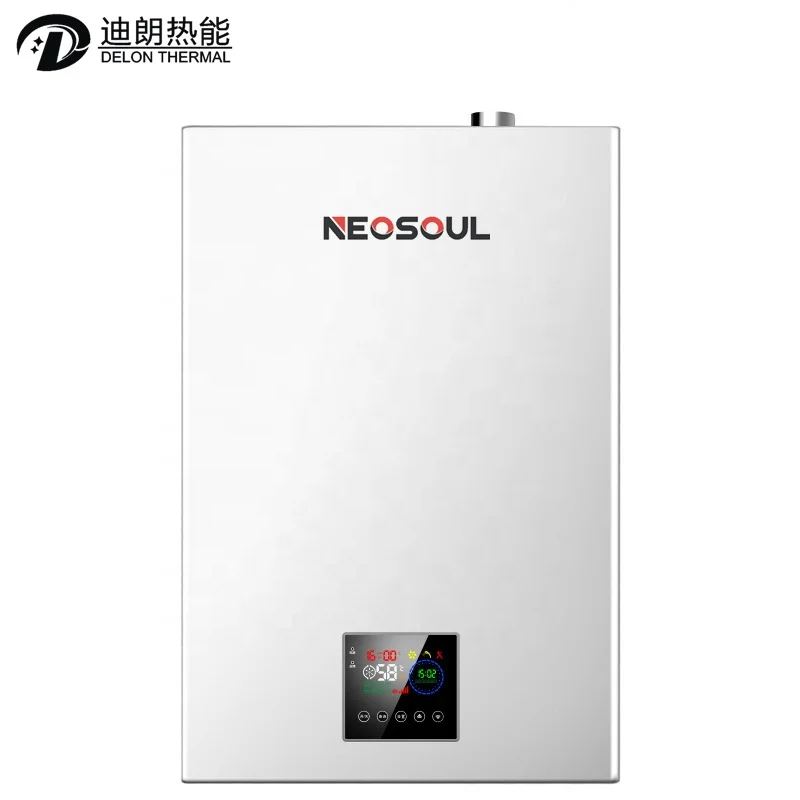

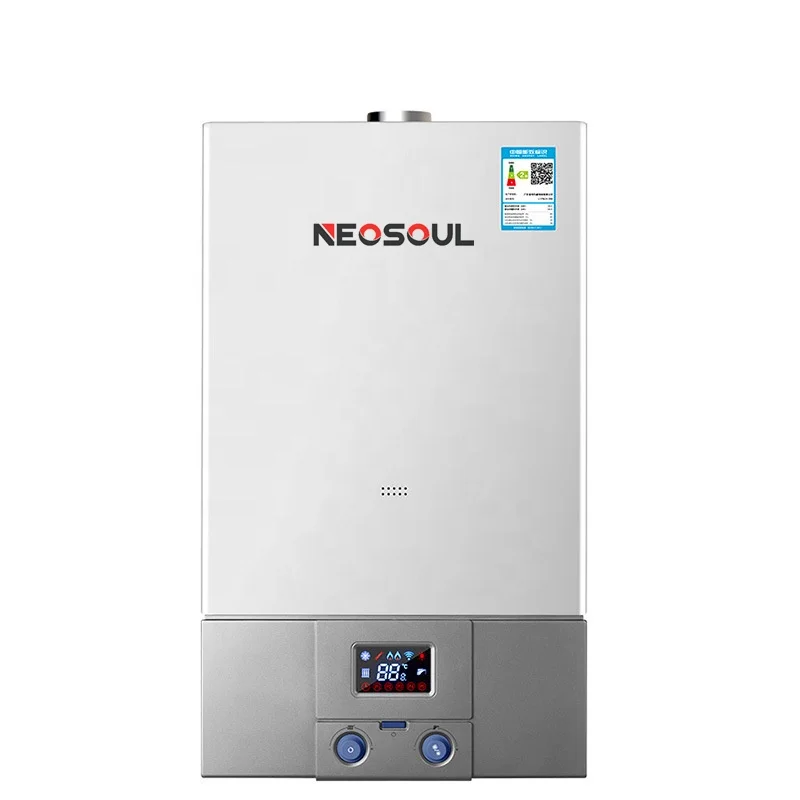

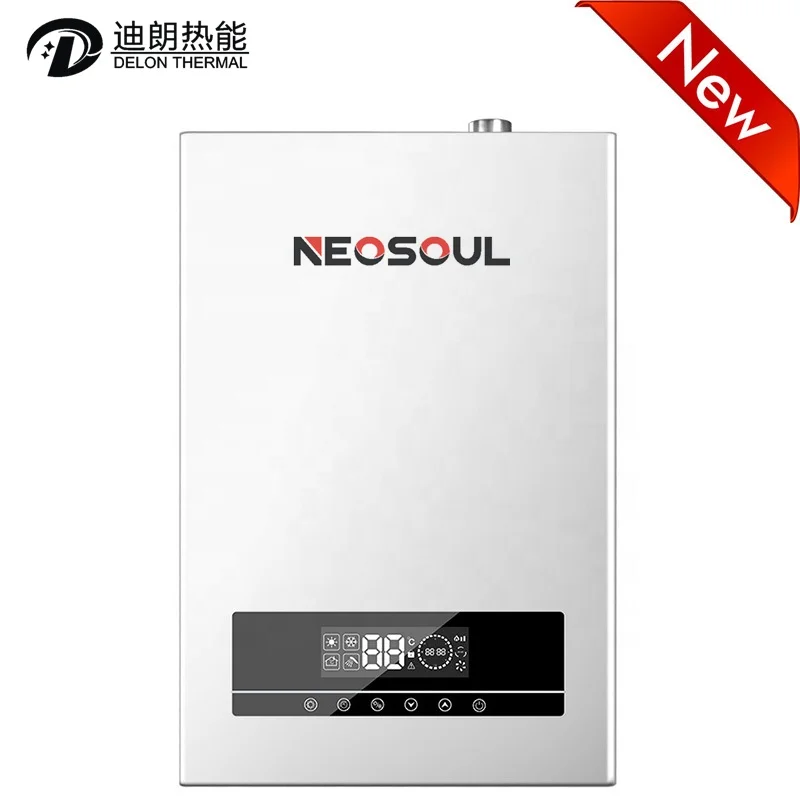

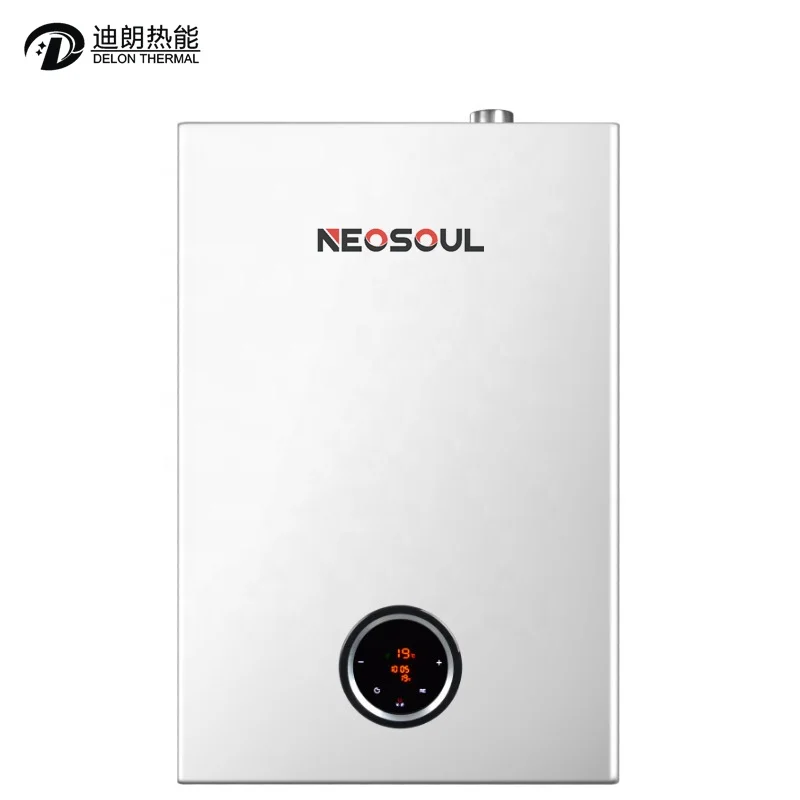

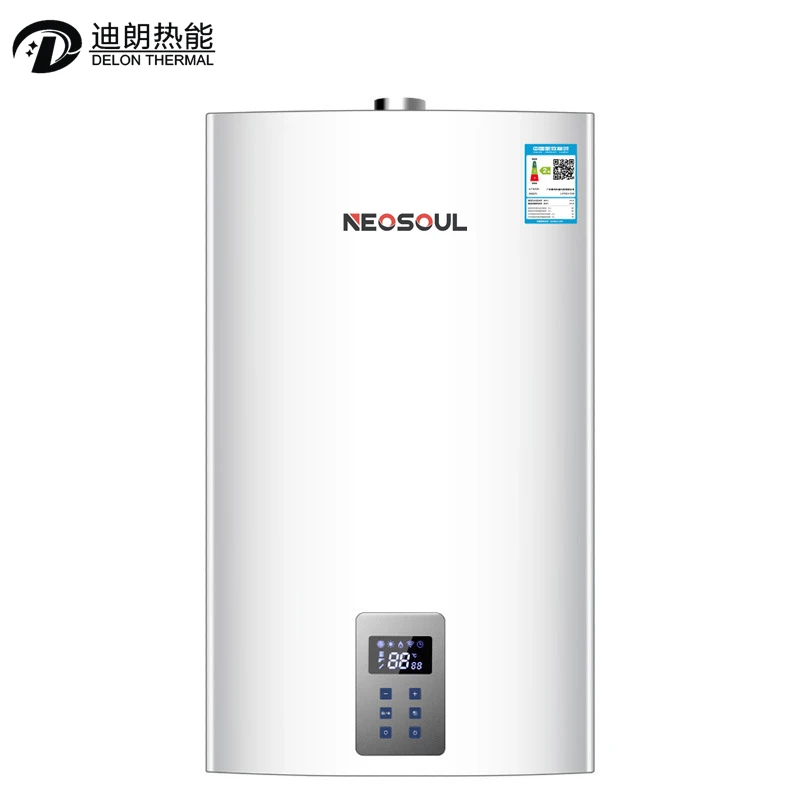

Instant Commercial Wall Hung Gas Water Heater for Swimming Pool
Instant commercial gas water heater, also known as gas water boiler, it is a gas appliance that uses gas as fuel and transfers heat to cold water flowing through the heat exchanger by combustion heating to produce hot water.
Wall hung gas water heater is mainly composed of valve body assembly, main burner, small fire burner, heat exchanger, safety devices, etc. (Also includes flue type water heater flue, forced exhaust type water heater forced exhaust device. Valve body assembly controls the entire working procedure of the water heater, which includes water valve, gas valve, micro switch and igniter, etc. When the water heater is installed, valves should be installed on the inlet pipe, outlet pipe, and gas pipe.
Wall hung gas water heater is mainly composed of valve body assembly, main burner, small fire burner, heat exchanger, safety devices, etc. (Also includes flue type water heater flue, forced exhaust type water heater forced exhaust device. Valve body assembly controls the entire working procedure of the water heater, which includes water valve, gas valve, micro switch and igniter, etc. When the water heater is installed, valves should be installed on the inlet pipe, outlet pipe, and gas pipe.
FEATURES AT A GLANCE
2) IPX4 protection
3) Double anti-freeze protection
4) Sensor failure protection
5) Anti-leakage protection
6) Flame-out anti-gas leak protection
7) Circulation pump anti-seize protection
8) Bypass anti-dry burn protection
9) Anti-electromagnetic interference
10) Wind pressure abnormal protection
11) Water circuit overpressure protection
12) Bathroom hot water temperature limit protection
PRODUCT SPECIFICATIONS
Technical Data for A6 Series Gas Water Heaters | ||||||||||||
No. | DL-A6 | Unit | 20kW | 24kW | 28kW | 32kW | ||||||
1. | Rated heat load | kW | 20 | 24 | 28 | 32 | ||||||
2. | Rated output power | kW | 18 | 21.6 | 25.2 | 28.8 | ||||||
3. | Min. output power | kW | 5.1 | 6.1 | 7.1 | 8.2 | ||||||
4. | Nominal hot water production rate | kg/min (Δt=30k) | 8.3 | 10 | 11.7 | 13.3 | ||||||
5. | Reference heating area | m2 | 60-100 | 90-140 | 120-180 | 160-220 | ||||||

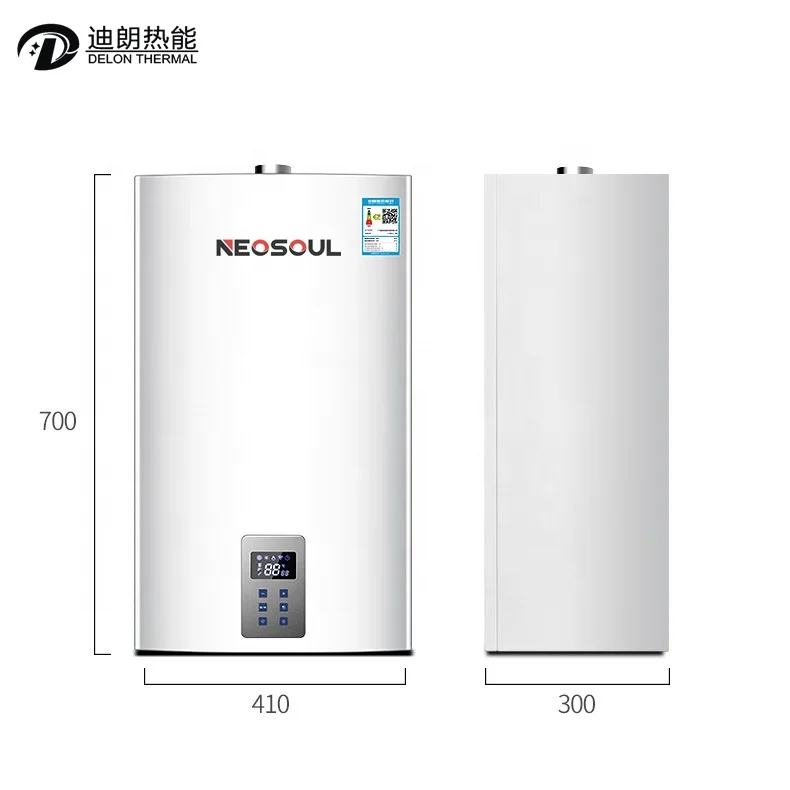

6. | Overall dimension (L*D*H) | mm | 410*300*700 | |||||||||
7. | Rated Gas inlet pressure & Hot water temperature | |||||||||||
8. | Natural gas-G20 | Pa | 2000 | LP gas-G30 | 2800 | |||||||
9. | Temperature for heating | °C | Radiator: 30-80 Floor heating: 30-60 | Temperature for domestic hot water | 30-60 | |||||||
Electrical Part | ||||||||||||
10. | Power voltage | V/HZ | 220-240， 50/60 | Rated power | 110/120/140 | |||||||
11. | Electrical protection | —— | Class I | Protection | IPX4 | |||||||
Pipeline Connections | ||||||||||||
12. | Water supply/return for heating | mm | G3/4'' | Sanitary cold/hot water | G1/2'' | |||||||
13. | Gas inlet | mm | G3/4'' | Coaxial intake / exhaust pipe | G1/2'' | |||||||
PRODUCT CONFIGURATION
Stainless steel combusion device
Refined copper heat exchanger
First class quality fan
High quality proportional valve
Air pressure switch
Grundfos pump
Company Profile
PRODUCT APPLICATIONS
For domestic & bathing hot water
For underfloor heating
For radiator
SIMILAR PRODUCTS
Commercial Gas Fired Water Heaters (20kW-60kW)
Commercial Gas Fired Volumetric Water Heaters (41kW/320L-500L)
Commercial Gas Fired Water Heaters (498L/60-106kW)
FAQ
Q1. Do you supply heater installation accessories?
A1: 60cm bellow, angle valves, 1m chimney+elbow.
Q2. Design Capacity?
A2: At present, we design & manufacture the commercial gas water heaters from 20kW to 360kW.
Q3. Currency of Payment?
A3: Accept transactions in USD, EUR and CNY.
Q4. Regular Lead time?
A4: For the LCL order is 3-7 working days after receipt of total payment. For the full container loading order is 2-3 weeks after receipt of down payment.
A1: 60cm bellow, angle valves, 1m chimney+elbow.
Q2. Design Capacity?
A2: At present, we design & manufacture the commercial gas water heaters from 20kW to 360kW.
Q3. Currency of Payment?
A3: Accept transactions in USD, EUR and CNY.
Q4. Regular Lead time?
A4: For the LCL order is 3-7 working days after receipt of total payment. For the full container loading order is 2-3 weeks after receipt of down payment.
