Конструкция с низким потреблением энергии оборудование для мини-завода стиральная машина песка

Описание и отзывы

Трекер стоимости

Характеристики

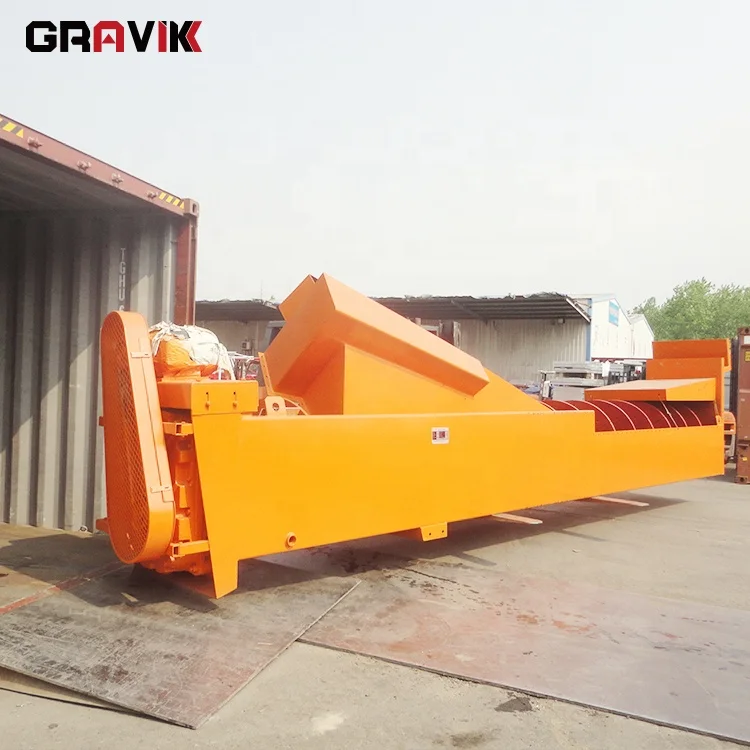

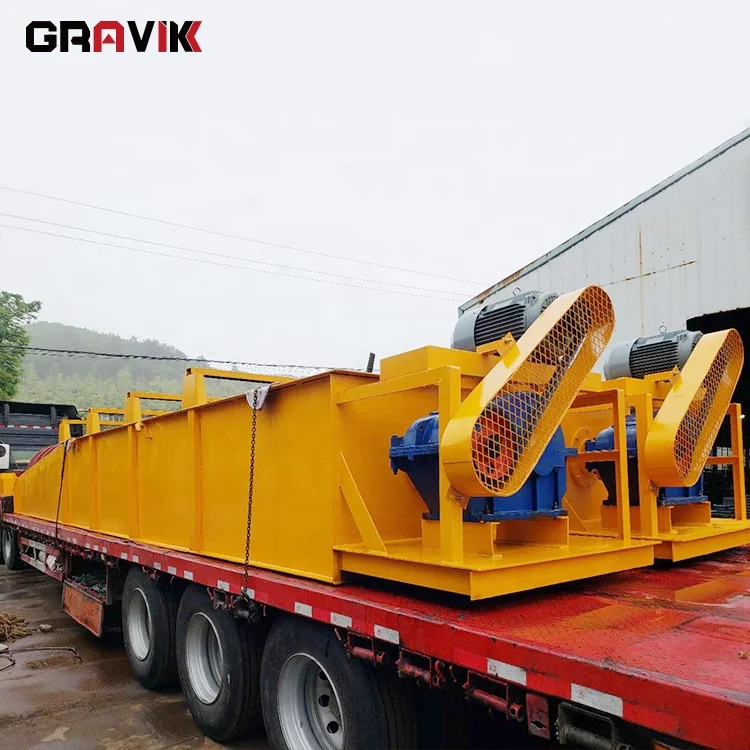

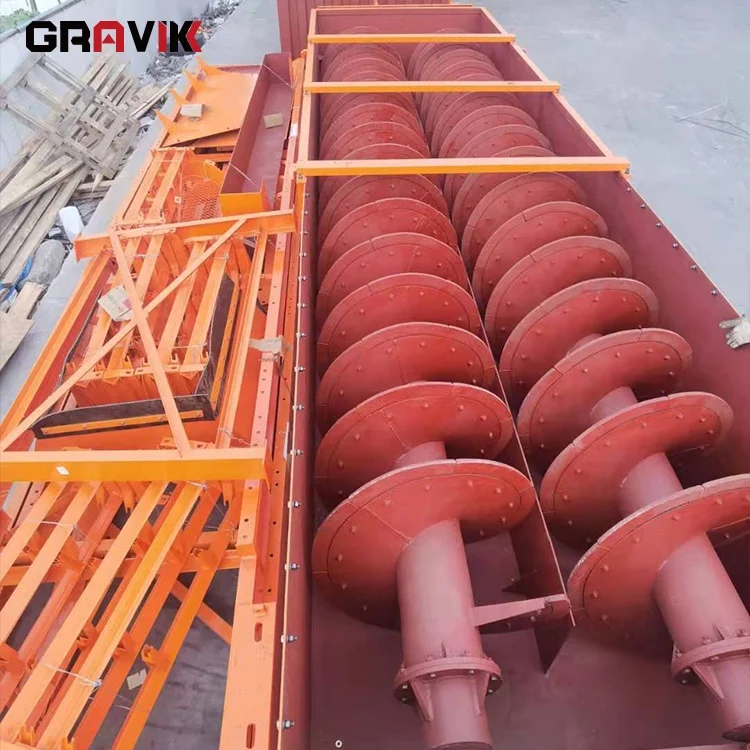

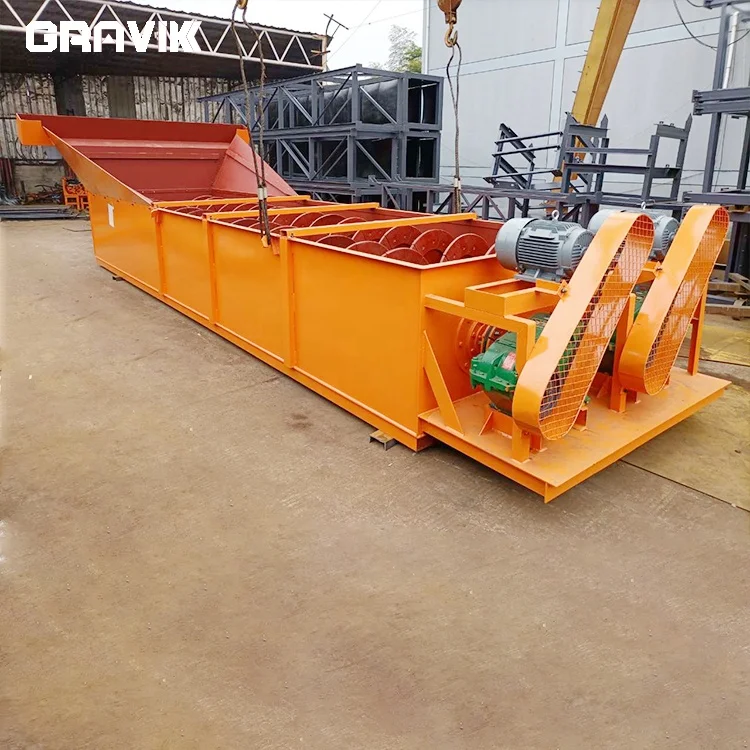

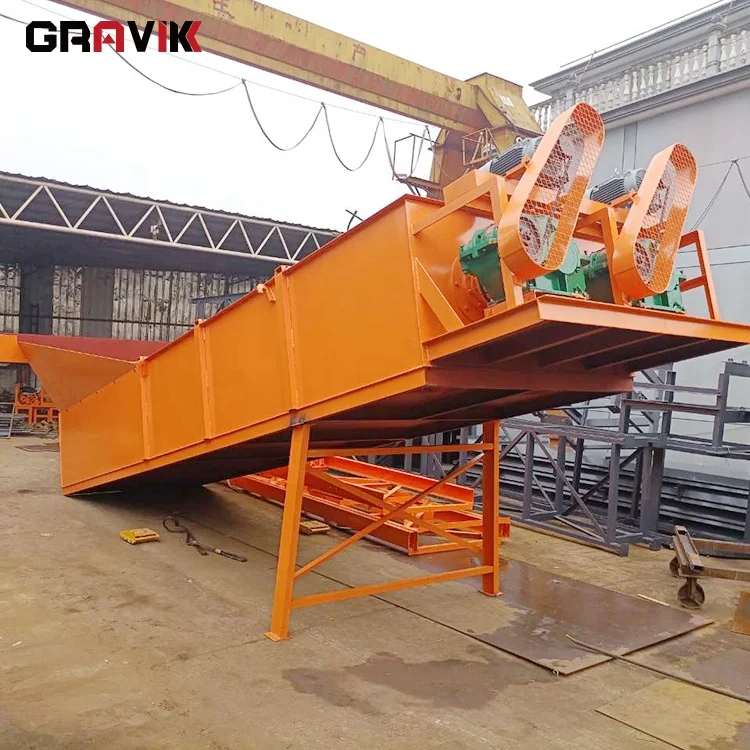

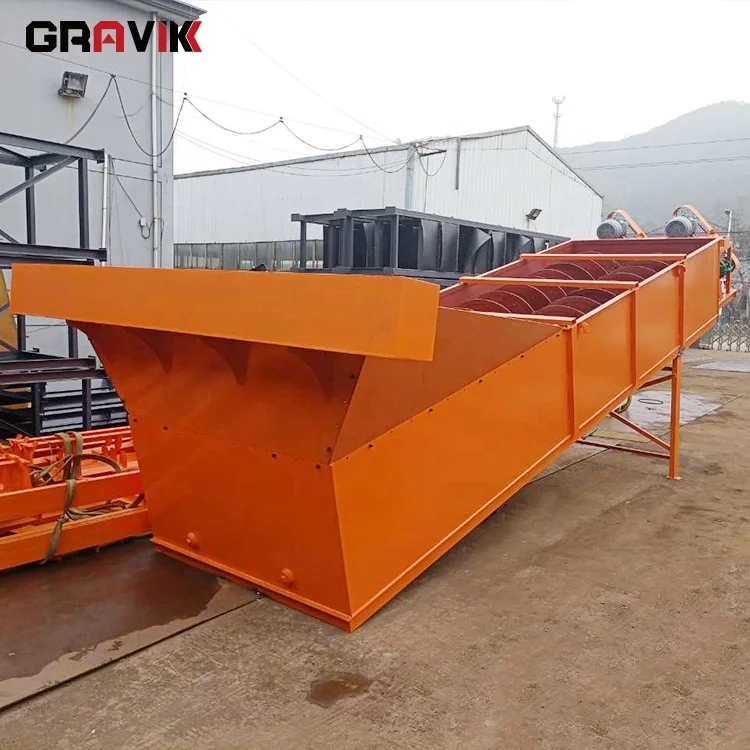

XL & XS series sand washer can clean and separate stone powder and soil in sand and gravel. The novel sealing structure, adjustable overflow plate and reliable transmission ensure the effect of cleaning and dewatering. It’s widely used in road construction, building construction, and hydraulic engineering which project need sands aggregate.



Model	Screw Diameter (mm)	Chute Length(mm)	Feed Size(mm)	Processing Capacity(tph)	Screw Speed (rpm)	Power (kW)	Water Consumption (tPh)	Overall Dimensions  (mm)	Weight(t)
XL915	915	7585	≤10	100	21	11	10-80	8500x2810x3600	6.27
2XL915	915	7585	≤10	200	21	2x11	20-160	8420x3765x3960	11.11
XL1115	1115	9782	≤10	175	17	15	20-150	10970x3945x4720	10.18
2XL1115	1115	9782	≤10	350	17	2x15	40-300	10970x5252x4720	17.94
XS2610	2600	3220	≤10	50	0.8	5.5	4-4.5	3220x2125x2670	2.7
XS3016	3000	3810	≤10	80	0.8	15	10-20	3800x3686x3085	3.3
XS3620	3600	4500	≤10	150	0.8	18.5	20-40	4500x3206x3480	4.3
