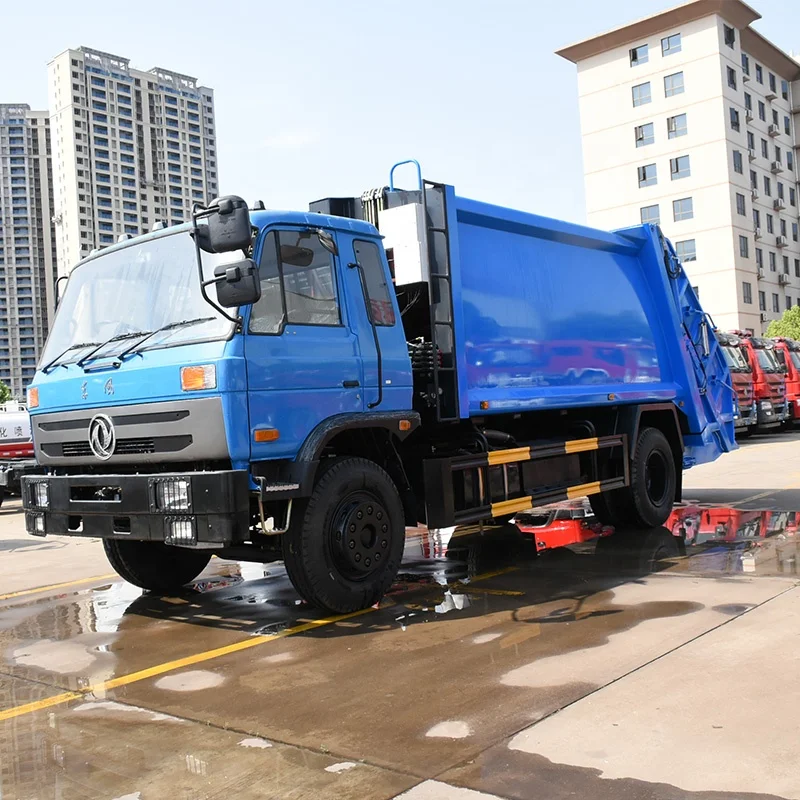

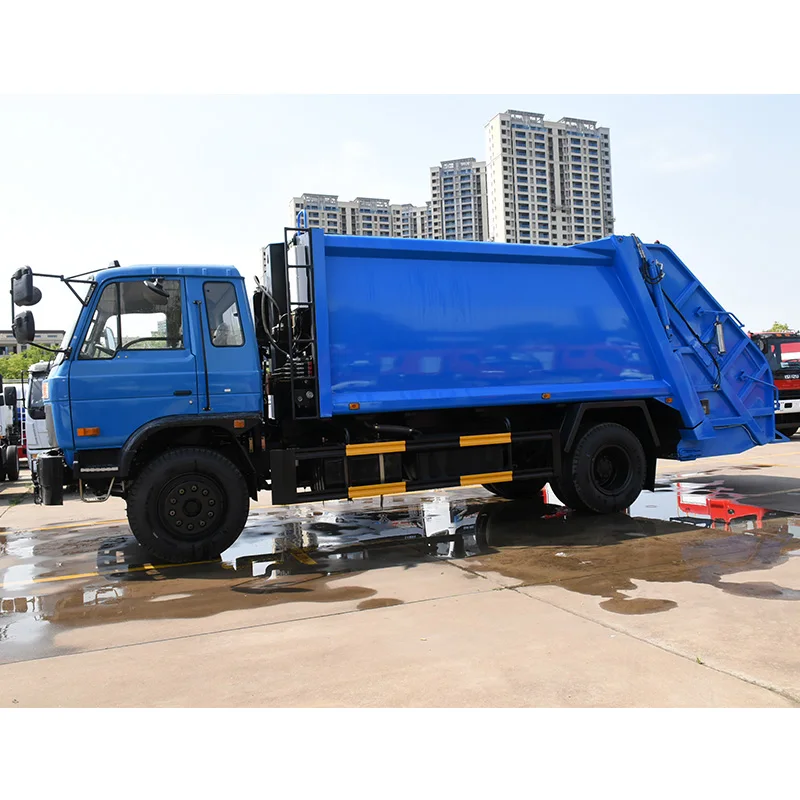

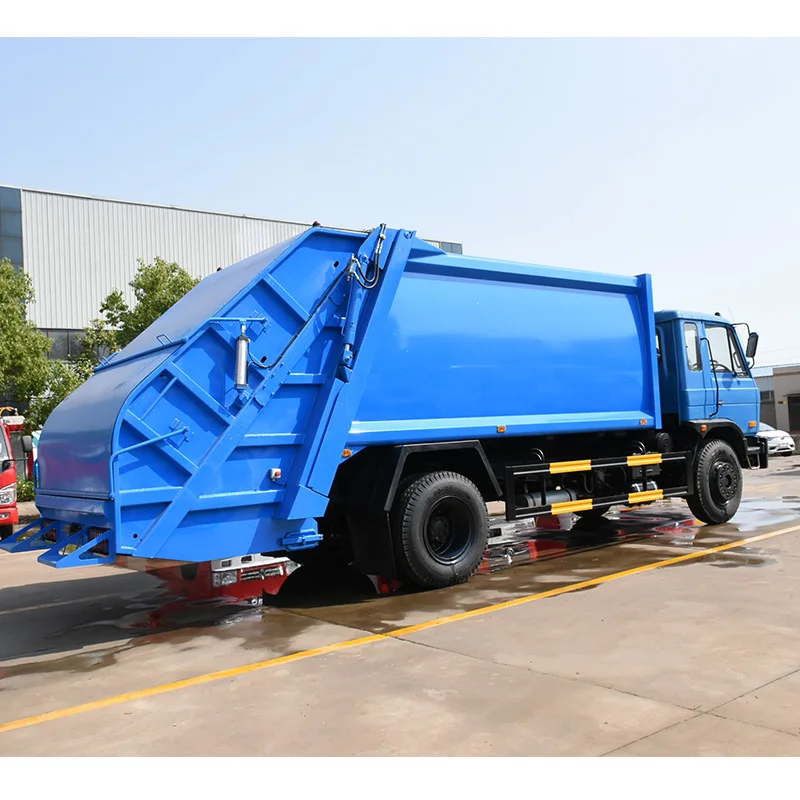

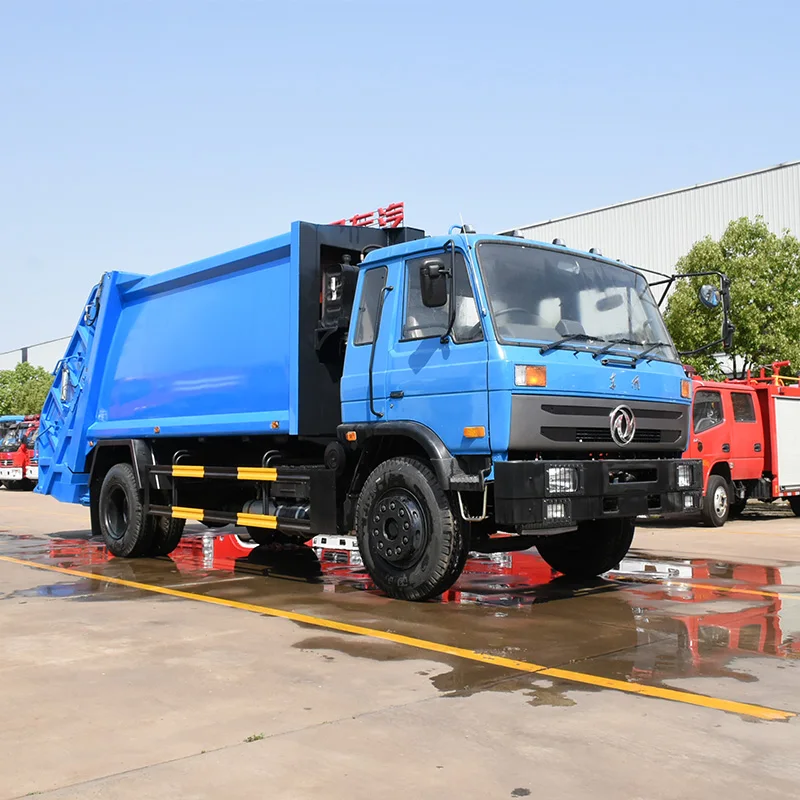

Dongfeng 4x2 10-12cubic Meters municipal machinery trash compactor garbage

Цена:29 000,00 $ - 29 800,00 $*

Количество:

Specification

Vehicle Parameter：
Product Name	Compactor Garbage Truck
Model	YZR5160ZYST5
Chassis No.	EQ1140
Driving Type	4*2
Gross Weight	15800kg
Related Loading Mass	6105kg
Curb Weight	9500kg
Dimension	871025003300mm
Wheelbase	4500（mm）
Front Axle Loading Capacity	5000kg
Rear Axle Loading Capacity	10000kg
Approach angle	23°
Departure angle	14°
Front Suspension	1440mm
Rear Suspension	2770mm
Tire	10.00-20,6+1 PCS
Max Speed	90 (Km/h）
Engine parameters:
Model	B190-33
Horse Power	190hp
Displacement	6700cc
Emission Standard	Euro 3
Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling)
Gear Box
Gear Box	8 forward and 1 reverse
Superstructure Parameter：
Tank Volume	12CBM
Tank Shape	Arc-shape
Tank Material thickness	Bottom:5mm Side:4mm
Tank Material	T420（Special Steel）
Compression Ratio	≥2.5
The effective volume of the bucket	≥0.8m³
Loading cycle time	≤40 s
unload garbage time	≤45s
control method	Automatic、Manual
Maximum pressure of hydraulic system	20MPa
Control System	Siemens PLC
Engine power control	Fully automatic control
Tumbler mechanism	240L Garbage bin（Others Optional）
