Новый китайский гусеничный гидравлический трактор экскаватор XE35U на 3 5
- Категория: Экскаваторы >>>
- Поставщик: Cruking,Engineering,Equipment,(Xiamen),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 15708.60 $* | 16493.27 $* |
| Aug-18-2025 | 15576.26 $* | 16355.9 $* |
| Jul-18-2025 | 13068.57 $* | 13721.79 $* |
| Jun-18-2025 | 15312.69 $* | 16078.44 $* |
| May-18-2025 | 13332.82 $* | 13999.41 $* |
| Apr-18-2025 | 15048.26 $* | 15800.16 $* |
| Mar-18-2025 | 14916.80 $* | 15662.65 $* |
| Feb-18-2025 | 14784.21 $* | 15523.79 $* |
| Jan-18-2025 | 14652.49 $* | 15385.58 $* |
Характеристики
3.5 ton crawler excavator XE35U
Feature
Official 3.5ton hydraulic mini excavator XE35U
XE35U hydraulic excavator cooperates with multi-functional working tools to complete tasks such as excavation, loading, leveling, trenching, crushing, drilling, pinching, lifting, etc. It is widely used in the construction and production of hydropower, transportation, municipal, garden, farmland transformation, oil pipelines, etc.
* More energy-conservation and environmental protection
By adopting famous brand engine meeting national stage III emission standard, mechanical fuel injection pump has reliable performance. With compact size, the maintenance is convenient. Enough low torque reserve can ensure strong power. High reliability can reduce the maintenance cost.
* More efficient return
Rear-end swing radius adopts tailless design, which can ensure that the tail part will not collide with obstacles under narrow working conditions. Deflectable working device can deflect to left and right at 75° and 50° separately, which can achieve compound action with superstructure. Through swing cooperation with superstructure, digging operation parallel to the wall surface will be achieved and various kinds of working conditions can be coped with easily.
* More reliable and durable
Partial strengthen the parts with great stress on boom and arm, and meanwhile adjust the structure to disperse the stress, which makes the life longer. With standard configured new bucket, the depth of bucket is reduced and unloading material will be faster and easier.
Specification
| Model | Metric unit | XE35U | |
| Operating weight | kg | 4200 | |
| Bucket capacity | m3 | 0.11 | |
| Engine | Output power | kW/ r/min | 21.6/2400 |
| torque/speed | N.m | 107.2/1444 | |
| Displacement | L | 1.642 | |
| Main performance | Travel speed(H/L) | km/h | 3.6/2.2 |
| Gradeability | % | 58 | |
| Rotating speed | r/min | 8.5 | |
| Ground pressure | kPa | 36.6 | |
| Bucket digging force | kN | 24.6 | |
| Arm crowd force | kN | 17.8 | |
| Appearance size | Overall length | mm | 4960 |
| Overall width | mm | 1740 | |
| Overall height | mm | 2535 | |
| Width of platform | mm | 1585 | |
| Length of crawler | mm | 2220 | |
| Overall width of chassis | mm | 1740 | |
| Width of crawler | mm | 300 | |
| Track length on ground | mm | 1440 | |
| Crawler gauge | mm | 1721 | |
| Clearance under counterweight | mm | 587 | |
| Min. ground clearance | mm | 297 | |
| Min. tail swing radius | mm | 870 | |
| Working scope | Max. digging height | mm | 5215 |
| Max. dumping height | mm | 3760 | |
| Max. digging depth | mm | 3060 | |
| Max. vertical wall digging depth | mm | 2260 | |
| Max. digging reach | mm | 5415 | |
| Min. swing radius | mm | 2170 | |

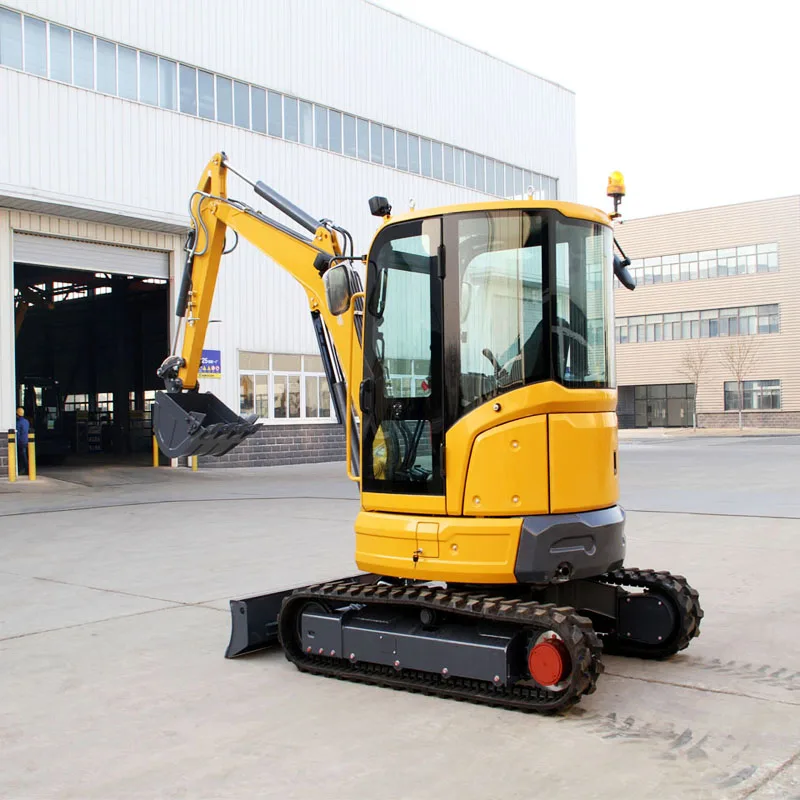

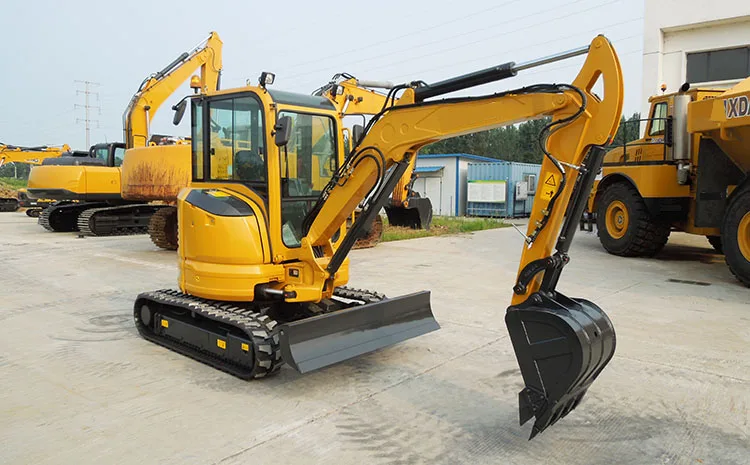

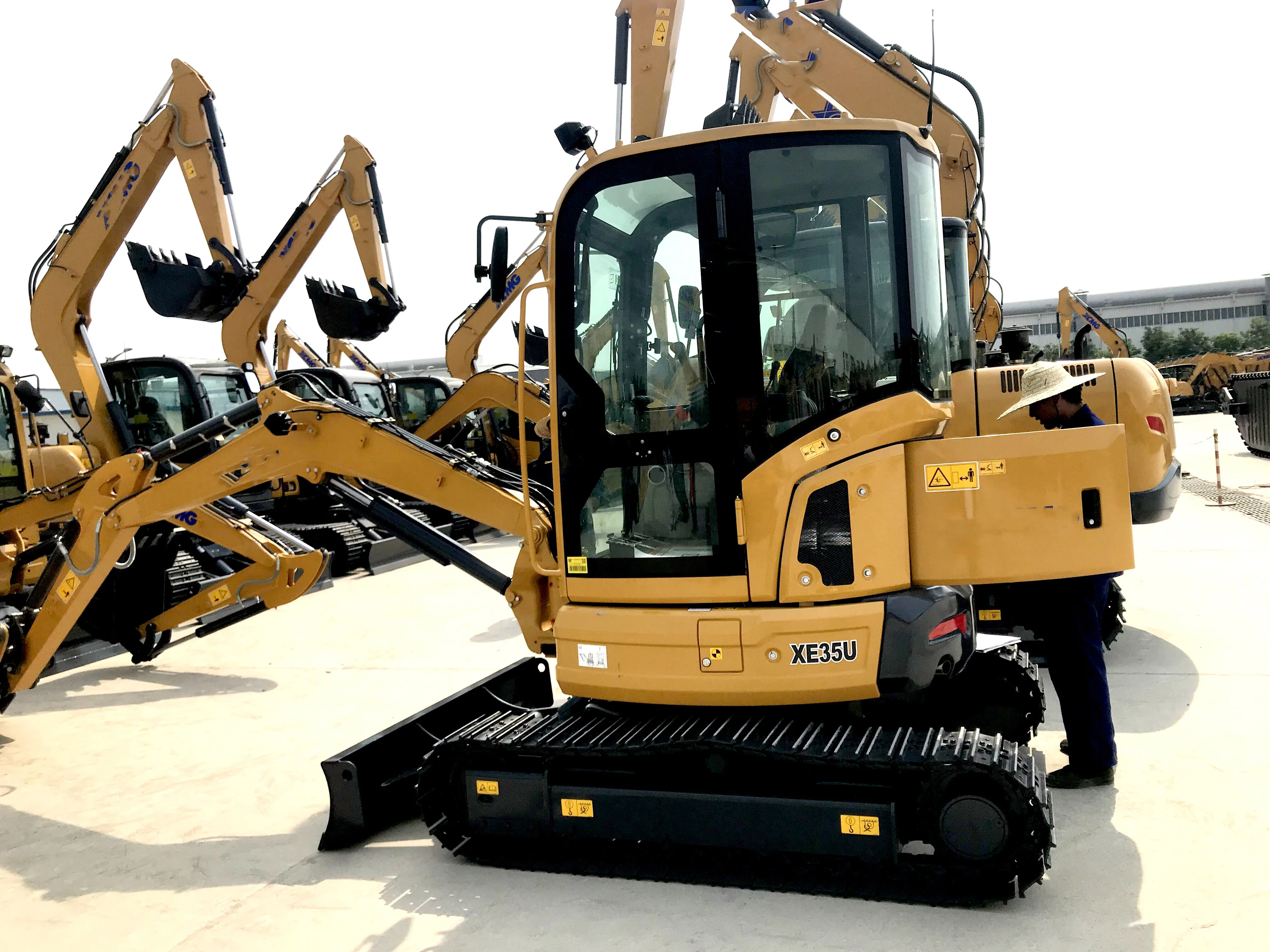

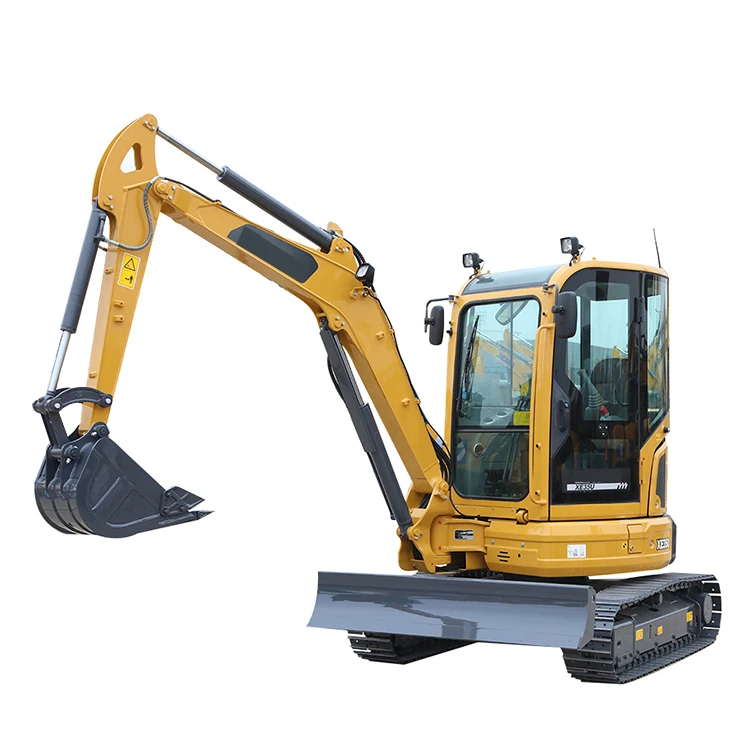

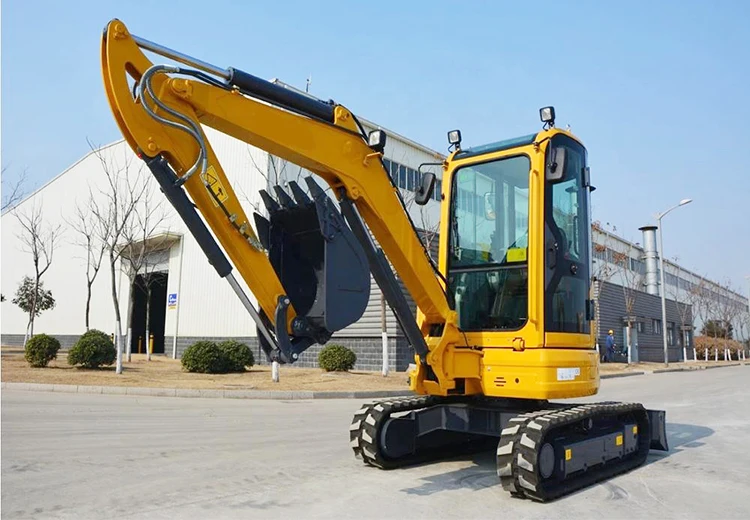

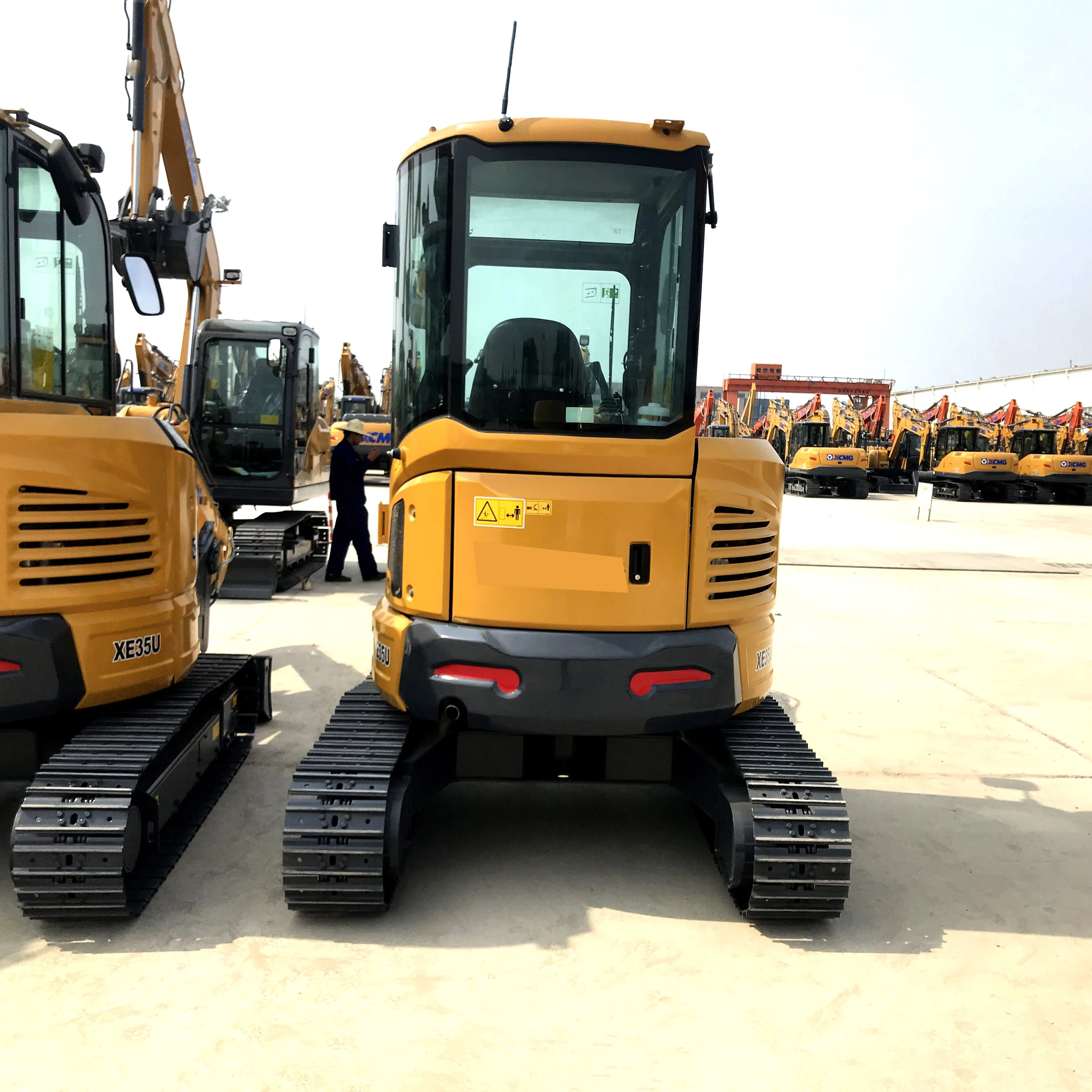

Product Picture
