4wd 30hp farm tractor 4x4 small farm traktor mini tractor

30HP Tractor with Roll Bar

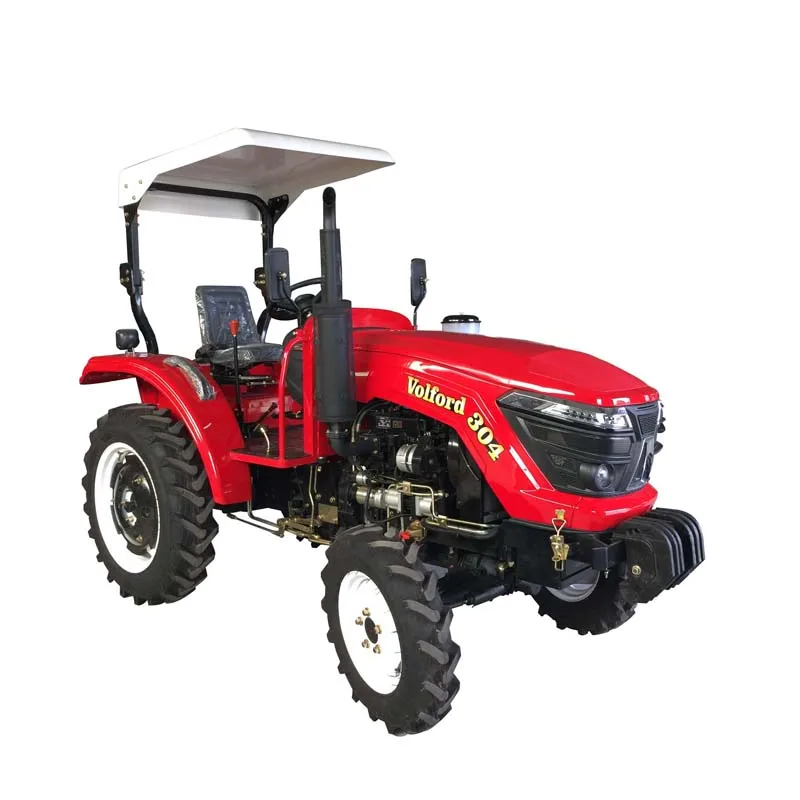

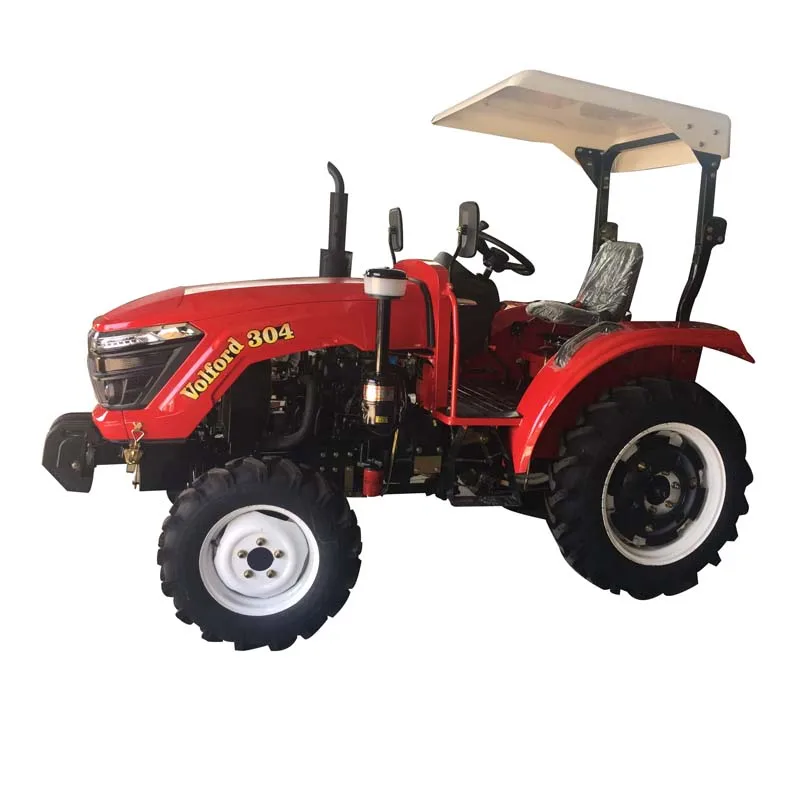

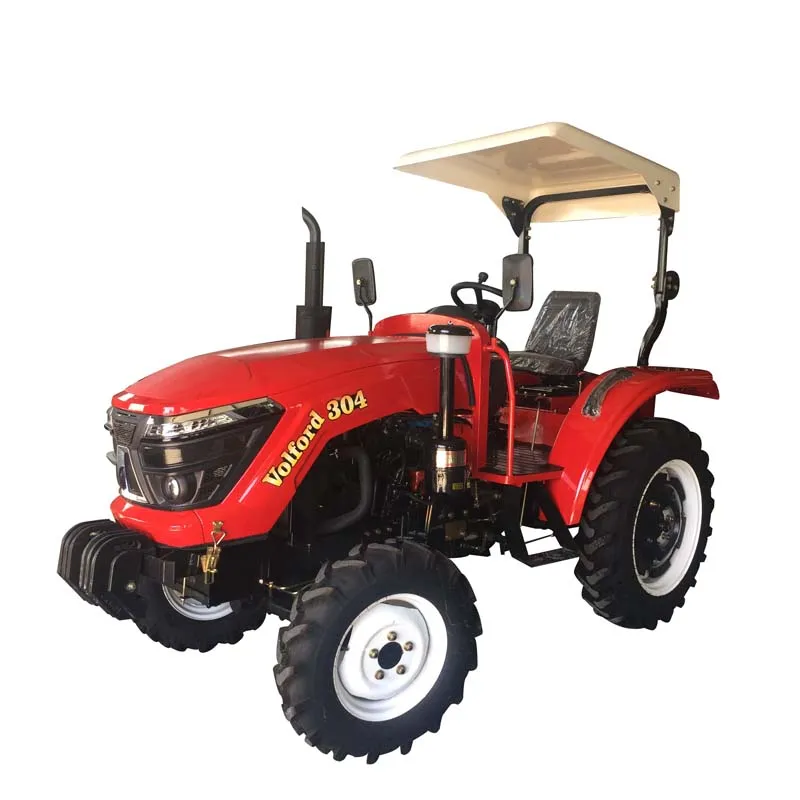

30HP Tractor with Canopy

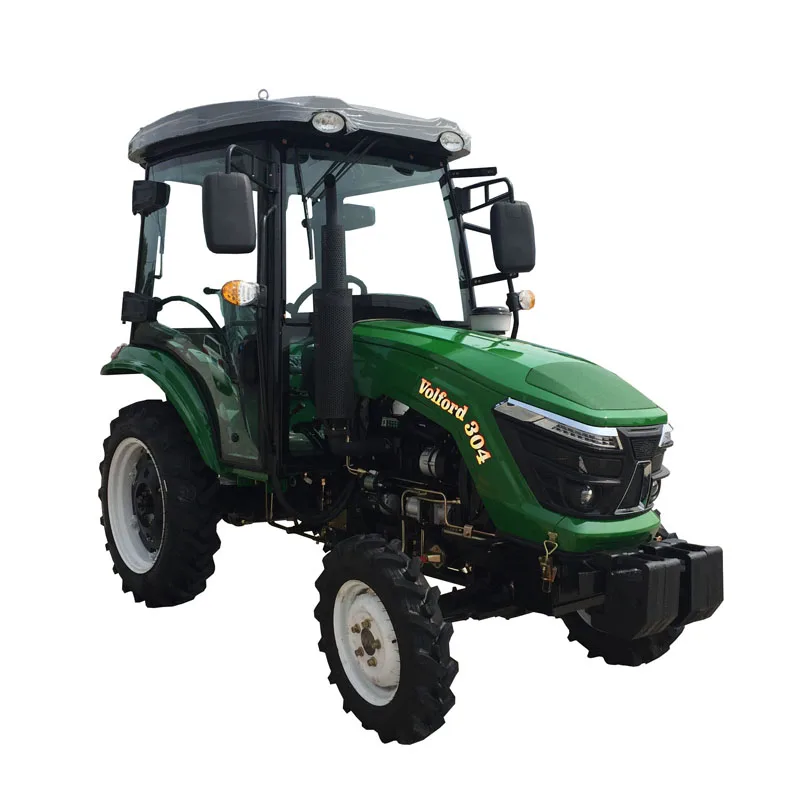

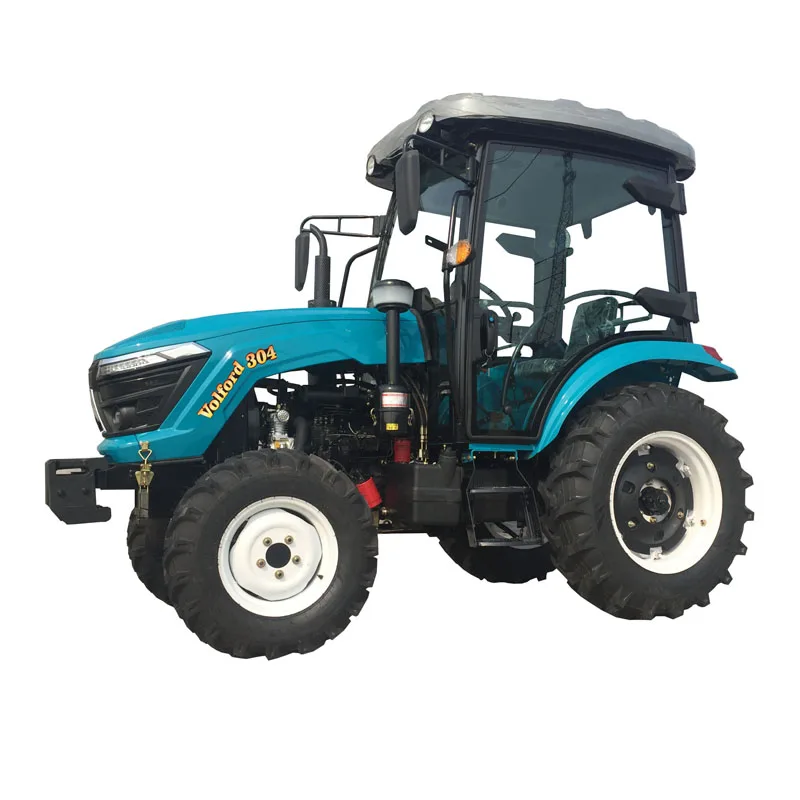

30HP Tractor with Cabin

Driving Operation System

Driving Operation System Suspension Pedals

Basic Introduction

Horsepower: 25hp to 70hp Type: 2wd and 4wd, Rops, Canopy and Cabin Shift: 8+2 Shift/8+8 Shuttle Shift/12+12 Shuttle Shift Color: Red/Green/Blue/Others Heater Cabin: 25hp-70hp Air Conditioner Cabin: 50hp-70hp Paddy Tyre: Agri Tyre/Paddy Tyre/Turf Tyre/Radial Tyre Matched Engine Brand:  Laidong/Yangdong/YTO/Weichai/Lovol/Yunnei/Sida/Xinchai/Quchai/Yuchai

30HP Tractor Specs

Item	Data	Item	Data
Model	VF300/VF304	Drive type	2wd/4wd
Starting	electric	Clutch	single/dual stage
Engine brand	LD/YD/SD	Engine cylinders	3 cylinders
Rated power/speed	22.1/2350kw/rpm	Engine air	Natural
Shift	8F+2R/16F+4R	Front speed	1.73-26.40km/h
Rear speed	2.28-10.54km/h	Brake	drum type
Fuel tank	25L	Steering	mechanical or hydraulic steering
Linkage	three point	Suspension type	categoryI
PTO	540/1000 or 540/760	PTO spline size	6 or 8
Front tyre	5.0-16/6.5-16/7.5-16	Rear tyre	95-24/11.2-24
Front ballast	Yes	Rear ballast	Yes
Swing draw bar	selectable	PTO cover	selectable
Air pump	selectable	Roll bar	selectable
Sun-shade	selectable	Cabin	Yes
Heater	selectable	AC	no
Min turning radius	3.3m	Hydraulic output	1 or 2 groups
Cover hood	metal	Overall dimensions	3250*1550*2020/2250mm
Front wheel track	1000-1300mm	Rear wheel track	1000-1300mm
Wheel base	1750mm	Ground clearance	320mm
Rated traction force	5.8/6.7kn	Construction weight	1650/1750kgs

Tractor Chassis Composition

Multiple Rear Power Take Off



About Us

    At present, we mainly make TY series, TE series, TN series, TB series, TD series, TF series, TC series chassis and gearshift wheel tractors. Full series have entered into mass production stage. Market and agents feedback very nice.  Beijing Taishan Guotai Import Export Co., Ltd. is devoting to developing and produce farm wheel tractors from 25hp to 240hp. We are devoted to provide the most suitable tractors and farm equipment according to customers demand. Our company has invested in the construction of Shandong Volford Machinery Co.,Ltd.  It was set up in 2015, whic cover about 100,000m2, 10 producing plants, 6 producing lines; the total employee is around 500 people. We have the perfect quality control system to ensure the top quality productions: Professional laboratory, complete test equipment, excellent technical team, including senior engineer 5, and technician 12, strict quality control process.

    We have exported to the countries all over the world, such as Europe, Oceania, East Asia, Southeast Asia, and Africa and so on. We warmly welcome you to visit our factory, and all your comment and advice is highly appreciated.
