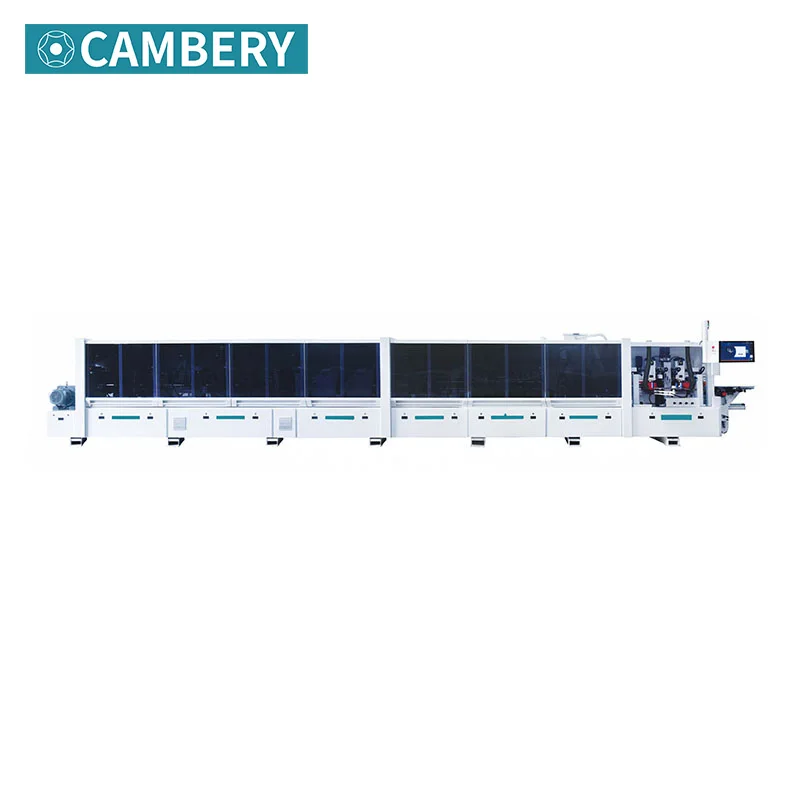

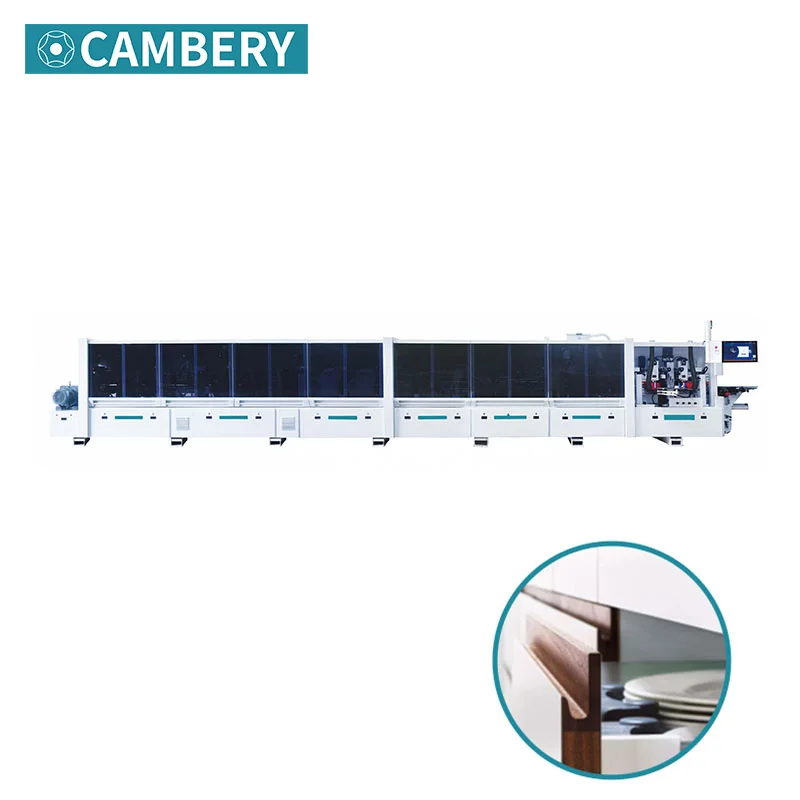

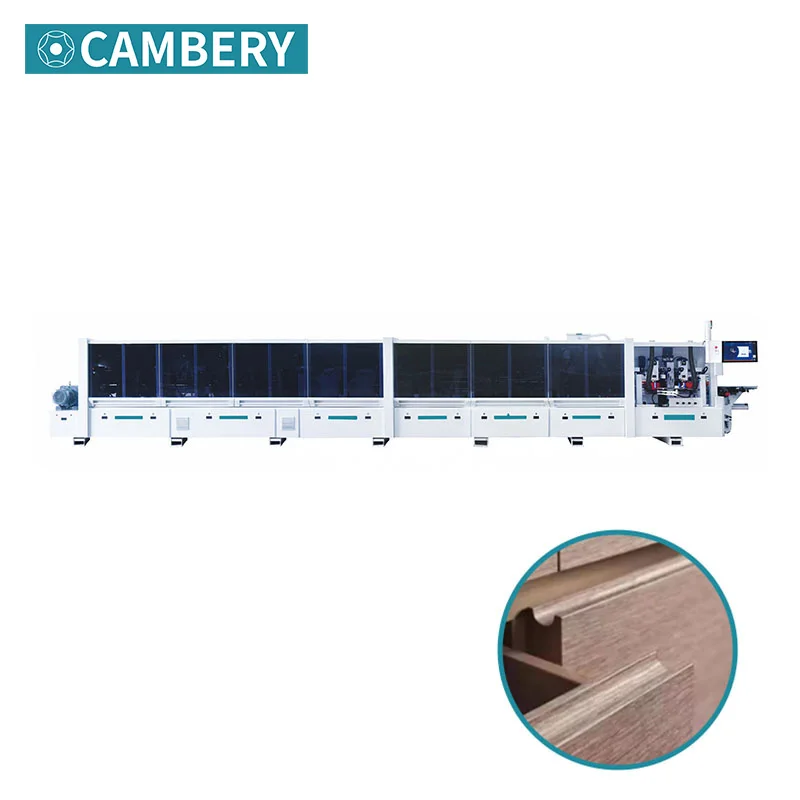

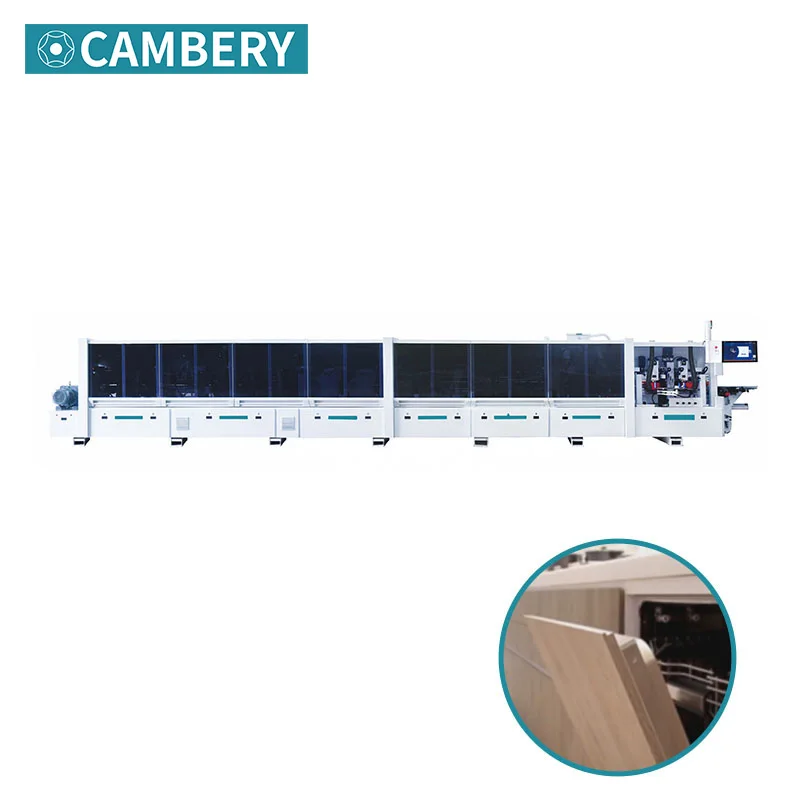

Электрическая гетероморфная машина для запечатывания кромок автоматическая j-образной формы
- Категория: Техника для производства древесных плит >>>
- Поставщик: Foshan,Leader,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 74732.86 $* | 78469.46 $* |
| Aug-15-2025 | 74104.96 $* | 77809.78 $* |
| Jul-15-2025 | 62172.82 $* | 65281.74 $* |
| Jun-15-2025 | 72848.50 $* | 76490.36 $* |
| May-15-2025 | 63428.88 $* | 66599.83 $* |
| Apr-15-2025 | 71592.61 $* | 75172.2 $* |
| Mar-15-2025 | 70964.76 $* | 74512.9 $* |
| Feb-15-2025 | 70336.88 $* | 73853.12 $* |
| Jan-15-2025 | 69708.45 $* | 73193.67 $* |
Характеристики
PRODUCT INFORMATION
TECHNICAL CHARACTERISTICS
Overall Size | Approx. 12000mm*1000mm*2000 mm |
Weight | Approx. 5000 kg |
Power Supply | 380V 50Hz or customized |
Total Power | 56kW |
Pneumatic Loaded | 7 bar |
Feeding Speed | Up to 16 m/min |
Min. Working Size | From 150mm*250mm |
Panel Thickness | J Shape: 18 to 25mm; C Shape: 18 to 25mm; Bevel (X) Shape: 16 to 25mm. |
Edge Tape Application Thick. | J Shape: 0.5 to 0.6mm; C Shape: 0.5 to 0.6mm; Bevel (X) Shape: 0.8 to 1.5mm. |
Control System | LS® PLC with 21.5 inches full color touch screen. |
Electronic Components | Siemens® or equivalent |
Pneumatic Components | AirTac® or equivalent |
● Configuration is variety as per client’s request.
DETAILS DISPLAY
STABLE BEDFRAME
● Stability bedframe which is manufactured by a rigid foundation, with superior welding, CNC machining, tempering and painting process.
ELECTRONIC SYSTEM
● LS® programmable logic controller, CE, UL & CSA certificated.
● 21.5 in. Full color touch screen control panel, user-friendly and graphical operating interface in English.
QUALITY COMPONENTS
● Siemens® electronic components.
● AirTac® Pneumatic components.
● High quality and durable silicon feeding roller.
ELEMENT DETAILS
● Dual electric-drive feeding height adjustment design, with visualized height meter, ease and precise.
● Forming milling element, re-shapes the edge with conspicuous protection and dust removal cover. Rough milling and fine milling process are run by dual high speed milling motors in one station.
● Visualized and large volume glue tank, with fast EVA glue melting system.
● Multi-function gluing head, can be connected to EVA melting system or PUR melting system.
● IR heating elements, it could be started up automatically once panel comes.
● Forming banding element, soft banding for J shape, L shape etc. Three forming sets can be rapid exchanged.
● Automatically double head cutting elements, precise and consistent.
● Dual end cutting stations for different shape panels.
● Dual end cutting stations for different shape panels.
● Rough trimming and fine trimming elements, power by high speed motor (12000 rpm/min).
● Multi scraping elements, optimizing for different shape panels, removing the extra tapes.
● Triple cleansing solution spray, solve the exceeded glue.
● Dual polishing element, for burnishing the edge with double sides treatments.
● Dual polishing element, for burnishing the edge with double sides treatments.
OPTIONS
● PUR glue system.
● EVA glue auto supply system.
● Multi belts exchange system. (2/4/6).
● Self-cycle transportation system.
● EVA glue auto supply system.
● Multi belts exchange system. (2/4/6).
● Self-cycle transportation system.
APPLICATION

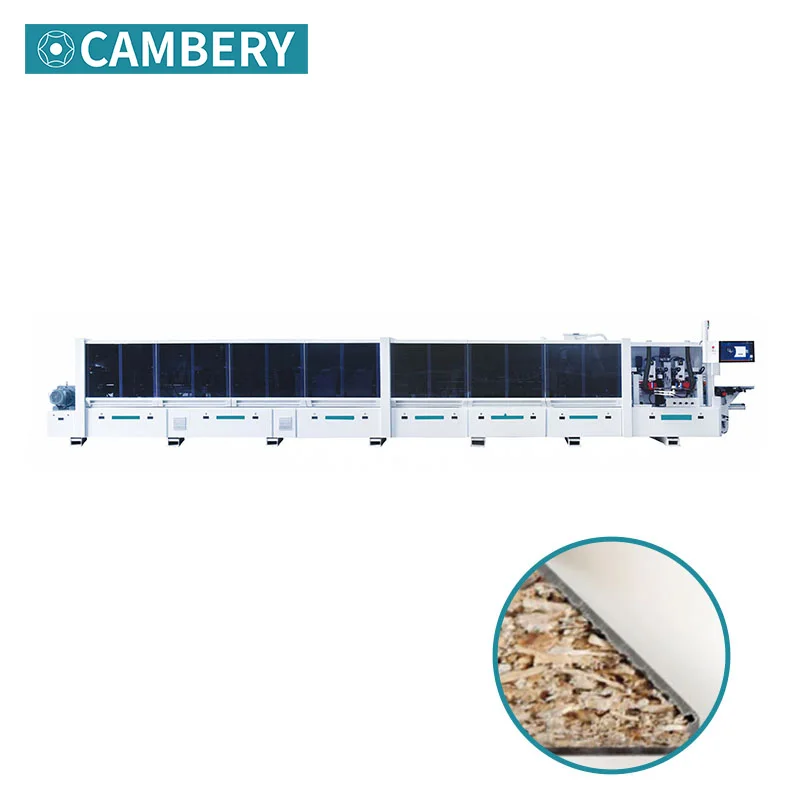

Ideal system with ease and precision for soft edge banding, MDF, particle board, OSB, solid wood, and aluminum honeycomb etc.
