Новая технология 2021 сельскохозяйственный Дрон 32 л сельскохозяйственное Опрыскивание/Сельскохозяйственные Дроны для сельскохозяйственного
- Категория: Летательный аппарат >>>
- Поставщик: Shandong,Joyance,Intelligence,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 8925.42 $* | 9371.13 $* |
| Aug-18-2025 | 8850.95 $* | 9293.57 $* |
| Jul-18-2025 | 7425.29 $* | 7796.74 $* |
| Jun-18-2025 | 8700.72 $* | 9135.84 $* |
| May-18-2025 | 7575.32 $* | 7954.88 $* |
| Apr-18-2025 | 8550.9 $* | 8978.68 $* |
| Mar-18-2025 | 8475.47 $* | 8899.92 $* |
| Feb-18-2025 | 8400.58 $* | 8820.7 $* |
| Jan-18-2025 | 8325.5 $* | 8741.29 $* |
Характеристики
Application
JOYANCE drones have been widely using for crop protection, mosquito control, and public disinfection.
Plantations: rice, corn, sugar cane, soybean, flower, coffee, vegetables, banana, fruit trees.
Chemical use: liquid pesticide, herbicide, foliar fertilizer, fungicide, insecticides, etc.
Sprayer Drone adopts low volume technology, the pesticide droplet diameter is only 50~200um, has better atomization and penetration effect, save 90% water and 20% pesticides use.
High Efficiency: One drone can cover 50~70 hectares field per day.
Compared with plane, tractor and hand-held sprayers, drone sprayer is more efficient, reduce water & pesticides use, has less drift, keeps people away from heat-stroke and chemical poisoning.
Chemical use: liquid pesticide, herbicide, foliar fertilizer, fungicide, insecticides, etc.
Sprayer Drone adopts low volume technology, the pesticide droplet diameter is only 50~200um, has better atomization and penetration effect, save 90% water and 20% pesticides use.
High Efficiency: One drone can cover 50~70 hectares field per day.
Compared with plane, tractor and hand-held sprayers, drone sprayer is more efficient, reduce water & pesticides use, has less drift, keeps people away from heat-stroke and chemical poisoning.
Product Parameter
Capacity: | 32 liters |
Spraying width: | ≥ 10m |
Spraying efficiency: | ≥ 14~16 hectares/hour |
Battery: | 2pc 16s 16000mAh Li-po battery |
Nozzle: | 4pcs centrifugal nozzles |
Fold size: | 1.3 * 0.7 * 0.63 m |
Spread size: | 2.4 * 1.18* 0.63 m |
Charge time | 35 minutes full charge 2 batteries |
Fly Time | 10-15 minutes |
1. How long can the battery fly? |
2pcs batteries can fly for 10-15 minutes. |
2. How long does it take to fully charge the battery? |
About 35 minutes to full charge 2 batteries |
3. How many batteries are needed for a whole day's continuous spraying? |
For continuous spraying, we recommend 12 batteries and 2 chargers |
4. Do you provide training? |
Yes, we provide 3 days' free training online or in China |

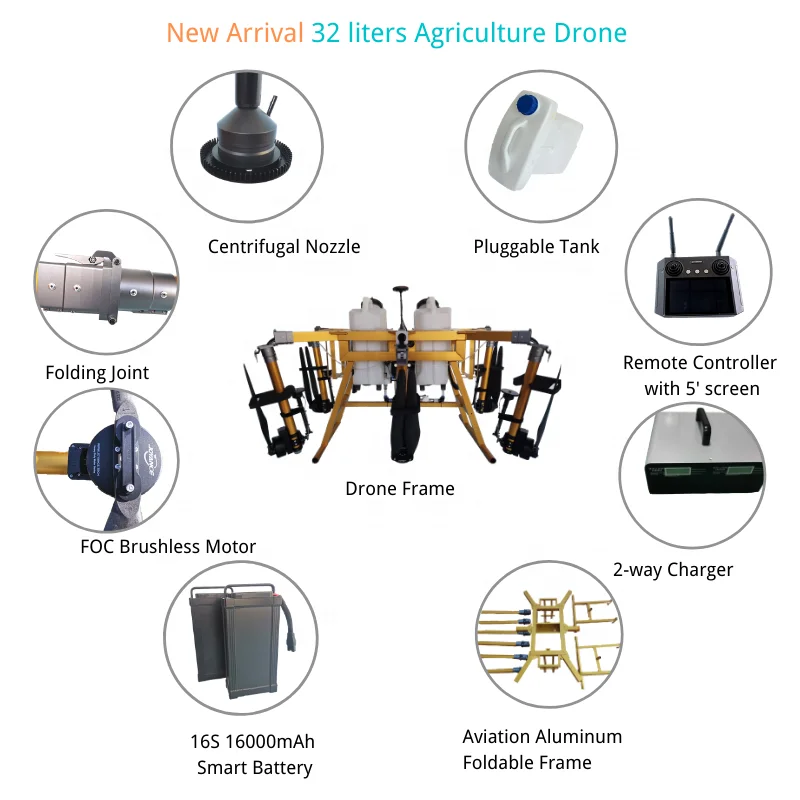

Main Parts
Brushless Motor
Waterproof & Dustproof
Waterproof level IP67
Heavy-duty
With self-cooling system
Work continuously for 12 hours/day
Waterproof & Dustproof
Waterproof level IP67
Heavy-duty
With self-cooling system
Work continuously for 12 hours/day
Centrifugal Nozzle
Droplet diameter of 50~200um
Better atomization effect
Better penetration
Spray more evenly
Not easy to be blocked
Aviation Aluminum Folding Joint
Firm and durable, not deformed.
Carbon fiber drone arm with diameter 40mm, thickness 2.0mm
Suitable for heavy duty work
Long service life
Long service life
Carbon Fiber Propeller

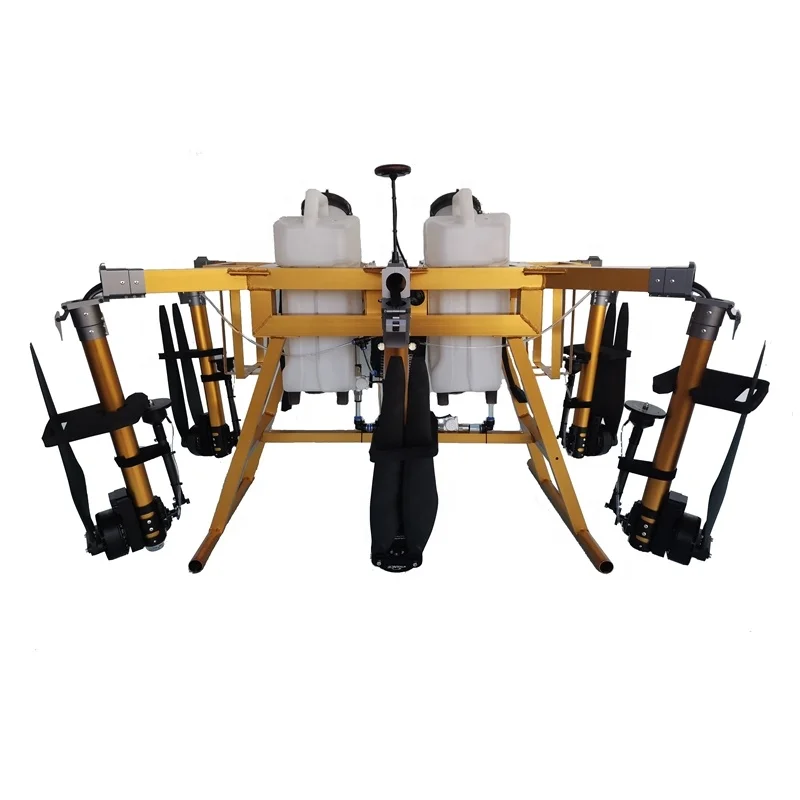

Foldable during transport
FOC integrated power system
Nozzles under propeller
Remote Controller
Integrated with Radio telemetry and Image transmitter, FPV camera, 5 inch screen. 1.5km control distance

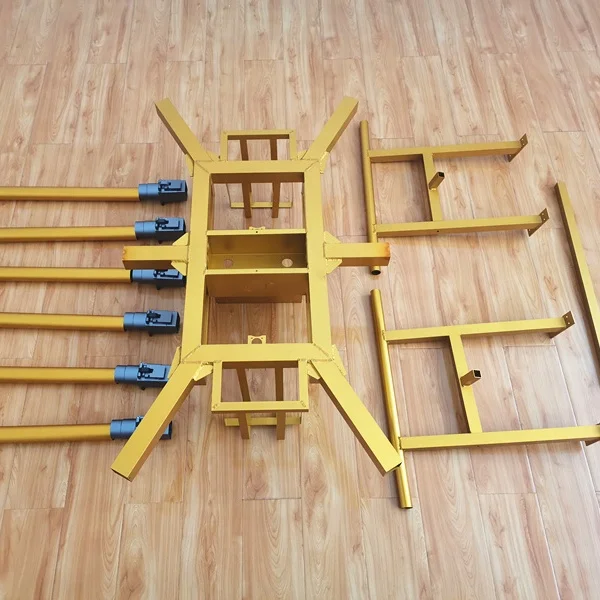

Aviation Aluminum Alloy Frame
The whole frame is made of aviation aluminum alloy material, strong and durable
Product Feature
1. Autonomous Flight: Mark waypoints on Google map, program flight routes in the App, the drone will fly automatically according to the routes. The flight routes can be saved in the account for next time use.
2. Cloud Service: the spraying datas can be uploaded to cloud service platform with internet connection, and the administrator can monitor all the drones registered in this system in real time.
3. Obstacles Detection: the Millimeter wave radar on the front of drone can detect if there are any obstacles in front and stop drone flying forward to avoid any possible crash.
4. Intelligent Spraying: the spray flow can be automatically adjusted by chemical volume per hectare and fly speed.
5. Break-point Record: When the chemical runs out the drone will record break-point and continue spraying after refill.
6. Terrain Following: the Millimeter wave radar can detect the distance between drone and ground/crop surface and automatically adjust flight height to keep constant distance between drone and crops surface to get even spraying.
Other Models
JT20L-606 (20 lts) Spreader Drone
Spray both liquid and granules
Coverage: 9~11 hectares/hour
Specially designed for orchard
JT16L-606QC (16 lts) Sprayer Drone
Quick Coupler/Detachable 16L Agriculture Sprayer Drone with smart battery and GPS
Packing & Delivery
Packing:
1. Drone and all the accessories are packed together in one aluminum transportation box, strong and safe.
2. Each drone will be 100% tested and record video before delivery.
Delivery:
1. Delivery time: 3-7 days for small order, 10-20 days for bulk orders.
2. Shipping Ways: by sea, by air, by express, by railway.
Why Choose Us
Shandong Joyance Intelligence Technology Co., Ltd. is the professional & leading manufacturer of agriculture sprayer drone in China, with 9 years of R&D experience, obtained the CE & FCC & RoHS certification & 12 national patents on 7 models, having 67 different countries users. We have various models of 10L, 15L, 16L, 20L, 32L battery powered sprayer drone, thermal fogger drone, granular spreader drone and 24L hybrid sprayer drone.
FAQ
Q1: Are you Factory or Trading Company?
A1: We are manufacturer with 9 years experience. Our drones have been sold to 67 countries.
Q2: Does your drones can be customized?
A2: We accept OEM for more than 30 drones.
Q3: What is the MOQ (minimum order quantity) of your agricultural drones? How long is the delivery time?
A3: The MOQ is 1 unit. Delivery time is 3-7 days for 1 unit, 10-20 days for bulk orders.
Q4: What is the payment methods?
A4: Wire transfer or credit card. 50% deposit, balance 50% before delivery.
Q5: What is the shipping methods of your sprayer drones?
A5: We can ship drones by sea, by air, by express and by railway.
Q6: Do you provide training and guarantee for the drones?
A6: Yes, we provide 3 days free training online or at site in China, 3 years warranty for drone frame, 1 year warranty for main spare parts, 3 months for wearing spare parts.
