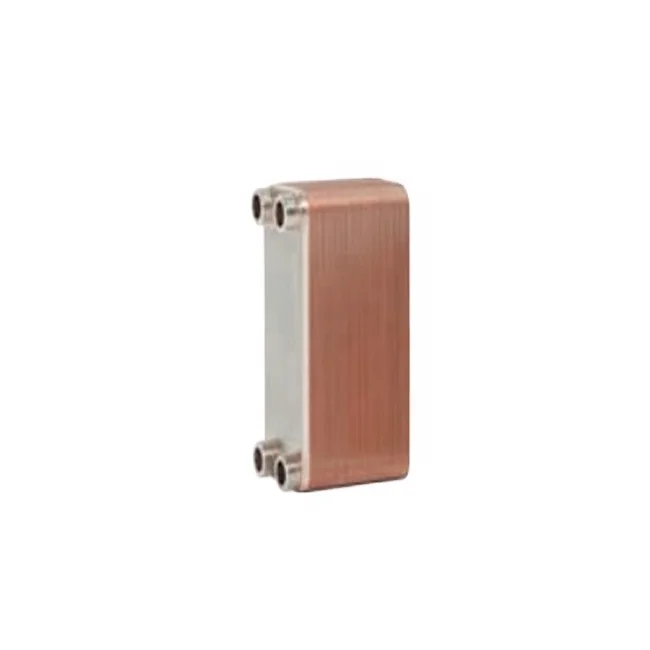

H060 паяный пластинчатый теплообменник воды в воду
US $80.00-$120.00
Высокое давление Swep медный паяный пластинчатый теплообменник для теплового насоса
- Категория: >>>
- Поставщик: Jiangyin,Joywell,Heat,Exchanger,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 129.71 $* | 135.91 $* |
| Aug-19-2025 | 127.98 $* | 133.87 $* |
| Jul-19-2025 | 107.87 $* | 112.81 $* |
| Jun-19-2025 | 125.12 $* | 131.2 $* |
| May-19-2025 | 109.82 $* | 114.3 $* |
| Apr-19-2025 | 123.1 $* | 129.68 $* |
| Mar-19-2025 | 122.73 $* | 128.39 $* |
| Feb-19-2025 | 121.71 $* | 127.26 $* |
| Jan-19-2025 | 120.61 $* | 126.32 $* |
Характеристики
Products Description
B3-026（N:numbe of fines） | ||||||||
Envelop thickness of finsA±5（mm） | Weight(kg) | Volume of one-side passage(L) | Effective working area | |||||
9+2.4N(±5) | 1.1+0.115N | 0.025(N-2) | 0.026X(n-2) | |||||
Parameters of Model B3-026 | ||||||||
Working area of one fin | 0.026(㎡) | |||||||
Type of product | 3.0Mpa | 4.5Mpa | ||||||
Designed pressure | 3.0Mpa | 4.5Mpa | ||||||
Testing pressure | 4.5Mpa | 6.5Mpa | ||||||
Designed temperature | -160℃~+200℃ | |||||||
Max.flowrate at the water side | 18m³/h | |||||||
Number of fins in the maximun assembly | 120PCS | |||||||
Type of fin passage | D、X、H | |||||||
Type of product structure | A、B、C | |||||||
Materials of fin | 304、316L | |||||||
Mounting options | Bolts，footing,temperature detection tube | |||||||
Optional connections of Model B3-026 | ||||||||
Type of connections | Model of connections | |||||||
Screwless welded connection | H103/H104/H105/H106/H207/H210/H211/HH212/H214/H313/D116/D116/D118/D225/S313 | |||||||
Taper male thread connection | R104/R106/R312 | |||||||
Straight male thread connection | W104/R106/R210/R312 | |||||||
Taper female thread connection | C104/C106/R206/R210 | |||||||
straight female thread connection | N104/N106/R206/R210 | |||||||
Product Structure
BPHE Materials | Applicable Medium | ||||||
Channel Plate | SUS 316L or SUS 304 | All refrigerant, except chlorine and ammonia Water and Water Vapor Oil Organic Solvent Gas | |||||
Cover Plate | SUS 304 | ||||||
Brazing Material | Copper | ||||||
Connections | SUS 304 | ||||||
BPHE Advantage
Compact Structure and Easy installation
Light weight: 20% - 30% of shell-tube heat exchanger
Small consumption of water: only need 1/3 of shell tube heat exchanger water
Durability: withstand high temperature 400 ℃ and high pressure 45 bar
Low scaling coefficient: high turbulence reduces scaling coefficient
Light weight: 20% - 30% of shell-tube heat exchanger
Small consumption of water: only need 1/3 of shell tube heat exchanger water
Durability: withstand high temperature 400 ℃ and high pressure 45 bar
Low scaling coefficient: high turbulence reduces scaling coefficient
1.Pipe connectors located on
the front cover plate
2.Water Pipe connector located
on the back cover plate
3. Two additional water pipe connectors can be used for temperature control installation
4. Two refrigerant exits can minimize the flow rate in the connections
5. Dual circuits in refrigerant side, one flow channel in water side
6. Dual circuits in refrigerant side and dual flow channels in water side can achieve relatively higher efficiency circuit
7.Dual circuits in water side can be used for cooling two different water systems
8.Dual circuits in water side and dual flow channels in refrigerant side is used for various cooling media
9.Dual flow channels in both sides is mainly used for the system with very close temperature
BPHE Installation, Operation and Maintenance
BPHE Installation
Plate heat exchanger should be fixed vertically. If chose horizontal or tilt installation, it will not just cause a toboggan of heat transfer efficiency, but also phenomenon of icing and blockage when the exchanger is refrigerating.
Plate heat exchanger products with small pieces(≤ 30 pcs) of model number B3-014, B3-015, B3-020, B3-026 can be fixed directly on the pipe, and large piece of the above on the vibration damper plate, or fixed by riveted bolts, panel beating, bracket and in other ways. If there is a shock, shockproof connection should be used.
Unless in special condition, it shall ensure hot side medium is fed from the top and discharged from the bottom and cold side medium is fed from the bottom and discharged from the top as the heat exchanger is connected with system to guarantee good heat convection and avoiding improper connection.
When plate heat exchanger is connected to pipe in brazing type, first you should clean up the surface, remove the grease, brush in chlorate(or silver soldering flux), insert the copper pipe into the connection, and braze with silver brazing with more than 45% silver. When jointing, aim the flames at the pipes, the highest temperature is not more than 650℃, and the jointing time of the same joint should not be too long. In order to prevent inner from oxidizing, nitrogen should be filled in the heat exchanger.
When plate exchanger larger than B3-095, is connected pipe is brazing type, a wet cloth should be wrapped up in the interface to avoid high temperature. In order to limit heating zone, there should be an angle at the range of the pipe and joint (normally an angle of 30°), using tig or mig. In order to prevent inner from oxidizing, nitrogen should be filled in the heat exchanger.
Plate heat exchanger products with small pieces(≤ 30 pcs) of model number B3-014, B3-015, B3-020, B3-026 can be fixed directly on the pipe, and large piece of the above on the vibration damper plate, or fixed by riveted bolts, panel beating, bracket and in other ways. If there is a shock, shockproof connection should be used.
Unless in special condition, it shall ensure hot side medium is fed from the top and discharged from the bottom and cold side medium is fed from the bottom and discharged from the top as the heat exchanger is connected with system to guarantee good heat convection and avoiding improper connection.
When plate heat exchanger is connected to pipe in brazing type, first you should clean up the surface, remove the grease, brush in chlorate(or silver soldering flux), insert the copper pipe into the connection, and braze with silver brazing with more than 45% silver. When jointing, aim the flames at the pipes, the highest temperature is not more than 650℃, and the jointing time of the same joint should not be too long. In order to prevent inner from oxidizing, nitrogen should be filled in the heat exchanger.
When plate exchanger larger than B3-095, is connected pipe is brazing type, a wet cloth should be wrapped up in the interface to avoid high temperature. In order to limit heating zone, there should be an angle at the range of the pipe and joint (normally an angle of 30°), using tig or mig. In order to prevent inner from oxidizing, nitrogen should be filled in the heat exchanger.
BPHE Operation and Maintenance
Anti prevent clogging If foreign matters enter into the channel of the heat exchanger or the channel is seriously scaled, the blockage for channel will appear, when being used as evaporator, it will cause freezing and used as condenser, it will cause corrosion; both will damage the structure of heat exchanger and result in inner leakage. So it need to pay attention to the pressure loss change of medium before and after passing through heat exchanger, if pressure loss increases suddenly, it shall shut down to clean and maintain the heat exchanger in time, if necessary, the heat exchanger shall be replated to avoid greater losses.
Icing prevention
A. Use antifreeze when the vaporizing temperature is close to the freezing point of one side of liquid.
B. Prevent too little overfilling of refrigerant resulting in over-lower vaporizing temperature
C. Clean and maintain it at routine interval to prevent icing arising from blocking resulted from the scaling in heat exchanger pipes
D. implement soft treatment for water with higher hardness so that the icing is avoided as the heat exchanger pipes is blocked as a result of scaling.
E. Mount drainage devices and carry out evacuation treatment for non-service heat exchanger in such way that the icing is avoided inside the heat exchanger in such way that the icing is avoided inside the heat exchanger when the ambient temperature is too lower.
F. Mount and use the filter screen its mesh less than 1mm in such way the floccus, filaments and bigger sundries are prevented to entering the heat exchanger and the icing is avoided as a result of blocking inside the heat exchanger.
G. Mount water flowing switch for the purpose of guarantee of constant water flowing pre-, middle- and post-operation of compressor in order to prevent the hydraulic pump against shutting down emergently accidentally during in-processing system.
H. Mount low-voltage protection control switch to prevent against too lower suction pressure.
I. Mount protection controller for post expansion valve temperature, then shut off compressor when the post calve temperature is too lower.
J. Mount low-temperature protection controller for chilled water outlet for with cements of high temp-sensitivity.
K. Pay attention to avoiding the failure or delayed control of controller.
Corrosion prevention
A. In order to prevent corrosion heat exchanger against, if must be guaranteed that no affect of corrosion from the heat exchanger mounted and in-service environment as well as medium for exchanging heat on stainless steel metal and copper metal will take place(the content of chloride ion and sulfate ion in heat exchanging medium usually does not exceed 100mg/l)
B. Use the filter screen with mesh less than 1mm in such way the floccus, filaments and bigger sundries are prevented to entering the heat exchanger resulting in blocking.
C. Clean the scaling inside the heat exchanger in time.
D. Ensure that the system is in constant operation to prevent the plates of heat exchanger against strain corrosion resulted from the violent or frequent changes of pressure of system pipes.
E. The liquid into heat exchanger shall be fully drained when the system shuts down its operation and be in long-term non-service.
Cleaning
As for plate heat exchanger, the scaling will occur when the pressure drop increases during its operation. Clean the general oil scaling with cleaning agent; in case of serious scaling, clean it in reverse flow manner for 24 hours with chemicals nondestructive to stainless steel metal and copper metal)e.g. phosphoric acid with concentration of 5% or peroxide acid, mosquito acid, citrate, acetic acid, oxalic acid or other organic acids). When cleaning, control the flowing velocity of cleaning liquid by means of pump pressurizing and the optimum flowing velocity is 1.5-2 times of that of previous liquid. After completion of cleaning, wash the cleaning liquid in the system with plenty of cleaning water, prior to starting the system.
Icing prevention
A. Use antifreeze when the vaporizing temperature is close to the freezing point of one side of liquid.
B. Prevent too little overfilling of refrigerant resulting in over-lower vaporizing temperature
C. Clean and maintain it at routine interval to prevent icing arising from blocking resulted from the scaling in heat exchanger pipes
D. implement soft treatment for water with higher hardness so that the icing is avoided as the heat exchanger pipes is blocked as a result of scaling.
E. Mount drainage devices and carry out evacuation treatment for non-service heat exchanger in such way that the icing is avoided inside the heat exchanger in such way that the icing is avoided inside the heat exchanger when the ambient temperature is too lower.
F. Mount and use the filter screen its mesh less than 1mm in such way the floccus, filaments and bigger sundries are prevented to entering the heat exchanger and the icing is avoided as a result of blocking inside the heat exchanger.
G. Mount water flowing switch for the purpose of guarantee of constant water flowing pre-, middle- and post-operation of compressor in order to prevent the hydraulic pump against shutting down emergently accidentally during in-processing system.
H. Mount low-voltage protection control switch to prevent against too lower suction pressure.
I. Mount protection controller for post expansion valve temperature, then shut off compressor when the post calve temperature is too lower.
J. Mount low-temperature protection controller for chilled water outlet for with cements of high temp-sensitivity.
K. Pay attention to avoiding the failure or delayed control of controller.
Corrosion prevention
A. In order to prevent corrosion heat exchanger against, if must be guaranteed that no affect of corrosion from the heat exchanger mounted and in-service environment as well as medium for exchanging heat on stainless steel metal and copper metal will take place(the content of chloride ion and sulfate ion in heat exchanging medium usually does not exceed 100mg/l)
B. Use the filter screen with mesh less than 1mm in such way the floccus, filaments and bigger sundries are prevented to entering the heat exchanger resulting in blocking.
C. Clean the scaling inside the heat exchanger in time.
D. Ensure that the system is in constant operation to prevent the plates of heat exchanger against strain corrosion resulted from the violent or frequent changes of pressure of system pipes.
E. The liquid into heat exchanger shall be fully drained when the system shuts down its operation and be in long-term non-service.
Cleaning
As for plate heat exchanger, the scaling will occur when the pressure drop increases during its operation. Clean the general oil scaling with cleaning agent; in case of serious scaling, clean it in reverse flow manner for 24 hours with chemicals nondestructive to stainless steel metal and copper metal)e.g. phosphoric acid with concentration of 5% or peroxide acid, mosquito acid, citrate, acetic acid, oxalic acid or other organic acids). When cleaning, control the flowing velocity of cleaning liquid by means of pump pressurizing and the optimum flowing velocity is 1.5-2 times of that of previous liquid. After completion of cleaning, wash the cleaning liquid in the system with plenty of cleaning water, prior to starting the system.
BPHE Model
D Type
High heat transfer coefficient, high resistance, used for small flow with high heat-transfer condition, such as refrigerant phase change heat transfer.
H Type
Between D Type and X Type
X Type
Low heat transfer coefficient, low resistance, used for big flow with low heat-transfer condition, such as air heat exchanger under ambient pressure
BPHE Model | ||||||||||||||

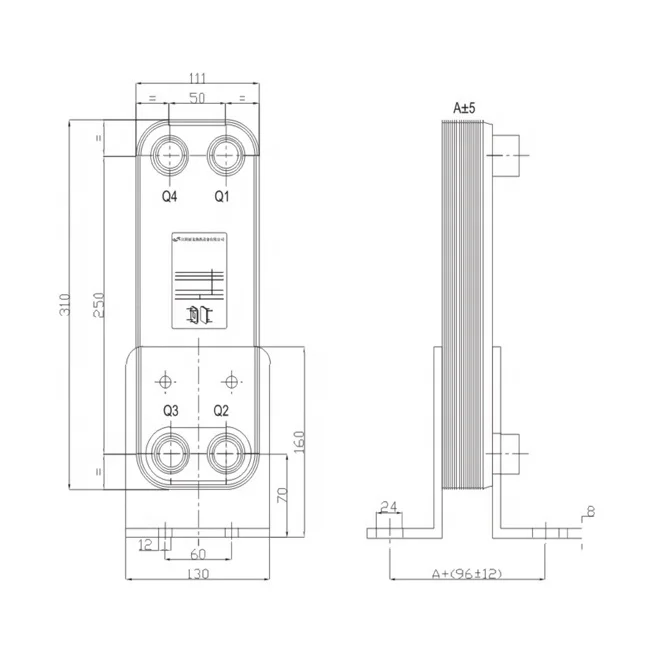

Model | A(mm) | W(mm) | H(mm) | W1(mm) | H1(mm) | Max Tubing | Max Plate No | |||||||
B3-012 | 5+2.3N | 73 | 190 | 40 | 154 | DN20 | 80 | |||||||
B3-013 | 5+2.3N | 77.5 | 192 | 40/42 | 154 | DN20 | 80 | |||||||
B3-014 | 9+2.3N | 76 | 206 | 42 | 172 | DN20 | 80 | |||||||
B3-020 | 9+2.3N | 76 | 310 | 42 | 280 | DN20 | 100 | |||||||
B3-026 | 9+2.4N | 111 | 310 | 50 | 250 | DN40 | 150 | |||||||
B3-028 | 9+2.4N | 126 | 300 | 64 | 240 | DN40 | 150 | |||||||
B3-050 | 9+2.4N | 111 | 525 | 50 | 466 | DN40 | 150 | |||||||
B3-060 | 9+2.4N | 125 | 539 | 64 | 479 | DN40 | 150 | |||||||
B3-095 | 11+2.8N | 191 | 616 | 92 | 519 | DN50 | 240 | |||||||
B3-110 | 11+2.4N | 185 | 611 | 92 | 519 | DN50 | 250 | |||||||
B3-120 | 13+2.38N | 246 | 528 | 174 | 456 | DN50 | 240 | |||||||
B3-190 | 12.5+2.6N | 307 | 695 | 179 | 567 | DN80 | 240 | |||||||
B3-190X | 13+2.7N | 248 | 662 | 122 | 536 | DN80 | 240 | |||||||
B3-200 | 12.5+2.8N | 319 | 734 | 205 | 622 | DN80/DN100 | 240 | |||||||
B3-300 | 13+2.75N | 370 | 985 | 214 | 861 | DN100 | 250 | |||||||
Technical Process
