RF коаксиальный N Тип штекер обжимной прямоугольный разъем для кабеля
- Категория: >>>
- Поставщик: Four,Star,Communication,Parts,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.27 $* | 0.76 $* |
| Aug-17-2025 | 0.37 $* | 0.34 $* |
| Jul-17-2025 | 0.47 $* | 0.17 $* |
| Jun-17-2025 | 0.37 $* | 0.60 $* |
| May-17-2025 | 0.2 $* | 0.55 $* |
| Apr-17-2025 | 0.53 $* | 0.90 $* |
| Mar-17-2025 | 0.52 $* | 0.91 $* |
| Feb-17-2025 | 0.86 $* | 0.73 $* |
| Jan-17-2025 | 0.10 $* | 0.41 $* |
Характеристики
Product Description
TYPE N is a kind of low to medium power connectors with screw coupling,Characteristic impedance has two types:50ohm and 75ohm.The characteristic of connector is high reliability,great vibration performance, excellent mechanical and electrical performance etc. They are used in connection with RF coaxial cable in radio instrument, communication equipment, microwave test and ground launch system at vibration and inclement weather circumstance. By using semi-rigid or semi-flex cable,this type will gain smaller VSWR, and the frequency can by up to 11GHZ.

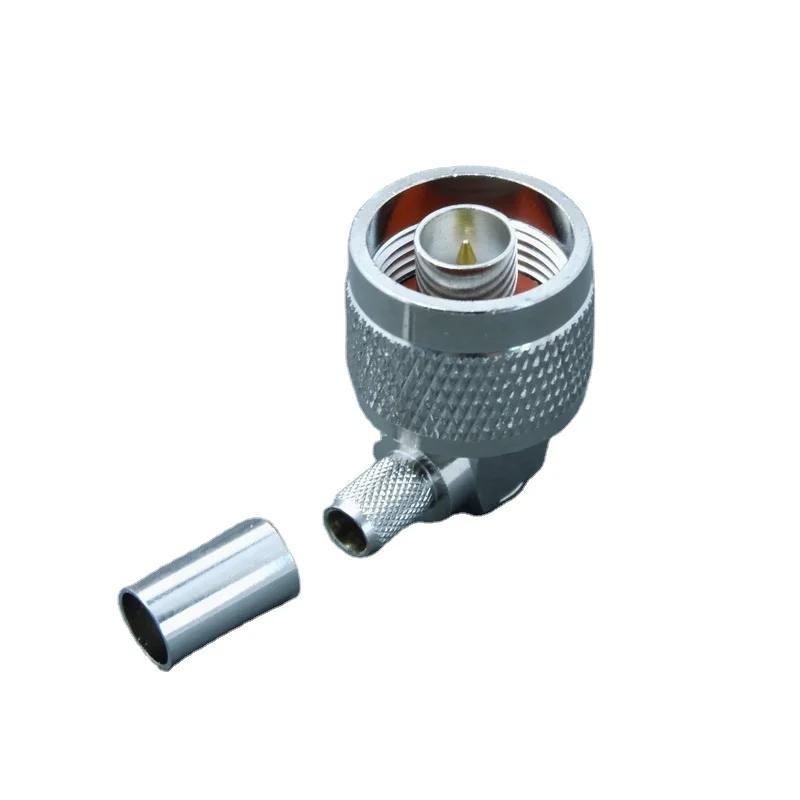

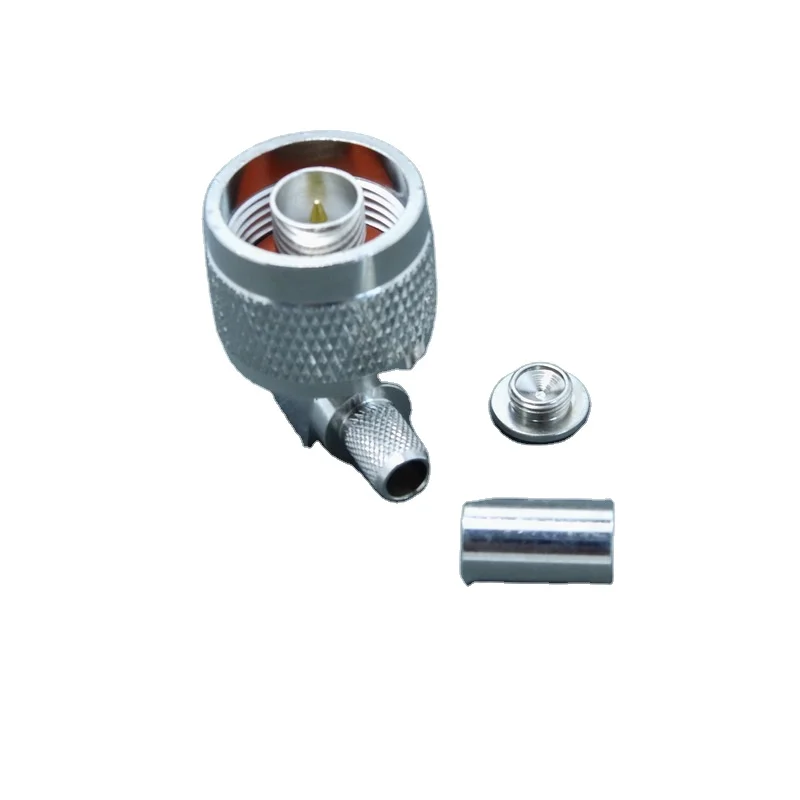

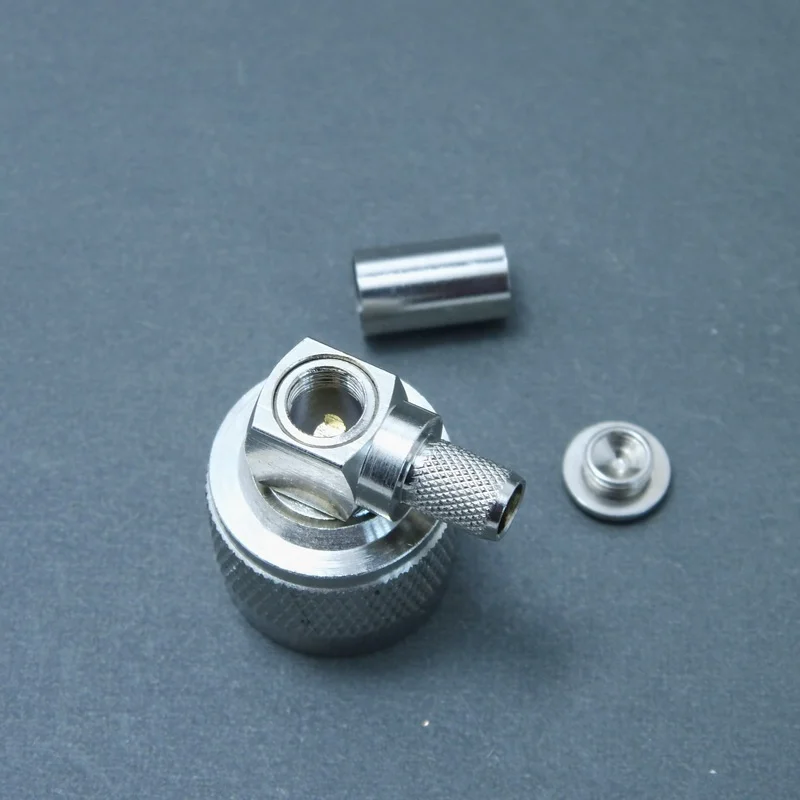

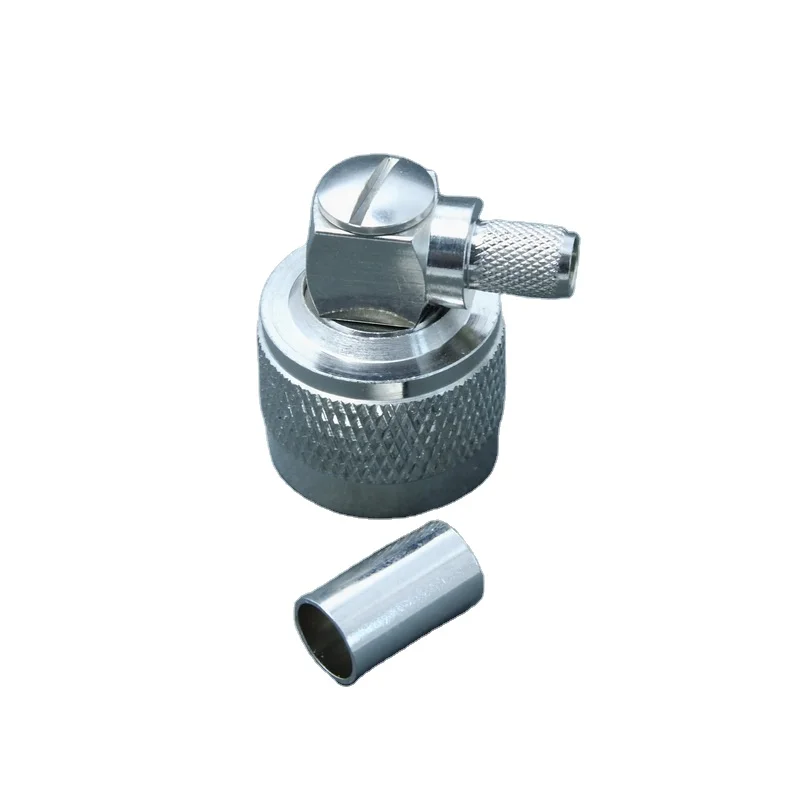

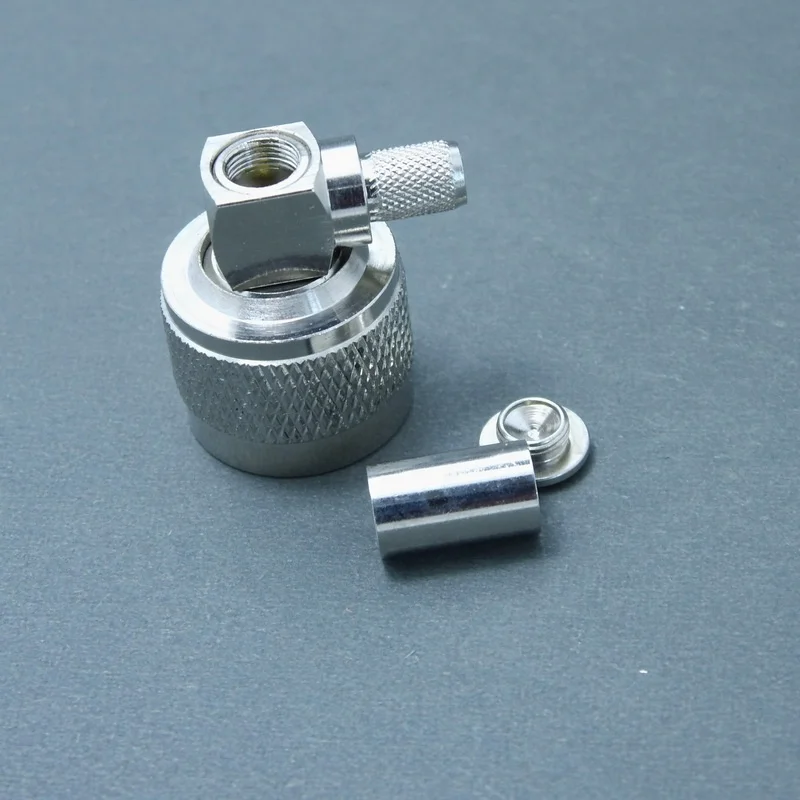

RF Coaxial N Type Male Plug Crimp Right Angle Connector for LMR240 Cable
| Model No. | N-C-JW240 | |
| Interface | IEC 60169-16;MIL-C-39012;CECC-22210 | |
| Electrical | ||
| Characteristic Impedance | 50ohm | |
| Frequency Range | DC-11GHz | |
| VSWR | ≤1.25@DC-3GHz;≤1.35 @3-6GHz | |
| Working Vlotage | 1000V RMS,50Hz,at sea level | |
| Dielectric Withstanding Voltage | ≥2500V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥5000MΩ | |
| Contact Resistance | Center Contact ≤1mΩ | Outer Contact ≤0.25 mΩ |
| Mating | — | |
| Mechanical | ||
| Durability | Mating cycles ≥500 | |
| Material and Plating | ||
| Parts Name | Material | Plating |
| Body | Brass | Ni |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Au |
| Coupling Nut | Brass | Ni |
| Sealing cap | Brass | Ni |
| Gasket | Silicone Rubber | — |
| Ferrule | Annealed Copper | Ni |
| Environmental | ||
| Temperature Range | —40℃~+85℃ | |
| Waterproof Rate | IP68 | |
| RoHS Compliant | Yes | |
Family Model
Production Process
Product usage
Packaging & Shipping
Our Services
Our Service
1.Reply your enquiry within 24 hours. |
2.Payment model: T/T, L/C,Paypal and Western Union |
3.Many Shipping models: By Air, By Sea, Express(DHL, Fedex, TNT UPS...) |
4.Lead(Delivery) time: Normally 14 days after getting order |
5.Port of loading: Shanghai, Ningbo and Shenzhen. |
6.Guarantee Period : Within 12 months after shipment. |
7.Operating guide(Instruction)upon request. |
8.Customized drawing ,sample and package can be done |
FAQ
Q:What about the quality of your products? |
A: Our production process is in conformity with ISO 9001:2008. All products we supplied are strictly tested by our QC department before shipment. |
Q:Can you offer samples to test before placing one formal order? |
Samples for test purpose can be presented free provided that you bear the shipping cost. |
Q:How long is usually your delivery time? |
A: Our delivery time is usually within 14 days after we receive your order . |
Q:What’s your Shipping Methods? |
A: By Sea ;By air (Shanghai port ) ;or by UPS ,DHL,FeDex,TNT etc. |
Q: Can you send a sample for us to develop? |
A: Yes, we can. The samples can be delivered within 7 business days. |
Q: Can we have our logo or company name to be printed on your products or the package? |
A: Yes, you can. Logo and company name can be printed on our products . You can send us the artwork by email in JPEG or TIFF format. |
Q: Is the MOQ fixed? |
A: The MOQ is flexible and we accept small order in the first time as trial order. |
Company Information
Founded in 1994, Four Star Communication Parts Co.,Ltd is located in No.88 S338 Road Zhenjiang City, Jiangsu Province China (230Km away from Shanghai).
Four Star Communication is one of the excellent manufacturer dedicating to design and make RF coaxial connectors, RF cable assembly, Microwave components.
Our products range:
RF coaxial connectors Series : SMA ,SMB,SMC, BNC,TNC, N,7/16 DIN , 1.0/2.3,1.6/5.6 ,SMZ (BT43) ,QMA ,FME,UHF,MCX,MMCX,EIA Flange, 4.3/10 etc.
RF coaxial Cable assembly(Jumper Cable)
Micro-wave Components : Dummy Load(Terminator), Attenuator, Surge Arrestor(Surge Protector), Power Splitter (Divider), Directional Coupler.
